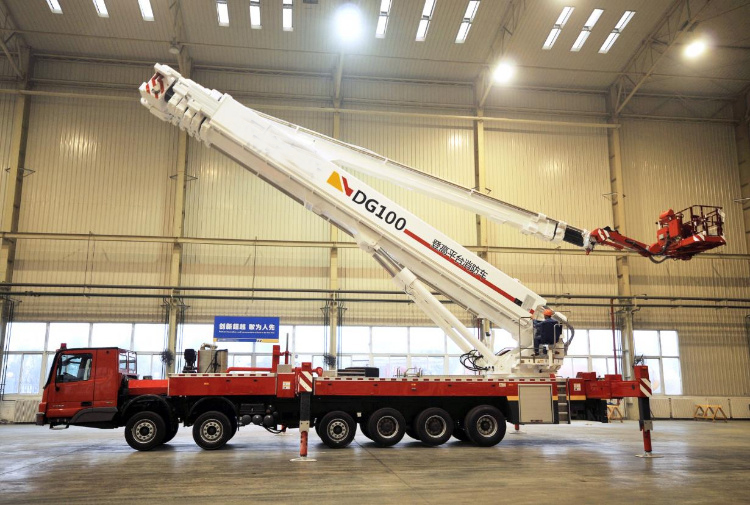

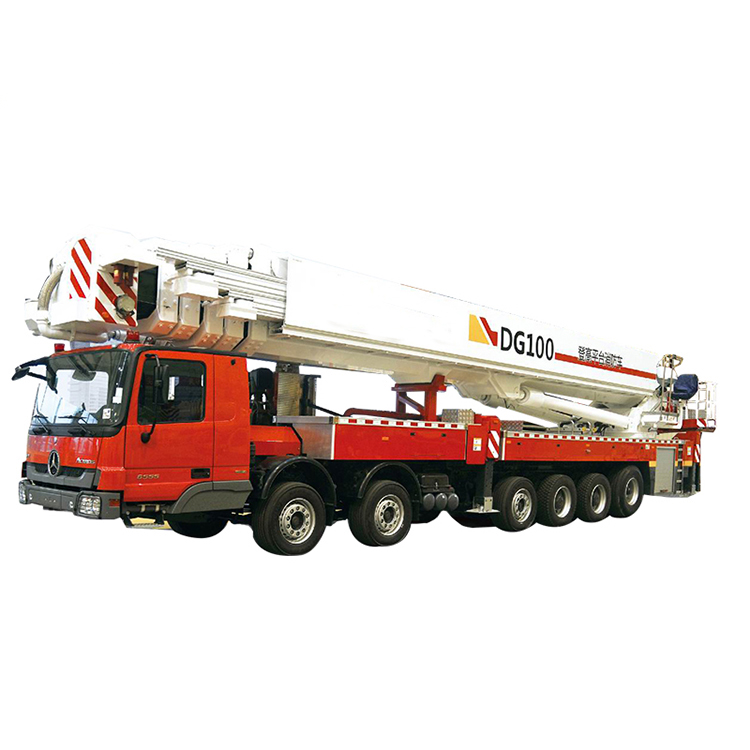

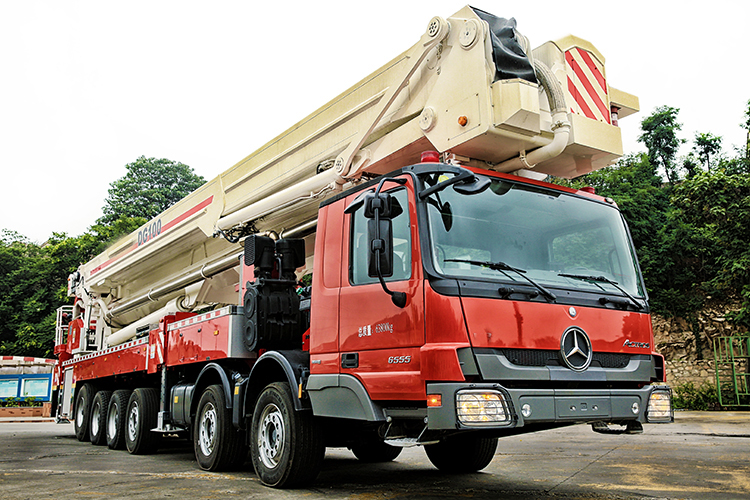

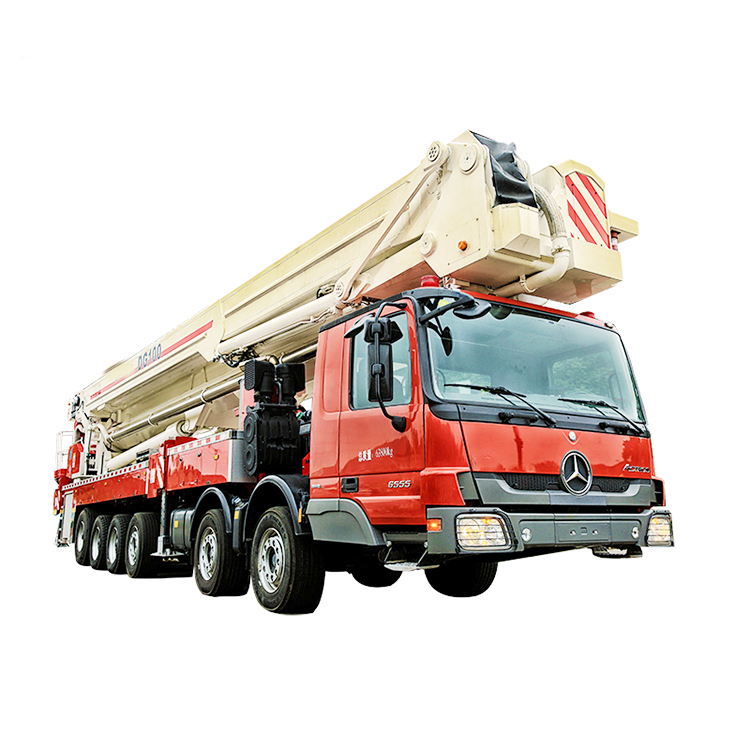

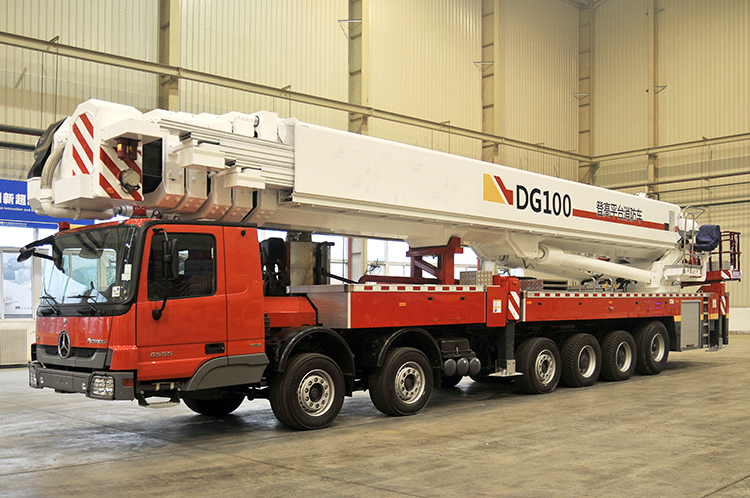

China Famous DG100 Hydraulic Fire Truck Platform 100m Aerial Emergency Fire Truck

Click here to contact

Product details

horsepower:	> 450 hp	payment terms:	L/C, Western Union, D/P, D/A, T/T, MoneyGram
Fuel tank capacity:	< 3000 liters	Drive wheel:	other
color:	customer request	Gasoline type:	diesel engine
delivery time:	within 15 days	Transmission type:	automatic
Place:	Hefei	Key words:	DG100 Fire Truck Platform 100m Aerial Emergency Fire Truck
Key words:	fire engine machinery	product name:	fire truck
Emission Standards:	5 euros	type:	antenna
maximum. Working height:	100 metres	Packaging Details:	wooden box or container
brand:	HL	origin:	Chinese original
size:	1700025503960 mm	Supply capacity:	50 pieces per month
Origin:	China	Package preview:
Other names:	Fire truck ladder	MOQ:	1
Health status:	new	port:	FOB Shanghai

Product Description

thing						parameter
Size parameters	Dimensions	length	mm	17000
				width	mm	2550
				high	mm	3960
		wheelbase			mm	1700+3300+1350+1350+1450
		wheelbase			mm	2087/2087/2087/1804/1804/2045
		front/rear suspension			mm	2740/3650
		forward/backward			mm	172/1288
drive parameters	Maximum speed			km/h	≥80
		The minimum diameter of the turning circle			rice	≤27
		Braking distance (full load, braking initial speed 30km/h)			rice	≤10
		approach angle/departure			°	≥10/≥9
		tilting capacity			%	≥30
		overall quality	total mass	Kilogram	64250
				1 axis	Kilogram	8650
				2 axis	Kilogram	8900
				3 axis	Kilogram	8900
				4.5 Axle	Kilogram	25900
				6 axis	Kilogram	11900
		Maximum Allowable Gross Mass	total mass	Kilogram	64400
				1 axis	Kilogram	8800
				2 axis	Kilogram	8900
				3 axis	Kilogram	8900
				4.5 Axle	Kilogram	25900
				6 axis	Kilogram	11900
Chassis parameters	category				Secondary
		driving type				12×4
		manufacturer				Daimler AG
		engine	Model		OM502 LA.IV/2
				fuel type		diesel engine
				launch/max. net power	ml/kW	15928/405
				emission level		Country IV
				manufacturer		Daimler AG
		Number of leaf springs				4/4/2+_/5/2+_
		Tire specifications				385/55R22.5/315/70R22.5/445/65R22.5
		Number of tires (excluding spare tire)				16
		Allowable capacity of cab				2
