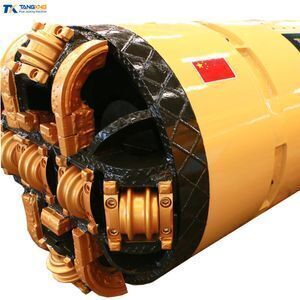

800mm Rock pipe jacking machine/micro tunneling machine

Supplier: Anhui Tangxing Machinery Equipment Co., Ltd.
Region: Anhui, China
Contact: Mr Xing
Price: $220000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Diameter:	800-4000MM;	Certification:	ISO;
Port:	Shanghai;	Weight:	7tons;
Warranty:	12 months;	Place of Origin:	Anhui China (Mainland);
Pipe:	Steel,GRP,RCP;	Condition:	New;
Supply Ability:	20 Set/Sets per Month;	Using:	Pipe Laying Underground;
Dimension(LWH):	980*4400;	Brand Name:	Tangxing;
Type:	trade assurance;	After-sales Service Provided:	Overseas service center available;
Application:	Trenchless underground pipeline laysing;	After-sales Service Provided:	Field installation, commissioning and training,Field maintenance and repair service,Online support;
Packaging Detail:	Standard export packing;	Soil:	Rock, normal soil;
Usage:	Understand Tunnel Pipe laying;	Trenchless:	Trenchless Tunnel Boring Machine;
Payment Terms:	L/C,T/T;	Inner Diameter:	800mm Microtunneling Machine;

Product Description

Specifications

Dimensions	Pipe Jacking Machine OD	￠980mm
Dimensions	Length	4400mm
Cutter Head	Motor Power	1*30KW
	Revolution Speed	5RPM
	Torque	57KN.m
Steering System	Cylinder No.	4
	Thrust	38T*4
	Max. Steering Angle	2.7°
	Pump Station Max. Pressure	31.5MPa
	Pump Station Motor Power	1.5kw
Machine Total Power		33kw
Total Weight		7T
Control	Remote PLC Control(Touch Screen)
Soil	Rock, gravel, normal soil

Our Company

Our company was established in Jan,2005,which is a high-tech enterprise concentrates on manufacturing and designing trenchless pipe jacking machine and provides integral solutions of trenchless engineering technology and equipment.Tangxing Machinery integrates R&D,design,manufacturing and sales for variety types of pipe jacking machines or Tunnel Boring Machines:Slurry balance series,Earth balance series,compound with Slurry&Earth,Open-face,Hard rock series,Rectangular series and Microtunneling machines,of which diameter ranges from 250mm to 4500mm and applied to different kinds of soil condition.Our pipe jacking machines are widely applied to pipeline laying,traffic track ,pipeline reconstruction ,projects crossing river or highway,such as drinking water pipe network,sewage pipe network,natural gas pipe network reconstruction projects in China and overseas,and we also set up sales and service network in the Middle East,Africa,Australia,Singapore,Malaysia,Indonesia,Thailand,Philippines etc.Tangxing Machinery supply a higher quality service with more cautious attitude,advanced technology and better quality all the time,and we are all on the way all the times, aim to support you breakthrough every project, your success.

Certifications

Our Service

Pre-Sales Service

* Detailed analysis for geological conditions of individual projects
*Each machine is designed and customed according to project parameters,soil investigation report & customer request
*Professional advice from industry experts over 30 years
of work experience

After-Sales Service

*Geo-technics advise and consultation
* Machine on-site installation and systems debugging
*On-site machine operation training guidance.
* Engineers of overseas service machinery is available .
*Local spare parts warehouse

After-sales service team in Thailand

After-sales service team in Malaysia

After-sales service team in Singapore

After-sales service team in Malaysia

After-sales service team in Singapore

After-sales service team in China

After-sales service teams of Tangxing in construction site

Warranty service of pipe jacking machine

*One year repair for the main part of the power system at the normal use,excluding man-made damage

*Six months repair and replacement for hydraulic parts

*Six months replacement for electrical parts

*excluding vulnerable parts: displacement sensor, direct ball valve and cutter)

Training Institution

Anhui Tangxing Trenchless Technology Training Institution .

TANGXING is the only appointed trenchless technoloty training institution of China by China society for trenchless technology (CSTT), special conduct pipe jacking operator expert training .

Institution Overview

Professional Theory & Practice Learning

Demo site practise Learning

First semester operators graduate !

Second semester operators graduate!

Quotation Relevant

Good preparation saves work time.

"Please kindly offer below information before the quotation,
because the information is important for equip the suitable machine and effect the quotation."

1.The material of pipe:steel pipe? concrete pipe ? reinforced concrete pipe(RCP)? or Glass Fiber Reinforced Plastics pipe(GRP)? Or etc?

2.What's the dimention of pipe(Diameter *L)? What's the socket type of pipe? The drawing of pipe is best support if available.

3.The soil strata condition of project site.

4.The underground water level.

5.The length of single segment project,and the total length of project.

6.The dimention of working shaft ?
