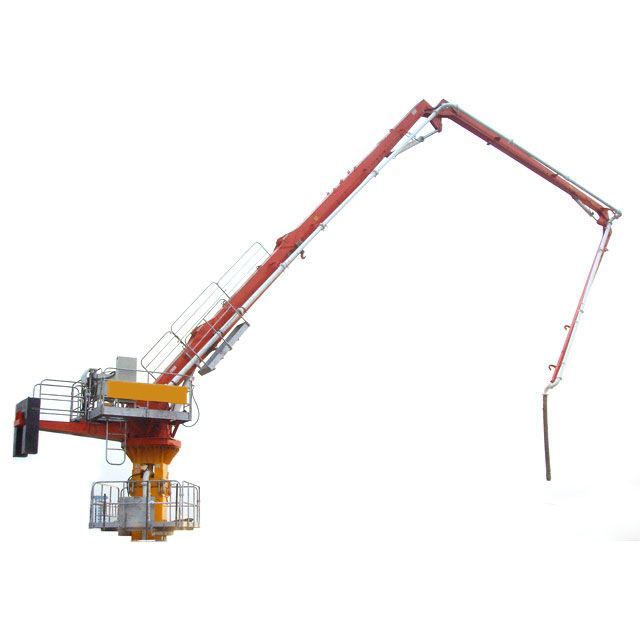

HG28C climbing concrete placing machine, concrete placing machine

Supplier: Realtop Heavy Industry Co., Ltd.
Region: Hunan, China
Contact: Ms Eva Liu
Price: $29000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Showroom location:	not any	After-sales service provided:	On-site service by overseas engineers, video technical support, on-site installation and commissioning training, on-site maintenance services, free spare parts, online support
Supply capacity:	200 sets per month	strength:	15 kW
After warranty service:	Video technical support, online support, spare parts, on-site maintenance and repair services	Unique selling point:	High operating efficiency
Mechanical test report:	if	Health status:	new
Origin:	Hunan, China	Drive rotation:	hydraulic drive swivel
port:	Shenzhen Port	Package preview:
brand:	Ruituo	Marketing Type:	2019 Hot Products
Local service location:	not any	Voltage:	380V/50HZ
type:	Internal creep	Core components:	bearings, pressure vessels
Applicable industries:	Construction Engineering, Energy and Mining	Certification:	ISO9001
Video shipment inspection:	if	diameter:	28 meters

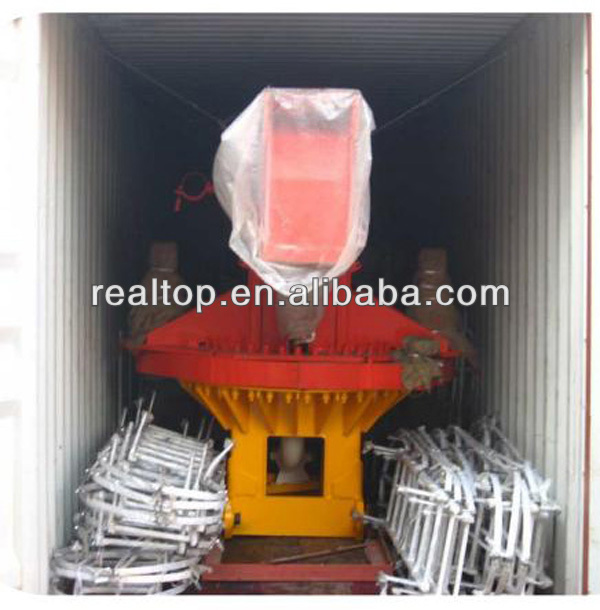

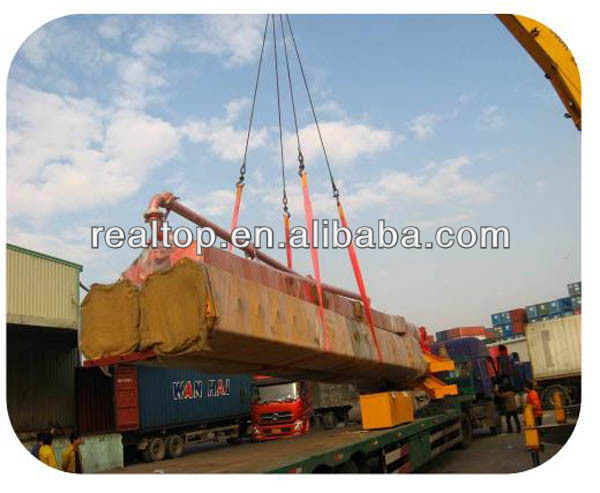

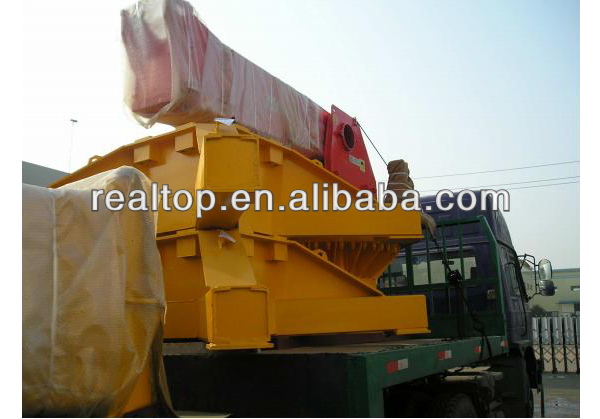

weight:	21 tons	Packaging Details:	wooden box etc.
payment terms:	L/C, T/T	Dimensions (LWH):	Radius 28m * height 23m
Core component warranty:	1 year	Warranty:	1 year

Product Description

application

Self-climbing, climbing by ground frame or shaft frame. It is mainly used for concrete pouring in construction projects, including civil engineering, plant construction, bridge construction, beam yards, nuclear power plants, infrastructure, etc.

characteristic
1) Maximum placement radius: 28 m with 4-section boom.

2)Without counterweight.
3) Control mode: wired and wireless.
4) Installation method: independent, stair-climbing, and ladder-climbing.

5)The slewing base is the same as that of Zoomlion and Sany Heavy Industry.

advantage:
1) Stable quality: The main components are Omron, Schneider and Rexroth.
2) Without counterweight.

3)proportional valve.
4) The column, platform, and main components are in common with Zoomlion, that is, my column can be installed with Zoomlion boom, etc.

Model		HG28C
Delivery pipe size (outer diameter x wall thickness) (mm x mm)		Φ133×4
Delivery hose size (inner diameter x length) (″ x mm)		5″×3000
Cloth arm radius (m)		28
Static height (to the junction between the end of the jib and the turntable (m)		23.97
Four hydraulic folding arms	first quarter	8.55m
	second quarter	7.27m
	third quarter	6.11 meters
	fourth quarter	6.07m
boom articulation	first quarter	-4.2°~+82.5°
	second quarter	0°~180°
	third quarter	0°~180°
	fourth quarter	0°~180°
Rotation range (°)		360
Motor power(kW)		15
Hydraulic system pressure (MPa)		30
Type of hydraulic oil		Esonuto H46
Climbing interval	the climb	3.0~4.2
	pouring concrete	6.0~8.4
	rest
operating mode		1. Wired remote control 2. Radio remote control
strength		380V/50Hz
wind speed	pouring concrete	≤60km/h
	the climb	≤28km/h
Operating temperature		0~48℃
