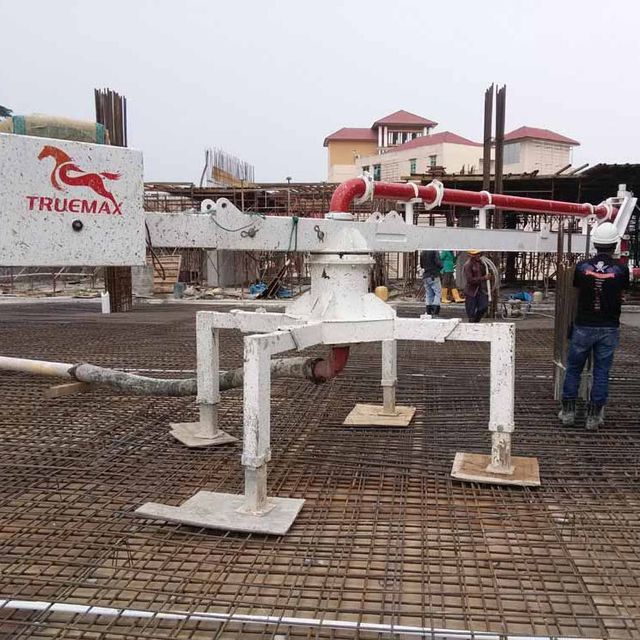

PB10BS-10M Manual Concrete Boom

Supplier: Hangzhou Truemax Machinery & Equipment Co., Ltd.
Region: Zhejiang, China
Contact: Ms Truemax Machinery
Price: $4900.00 /set
Min. Order: 1 set

Click here to contact

Product details

Optional: Rising Support Legs:	400mm/900mm	loading:	3 units/20GP
Packaging Details:	1. Exit standard parking spaces 2. Customized parking spaces	Delivery tube size:	DN125
Origin:	Zhejiang, China	payment terms:	L/C, D/P, D/P, T/T, OA
Counterweight:	0.6 tons	weight:	1.9 tons
Maximum Horizontal Range:	10 m	Unique selling point:	move easily
port:	Shanghai	brand:	True Max
strength:	manual	Delivery pipe material:	ST52/45Mn2
After-sales service provided:	Video technical support, on-site installation, commissioning and training, on-site maintenance and repair services, online support, engineers can provide overseas service machinery	After warranty service:	Video technical support, online support, spare parts, on-site maintenance and repair services
Rest height:	2.2 meters	Local service location:	Egypt, Saudi Arabia, UAE
Work area:	314㎡	Applicable industries:	Building material stores, manufacturing plants, construction projects
Voltage:	manual	Certification:	International Organization for Standardization
Maximum weight:	1.3T	Warranty:	1 year
Supply capacity:	10 sets per month	Health status:	new
Showroom location:	Egypt, Saudi Arabia, UAE

This hydraulic climbing version is ideal for tall buildings, bridges and dams. Placed on pipe strings, they can be climbed automatically by an automatic climbing system, enabling concrete to be delivered in an extremely fast and cost-effective manner.
1: Full hydraulic control, 360°rotation
2: The balance valve is a product of Italian oil control company, and the electromagnetic reversing valve is a product of German Rexroth company
3: The main electrical components adopt world famous brand products such as Omron and Schneider.
4: Two modes of operation: wireless remote control and wired remote control

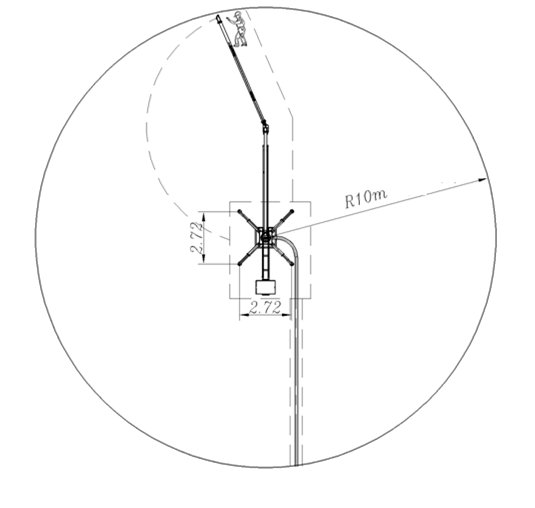

The scope of work:

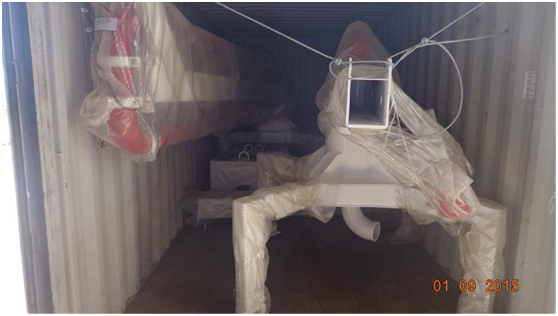

Loading capacity: 2 pieces/1*20GP

parameter

Model		PB10BS
The maximum horizontal extension of the cloth arm (m)		10
Work area		314
Fixed height(m)		2.6
Rotation range (°)		360
operating mode		manual
Arm length (m)	first quarter	4.5
	second quarter	5.5
Outlet pipe size (mm)		DN125
wind speed(m/s)		≤ 13.8
Working temperature (℃)		-20~48
Total weight (including counterweight) (kg)		1750
Counterweight (kg)		600
Maximum weight(kg)		1150

Every day TRUEMAX supplies the design, construction and installation of mixers and mixing plants for some of the most important construction projects worldwide, with a product range that includes a wide range of concrete machinery solutions:
concrete mixing plant
Concrete mixer truck,
concrete placing boom,
concrete pump,
concrete pipeline pump,
Concrete pump truck.
