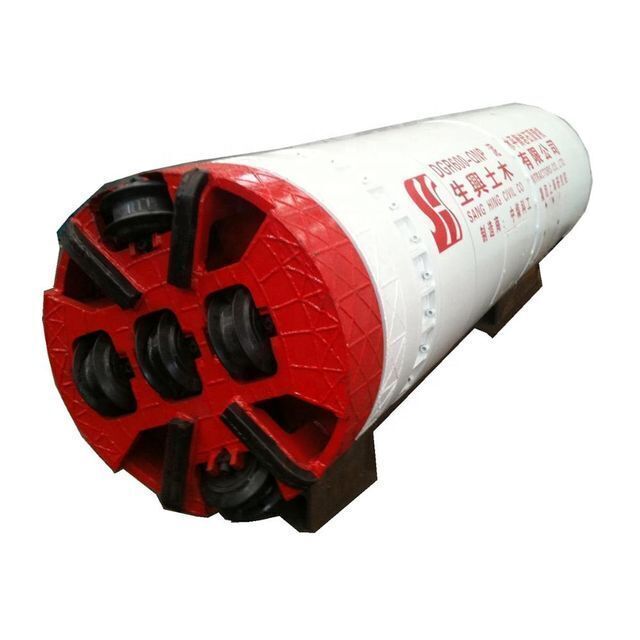

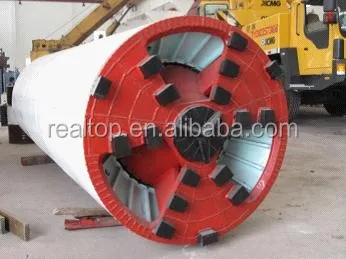

Micro tunnel boring machine ID800 mm, pipe jacking machine, TBM

Supplier: Realtop Heavy Industry Co., Ltd.
Region: Hunan, China
Contact: Ms Eva Liu
Price: $120000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Machinery Test Report:	Provided;	Video outgoing-inspection:	Provided;
Pipe:	Concrete,segamental,steel,HDPE,pipe jacking;	Brand Name:	REALTOP;
After Warranty Service:	Video technical support,Online support,Spare parts,Field maintenance and repair service;	Supply Ability:	30 Set/Sets per Year;
Warranty:	1 Year;	Usage:	Sewage, tunnel, coal mine etc;
Soil:	clay, soil, silt, coal mine all ok;	Dimension(LWH):	1000*3500mm;
Marketing Type:	Hot Product 2019;	Certification:	ISO9001;
Torque:	81KNM;	Showroom Location:	None;
After-sales Service Provided:	Engineers available to service machinery overseas,Video technical support,Field installation, commissioning and training,Field maintenance and repair service,Free spare parts,Online support;	Type:	Slurry balance pipe jacking machine;
Curve jacking:	Yes, experienced;	Port:	Shanghai port China;
Package Preview:	;	Packaging Detail:	Packing according to the needs of customers.;
Condition:	New;	Core Components:	Bearing,Gearbox,Motor;
Job experiences:	More than 20 units applied in Singapore;	Warranty of core components:	1 Year;
Trenchless:	Trenchless Pipe Jacking;	Payment Terms:	L/C,T/T;
Place of Origin:	Hunan China;	Applicable Industries:	Construction works ,Energy & Mining;
Weight:	9tons to 19ton;	Local Service Location:	None;

Product Description

Product Application

Pipe-Jack Machine.
Fit for trenchless underground pipe laying.
Easily control above ground, continuous work.
Fast speed safe! Dameter from 250-3000mm

1. Appliation scope:
For trechless underground pipe laying projects, eg. sewage, water supply, discharging projects, cables, tunnel.....
2. Specifications:
-3.1 Fit in soft soil, clay, sandy soil, gravel soil, hard soil, etc. wide range of soil body.
-3.2 It combines multi-disciplinary technologies in one, such as the machinery units, hydraulic system, electric controller (including PLC), Laser system, measuring device, etc.
-3.3 With independence water and slurry injection system and washing clean device for cutter in particular, fit for big N value hard soil.
-3.4 Jackng speed is very fast, thoery max, speed is 120mm per min.
-3.5 Operation precision high, adjust the direction from up and down, left and right, Max. corrective angle is 2.5 degree.

-3.6 jacking distance can be long.
-3.7 Adopt ground operation system, safe, intuition and convenient!

-3.8 More than 20 units in Singapore.ng tunnel.

Models& Parameters		DG800-QNP
Dimention	Inner diameter (mm)	800
	Outer diameter (mm)	1020
	Total Length (mm)	3800
Main drive	Rated Power (kW)	22
	Max. torque (kN·m)	34
	Revolution (r/min)	6.14
Steering	Steering cylinders	4
	Force per cyl. / oil pressure (kN)	500
	Stroke per cyl. (mm)	60
	Steering angle (°)	±2
Indside hydraulic system	Rated power (kW)	1.5
	working pressure (MPa)	25
Slurry system	Rated Power of Water Supply Pump (kW)	22
	Rated Power of slurry-out Pump (kW)	37
	Side-Slurry line diam.	100
Main Jacking system	Rated Jacking Speed mm/min	0--80
	Work Pressure (MPa)	31.5
	Rated Jacking ForcekNm	2000×4
	Speed-regulation mode	Frequency control

Main Features

Fit for trenchless underground pipe laying.
Easily control above ground, continuous work underground.
Fast speed safe! Diameter from 250-3000mm.

Certifications

Detailed Images

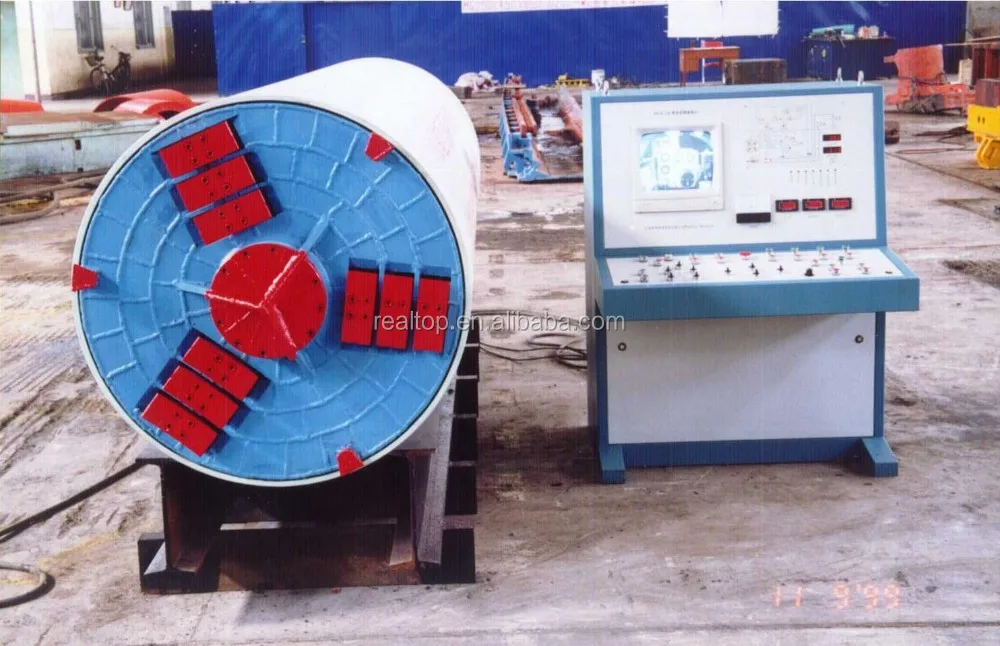

Main operation station.

Pipe jacking monitoring system.

Main jacking pump.

Main cylinder.

Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* We will send professional technicist to project site to operate the machine and train operators for the first section of the project, usually 100m/150/200m etc. (free of charge)

* Longer distance service is available in charge.

Information needed for quotation accordingly:

1. Project total length, distance for one section, how many sections will be built?
2. Pipe type: concrete or steel etc, single length of the pipe? outer and inner diameter ?
3. Projects information: for water supply, sewage project?

4. Underground water level.
5. Soil type? sol report is needed.

Packing & Delivery

Packaging
Size	1000 * 3500 mm + parts
Weight	9T ~ 19T
Packaging Details	Normally delivery by FR, or small size pipe jacking machine will be delivery by normal containers.
