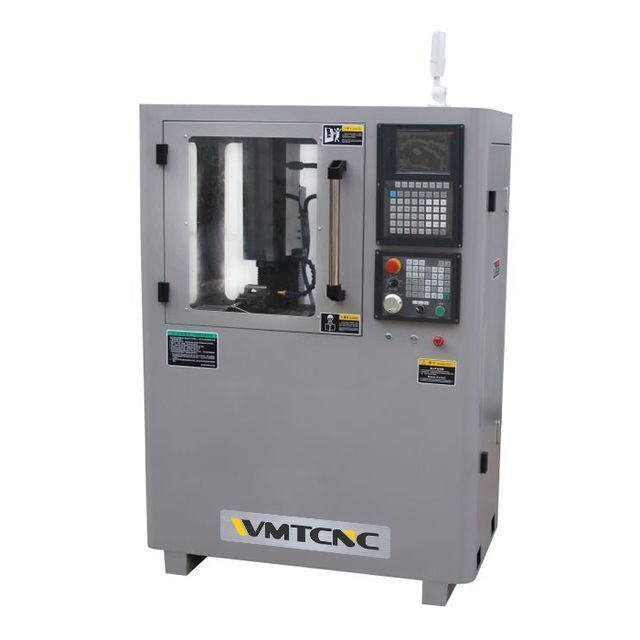

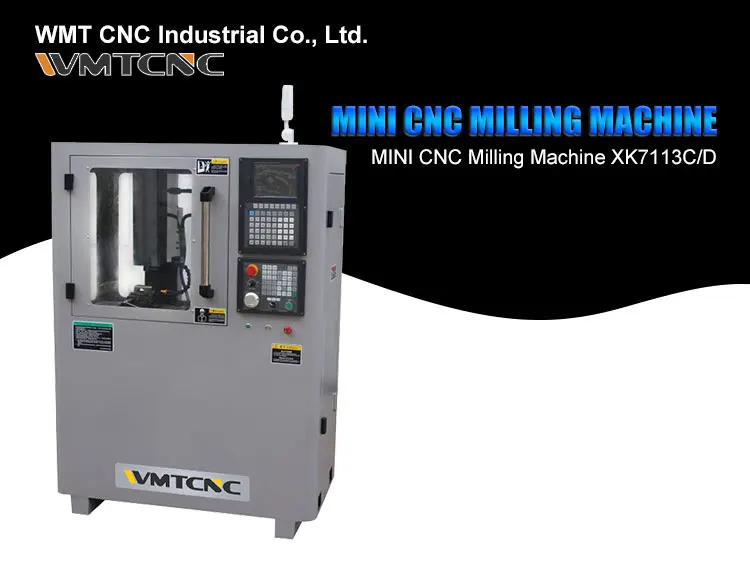

XK7113D 12000rpm high spindle speed mini CNC mill machine with engraving function

Supplier: WMT CNC Industrial Co., Ltd.
Region: Anhui, China
Contact: Ms Sunny Huang
Price: $4545.00 /set
Min. Order: 1 set

Click here to contact

Product details

Selling Units:	Single item;	Local Service Location:	United States,Viet Nam,Philippines,Mexico,Russia,Spain,Thailand,Colombia;
Table Travel (Y) (mm):	120 mm;	Dimension(LWH):	1860X760X1220mm;
Video outgoing-inspection:	Provided;	Max. milling dia.:	13mm;
Package Preview:	;	After Warranty Service:	Video technical support,Online support,Spare parts,Field maintenance and repair service;
Showroom Location:	United States,Viet Nam,Mexico,Russia,Thailand,Argentina,South Korea,Chile,Colombia;	Condition:	New;
Table Travel (mm):	220X120X200;	Weight (KG):	330;
Positioning Accuracy (mm):	0.02;	Single gross weight:	330.0 KG;
Table Travel (X) (mm):	220 mm;	Marketing Type:	New Product 2020;
Logo printing:	OEM service;	Certification:	CE;
Applicable Industries:	Building Material Shops,Manufacturing Plant,Machinery Repair Shops,Retail;	Machinery Test Report:	Provided;
Key Selling Points:	Competitive Price;	CNC Control System:	AFTER;
Type:	VERTICAL;	Number of Axes:	3;
Year:	2021;	Repeatability (X/Y/Z) (mm):	0.02;
Weight:	330kgs;	Packaging Detail:	Plywood case package.;
Voltage:	110V, 220V,380V;	Color:	Customized;
Warranty:	1 Year;	Max. drilling dia.:	13mm;
Range of Spindle Speed(r.p.m):	1 - 12000;	Warranty of core components:	1 Year;
Model Number:	XK7113D;	After-sales Service Provided:	Engineers available to service machinery overseas,Free spare parts,Field installation, commissioning and training,Field maintenance and repair service,Online support,Video technical support;
No. of Spindles:	Single;	Main motor power:	2.2kw;
Machining Capacity:	Light Duty;	Max. Table Load(kg):	50;
Spindle Taper:	ER20;	Machine Type:	CNC mill machine;
CNC or Not:	CNC;	Name:	CNC milling machine;
Single package size:	186X76X122 cm;	Brand Name:	WMTCNC;
Spindle Motor Power(kW):	2.2;	Core Components:	Bearing,Motor,Pump,Gear,Engine,Gearbox;
Table Travel (Z) (mm):	200 mm;	Place of Origin:	Anhui China;

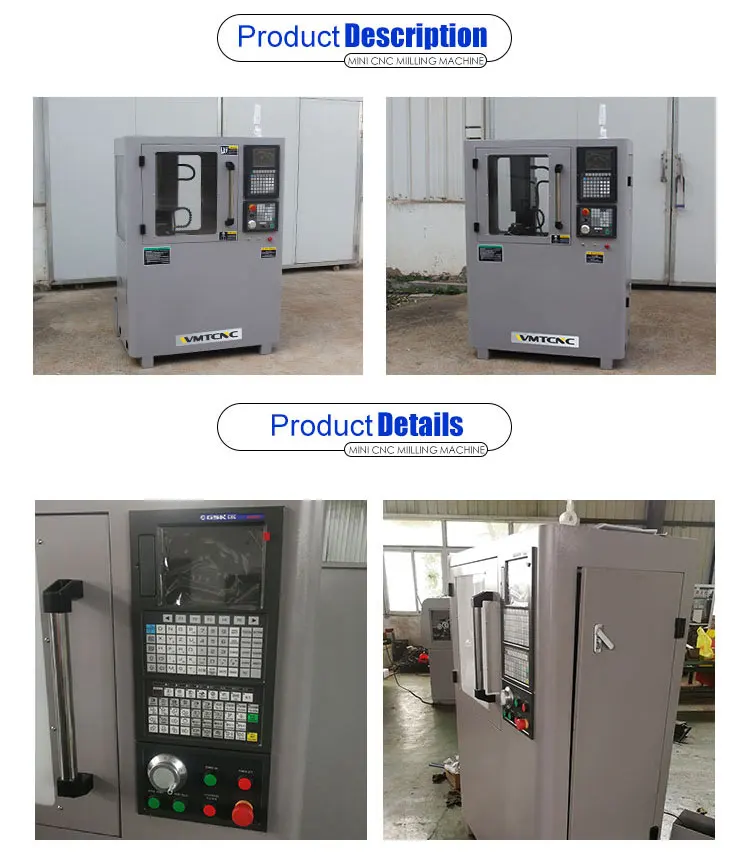

Product Description

Features

12000rpm high-speed electrical spindle unit.
With engraving function.
Suitable for casting and steel processing.
Lower noise and high precision
Vertical controller panel with easy operation and beauty.
Suitable for mould machining and production in lots and engraving.

Specifications	XK7113D
X-axis	220mm
Y-axis	120mm
Z-axis	200mm
Drilling capacity	13mm
T-slot	M12
Table size	400*140mm
Spindle speed	0-12000rpm AFTER control
Spindle motor	3 phase DC type brushless motor with driver 550W
Spindle	ER20 no power spindle
Spindle center to column distance	200mm
Spindle nose to table distance	215mm
spindle taper	ER20
main motor	Frequency motor
Packaging size	18607601220
N/W,G/W	310/330kgs
