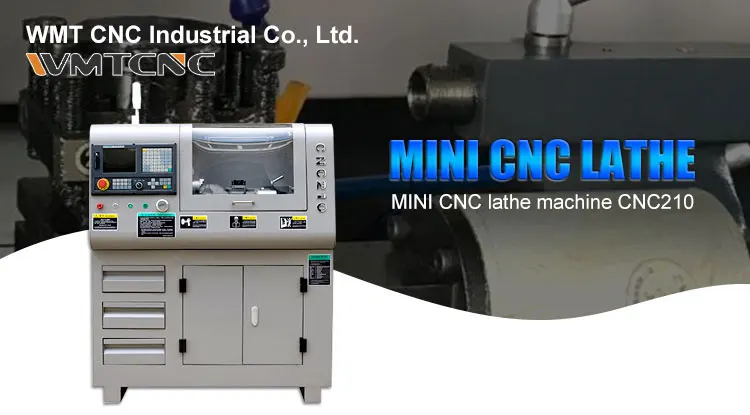

CNC210 Mini CNC Lathe for hobby and School Education

Supplier: WMT CNC Industrial Co., Ltd.
Region: Anhui, China
Contact: Ms Sunny Huang
Price: $4200.00 /set
Min. Order: 1 set

Click here to contact

Product details

Travel (Z Axis)(mm):	300;	CNC Controller:	Fanuc Simens GSK Fargor;
Machinery Test Report:	Provided;	Warranty of core components:	1 Year;
Positioning Accuracy (mm):	0.002 mm;	Supply Ability:	200 Set/Sets per Month;
Name:	Metal Cnc Lathe;	Max. Spindle Speed (r.p.m):	3000;
Repeatability (X/Y/Z) (mm):	0.001;	After-sales Service Provided:	Online support,Video technical support,Free spare parts,Field installation, commissioning and training,Field maintenance and repair service;
Structure:	Flat Bed Lathe;	Automatic Grade:	Automatic;
Voltage:	as customer's requirement;	Key Selling Points:	High-accuracy;

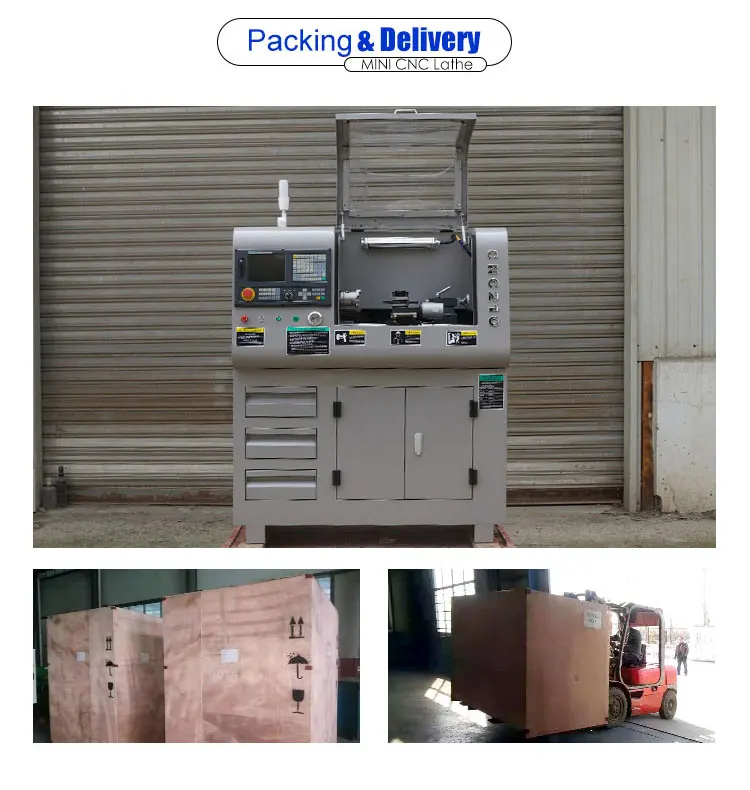

Packaging Detail:	small cnc lathe machine packed by plywood wooden box;	Dimension(LWH):	1170700860mm;
CNC Control System:	After;	Core Components:	Bearing,PLC,Gearbox;
Number of Axes:	2;	Type:	Horizontal;
Year:	new;	Spindle Bore(mm):	26 mm;
Max. Turned Length (mm):	200;	lathe machine cnc tool post:	4 Electrical toolpost;
Payment Terms:	L/C,Western Union,D/P,D/A,T/T,MoneyGram,Trade assurance;	Travel (X Axis)(mm):	90;
Color:	Gray;	Applicable Industries:	Building Material Shops,Machinery Repair Shops,Construction works ;
Width of bed (mm):	100;	Max. Swing Diameter (mm):	210 mm;
Warranty:	1 Year;	Local Service Location:	Egypt,Canada,Turkey,United Kingdom,United States,Italy,France,Germany,Brazil,Peru,Indonesia,Mexico,Russia,Spain,Thailand,Japan,Malaysia,Australia,Argentina,South Korea,Chile,Colombia,Romania,South Africa,None;
Machine Type:	mini cnc lathe CNC210;	Tool Post Stations:	4;
Spindle Motor Power(kW):	1.2;	Certification:	CE, ISO9001;
Max. Weight of Workpiece(kg):	500;	Port:	delivery to Shanghai port;
Max. Length of Workpiece (mm):	400 mm;	Precision:	High Precision;

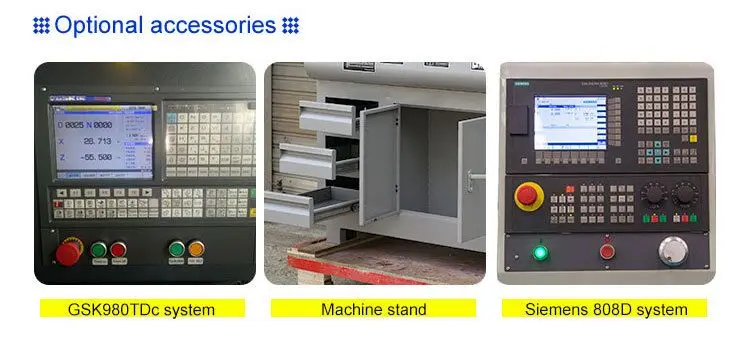

Video outgoing-inspection:	Provided;	Control system:	SIEMENS GSK (optional);
Model Number:	CNC210;	Place of Origin:	Anhui China;
Machining Capacity:	Medium Duty;	Brand Name:	WMTCNC;
After Warranty Service:	Video technical support,Online support,Spare parts;	CNC or Not:	CNC;
Marketing Type:	New Product 2020;	Condition:	New;
Showroom Location:	Egypt,Canada,Turkey,United Kingdom,United States,Italy,France,Germany,Brazil,Peru,Indonesia,Mexico,Spain,Thailand,Argentina,Chile,Colombia,Algeria,Romania,Bangladesh,South Africa,Japan,Malaysia,Australia;	Toolpost Brand:	Hongda;
No. of Spindles:	Single;	Weight (KG):	250;
Package Preview:	;

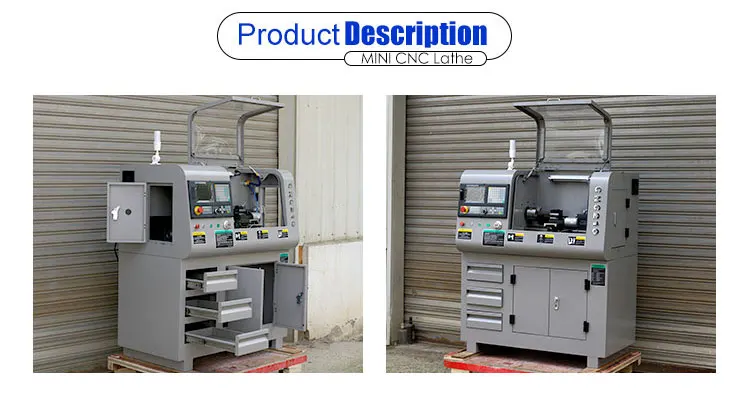

CNC120 CNC Lathe with below features:

1.The machine can process precisely internal or external diameter,face,taper and threading with high efficiency.

2.DC brushless spindle motor
3.Small occuping,lower energy consumption,easy operation,suitable for small processing
4,High-quality spindle by high-precision grinding and support by Angular contact bearing
5.Induction harden bed-way,Bed saddle with plastic sticker can improve the accuracy and service life of machine
6.Macro arithmetic operation can be performed,the processing of complex parts,fully functional,economical and practical with a textbook for teaching.

Specification	CNC210
Max.swing over bed	210mm
Max.swing over carriage	100mm
Distance between centers	400mm
Sindle bore	26mm
Sindle taper	MT4
Spindle speed	3000rpm
X travel	90mm
Z travel	300mm
Tool post	4-position
rapid speed	3m/min
Feeding motor power	3.0 N.M
Feeding motor type	step motor
Spindle motor power	1.2KW
Spindle motor type	incremental Servo motor
Min.setting unit	0.001mm
Tailstock dia.	22mm
Tailstock travel	50mm
Tailstock taper	MT2
Overall size	11707001760mm
Net weight	350KG
