Good price plasma power source for CNC plasma cutter

Supplier: Shandong Jiaxin Machinery Equipment Co., Ltd.
Region: Shandong, China
Contact: Ms Linda Zhu
Price: $880.00 / 1 - 2 sets
$850.00 / >=3 sets
Min. Order: 1 set

Click here to contact

Product details

Place of Origin:	Shandong China;	Weight:	56kg;
Cutting material:	Metal .alloy Metal .aluminum;	Payment Terms:	L/C,T/T,Western Union;
Color:	white;	Max. Output Voltage:	128V;
Year:	2019;	After-sales Service Provided:	Online support,Video technical support;
Supply Ability:	10 Set/Sets per Day;	Maximum cuttingthickness:	20mm 25mm 30mm 35mm 45mm 55mm;
Rated Cutting Current:	70A/105A/120A/200A/300A;	Dimension(LWH):	733370cm;
Port:	Qingdao port;	Cutting mode:	plasma cutting;
Rated load sustainability:	100%;	Voltage:	380v;
Arc ignition mod:	Non contact mode;	Rated Input Voltage:	3~380V/50;
Brand Name:	MISNCO;	Packaging Detail:	wooden box;
Rated input voltage:	3 phase 380V;	Certification:	CE;
Warranty:	1 Year;	Open Circuit Voltage (OCV):	300VDC;
Cutting speed:	0-6000mm/min;	Condition:	New;
Max. Output Current:	120A;	Rated Power:	224KV;
Application:	Industrial Metal Cutting;	Rated Duty Cycle @40°C:	100%;

Product Description

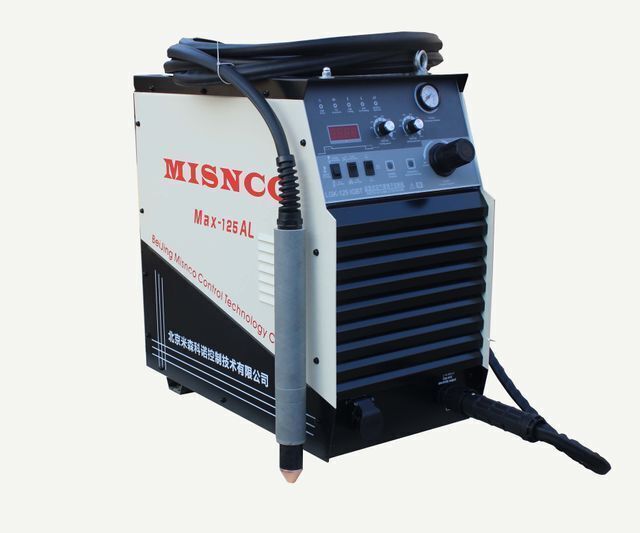

LGK series inverter type air plasma cutting machine, Is a new design of metal processing equipment, Insulated gate high
power transistor IGBT and pulse width modulation (PWM) soft switching technology are used to design and manufacture.
The cutting machine can cut all metal materials, especially suitable for "flame cutting" can not achieve high alloy steel and non-ferrous metals. The seriesof cutting machines have reasonable static and external characteristics, and also have good dynamic characteristics, With high frequency arc starting function .Widely usedin all kinds of machinery manufacturing industry. According to the CISPR11 requirements, the electromagnetic compatibility of the equipment is classified as: class a..

Specification

Model	LGK-70	LGK-105	LGK-120	LGK-160	LGK-200	LGK-300
Rated input voltage	3~380V/50HZ
Rated input capacity	15.6KVA	17.8KVA	22.4KVA	32.2KVA	46.5KVA	65.4KVA
Rated output current	70A	105A	120A	160A	200A	300A
Rated output voltage	100V	120V	128V	144V	160V	200V
Rated load sustainability	100%	100%	100%	100%	100%	100%
No-load voltage	300VDC	300VDC	300VDC	315VDC	315VDC	380VDC
Regulating rangeof current	30~70A	30~105A	30~120A	30~160A	30~200A	30~300A
High quality cutting thickness	0.3-12mm	0.3-16mm	0.3-20mm	0.3-25mm	1-35mm	1-45mm
Maximum cutting thickness	20mm	25mm	30mm	35mm	45mm	55mm
Use of plasma gas	compressed air
Working gas pressure	0.4~0.6MPa	0.4~0.6MPa	0.4~0.6MPa	0.4~0.6MPa	0.4~0.6MPa	0.4~0.6MPa
Cooling method of cutting torch	air-coole			air-cooled/water-cooling
Arc ignition mode	Non contact mod

Features

1.The arc energy is highly concentrated, with good stability and strong cutting force

2. Cutting speed (3-5 times of gas cutting)

3.Cutting costs are low

4.Incision stenosis. Clean and tidy; close to vertical.

5.Small deformation of workpiece

6.The cutting current is adjustable continuously

7.Easy arc setting

8.The operation is very convenient

9.Light weight, small size, easy to move

10.High efficiency, high power factor, it is a kind of energy saving equipment.

11.Low noise and strong adaptability

12.Has two functions of self-locking and non self locking, adapt to the length of slot without requirement, can reduce the labor intensity of workers.

13.Easy to form cutting equipment
