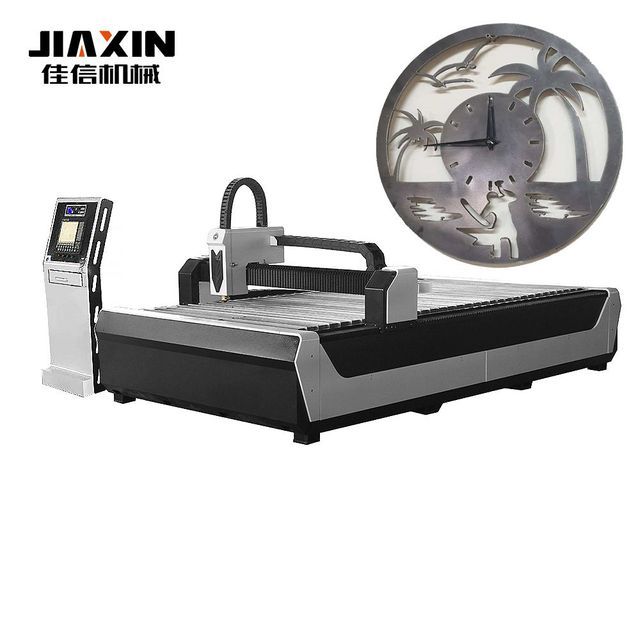

CNC Plasma Cutting Machine Metal Sheet Cutting Machine

Supplier: Shandong Jiaxin Machinery Equipment Co., Ltd.
Region: Shandong, China
Contact: Ms Linda Zhu
Price: $4900.00 /set
Min. Order: 1 set

Click here to contact

Product details

Weight (kg):	2000kg	Marketing type:	Hot Products of 2019
payment terms:	L/C, Western Union, D/P, D/A, T/T	Motor type:	servo motor
Video outbound inspection:	if	aspect:	1530
Dimensions (lengthwidthheight):	395021501500mm	rated power:	3kW
Voltage:	220/380	Applicable industries:	Machine repair shops, manufacturing plants, construction projects, advertising agencies
port:	Qingdao, Shanghai, Tianjin, Guangzhou	Health status:	new
brand:	Jiaxin	model:	JX-T1530
Packaging details:	Fumigation wooden box	Package preview:
Place of origin:	Shandong Province, China	Core component warranty:	1 year
Supply capacity:	100 sets per month	Main selling points:	competitive price
Mechanical test report:	if	Core components:	Motor, PLC
Warranty:	1 year	Showroom location:	not any
Year:	2020

Product Description

Model	JX-T1530H
Effective cutting range (mm)	1500×3000mm
Machine size (mm)	2150x4250mm
Cutting speed (mm/min)	50-10000
Input power	380v±10%VAC, 50/60HZ, three-phase
Enter body	220V±10%V AC, 50/60HZ, single phase
Plasma cutting thickness (mm)	0.5-40mm (according to your plasma power supply)
Torch height controller	F1628
plasma cutting gas	compressed air
cutting torch	A plasma cutting torch with a plasma power supply
CNC controller system	F2300A
engine	Servo motors and drivers
Operation accuracy	±0.2mm
Guide rail length × guide rail width × guide rail thickness (mm)	3500×273×60
Marking software	StarCam or Fastcam
Gas pressure (Mpa)	0.5
arc	Arc ignition is not touched
Processing materials	Iron, steel, aluminum plate, galvanized plate, titanium plate

Product packaging

Cutting example

1. The machine can cut any flat-shaped parts consisting of straight lines and arcs.

2. The graphics can be static or moving, simple and easy to learn. It can be programmed directly on the machine or drawn on a computer or computer.
Attach using ready-made CAD files. The bonus software converts directly into G code program files,
Copy it to the operating system through a USB flash drive and it will be automatically cut.

3. Advantages: double-sided drive structure, exquisite system structure, high degree of automation, simple and convenient operation
Easy to maintain, it is easy to cut from thin plates to large thickness steel plates.

4. Purpose: The machine can cut carbon steel, stainless steel, alloy steel, aluminum and other non-ferrous metal plates.
