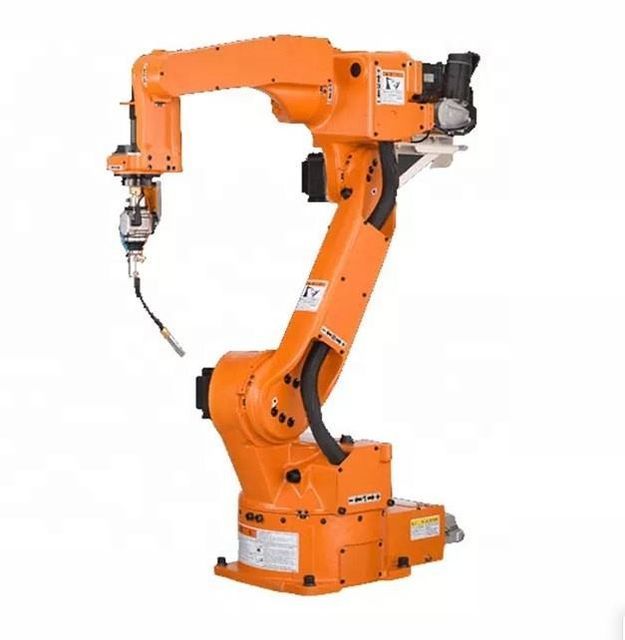

Robot arm cnc router for 3d engraving printing welding system solution
- 15000.00 1 - 1 sets
- 13000.00 >=2 sets
Registered Supplier
Direct Contact
Inquiry via Message
Product Details
| brand: | Jiaxin | Horizontal travel (mm): | 570mm~3200mm |
| application: | Welding, cutting, assembling, handling, painting, marking, | Video outbound inspection: | if |
| Voltage: | 220V | Robot body weight: | 39kg~1950kg |
| Core component warranty: | 1 year | Key words: | Robot arm CNC milling machine |
| Applicable industries: | Hotels, manufacturing plants, home use | Core components: | Bearing |
| After-sales service provided: | Online support | Weight (kg): | 300 |
| Certification: | International standards, CE | Maximum payload: | 6 kg 8 kg 10 kg |
| Showroom location: | pakistan, russia | Mechanical test report: | if |
| Place of origin: | Shandong Province, China | application: | industry |
| feature: | clever | Marketing type: | New products for 2022 |
| Packaging details: | Naked or wooden box | Arm form: | Vertical multi-joint |
| Package preview: | Post-warranty service: | Video technical support | |
| Warranty: | one year | Health status: | new |
| Core components: | PLC, gearbox, motor | Production capacity: | 20 sets/month |
Video description
Product Description
Let your factory achieve unmanned production
Parameter Description
model | HY1010B-140 | ||
Number of axes | 4 | ||
Carrying capacity | 10 kg | ||
position repeatability | ±0.08mm | ||

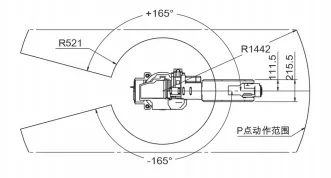

Action range | J1 | ±170° | |
J2 | ±10°~ +125° | ||
J3 | ±10°~ -95° | ||
J4 | ±360° | ||
service environment | 0-45°,20-80%RH (no fog) | ||
installation method | ground | ||
Protection level | IP65 | ||
Maximum speed | J1 | 190°/second | |
J2 | 120°/sec | ||
J3 | 120°/sec | ||
J4 | 200°/second | ||
Robot arm detail
control Panel

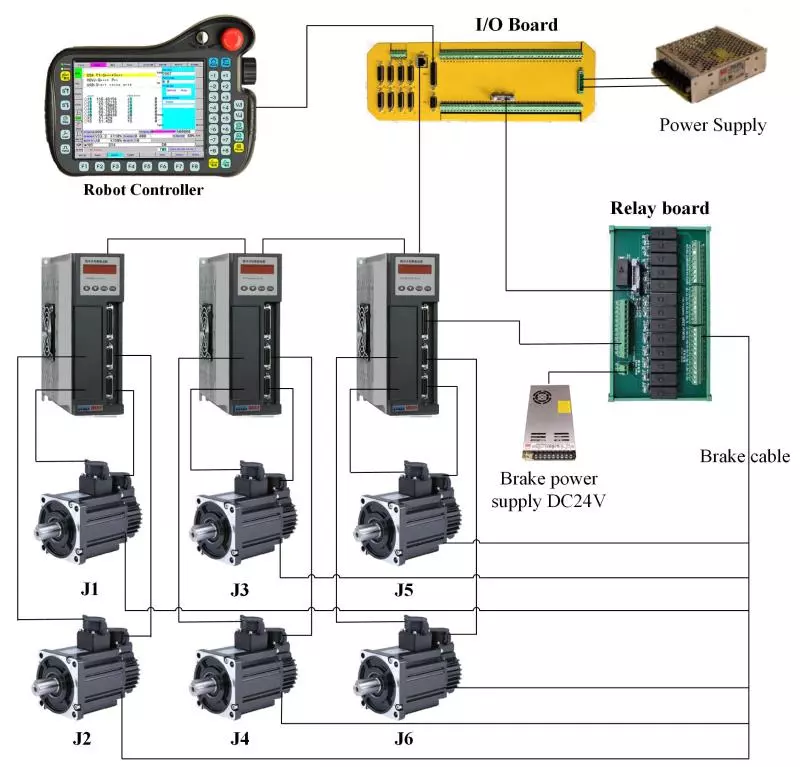

I/O Interaction Center

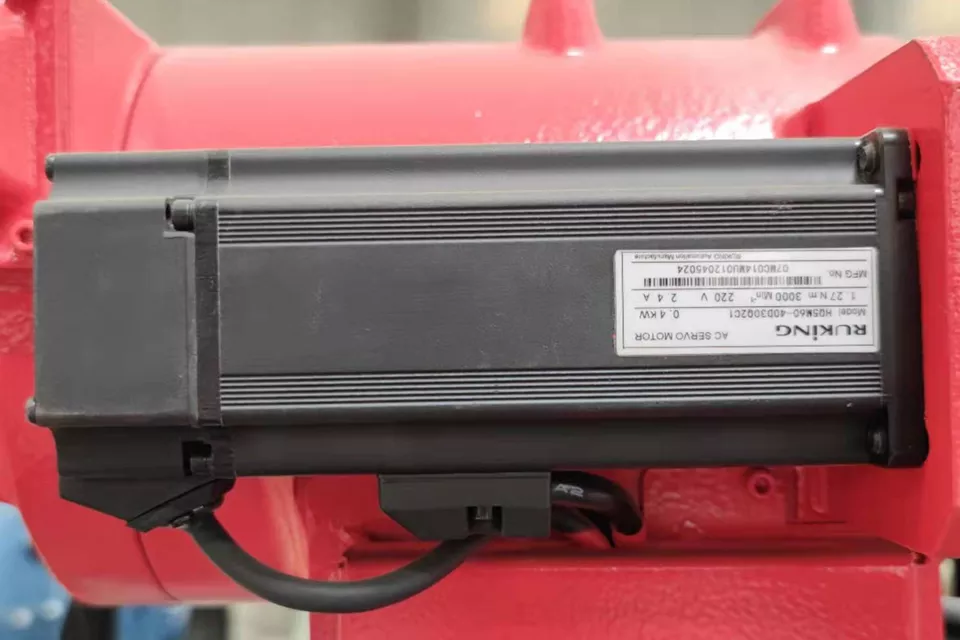

AC servo motor

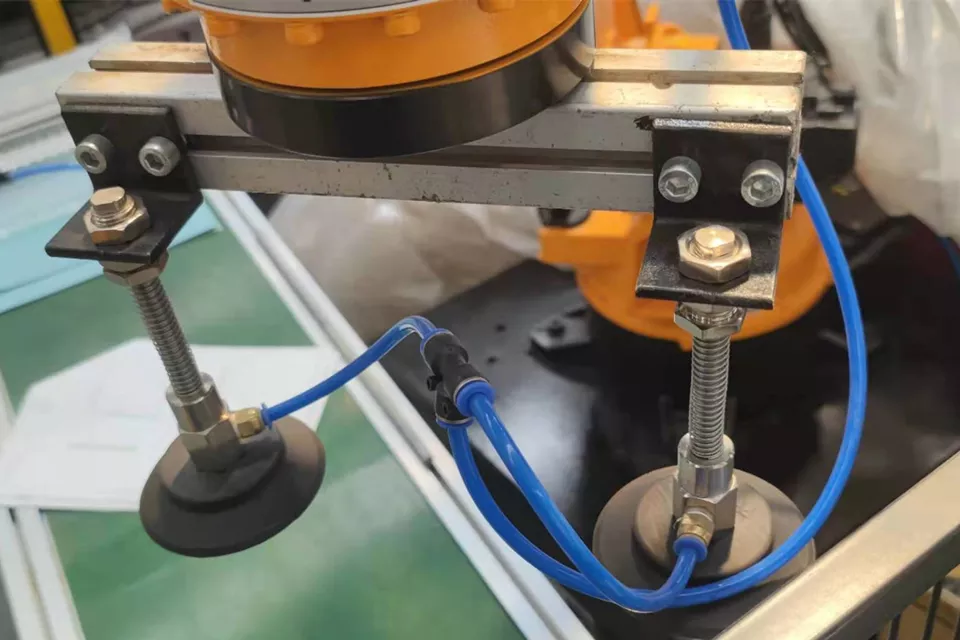

transfer tool

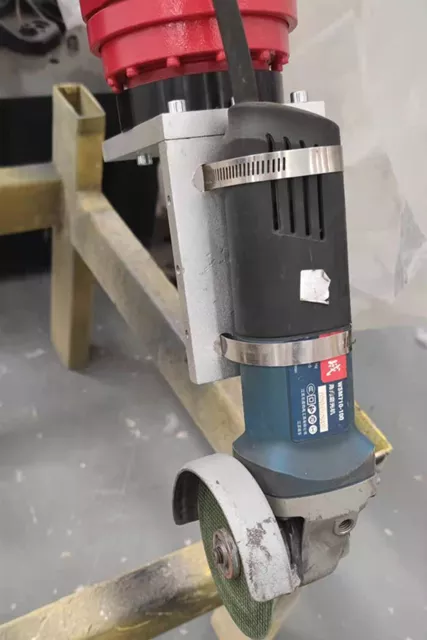

cutting tools
Welding tooling

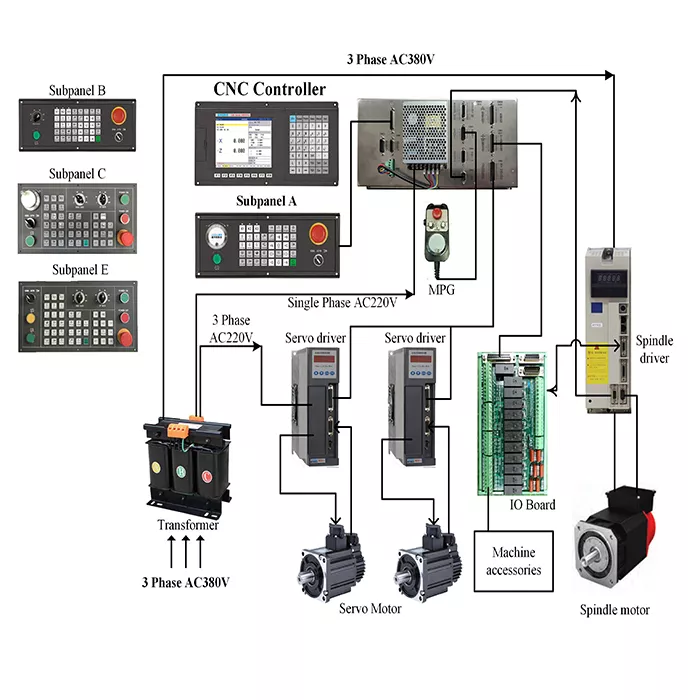

How does the signal propagate?
