Small era collaborative robot robot arm 1kg 3kg 5kg 10kg robot new robot spray painting welding robot automatic

Supplier: Shenzhen Era Automation Co., Ltd.
Region: Guangdong, China
Contact: Ms Mavis Xu
Price: $2990.00 / 1 - 9 sets
$2590.00 / 10 - 99 sets
$1990.00 / >=100 sets
Min. Order: 1 set

Click here to contact

Product details

HMI:	10.1-inch teaching pendant or mobile APP	Place of origin:	Guangdong, China
feature:	Collaborative, lightweight and space-saving	arrival:	475.6 mm
Core component warranty:	1 year	Health status:	new
Warranty:	12 months	Production capacity:	100 sets/month
Operating humidity:	90%RH (non-condensing)	payment terms:	L/C, Western Union, D/P, D/A, T/T
application:	Picking and placing, palletizing, handling	Marketing type:	New products for 2023
Core components:	Engine, gearbox, motor	Voltage:	110V~230V
Video outbound inspection:	if	Packaging details:	International wooden box packaging
footprint:	130mm	Showroom location:	Canada, Peru, Thailand
Intellectual property classification:	IP54 (IP66 optional)	axis:	6 axis
Development environment:	C#/C++/Python/Java/ROS	brand:	ERA collaborative robot
Package preview:		Applicable industries:	Building material stores, manufacturing plants, machine repair shops, food and beverage plants, farms, retail, print shops, construction engineering, energy and mining
port:	Any seaport in China	Payload:	1 kg
Supply capacity:	100 sets per month	Repeatability:	±0.05 mm
Mechanical test report:	if	Weight (kg):	50
communicate:	I/O, TCP/IP, Modbus_TCP/RTU, Profinet

product description

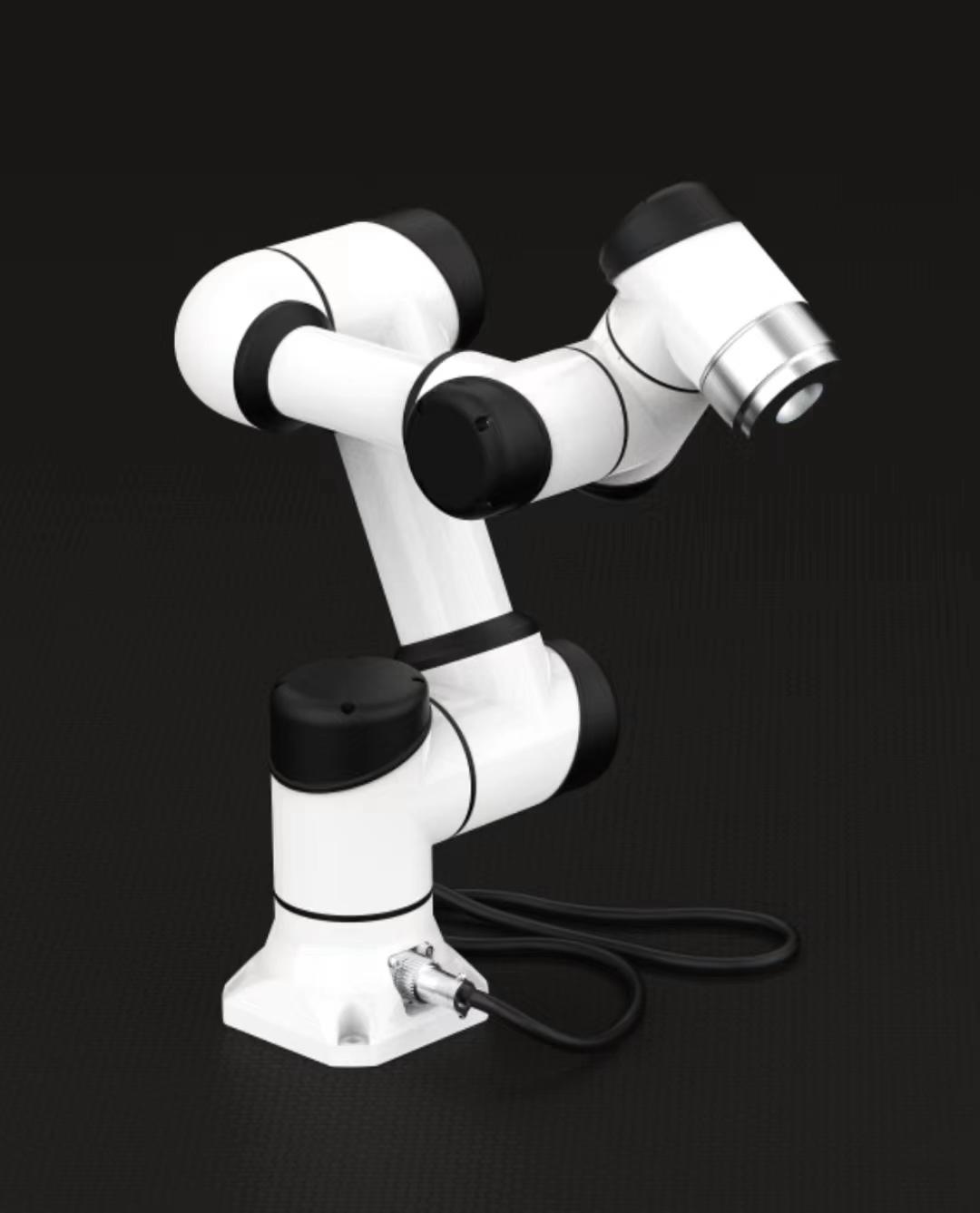

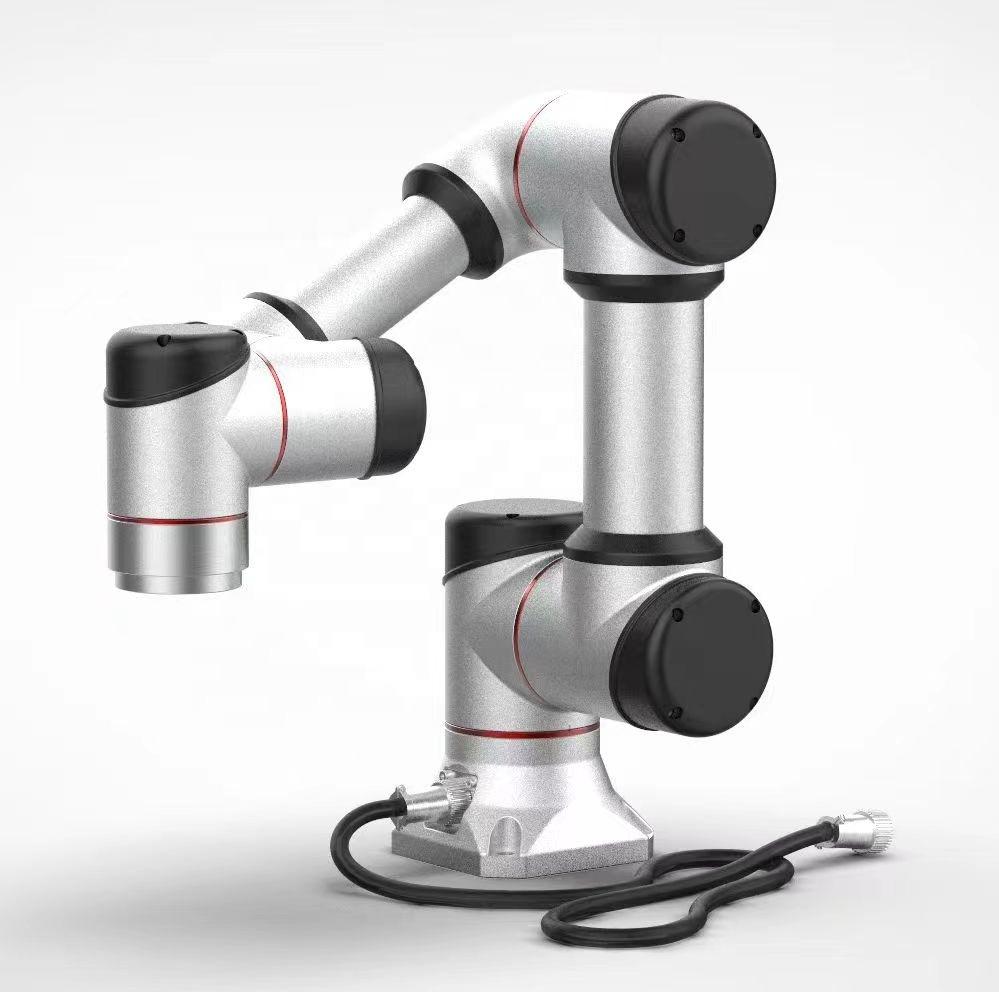

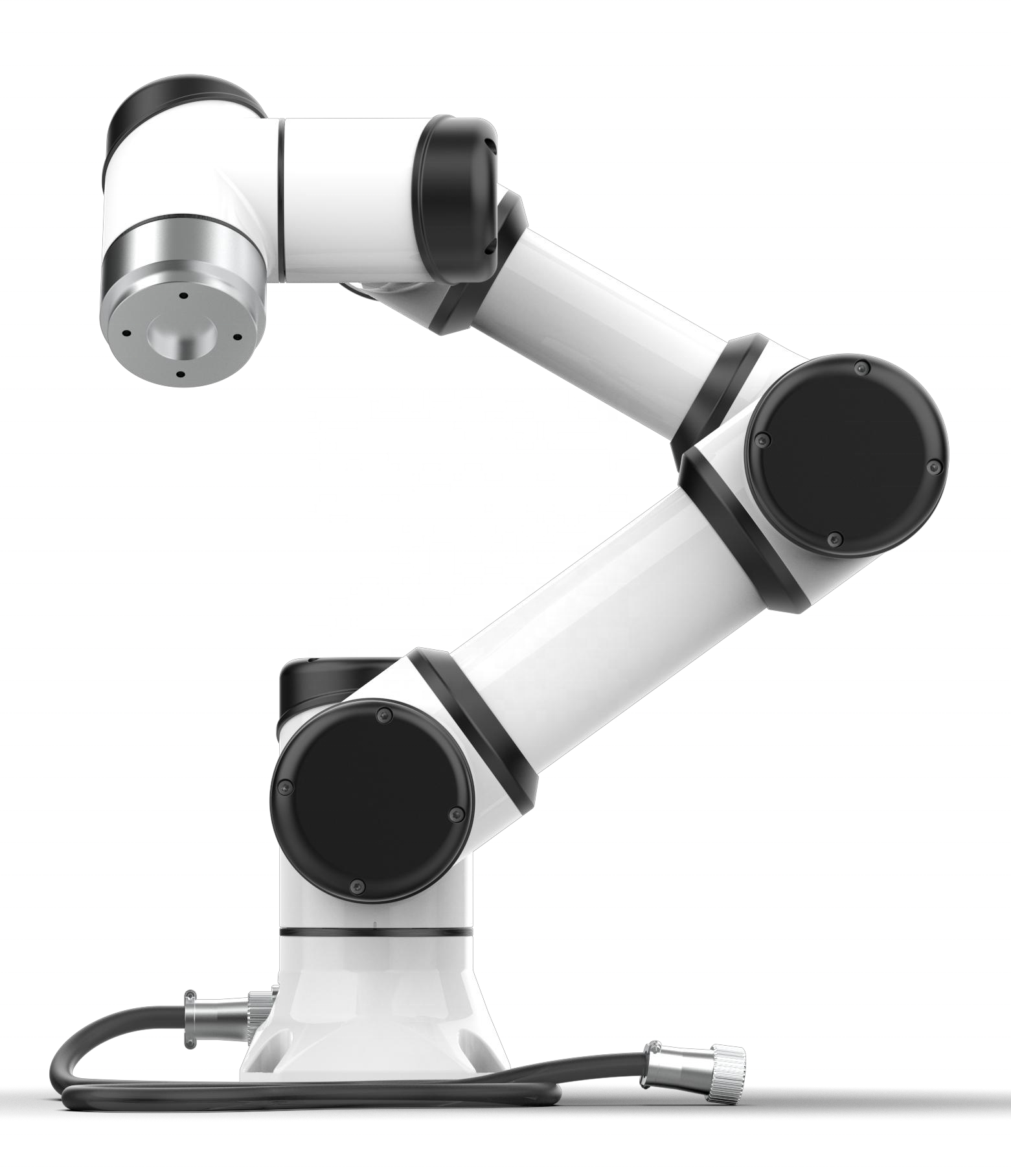

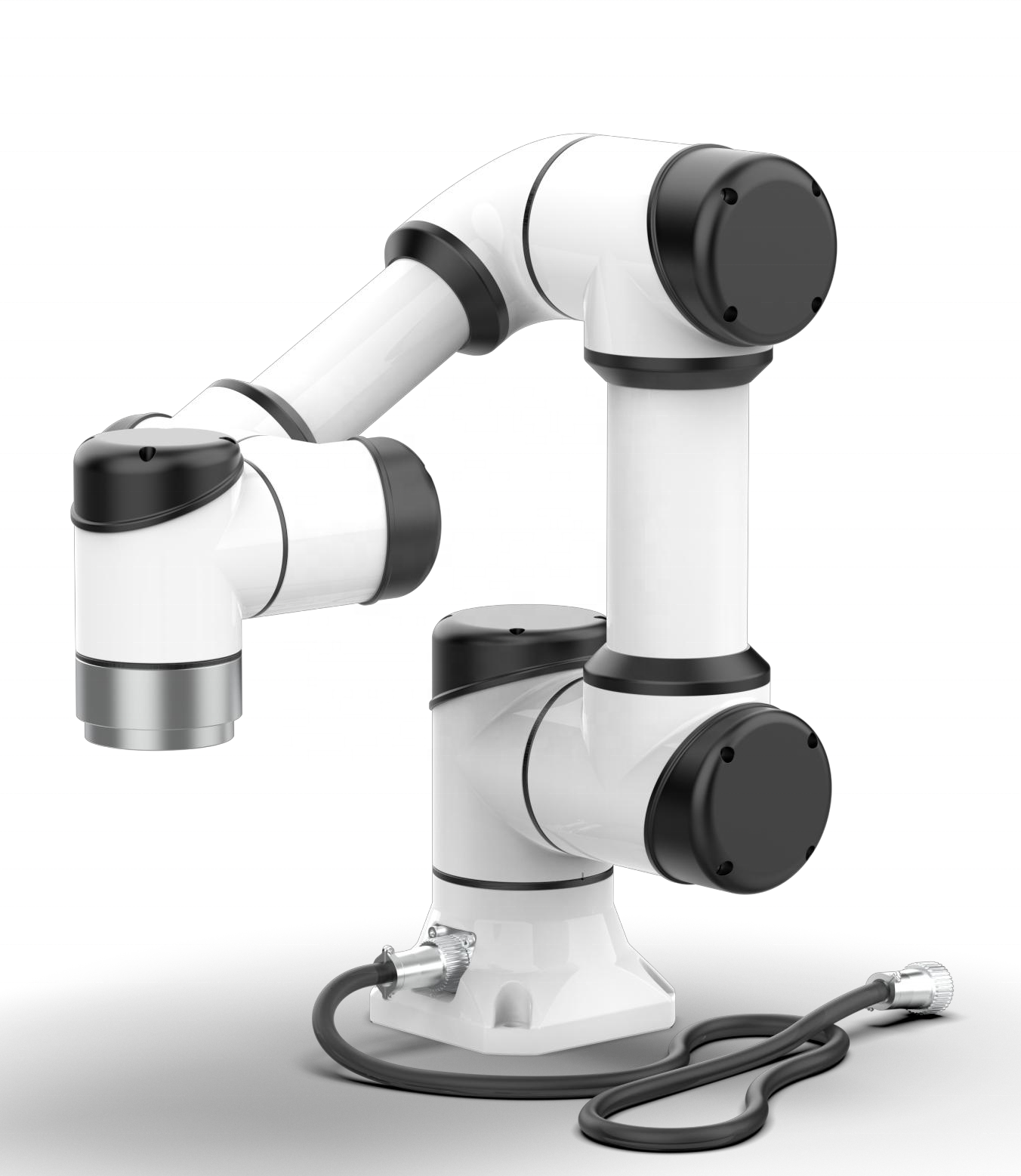

_{ERA-M1 1kg 475.6mm collaborative robotic arm}

ERA-M1 is an economical industrial collaborative robot arm equipped with industrial-grade harmonic transmission and servo motor to ensure 24/7 uninterrupted work. Also shares a 12-month quality guarantee.

Function overview

Model: ERA-M1
Payload: 1kg
Reach range: 475.6 mm
HMI: 10.1-inch teaching pendant or mobile terminal APP
Repeat accuracy: ±0.05mm
Communication: I/O, TCP/IP, Modbus_TCP/RTU, Profinet
Development: C#/C++/Python/Java/ROS
Floor area: 150mm

product specifications

Specification	Payload	1 kg

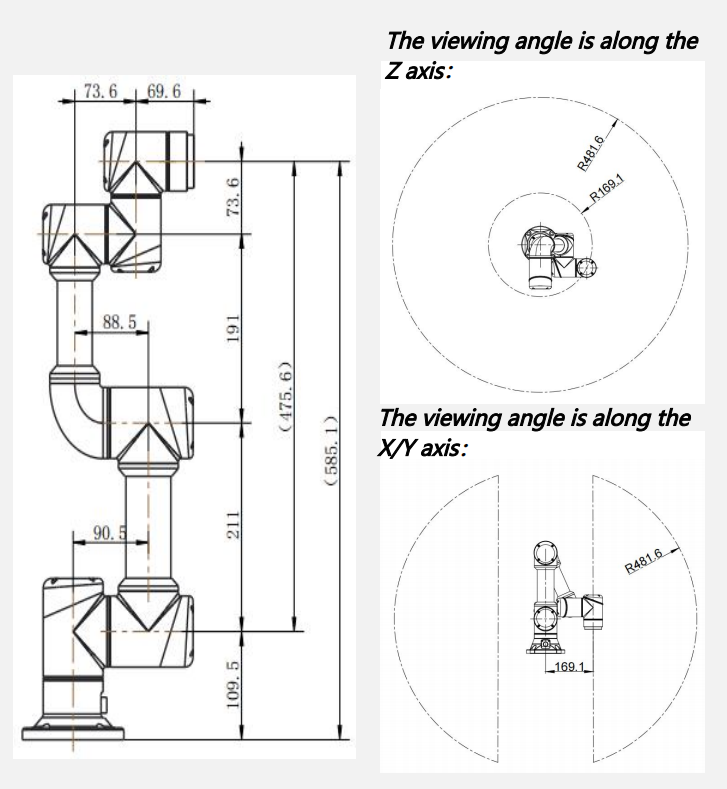

		arrival	475.6mm
		range/axis	6 axis
		HMI	10.1-inch teaching pendant or mobile APP
move	Repeatability	0.05mm
		axis motion	Speed of work	The scope of work
		axis 1	±175°	±180°/second
		Axis 2	+85°/-265°	±180°/second
		axis 3	±160°	±180°/second
		axis 4	+85°/-265°	±180°/second
		axis 5	±175°	±180°/second
		axis 6	±175°	±180°/second
		Typical TCP speed	0.8 meters/second
feature	Intellectual Property Classification	IP54 (IP66 optional)
		noise	Less than 65 decibels
		Robot installation	any direction
		IO port	DI 8*DO 8	Artificial Intelligence 1 AO 1
		power supply	24V/1.5A
		communicate	Ethernet port
		Operation system	ubuntu18.04 (supports Windows installation and virtual machine operation)
physical	footprint	110 mm
		weight	about 6kg
		Operating temperature	0-45℃
		Working humidity	90%RH (non-condensing)
		Material	Aluminum, steel

Our advantage

aspect

Application areas

Collaborative robots can be widely used in automobiles and parts, 3C electronics, semiconductors, new energy, home appliances, kitchen and bathroom, daily chemicals, food and beverages, medicine, metal processing and other industries. Complete equipment maintenance, picking and placing, loading and unloading, transfer between processes, screw locking, assembly, gluing, spraying, riveting, bonding, packaging, palletizing, polishing, welding, quality inspection and other tasks.
