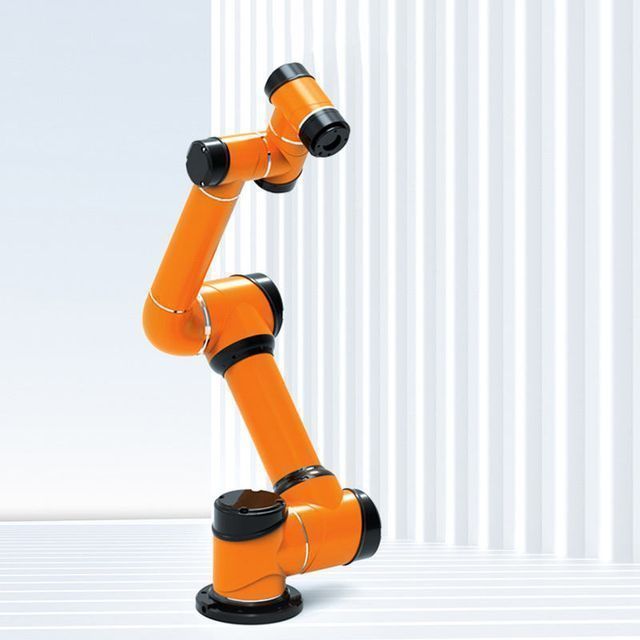

6 Axis Robotic Arm 5kg Payload Pick & Place Application Welding Robot Price Painting Collaborative Robot Custom Collaborative Robot

Supplier: Shenzhen Guanhong Automation Co., Ltd.
Region: Guangdong, China
Contact: Ms Eileen Chen
Price: $13000.00 / 1 - 9 pieces
$12500.00 / 10 - 9999 pieces
$3999.00 / >=10000 pieces
Min. Order: 1 piece

Click here to contact

Product details

port:	Shenzhen	Mechanical test report:	if
achieve:	886.5 mm	Supply capacity:	50000 pieces per week
Production capacity:	100%	Warranty:	12 months
brand:	Shenzhen Guanghua	Repeatability:	0.02mm
Package preview:		application:	Industrial robots; Handling robots; Collaborative robot arms; Pick and place, stacking, handling, assembly
structure:	Articulated	Packaging Details:	standard meal
State of health:	new	Installation type:	floor/ceiling/wall
Applicable industries:	Hotels, building materials stores, manufacturing plants, machinery repair shops, food and beverage factories, printing plants, others	Video shipment inspection:	if
Core component warranty:	2 years	Weight (kg):	twenty four
Marketing Type:	Hot Products of 2022	Payload:	5 kg
feature:	Collaborative, Lightweight, Space Saving	Showroom location:	Turkey, Mexico, Russia, Morocco, Colombia, Romania
lifetime:	30000 hours	payment terms:	L/C, Western Union, D/P, D/A, T/T, MoneyGram
axis:	6 axis	place of origin; place of origin:	Guangdong, China
Core components:	PLC, engine, bearing, gearbox, motor, gear	Model Name:	SZGH-E5
Dimensions (LWH):	727mm623mm235mm	strength:	150W-600W
Voltage:	110V~230v	Ambient temperature:	0-45℃

Product Description

SZGH collaborative robots have different load capacities of 3-20KG, which can cover different applications in various industries. Rich configuration options can quickly adapt to the needs of various industrial application scenarios, ideal for improving production efficiency and low-cost operations.

Modular

The integrated joint module design can be quickly disassembled and assembled within 15 minutes, and the deployment and maintenance efficiency is high.

high precision

The repeated positioning accuracy can reach ±0.02mm, and it can continuously complete the work with high precision requirements for a long time, greatly improving the production yield.

drag teaching

Visual programming is simple and efficient. You can master the programming method in half an hour, and complete simple programming in 1 hour.

system on

Support SDK, API and multiple communication methods, and can establish communication with various peripheral devices such as terminal fixtures, vision, and mobile phones.

safe and stable

The products have passed EN ISO 13849-1:2015 (PL=d, CAT 3), EU CE, North American NRTL, Korean KCs, Chinese CR, SEMI S2, cleanliness class5 and other certifications. Support 10-level collision detection and sensor safety detection.

high rate of return

The investment cost is low, and the return on investment is high, and the investment cost can be recovered in an average of 6-12 months.

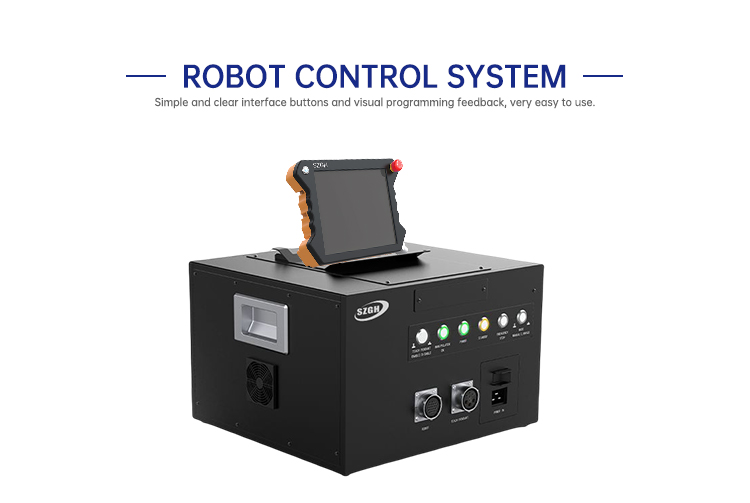

Control cabinet parameters		2GB
Control cabinet size	390mm370mm265mm
weight	15 kg
Length of cable connected to the manipulator	5m (can be customized, up to 8m)
Cable Length for Connecting the Teach Pendant	4m
protocol	Ethernet, ModBus-RTU/TCP, Profinet (optional)
Interfaces and Openness	SDK (support C/C++/C#/Lua/Python development), support ROS system, API
power supply	100-240VAC, 50-60Hz
degree of protection	IP43

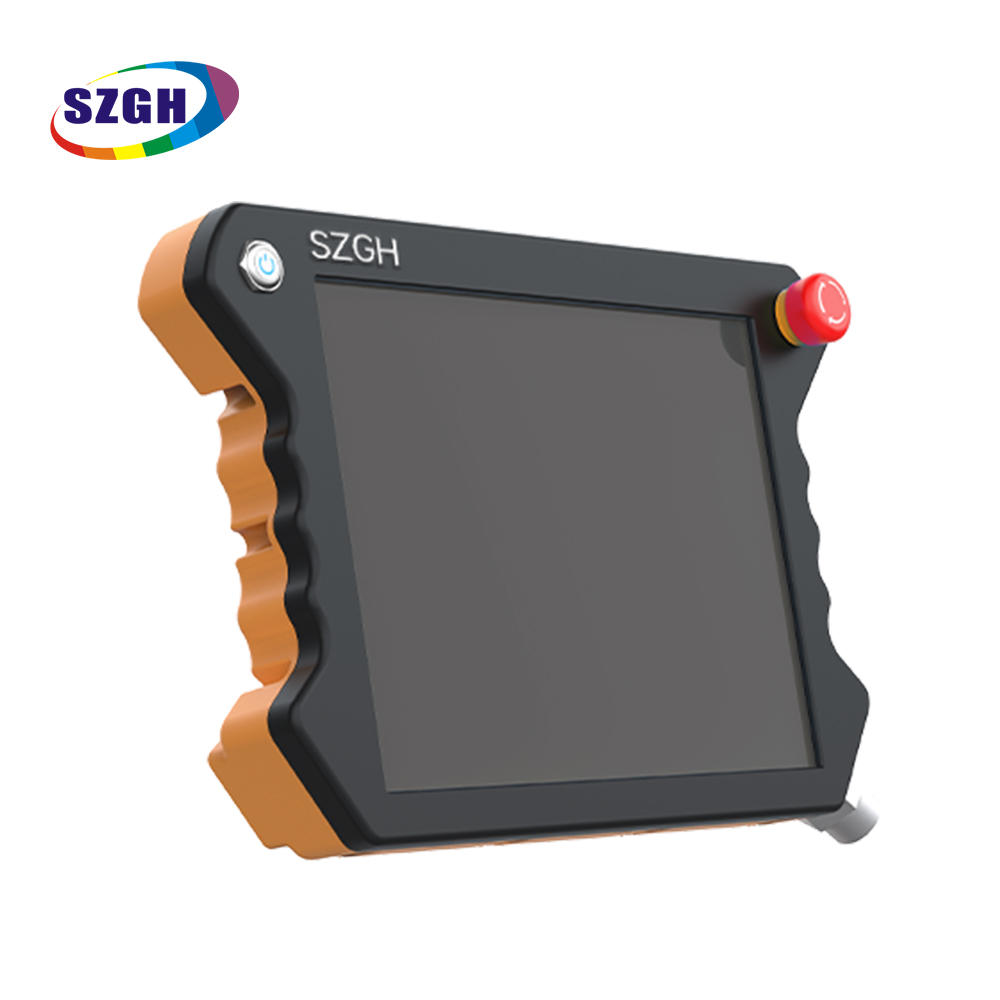

Teach pendant parameters
size	355mm235mm54mm
weight	1.57 kg
degree of protection	IP43
color	orange+black

Application field

SZGH collaborative robots are widely used. It has been applied in batches in 3C, automobiles, hardware and home appliances, kitchen and bathroom, medical and health, scientific research and education, catering, new retail, daily chemicals, logistics and other industries.
