20kg 6-axis intelligent robotic arm Cobot, suitable for pick-and-place, loading and unloading, welding in the automotive industry

  • Supplier: Shenzhen Guanhong Automation Co., Ltd.
  • Region: Guangdong, China
  • Contact: Ms Eileen Chen
  • Price: $28500.00 / 1 - 999 pieces
    $25000.00 / 1000 - 4999 pieces
    $15000.00 / 5000 - 9999 pieces
    $9999.00 / >=10000 pieces
  • Min. Order: 1 piece
Product details
Ambient temperature:0-45℃payment terms:L/C, Western Union, D/P, D/A, T/T, MoneyGram
Repeatability:0.1mmModel Name:SZGH-I20
achieve:1650 mmstrength:1000W
State of health:newInstallation type:floor/ceiling/wall
Package preview:axis:6 axis
Packaging Details:standard mealapplication:Industrial robots; Handling robots; Collaborative robotic arms;
place of origin; place of origin:Kantolife:30000 hours
brand:Shenzhen GuanghuaShowroom location:Canada, Turkey, United States, Peru, Mexico, Russia, Morocco, Argentina, Colombia, Romania
Core component warranty:2 yearsWarranty:1 year
Marketing Type:Hot Products of 2022Weight (kg):63 kg
Core components:PLC, engine, bearing, gearbox, motor, gearApplicable industries:Building materials store, machinery repair shop, manufacturing plant, food and beverage factory, restaurant, food store, print shop, construction, energy and mining, food and beverage store, advertising agency
weight:63 kgPayload:20 kg
Supply capacity:50000 pieces per weekVideo shipment inspection:if
Mechanical test report:ifstructure:Articulated
port:Shenzhen
Product Description

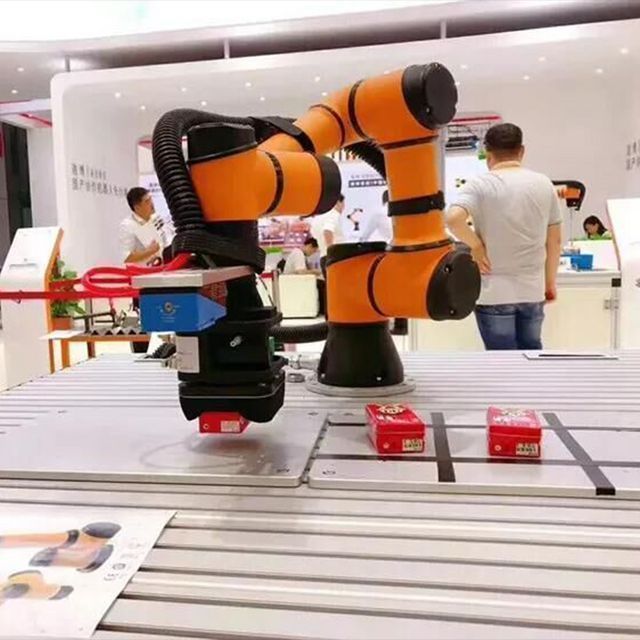

SZGH collaborative robots have different load capacities of 3-20KG, which can cover different applications in various industries. Rich configuration options can quickly adapt to the needs of various industrial application scenarios, ideal for improving production efficiency and low-cost operations.
Modular
The integrated joint module design can be quickly disassembled and assembled within 15 minutes, and the deployment and maintenance efficiency is high.
high precision
The repeated positioning accuracy can reach ±0.02mm, and it can continuously complete the work with high precision requirements for a long time, greatly improving the production yield.
drag teaching
Visual programming is simple and efficient. You can master the programming method in half an hour, and complete simple programming in 1 hour.
system on
Support SDK, API and multiple communication methods, and can establish communication with various peripheral devices such as terminal fixtures, vision, and mobile phones.
safe and stable
The products have passed EN ISO 13849-1:2015 (PL=d, CAT 3), EU CE, North American NRTL, Korean KCs, Chinese CR, SEMI S2, cleanliness class5 and other certifications. Support 10-level collision detection and sensor safety detection.
high rate of return
The investment cost is low, and the return on investment is high, and the investment cost can be recovered in an average of 6-12 months.
Control cabinet parameters
2GB
Control cabinet size
390mm*370mm*265mm
weight
15 kg
Length of cable connected to the manipulator
5m (can be customized, up to 8m)
Cable Length for Connecting the Teach Pendant
4m
protocol
Ethernet, ModBus-RTU/TCP, Profinet (optional)
Interfaces and Openness
SDK (support C/C++/C#/Lua/Python development), support ROS system, API
power supply
100-240VAC, 50-60Hz
degree of protection
IP43
Teach pendant parameters
size
355mm*235mm*54mm
weight
1.57 kg
degree of protection
IP43
color
orange+black
Application field
SZGH collaborative robots are widely used. It has been applied in batches in 3C, automobiles, hardware and home appliances, kitchen and bathroom, medical and health, scientific research and education, catering, new retail, daily chemicals, logistics and other industries.
new retail
Machine loading and unloading
file management
assembly line
dispensing
Energy meter assembly
