Robot arm AE air6sc600 4 axis robot scara robot for pick and place. 3c parts. Box
- 1000.00 set
Registered Supplier
Direct Contact
Inquiry via Message
Product Details
| Payload: | 6 kg | strength: | 220 volts |
| Supply capacity: | 200 sets per month | Production capacity: | 2000 sets/month |
| Dimensions (L*W*H): | 824*566*169mm | application: | Pick and place | Assembly, pick and place |
| Voltage: | 220v-360v | Health status: | new |
| Weight (kg): | 14.4 | port: | Shenzhen Port |
| Axis number: | 4 axis | After warranty service 2: | online support |

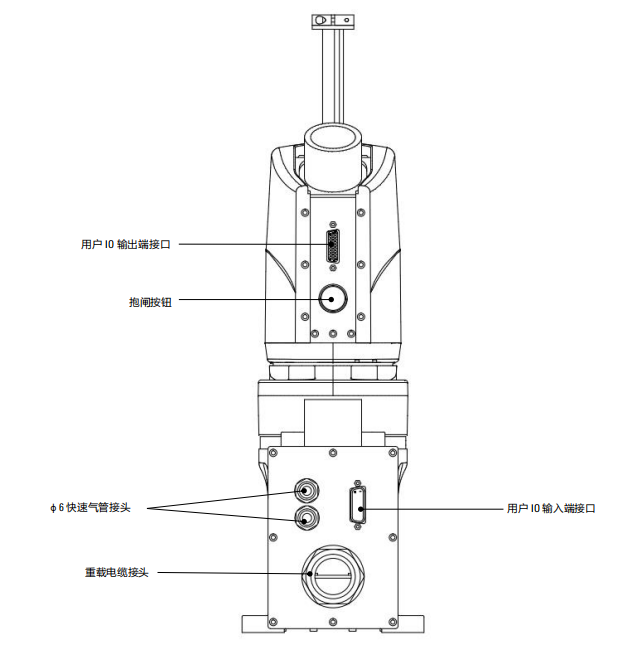

| Controller: | inCube2S | User input/output: | 10/10 |
| brand: | Acoustic emission | Video shipment inspection: | if |
| Packaging Details: | wooden packaging | Program interface: | English |
| Mechanical test report: | if | Marketing Type: | 2019 Hot Products |
| Warranty: | 12 months | Package preview: | |
| Core components: | motor | After-sales service provided: | Does not provide overseas services |
| payment terms: | wire transfer | Arm stretch: | 600mm |
| Applicable industries: | Manufacturing plants, machinery repair shops, food stores, printing shops, others | After warranty service: | spare parts |
| Core component warranty: | 1 year | place of origin; place of origin: | China |
| feature: | small | Showroom location: | not any |
Product overview

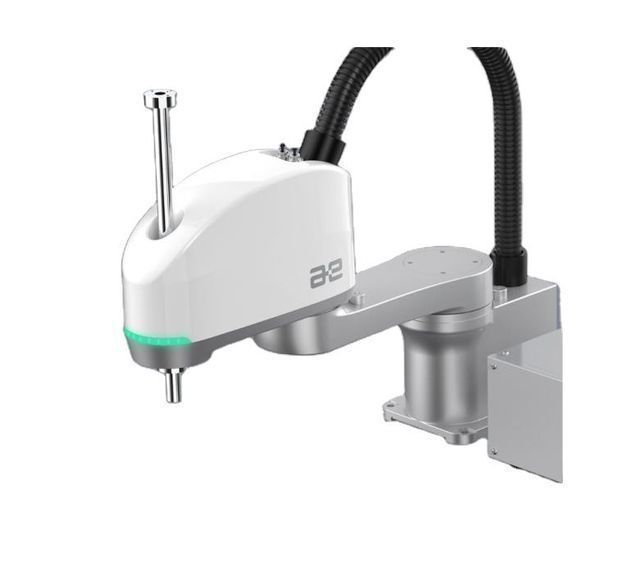

AIR6SC600 6kg payload 4 axis industrial robot
AIR6SC600 is a compact industrial robot with 6kg payload. It is the smallest robot in the AE robot family. In the robot family there are robots with a 3kg payload. Adopt Japan nabtesco RV gearbox reducer and China No.1 Leaderdrive harmonic gearbox reducer. Each joint of the robot communicates through the high-speed bus EtherCAT.
Product Description
type | AIR6SC600 | |||
axis | 4 | |||
Payload | 6 kg | |||
manipulator | weight | 20.1 kg | ||
weight: | arrival | 600mm | ||
positioning accuracy | positioning repeatability | ±0.015mm | ||
ingress protection | IP20 | |||

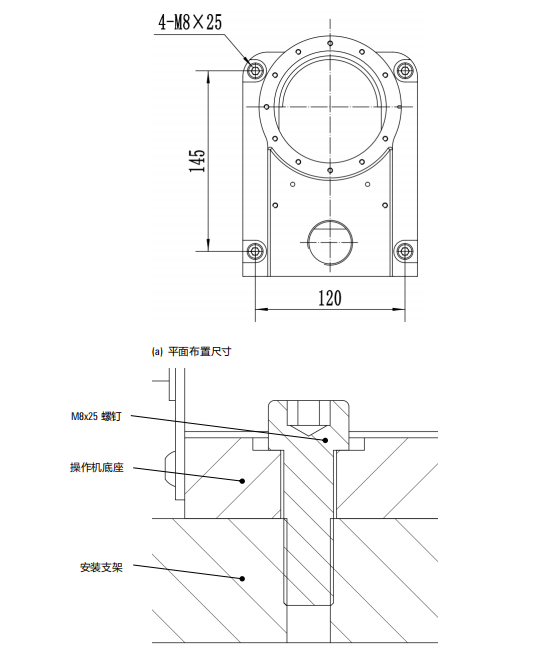

Install | Install | ground | ||

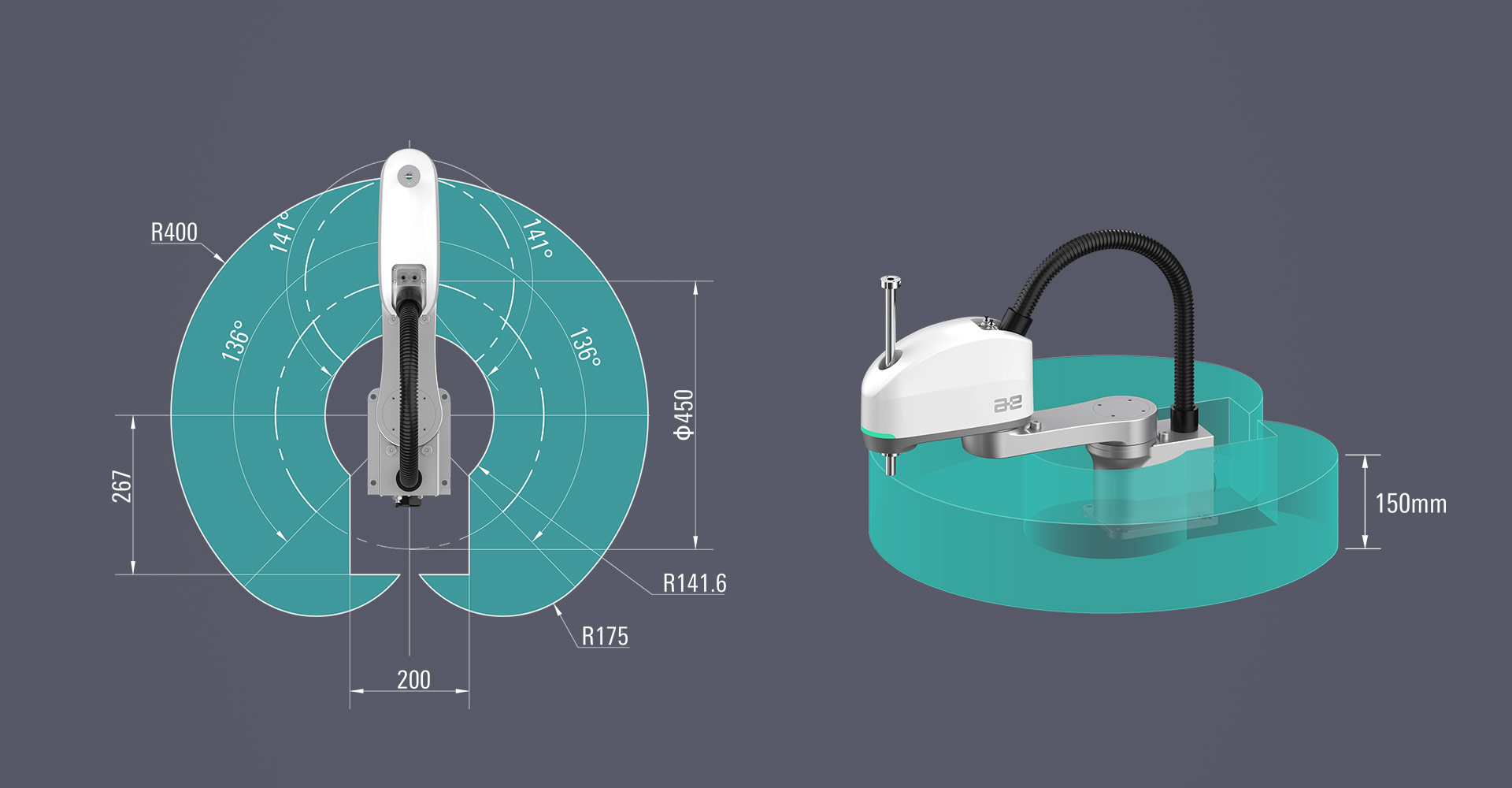

The scope of work | axis 1 | -137°/+137° | ||
axis 2 | -150°/+150° | |||
axis 3 | 200mm | |||
axis 4 | -360°/+360° | |||
Rotating speed | axis 1 | 400°/sec | ||
axis 2 | 650°/sec | |||
axis 3 | 7300 mm/s | |||
axis 4 | 1100 mm/s | |||
controller | inCube2S | inCube20 | ||
If the mechanical limit is removed, the working range can reach -180°/+180° | ||||
