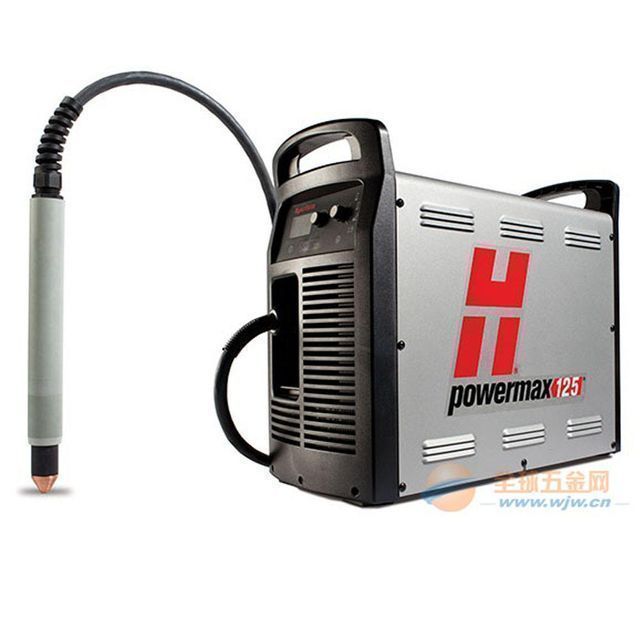

CNC Cutter Hypertherm Plasma Power 200 Amp
- 980.00 1 - 4 pieces
- 950.00 5 - 9 pieces
- 930.00 >=10 pieces
Registered Supplier
Direct Contact
Inquiry via Message
Product Details
| Warranty: | 1 year | Open Circuit Voltage (OCV): | 220V |
| Weight (kg): | 45kg | payment terms: | L/C,Western Union,T/T |
| Packaging Preview: | Showroom location: | not any | |
| Packaging Details: | Plywood or fumigation-free wooden box | weight: | 45 |
| maximum. The output voltage: | 220V | place of origin; place of origin: | Shandong China |
| rated power: | 16.5kva | Core components: | motor |
| Health status: | new | Applicable industries: | Building material stores, mechanical repair shops, manufacturing plants, construction works, advertising agencies |
| Marketing Type: | normal product | year: | 2022 |
| maximum. Output current: | 60A | Rated input voltage: | 380V |
| Dimensions (L*W*H): | 590*260*480mm | Core Components Warranty: | 1 year |
| port: | Qingdao, Shanghai | Mechanical test report: | if |
| Supply capacity: | 100 sets per month | Video external inspection: | if |
| Rated Duty Cycle @40°C: | 100% |
Product Description
Specification
thing | unit | role model | ||||||||||
LGK-63IGBT | LGK-100IGBT | LGK-120IGBT | LGK-200IGBT | LGK-300IGBT | LGK-400IGBT | |||||||
input power | Volts/Hz | 3~ 380V± 15% 50/60 Hz | ||||||||||
Rated input capacity | kVA | 9.5 | 17.8 | 22.2 | 38.8 | 70.1 | 93.5 | |||||
Rated input current | One | 14.5 | 27 | 34 | 71 | 100 | 138 | |||||
Rated open circuit voltage | five | 300 | 300 | 300 | 315 | 380 | 380 | |||||
Rated cutting current | One | 63 | 100 | 120 | 200 | 300 | 400 | |||||
Rated cutting voltage | five | 106 | 120 | 128 | 160 | 200 | 200 | |||||
Current adjustment range | One | 30~63 | 30~100 | 30~120 | 40~200 | 60~300 | 60~400 | |||||
Maximum cutting thickness (steel) | mm | 25 | 40 | 45 | 65 | 80 | 90 | |||||
Premium Cut Thickness (Steel, Handheld) | mm | 0.3~12 | 0.3~22 | 0.3~25 | 1~45 | 1~50 | 1~60 | |||||
Premium Cut Thickness (Steel, Machine) | mm | 6 | 12 | 15 | 25 | 35 | 40 | |||||
plasma gas | - | compressed air | ||||||||||
air pressure | MPa | 0.3~0.5 | 0.45~0.6 | 0.45~0.6 | ||||||||
Arc voltage output signal | - | 1:1 / 1:20 1:50 / 1:100 arc voltage | ||||||||||
Torch cooling method | - | air cooling | Air-cooled/Water-cooled | |||||||||
Rated duty cycle | % | 60/40°C | 100/40°C | |||||||||
Insulation class | - | F | ||||||||||
Protection class | - | IP21S | ||||||||||
Dimensions (L×W×H) | mm | 585x280x485 | 695×320×580 | 800×380×810 | 890×420×900 | |||||||
Power Northwest | Kilogram | 26 | 51 | 52 | 82 | 140 | 145 | |||||
