120a Cnc Plasma Power Supply Lgk-60igbt Plasma Cutting Machine
- 900.00 1 - 9 sets
- 830.00 >=10 sets
Registered Supplier
Direct Contact
Inquiry via Message
Product Details
| gross weight: | 30KG | weight: | 27 |
| Mechanical test report: | if | Voltage: | Three-phase 220/380V |
| Supply capacity: | 1000 sets per month | Applicable industries: | Construction material stores, machine repair shops, manufacturing plants, construction works, energy and mining, advertising agencies |
| payment terms: | L/C, T/T | rated power: | 21.9KW |
| Voltage: | 220/380V | product name: | IGBT plasma cutting machine |
| Video shipment inspection: | if | Weight (kg): | 30 kg |
| maximum. Output current: | 60A | Dimensions (L*W*H): | 590*260*480mm |
| Package preview: | Arc starting method: | high frequency | |
| product brand: | MISNCO | Health status: | new |
| Core component warranty: | 1 year | Year: | 2021 |
| Open Circuit Voltage (OCV): | 308VDC | Packaging Details: | carton |
| brand: | MISNCO | Video inspection: | if |
| Mechanical test report: | if | Model: | LGK-60IGBT |
| Core components: | Modules, circuit boards, wire clamps, solenoid valves, pneumatic components, electronic components | Showroom location: | not any |
| maximum. The output voltage: | 105.2V | Core components: | IGBT |
| port: | Shanghai Tianjin Qingdao Xiamen Yiwu Guangzhou | Warranty: | 1 year |
| Rated input voltage: | 300~380v/3 phase 220V/50Hz±10% | Origin: | Hebei china |
| Marketing Type: | Hot Products of 2021 | Nominal Duty Cycle at 40°C: | 100% |
| usage: | cutting steel |
Product Description

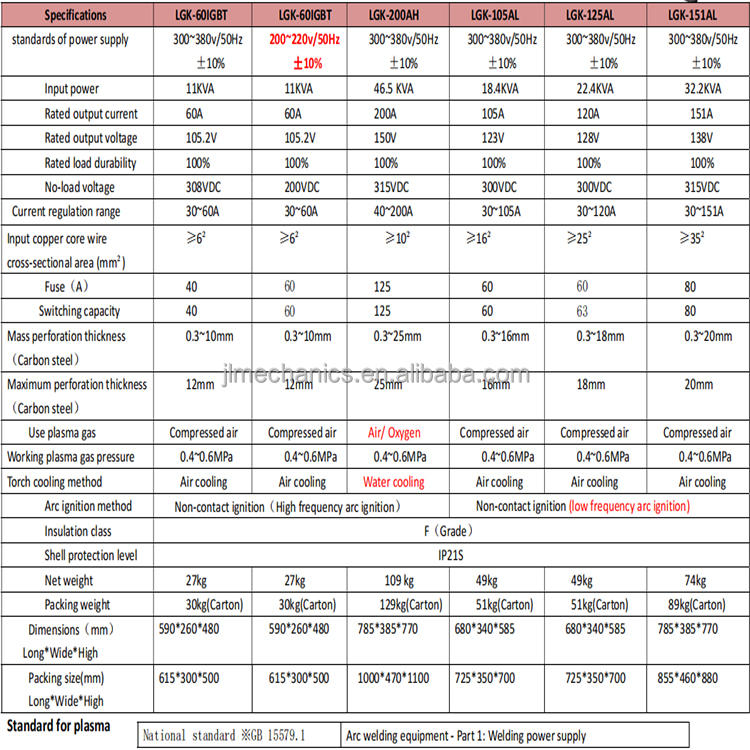

Specification | LGK-60IGBT |
Power Specifications | 300 ~ 380 V / 50 Hz ±10% |
input power | 11KVA |
Rated output current | 60A |
Rated output voltage | 105.2 volts |
Rated load durability | 100% |
no-load voltage | 308VDC |
Current adjustment range | 30~60A |
Input copper core wire Cross-sectional area (mm²) | ≥6² |
Fuse (A) | 40 |
Switching capacity | 40 |
Mass Perforation Thickness (Carbon Steel) | 0.3～10mm |
Maximum perforation thickness (carbon steel) | 12mm |
use plasma gas | compressed air |
working plasma pressure | 0.4～0.6MPa |
Torch cooling method | air cooled |
arc strike method | Non-contact ignition (high frequency arc ignition) |
insulation level | f |
Enclosure rating | IP21S |
Net weight/package weight | 44KG / 47KG |
Dimensions in mm ( L*W*H ) | 590*260*480 |
Package size mm ( L*W*H ) | 615*300*500 |
detailed drawing
