Product Details

Rated Duty Cycle @40°C:	100%	place of origin; place of origin:	Sichuan, China
Showroom location:	not any	Video external inspection:	if
Mechanical test report:	if	year:	2020
Core components:	motor	weight:	26
Cutting Mode:	plasma cutting	Voltage:	Three-phase 380V
Warranty:	1 year	Core Components Warranty:	1 year
Marketing Type:	normal product	Health status:	new
torch:	precise torch	payment terms:	wire transfer
product name:	Huayuan plasma power supply	Open Circuit Voltage (OCV):	Three-phase 380V or optional three-phase 220V
Function:	Inverter Air Plasma Cutting Machine	application:	Industrial Metal Cutting
brand:	Huayuan	Weight (kg):	30kg
maximum. The output voltage:	380V	Packaging Details:	wooden box
Rated input voltage:	Three-phase 380V or optional three-phase 220V	Applicable industries:	manufacturing plant

Product Description

Using soft switching inverter technology, the cutting current is very stable

High load duration in heavy industry
Cutting current ramp technology reduces torch accessory consumption
Wide grid voltage adaptability
Unique dust-proof design, high reliability
Compact structure, small size and light weight, can be installed on CNC machine tools
Inexpensive cutting air source with compressed air, low cutting cost
Precise preset cutting current, infinitely adjustable
With plasma air pressure detection and indication function
With gas test function, easily adjust the air pressure
With overheating, overvoltage, undervoltage, phase loss automatic protection

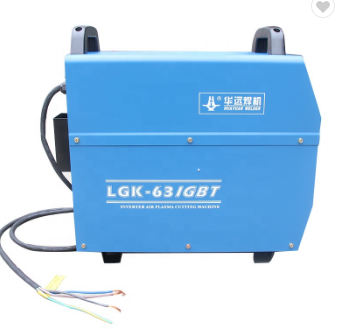

63A plasma cutting machine

Brand Name: Huayuan
Input voltage: 3~ 380V± 15% 50/60 Hz
Rated current: 14.5
Power (W): 9.5
Dimensions: 585x280x485mm, 585x280x485
63A cutting thickness below 10mm

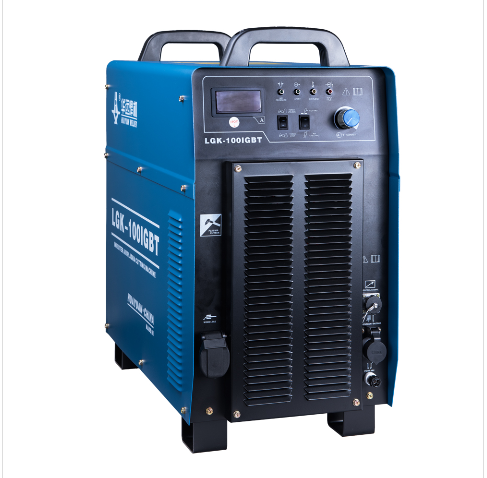

100A plasma cutting machine

Voltage: 380V/220V
Rated power: 500W
Dimensions (L*W*H): 800X380X 810mm
Weight: 90KG
Current adjustment range: 40A-200A
100A, cutting thickness below 14mm

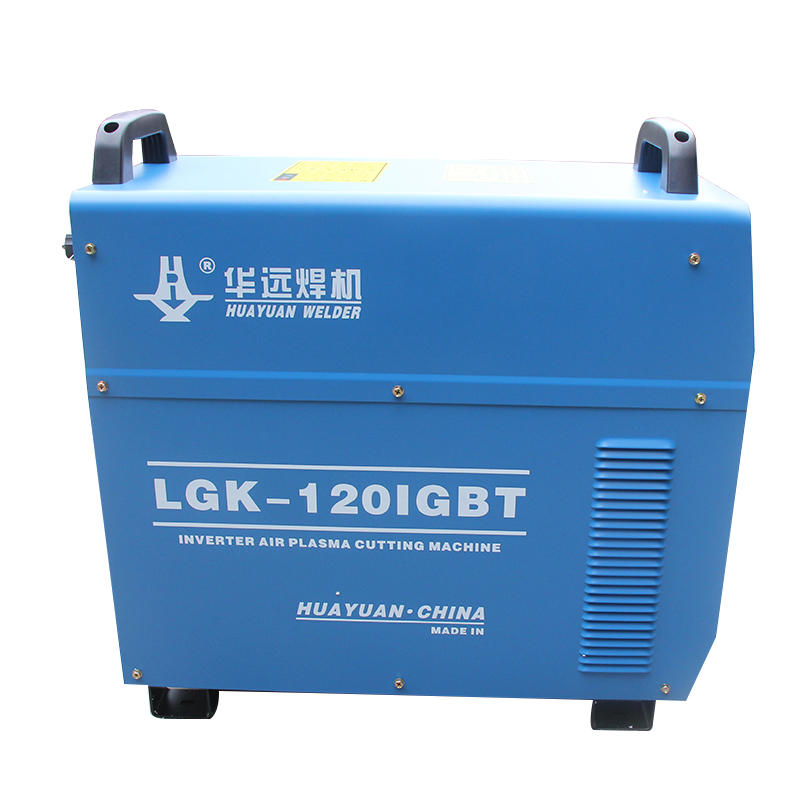

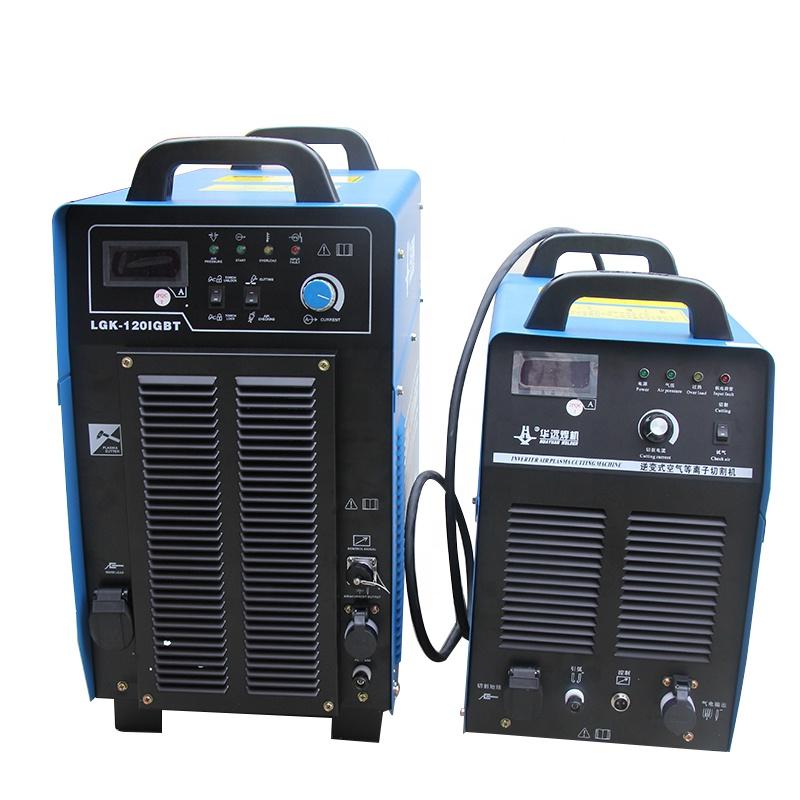

120A plasma cutting machine

Brand Name: Huayuan
Input voltage: three-phase 380V
Rated current: 34
Size: 585*280*485
Compressed air pressure: 0.4-0.5MPa

For120A, cutting thickness below 20mm

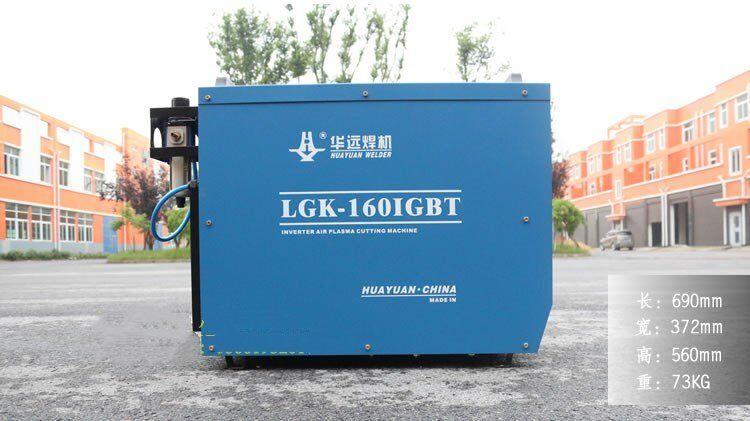

160A plasma cutting machine

Brand Name: Huayuan
Input voltage: 3-phase 380V
Size: 800*380*810
Usage: cutting metal cutting
Certification: CE

160A, cutting thickness below 25mm

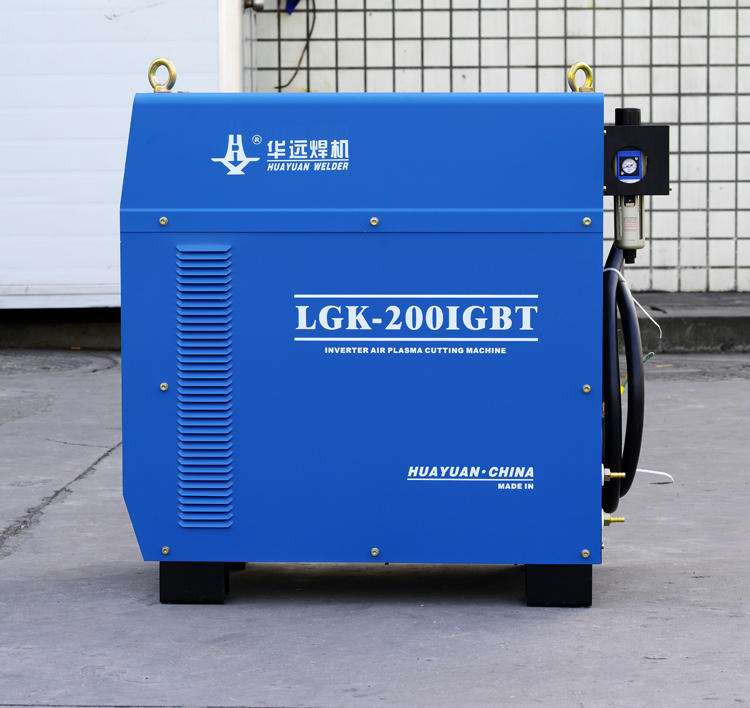

200A plasma cutting machine

Brand Name: Huayuan
Input voltage: 3~ 380V± 15% 50/60 Hz
Rated current: 71
Power (W): 38.8
Size: 800*380*810mm, 800*380*810

For 200A, the cutting thickness is less than 27mm, and the speed is faster than 160A

working principle

Plasma power is a gas that is heated to very high temperatures and is highly ionized. It transmits the arc power to the workpiece. The high heat melts the workpiece and blows it off, forming a working state of plasma arc cutting.

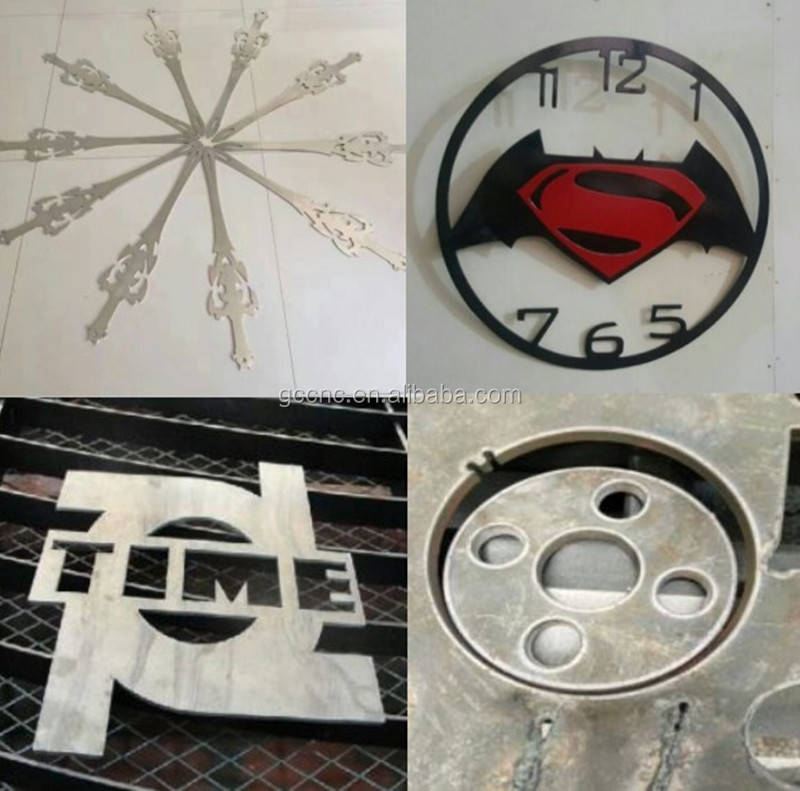

Cut the sample
