200HA/300A/maxPro200 Power High Precision Plasma CNC Cutting Machine

Supplier: Wuhan Lansun Technology Co., Ltd.
Region: Hubei, China
Contact: Ms Fengny Bu
Price: $3650.00 /set
Min. Order: 1 set

Click here to contact

Product details

THC Sensor:	automatic or mechanical	brand:	Lan Sheng
Origin:	Hubei, China	Package preview:
Warranty:	12 months	Open Circuit Voltage (OCV):	220V/380V
rated power:	500W/800W/1000W	Core components:	Engines, gearboxes, motors, gears
Video outbound inspection:	if	Core component warranty:	1 year
gearbox:	Neugart Planet Germany	Showroom location:	Canada, Italy, Vietnam, Saudi Arabia, Indonesia, Mexico, Russia, Thailand, Tajikistan, Malaysia, Australia
Applicable industries:	Mechanical repair shops, manufacturing plants, construction works, energy and mining, advertising agencies	weight:	1800
Rated input voltage:	220V/380V	Mechanical test report:	if
Supply capacity:	500 sets per month	Health status:	new
port:	Shanghai/Ningbo/Qingdao/Shenzhen	options:	Straight cutting torch, bevel cutting torch
Weight (kg):	1800 kg	Machine voltage:	220V/380V/415V/440V, can be customized
Processing material:	Stainless steel, ion, copper, low carbon/high carbon steel, galvanized sheet	Voltage:	Machine 220V, plasma 380V
Plasma generator/plasma source:	Chinese famous brand Huayuan LGK series, or American brand	Certification:	EU CE certification
payment terms:	L/C, Western Union, T/T, MoneyGram	Number of gas or plasma torches:	single head, double head or multi head
Cutting gas:	Oxygen/oxyfuel + propane acetylene; compressed air	motor:	Chinese stepper motor or Japanese servo motor
Marketing Type:	normal product	Packaging Details:	Standard export wooden box
Rated duty cycle at 40°C:	100%

200HA/300A/maxPro200 Power High Precision Plasma CNC Cutting Machine

20 years of CNC cutting machine manufacturing;

9 years Alibaba supplier; 5000+ customer selection;

> Our own R&D team, customized according to your needs;

> Chinese famous brand, fast delivery and cheap price;

> Total quality management system.

Wuhan Langsheng CNC cutting machine, become your reliable business partner!

brief introduction

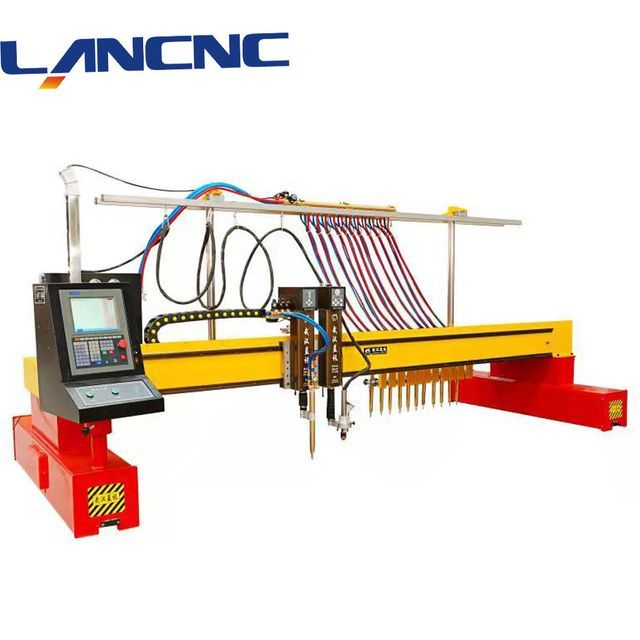

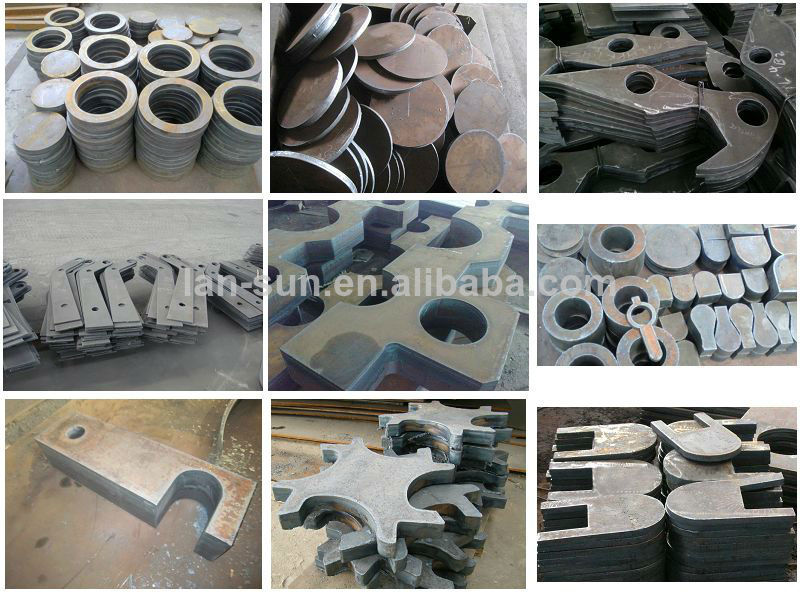

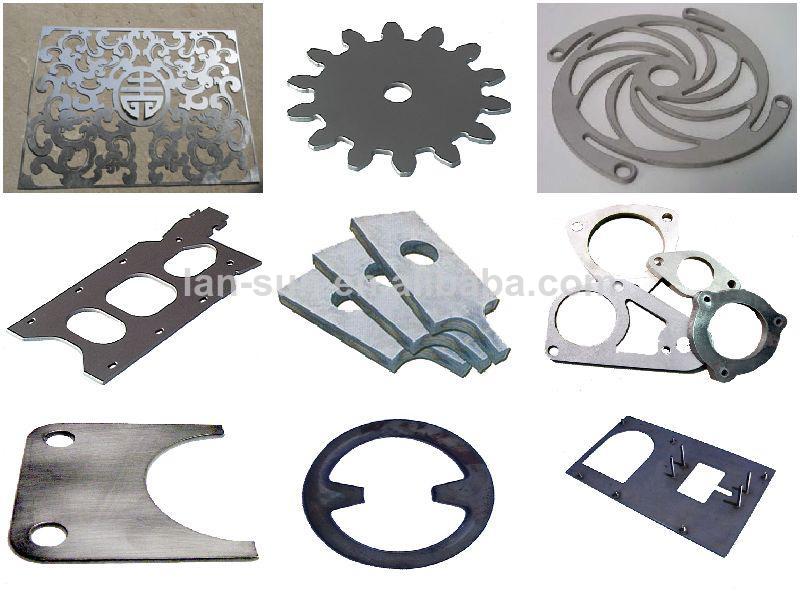

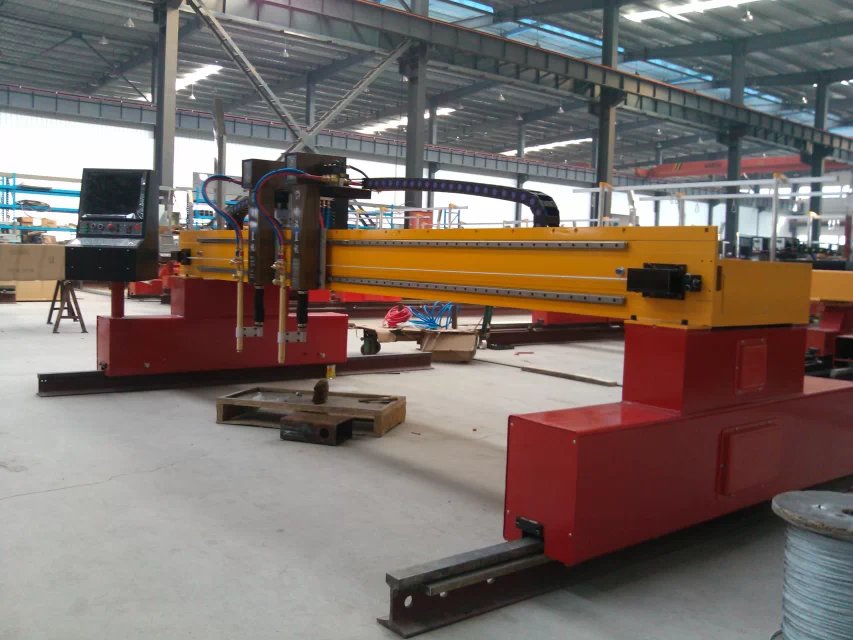

The gantry type CNC plasma flame cutting machine is specially designed for sheet metal cutting, and has the characteristics of high automation, high efficiency, simple operation and long service life. The CNC plasma flame cutting machine is a gantry structure with a double drive system, and the working size can be customized according to requirements. It can be used for any two-dimensional graphic cutting of carbon steel, stainless steel and non-ferrous metals, and is widely used in the field of metal cutting.

feature

1. Steel hollow beam design ensures good heat dissipation and no deformation.

2. The rack and pinion transmission movement without meshing gap ensures the smooth operation of the machine at high speed.

3. The full-featured numerical control system and optocoupler device enhance the super anti-interference ability of the plasma system.

4. Adopt the world's top brand components and circuits to ensure a long service life.

5. Multiple cutting torches can be configured. Flame and plasma cutting torches are optional to meet the cutting needs of different materials in different thickness ranges.

parameter

Model	ZLQ-4H
cutting method	plasma	flame	flame and plasma
driving mode	Servo motor or stepper motor, double sided
beam width(m)	4m~7m or customized
Effective working width (m)	1m less than track width
Rail length (m)	According to your cutting needs
Effective working length (m)	2m shorter than the rail length
Flame cutting thickness(mm)	5-200 (specific models up to 300)
Plasma cutting thickness(mm)	According to the plasma generator, common 1-30mm
Number of torches	At the request of customers
Cutting speed (mm/min)	50-8800
Running speed (mm/min)	12000
CNC controller	Beijing or Shanghai or import the system you want
plasma power supply	100A, 120A, 200A, 300A, etc. Chinese and American brands
programming software	Chinese or Australian professional nesting software
operating language	English or Chinese or Russian

Machine main configuration

fuselage structure 1. Tempering process of box weldment structure 2. Excellent rigidity and strength. 3. The single drive adopts a three-point fixed structure. 4.Dura drive adopts symmetrical structure.

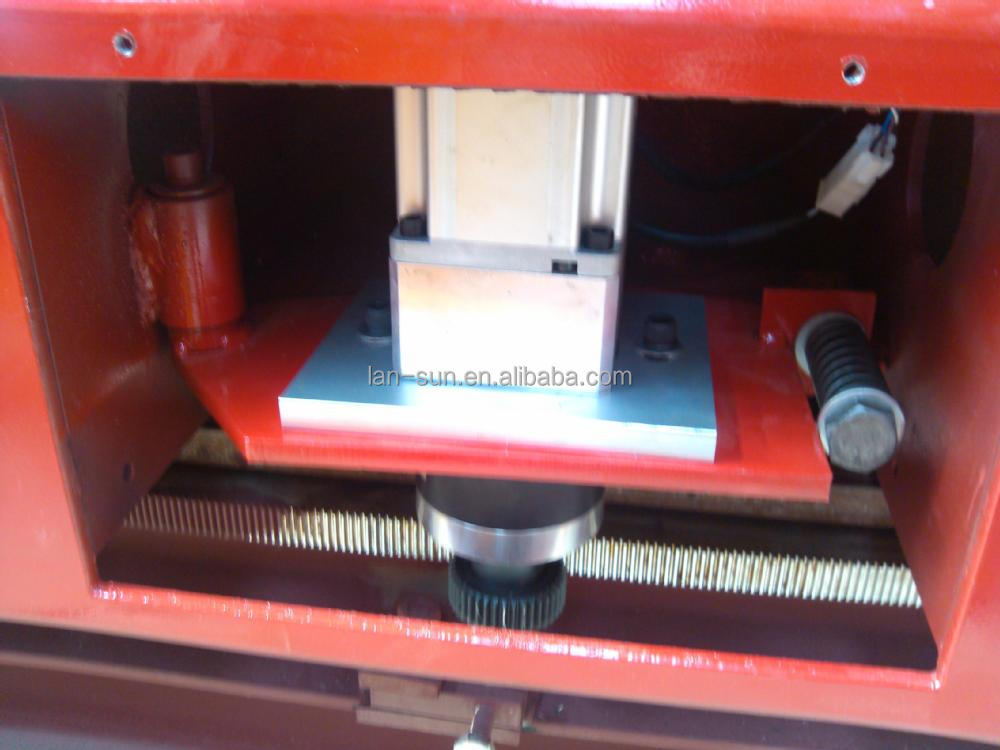

spread 1. Rack and pinion meshing transmission. 2. Gear box: SEW, high output torque and low noise. 3. The welding torch is driven by a horizontal steel belt. 4. These devices are durable and long-lived devices.

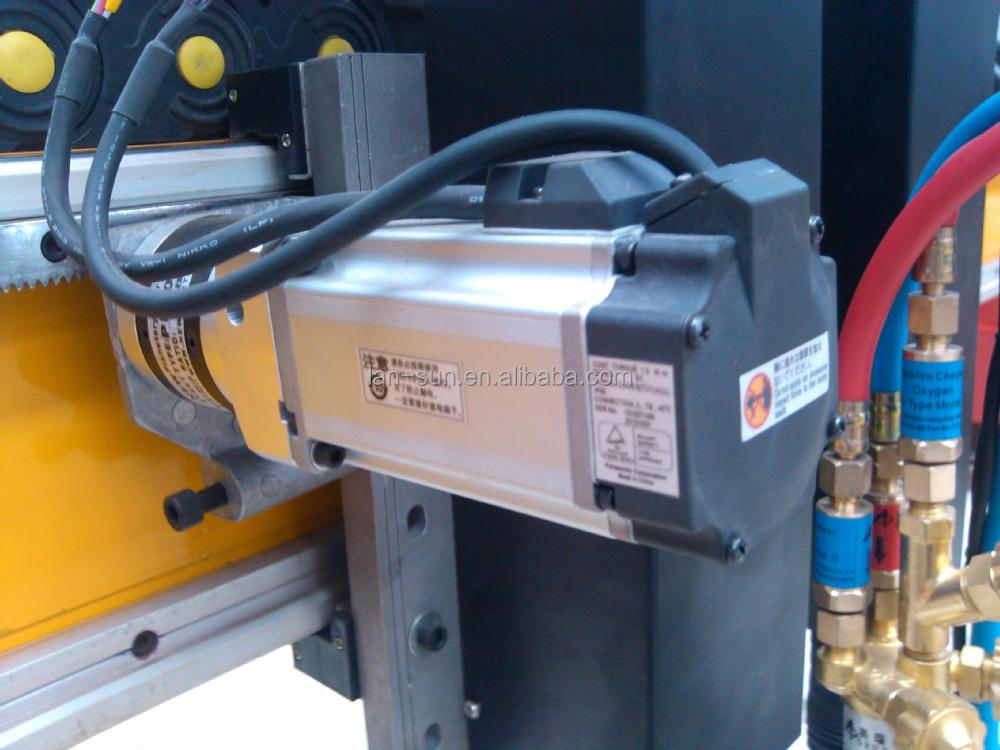

Drive model: Japanese AC servo motor high walking stability easy maintenance
guide: Material: U71Mn Strength: not less than 700N/mm²; Bearing capacity is not less than = 10T (per meter), The tensile strength of the rail is not less than 883Mpa, The compressive strength is not less than 1000T. Processing method: high-precision grinding machine. Longitudinal rack precision: 7 grades Unit length: 1.0M Pitch: CP6 Error: ±0.06mm/800mm

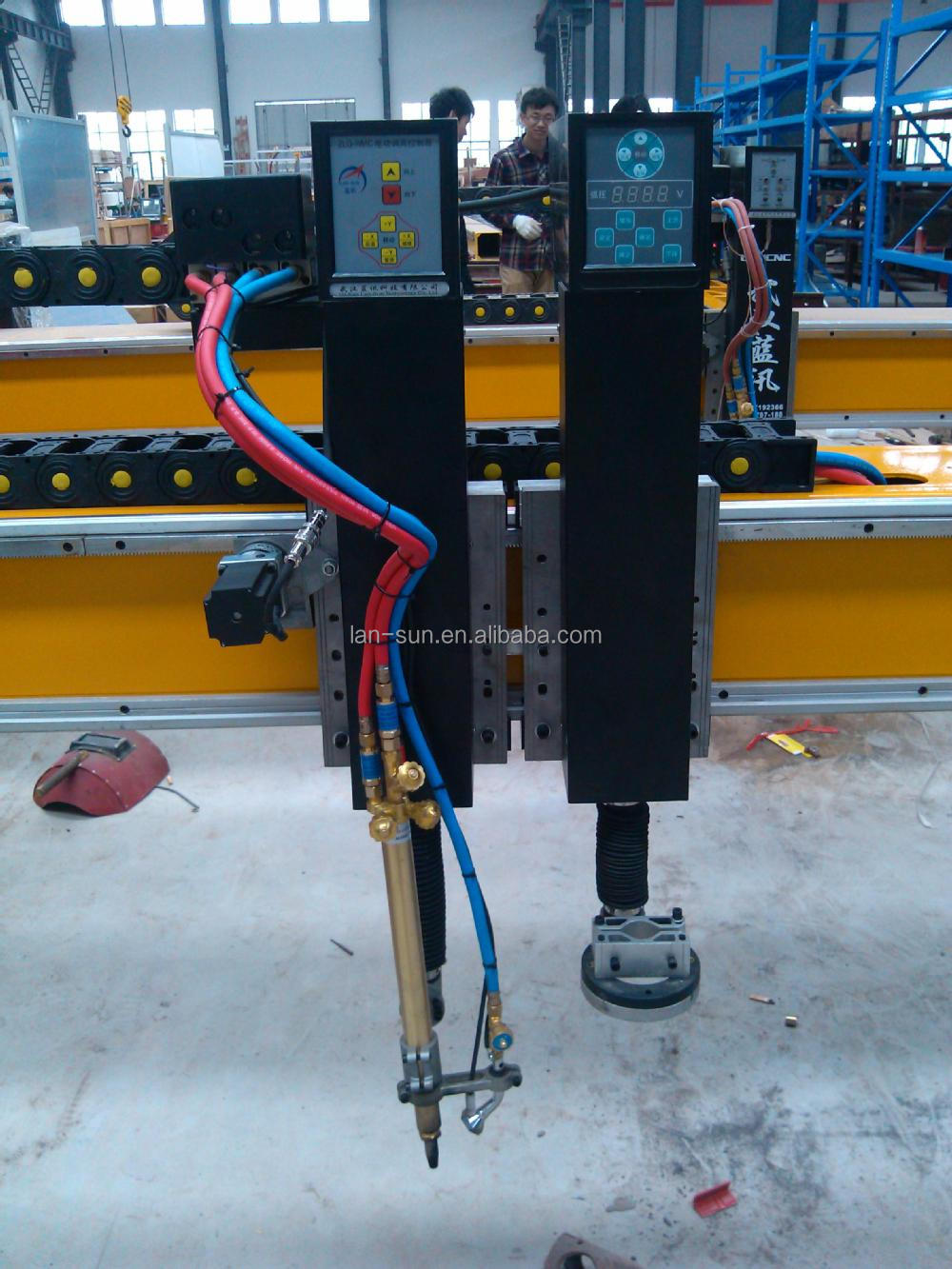

Torch stand and torch: Torch carriage assembly includes: engine lifting device Flashlight, stand gas valve Flashback preventer

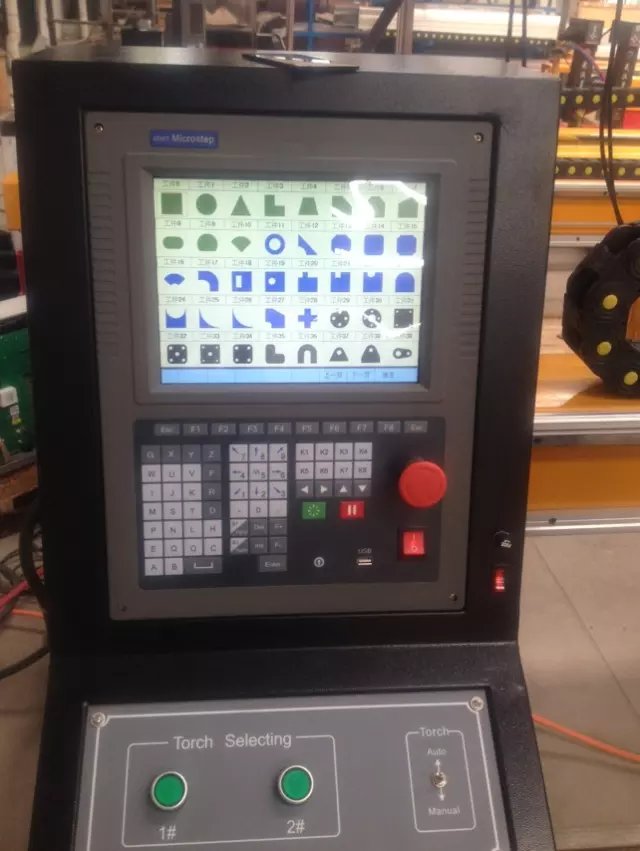

CNC system: 1).10.4 inch LCD screen 2). Metal operation key 3).USB interface support, digital display 4). Working status indicator light display 5). The operation menu is displayed on the monitor immediately 6).Mass production 7). Simple digital direct programming 8). Not subject to interference from electromagnetic waves, etc. 9). Pause, forward, backward, movement while working with the machine
