The double-layer glass reactor is a double-layer glass design. The inner layer of the double-layer glass reactor / double-layer glass reactor is placed in the reaction solvent to make the stirring reaction. The interlayer can pass different cold and heat sources (frozen liquid, hot water or heat Oil) to do the heating or cooling reaction.

In the set constant temperature conditions, in the closed glass reactor, according to the use of requirements under normal pressure or negative pressure conditions for stirring reaction, and can do the reaction solution reflux and distillation, is a modern fine chemical plant, bio-pharmaceutical and New material synthesis of the ideal pilot, production equipment.

Technical parameters:

Product Features:

1. volume:1L 2L 3L 5L 10L 20L 30L 50L 80L 100L 150L 200L

2. Reacting temperature: - 80~300℃

3. GG17, SS,PTFE sealing,TOPTION Brand

4. University brands designated

5. Explosion-prood device is optional

6. Ac motor,brushless,no sparkle

7. Constant rotationg speed

8. Reflow and distillation system

9.chemical laboratory use

10.reaction mixing vessel

 Key Features:

1. Double glass reactor using VVVF, AC Induction Motor. Speed constant, no brush, no sparks, security staTOPTe, continuous working.
2. Complete glass reactor adopts GG17 high borosilicate glass production good chemical, physical properties.
3. Glass interlayer Interface communication on hot oil through cycle do Heating Reaction, Tung on cryoprotectants can be hypothermia reaction.
4. Can normal temperature reaction, pass last tap namely quickly will reflect heat away.
5. Decentralization material mouth with flange mouth and PTFE valve, container no dead corner detachaTOPTe easy solid materials outfeed.
6. 5 reactor lid, large mouth design easy clean standard mouth socket selectaTOP Te assem TOPT reflux, distillation synthesis device

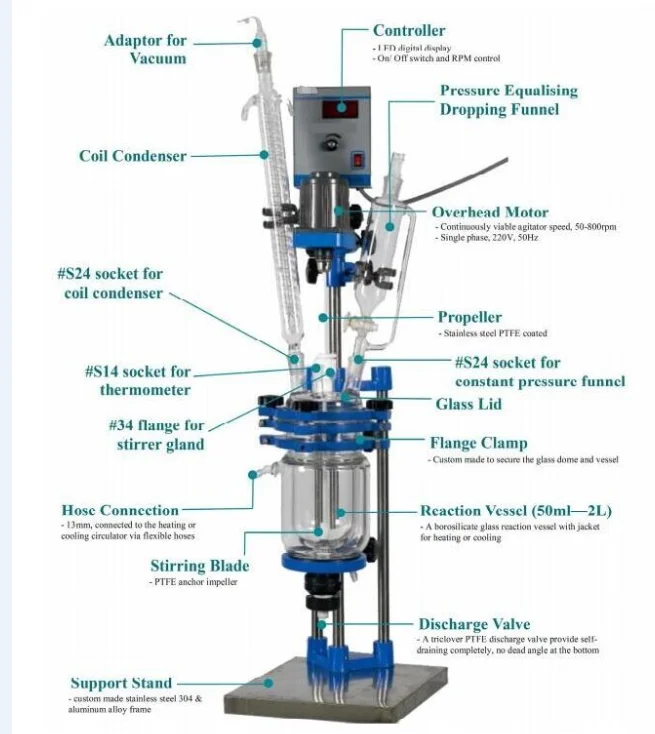

Details information of structure glass reactor:

Packaging

-We can ship the goods to you by International Express such as DHL, TNT, EMS, FedEX and so on and you can also choose the appropriate one based on your timeline and budget. Besides, you can definitely choose to use your own shipping agent.

Certificate

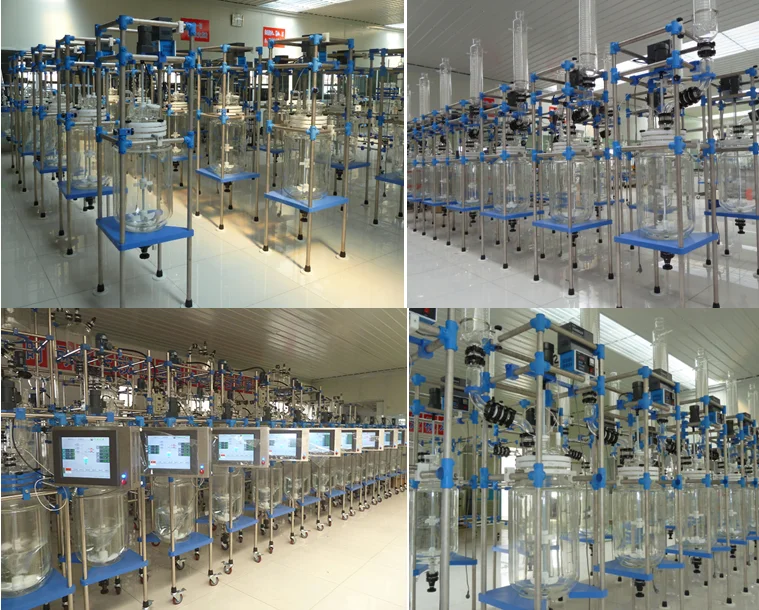

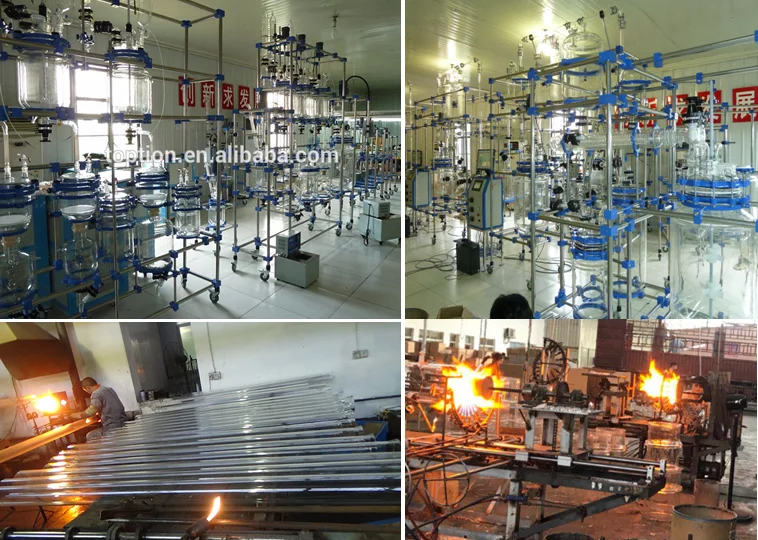

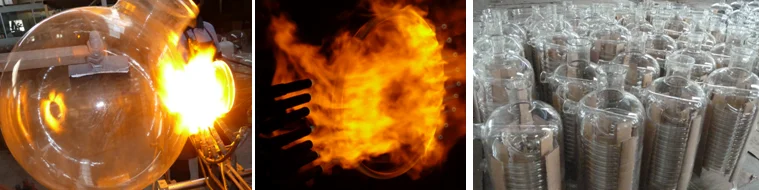

Our factory

Young Team for TOPTION

FAQ:

1. What's the max temperature?
Usually the high borosilicate glass can withstand over 300 degree centigrade and the PTFE stirring bar can withstand about 200 degree centigrade.

2. How many kinds of your glass reactor?
Three types: double jacketed; single layer and triple layer glass reactor.
Explosion proof  function also can be customized.

3. What's the size do you have for glass reactor?
Jacketed: 1L, 2L, 3L, 5L, 10L, 20L, 30L, 50L,80L, 100L,150L, 200L(Biggest volume in China).

Single layer:1L, 2L, 3L, 5L, 10L, 20L, 30L, 50L,80L, 100L,150L, 200L, 250L

Triple layer:1L, 2L, 3L, 5L, 10L, 20L, 30L, 50L

4. Can you offer the supporting facilities?
Yes, we can offer you the vacuum, heating and cooling system as per your request.

5. what kind of payment you accept?

Normally we accept payment by T/T, PayPal, Western Union, Trade Assurance.

To protect customer's payment security, Trade Assurance is highly recommended.
