500ml catalyst test equipment chemical pressure reactor Products from Weihai Huixin Chemical Machinery Co., Ltd.

Product Details

Applicable industries:	Manufacturing plants, machinery repair shops, food and beverage plants, energy and mining	Speed(rpm):	1500 rpm
capacity:	250ml-5 liters	Voltage:	110V 220V 380V
product name:	chemical pressure reactor	Health status:	new
Supply capacity:	100 sets per month	port:	Qingdao, Shanghai
Dimensions (LWH):	by design	weight:	100-700kg
Local service location:	Brazil	After-sales service provided:	After-sales service, free spare parts, video technical support, online support
Video shipment inspection:	if	Mechanical test report:	if
usage:	lab mix	brand:	Huixin
payment terms:	L/C, Western Union, T/T, MoneyGram	Showroom location:	not any
Warranty:	1 year	Automatic level:	semi-automatic
Core component warranty:	1 year	type:	Reactor
Core components:	Engines, bearings, gearboxes, motors, pressure vessels	strength:	1KW-5KW
temperature:	0 - 350°C	Certification:	ISO, GB-150, CE
Origin:	Shandong, China (Mainland)	After warranty service:	Video technical support, online support, spare parts
Main selling points:	easy to operate	Packaging Details:	Wooden box packing (standard export packing)
supplier:	factory	Work pressure:	10Mpa
heating method:	electro-thermal	Marketing Type:	2019 Hot Products
Material:	stainless steel 304	application:	industrial production

Product Description

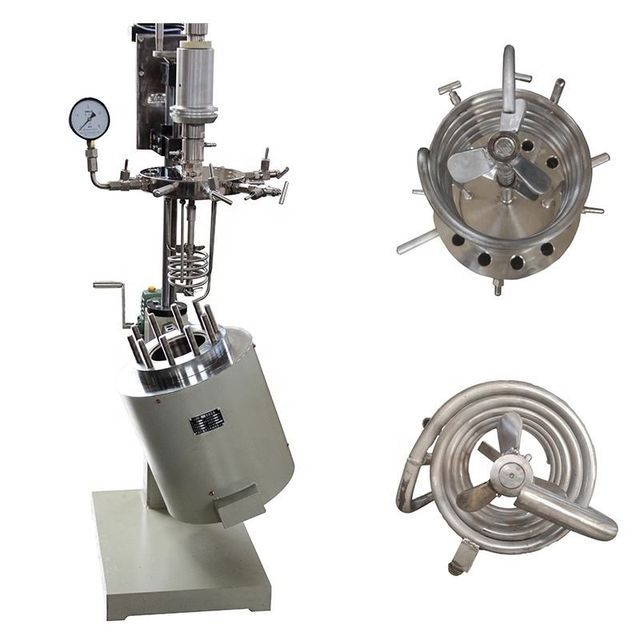

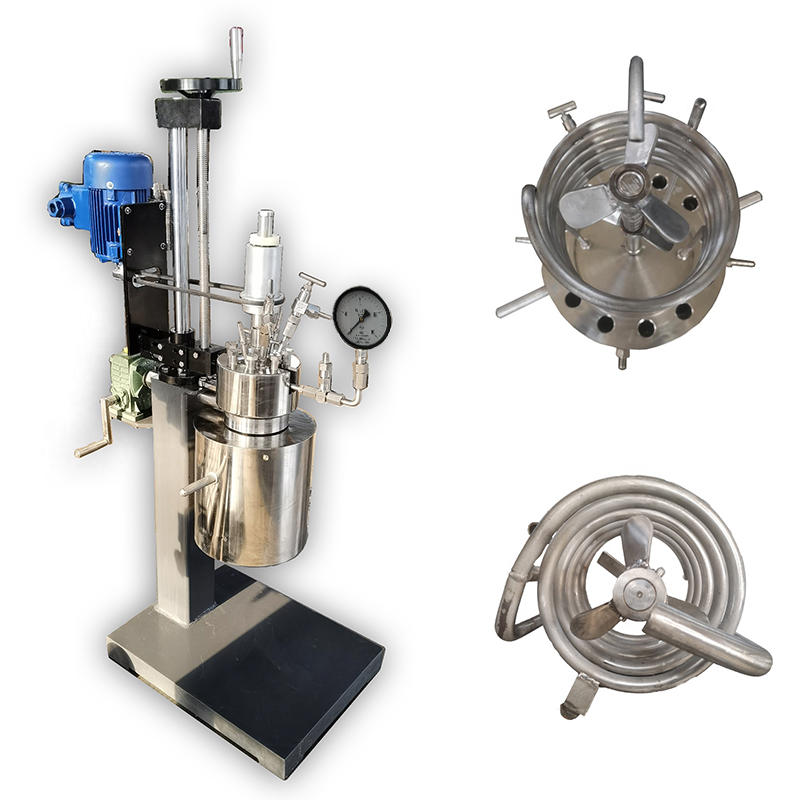

Weihai Huixin High Pressure Laboratory Electric Heating Jacketed Hydrogenation Reactor

This series of reactors is an autoclave designed on the basis of the GSHK model with detachable head and container. Due to the convenience and portability it brings, the reactor can be widely used in various tests and reactions under high pressure, high vacuum and high temperature conditions in the laboratory. Made of stainless steel, it looks good and is durable enough for lab testing.

application:Research/laboratory, high pressure, high vacuum, high temperature conditions. Chemical/Pharmaceutical, Synthesis, Reactor Systems, Low Temperature Reactions, Hydrogenation.

volume	250ml-5L
pressure	up to 100bar
temperature	350°C
Material	SS304/SS316
heating type	electro-thermal
cooling method	internal helical coil
impeller type	propeller, turbine, anchor

Features

Product Image

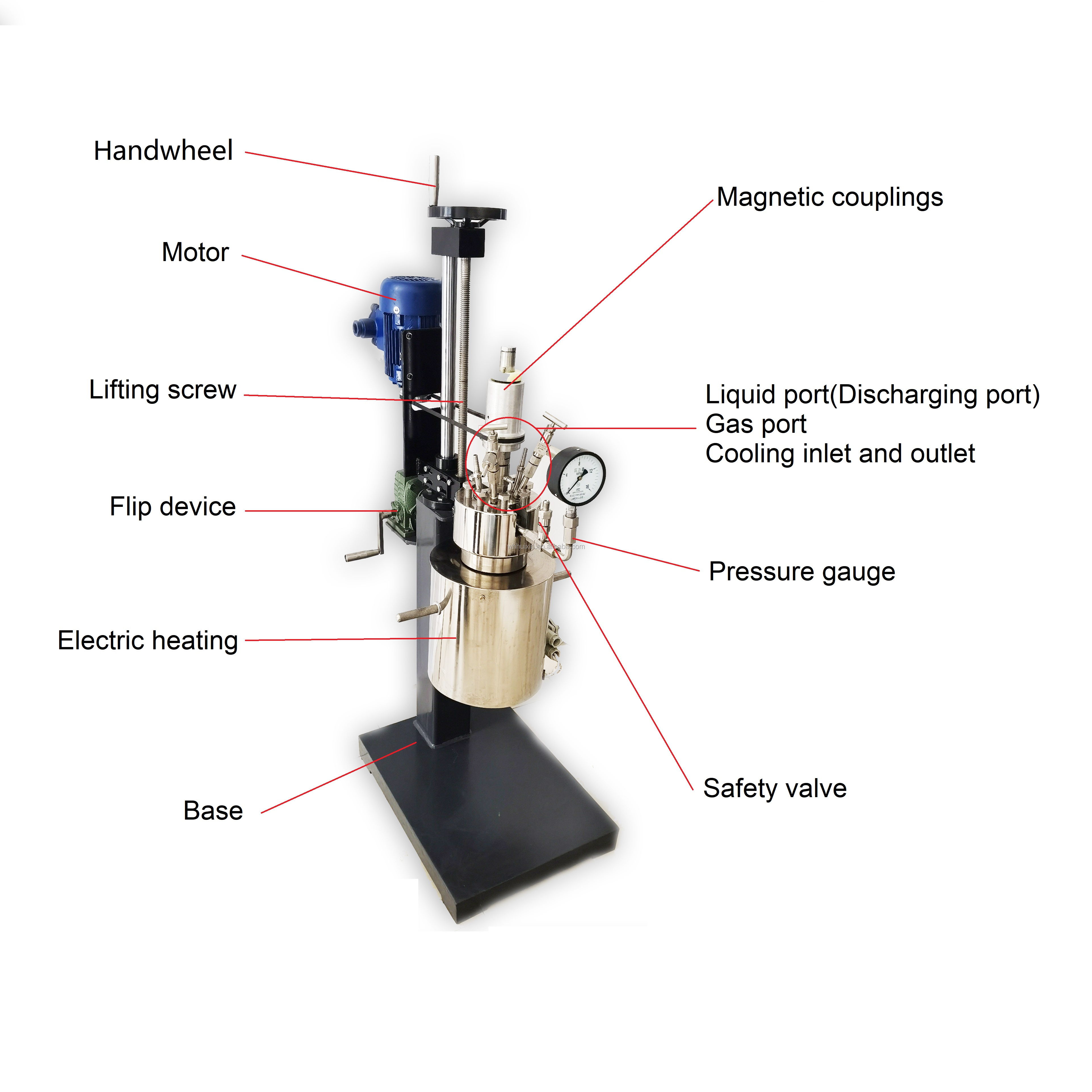

Lifting and tilting device, easy to operate, low labor cost.

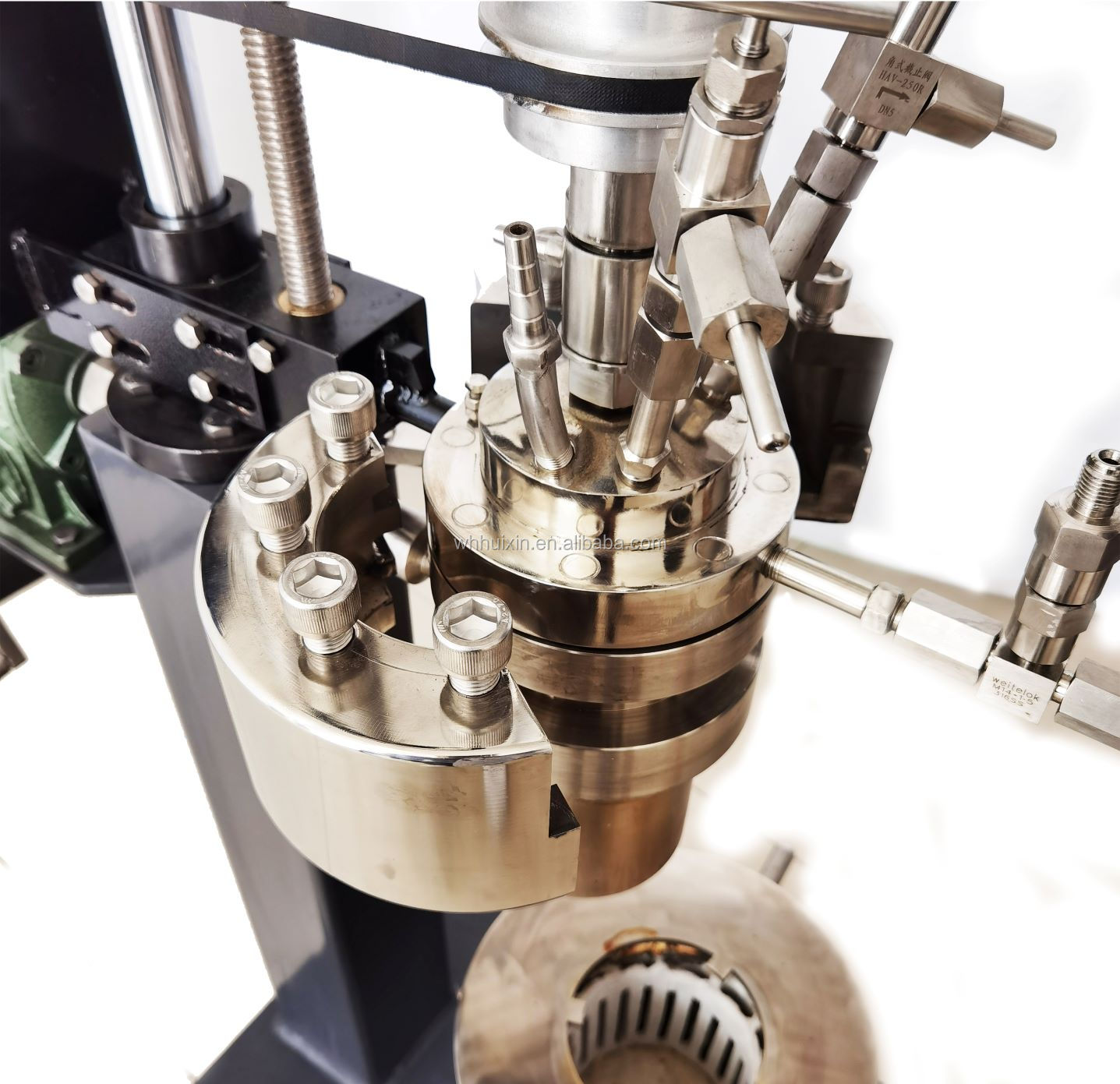

The movable head is designed to open quickly.

Low to High Torque Magnetic Couplings: Statically sealed, no leaks.

open quickly

* Simple operation, low labor cost

* Quick opening and closing

* Safe and reliable

internal drawings

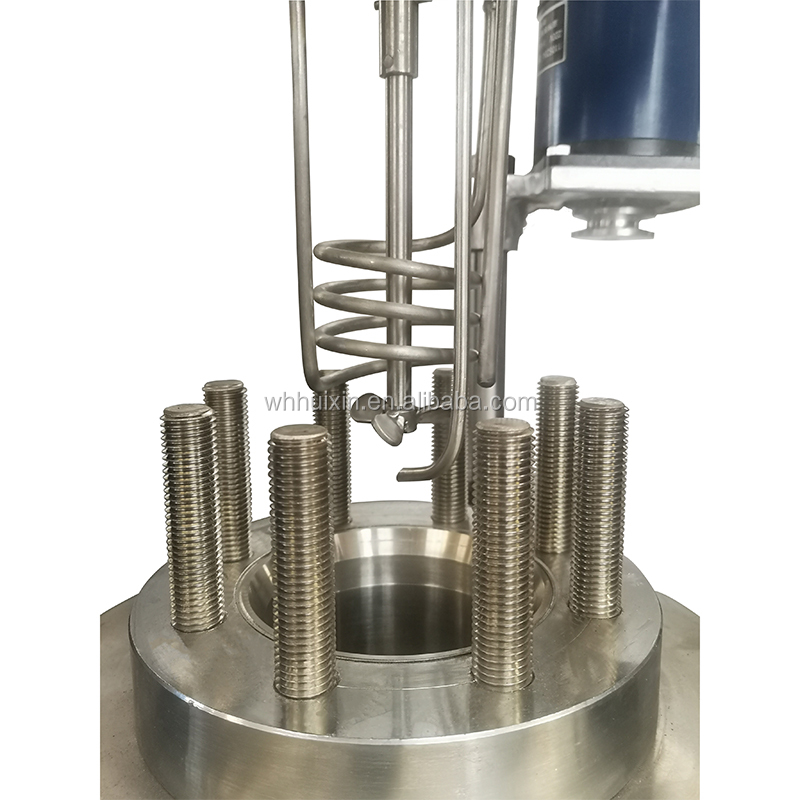

* Internal helical coil

Rapid cooling of materials

* Dip tube device

for upper discharge

* Various impellers available

propellers, turbines, anchors, others

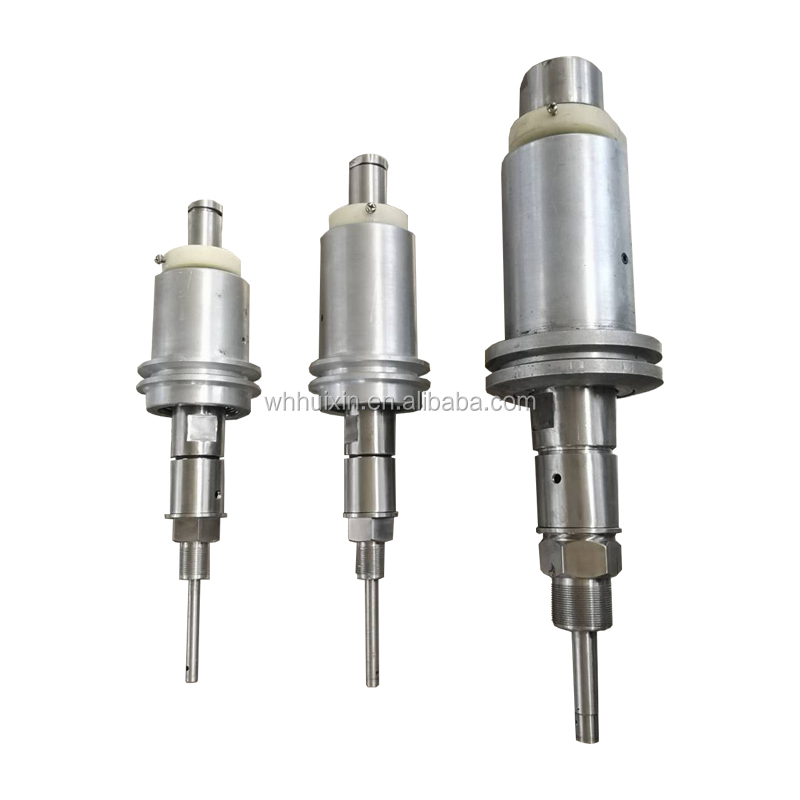

Electromagnetic stirrer

* 100% SeleniumCaroleZero leaks.

* Zero discharge of harmful liquids.
*Applicable to pressure fluctuations.
* Available in various capacities.
* Compact design.

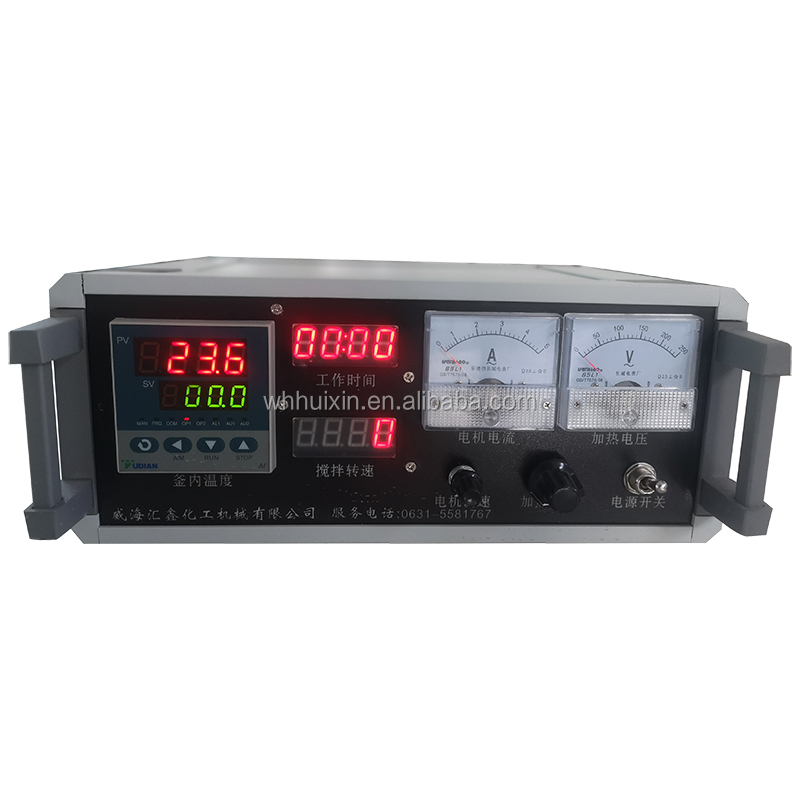

Control System

Intelligent digital temperature control

With temperature, stirring speed display and control and working time display

The reactor can also set the following options:
*Floor stand or movable cart design
*Direct drive or belt drive optional
* Reactor lifting/tilting device.
* Magnetic and mechanical seals.
* Vacuum pump, cold and hot circulator, PLC control, etc.
* Various impeller types are available for mixing tasks.
*A variety of anti-corrosion alloy materials are available.
