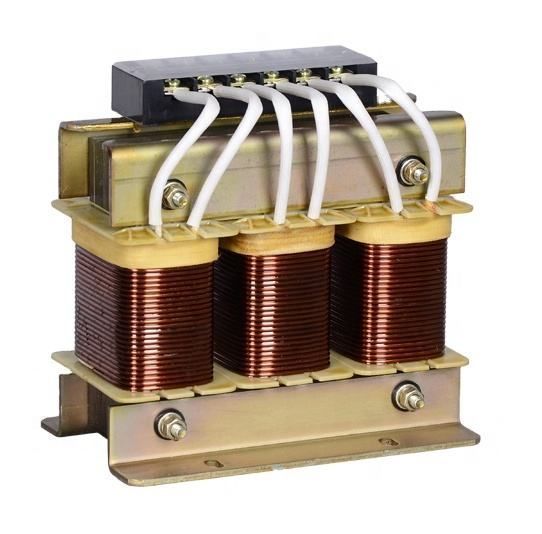

Three Phase AC Input Line Reactor 2.2kw 10A RACL 2%-10/2.2 Ac Input Reactor

Supplier: WENZHOU REELEN ELECTRICAL CO., LTD.
Region: Zhejiang, China
Contact: Mr Henry Zhou
Price: $17.00 / >=5 pieces
Min. Order: 5 pieces

Click here to contact

Product details

capacity:	2.2KW	Rated voltage:	380V or 400V or 660V or customized
Insulation class:	Customized F or H or C	Auto grade:	automatic
Packaging Details:	Export standard plywood case	Core Components Warranty:	1 year
weight:	4	Warranty:	1 year
HS code:	85045000	Rated voltage drop:	2%
Rated current:	10A	usage:	Rectifier transformers, combined transformers, power transformers
Winding Type:	Multiwinding Transformer	Core components:	PLC, engine, bearing, gearbox, motor, pressure vessel, gear, pump
payment terms:	L/C,Western Union,T/T	brand:	Raylen
Main selling point:	High security level	Governor inverter power:	2.2kW
place of origin; place of origin:	Zhejiang, China	Guideline:	GB10229, Jb9644, IEC289
Mechanical test report:	if	inductance:	1.401mh
Showroom location:	not any	Packaging Preview:
Video external inspection:	if	Supply capacity:	50,000 pieces per month
type:	tower reactor	Applicable industries:	Hotels, Clothing Stores, Building Materials Stores, Manufacturing Plants, Machinery Repair Stores, Food and Beverage Plants, Farms, Restaurants, Home Use, Retail, Food Stores, Printing Stores, Construction Engineering, Energy and Mining, Food and Beverage Stores, Others, Advertising company
Health status:	new	port:	Ningbo
Marketing Type:	normal product

Product Description

generalize

________________________________________________________________

REELEN variable frequency speed regulation input and output reactor: In the process of using the frequency converter and the governor, they are often subjected to surge current and surge voltage, which seriously damages the performance and service life of the frequency converter and the governor, so it is necessary to use The input reactor is arranged in the front, in order to suppress the surge voltage and surge current protection, the inverter and the speed controller, prolong the service life and prevent harmonic interference, and at the same time because the inverter adopts the frequency conversion speed controller, it is often Harmonics and waveform distortion are generated at the speed, which will affect the normal use of the equipment. Therefore, it is required to install a reactor on the output side to filter out the harmonic voltage and current and improve the quality of the power grid. The input and output reactors produced by our company are made of high-quality imported silicon steel sheets and refined by advanced technology. They have the advantages of small size, low temperature rise and no noise.

AC input and output reactors can be matched with SIEMENS, ABB, Hitachi, Toshiba, Panasonic, Sanken, Yaskawa, PU, Danfoss, Fuji, LG, Omron, Continental, Omron, Hyundai Schneider, Lenze, Emerson and other domestic and foreign brand converters.

application

________________________________________________________________

The use of input chokes is recommended in the following cases:
1. The frequency converters are closely connected in parallel.
2. The line power supply has obvious interference from other equipment (interference, overvoltage).
3. The voltage of each phase of the line power supply is unbalanced, exceeding 1.8% of the rated voltage.
4. A large number of converters are installed on the same line.
5. If there is a power factor correction device in the equipment, reduce the cos C overload on the correction capacitor.
6. The power supply capacity is 60KVA and above, and the installation position of the inverter is within 10M of the large-capacity power supply.
7. The inverter is powered by a very low impedance line (10 times higher than the rated value of the inverter).

working environment

1. The altitude of the installation site shall not exceed 1000m.

2. The ambient temperature is -25ºC~+45ºC, and the relative humidity does not exceed 90%.

3. The environment is free of harmful gases, vapors and chemical deposits.

4. The surrounding environment should have good ventilation conditions, such as inside the cabinet, should be equipped with ventilation equipment.

Main technical features

1. Rated working voltage: 380V/440V 50/60Hz

2. Rated working current: 5A-1600A @40ºC

3. Dielectric strength: iron core winding 3000VAC/50Hz/5mA/10s without arc breakdown (factory test)

4. Insulation resistance: 1000VDC≥100MV

5. Reactor noise: less than 65dB (1 meter with the reactor liquid level test)

6. Protection class: IP00

7. Insulation class: above class F

8. Maximum current: 1.5* rated current, continuous 60S

9. Temperature rise: ≤90K

10. Product implementation standards: IEC289:1987 reactor, GB10229-88 reactor (EQV IEC289:1987), JB9644-1999 semiconductor electric drive reactor

Models and what they mean

Dimensions and installation dimensions

Shape and installation dimensions

Model	Rated current (A)	Governor inverter power (kW)	Dimensions LxWxH (mm)	Installation size (mm)	Rated voltage drop	Inductance (mH)	Insulation class
RACL 2%-10/2.2	10	2.2	155×130×130	120×60,4-φ8	2%	1.401	H
RACL 2%-15/5.5	15	5.5	155×130×130	120×60,4-φ8	2%	0.934	H
RACL 2%-20/7.5	20	7.5	155×130×130	120×60,4-φ8	2%	0.701	H
RACL 2% - 30/11	30	11	155×130×130	120×60,4-φ8	2%	0.467	H
RACL 2% - 40/15	40	15	155×140×130	120×70,4-φ8	2%	0.350	H
RACL 2% - 50/18	50	18	155×150×130	120×80,4-φ8	2%	0.280	H
RACL 2% - 60/22	60	twenty two	155×150×130	120×80,4-φ8	2%	0.234	H
RACL 2%-80/30	80	30	190×150×160	150×85,4-φ8	2%	0.175	H
RACL 2% - 90/37	90	37	190×150×160	150×85,4-φ8	2%	0.156	H
RACL 2%-120/45	120	45	190×160×160	150×95,4-φ8	2%	0.117	H
RACL 2%-150/55	150	55	230×150×220	180×85,4-φ8	2%	0.093	H
RACL 2% - 200/75	200	75	230×150×220	180×85,4-φ8	2%	0.070	H
RACL 2%-250/100	250	100	230×160×220	180×95,4-φ8	2%	0.056	H
RACL 2% - 290/132	290	132	265x180x250	200×90,4-φ8	2%	0.048	H
RACL 2%-330/160	330	160	265×190×250	200×100,4-φ8	2%	0.042	H
RACL 2%-390/185	390	185	265×190×250	200×100,4-φ8	2%	0.036	H
RACL 2%-490/220	490	220	290×160×310	200×100,4-φ8	2%	0.029	H
RACL 2%-530/240	530	240	290×160×310	200×100,4-φ8	2%	0.026	H
RACL 2%-600/280	600	280	290×170×310	200×110,4-φ8	2%	0.023	H
RACL 2%-660/300	660	300	290×170×310	200×110,4-φ8	2%	0.021	H
RACL 2%-800/380	800	380	290×190×310	200×130,4-φ8	2%	0.018	H
RACL 2%-1000/450	1000	450	360×270×420	200×130,4-φ8	2%	0.014	H

notes:The above specifications are common specifications and are for reference only. Reactors with other voltage levels, different capacities and different voltage drop rates can be manufactured according to user requirements.

Connection diagram

attention

1. Payment terms: We accept T/T, 30% deposit and 70% balance with copy of bill of lading.

2. Delivery time: Usually it takes about 15-20 days.

3. Packaging standard: small capacity, carton, large capacity, we should use a sturdy wooden box for protection.

4. Winding material:We have two types, one is 100% copper and the other is copper aluminum. It depends on your requirements. In fact, if it works fine, there is a difference between the two. Just a long life. Copper is better and more expensive.

5. Logo: If you have good quantity, it is absolutely no problem to do OEM.

6. Monthly capacity: close to 80000pcs/month (small capacity) or close to 7000pcs/month (large capacity).

7. Our market: Our products sell well in Indonesia, Philippines, Russia, America, Middle East, etc. Some of them are our regulars and some of them are developing. We hope you will join us and benefit from our cooperation.

8. Warranty: Within 13 months from the date of the bill of lading.
