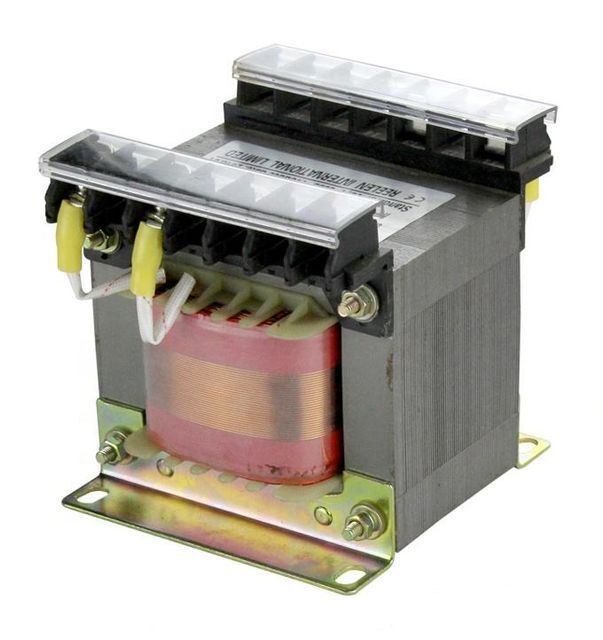

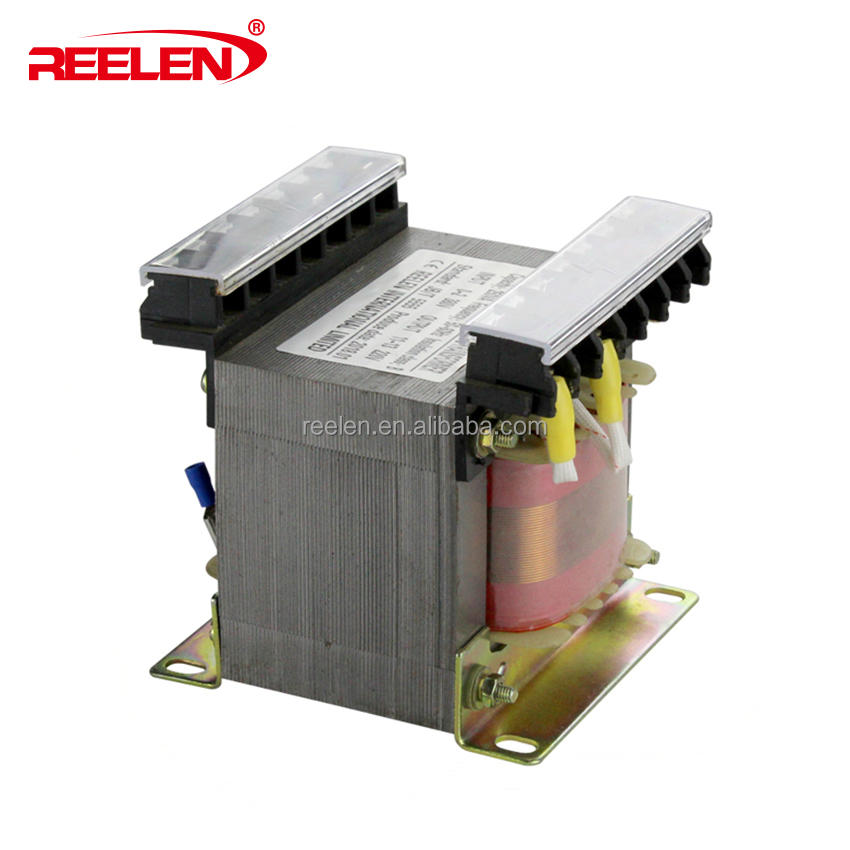

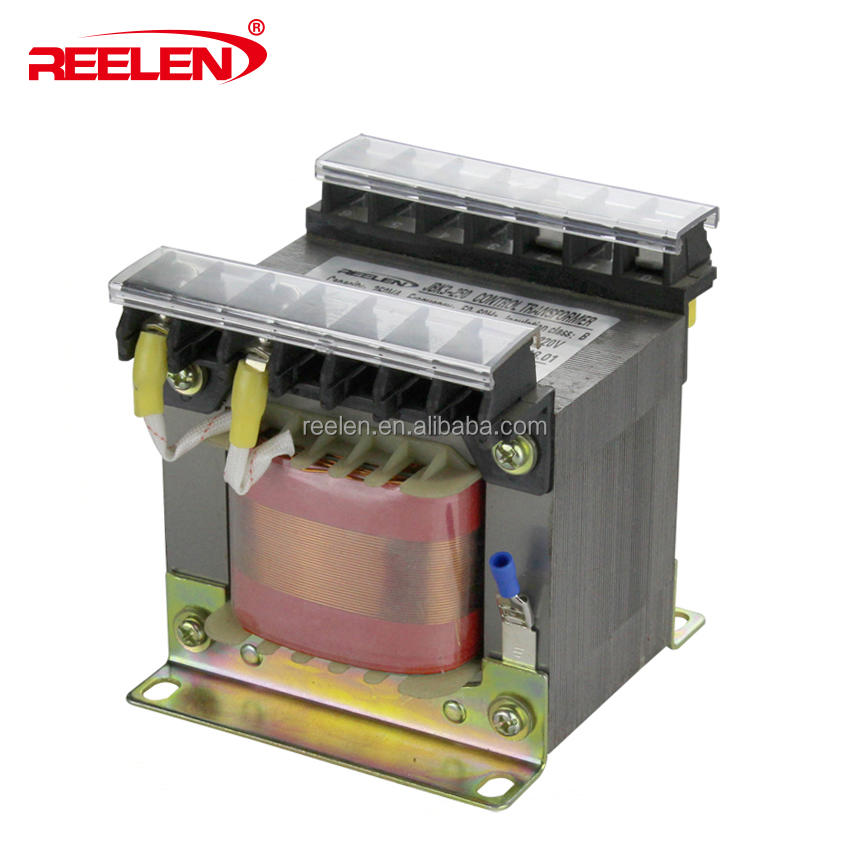

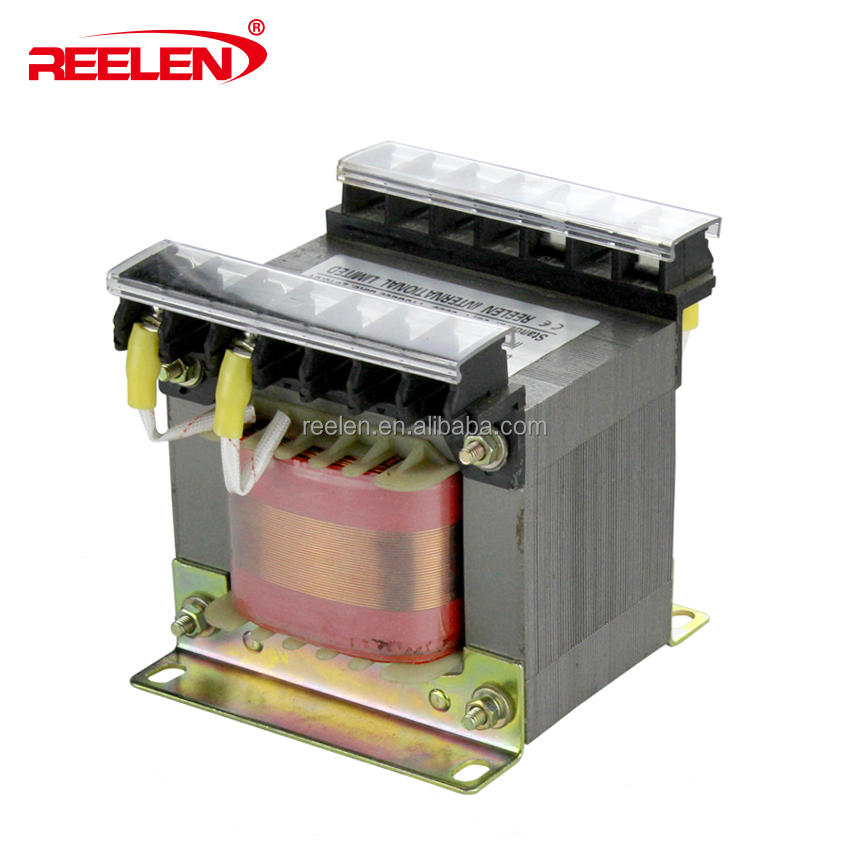

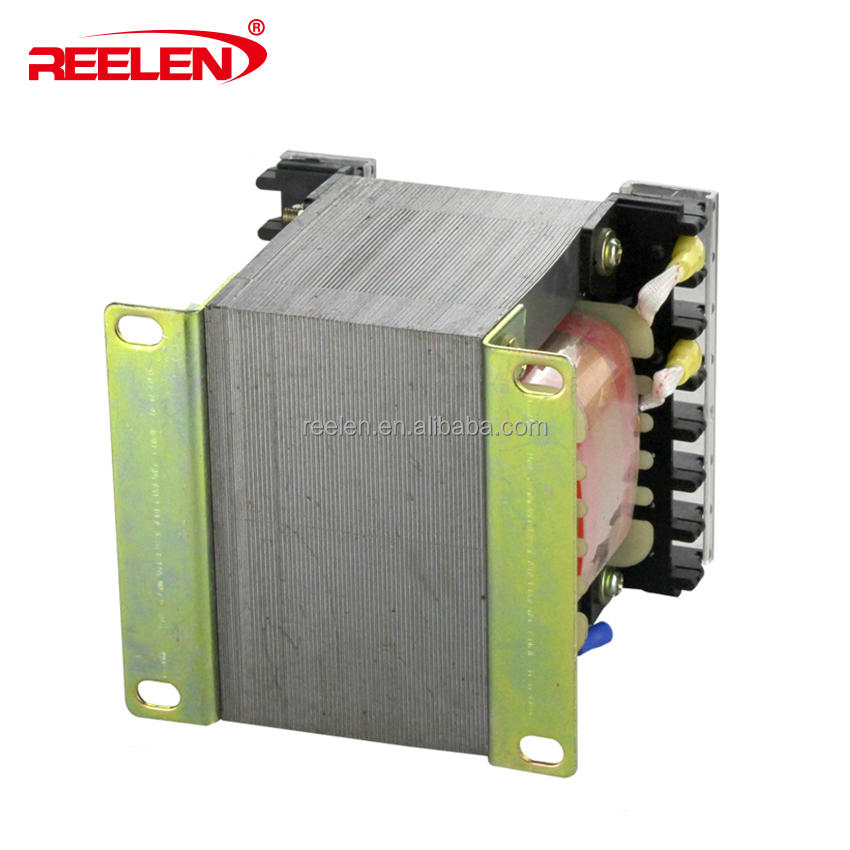

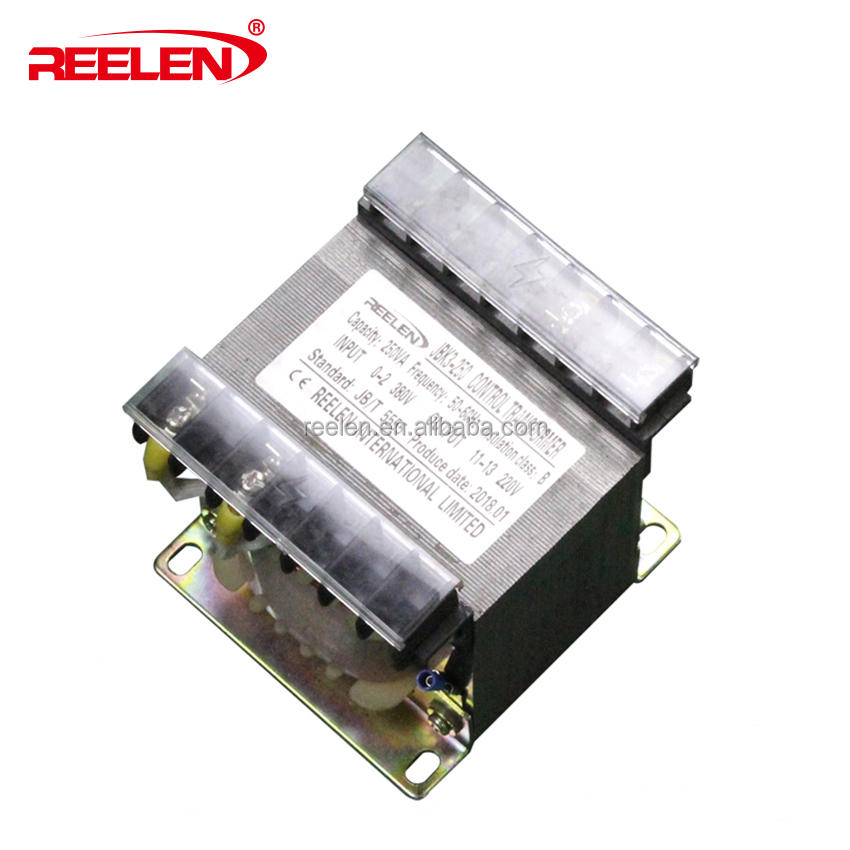

Control transformer 250VA IP00 Control transformer Isolating transformer 24v

Supplier: WENZHOU REELEN ELECTRICAL CO., LTD.
Region: Zhejiang, China
Contact: Mr Henry Zhou
Price: $23.00 / 10 - 99 pieces
$21.50 / 100 - 999 pieces
$20.30 / 1000 - 4999 pieces
$19.20 / >=5000 pieces
Min. Order: 10 pieces

Click here to contact

Product details

brand:	Raylen	place of origin; place of origin:	Zhejiang, China
port:	Ningbo	model:	JBK3-250VA
Packaging Details:	Inner box + outer box	payment terms:	L/C,Western Union,T/T
Coil structure:	EI	Material:	copper or aluminum windings
trademark:	REELEN or OEM	Secondary voltage:	220V or 200V or customized
usage:	Single-phase transformers, rectifier transformers, combined transformers, power supplies	Coil number:	custom made
Supply capacity:	50,000 pieces per month	Frequency characteristics:	Power frequency
Primary Voltage:	440V or 400V or customized	stage:	single
Core shape:	EI	safety standard:	en 61588
frequency:	50/60Hz	HS code:	8504319000

Specification

1. Standard: IEC/ ISO CE certification
2. Rated voltage: <3kV
3. Isolation transformer
4. Low loss and noise
5. Beautiful appearance, reliable quality and high efficiency
6. Easy to install

Product Description

application

________________________________________________________________

JBK3 series machine tool control transformer is a new product developed with reference to the samples of SIMENS company, which conforms to VDE0550, IEC204-1, IEC439, GB5226 and other standards. It is suitable for 50~60Hz AC circuit, the rated output voltage is less than 220V, and the input rated voltage is less than 500V. Control power supply for mechanical equipment and general electrical appliances, power supply for task lighting and signal lamps.

working environment

1. Ambient temperature: -5°C~+40°C;

2. The altitude of the installation site shall not exceed 2000m;

3. Relative humidity: <95%;

4. The environment has no gas, steam, chemical deposits, dust or dirt that seriously affect the insulation of the transformer, nor does it allow explosive or corrosive media;

5. If there are special working conditions that do not meet the above regulations, the user should negotiate with us.

Main technical features

1. Input voltage: 220V, 380V or customized
2. Output voltage: 6V, 12V, 110V or customized
3. Capacity range: above 40VA-5KVA
4. Efficiency: ≥95%
5. Insulation class: Class B or above can be customized
6. Cooling system type: natural air drying or IP20 fan cooling
7. Waveform distortion: no additional waveform distortion
8. Function: input voltage, output voltage, current indication
9. Protection: overcurrent protection
10. Winding conductor material: copper is generally used, and aluminum can be used with special requirements
11. It can be operated unattended for a long time.
12. Electric strength: no breakdown or flashover phenomenon at power frequency sinusoidal voltage of 2000V for 1min
13. Overload capacity: 1min under 2 times rated current

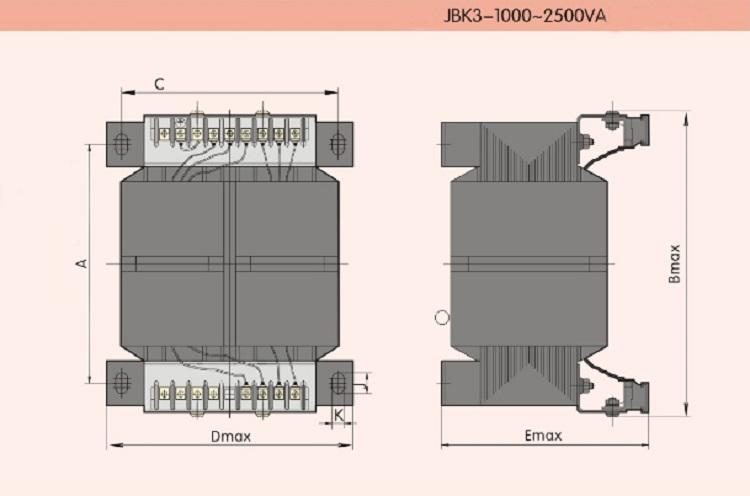

Dimensions and installation dimensions

Shape and installation dimensions

Model	Rated capacity (VA)	Primary voltage (V)	Secondary voltage (five)	Dimensions (mm)					Installation hole distance (mm)			Mounting hole(mm)
Model	Rated capacity (VA)	Primary voltage (V)	Secondary voltage (five)					maximum	maximum	maximum	One	C	KxJ
JBK3-40	40	220,380V or customized	6.3,12,24,36,110,127,220,380V or customized	82	78	92	56	52	5x9
JBK3-63	63					82	78	92	56	52	5x9
JBK3-100	100					86	92	95	64	69.5	5x9
JBK3-160	160					98	97	105	84	71.5	6x11
JBK3-250	250					98	110	105	84	85	6x11
JBK3-300	300					122	109	125	90	88	6x11
JBK3-400	400					122	113	125	90	92	6x11
JBK3-500	500					122	126	125	90	105	6x11
JBK3-630	630					152	110	150	130	90	8x14
JBK3-800	800					152	125	150	130	105	8x14
JBK3-1000	1000					230	170	156	160	142	7x14
JBK3-1600	1600					258	185	168	180	155	7x14
JBK3-2500	2500					285	210	175	210	175	7x14

attention

1. Payment terms: We accept T/T, 30% deposit and 70% balance with copy of bill of lading.

2. Delivery time: Usually it takes about 15-20 days.

3. Packaging standard: small capacity, carton, large capacity, we should use a sturdy wooden box for protection.

4. Winding material: 100% pure copper wire.

5. Logo: If you have good quantity, it is absolutely no problem to do OEM.

6. Monthly capacity: close to 80000pcs/month (small capacity) or close to 7000pcs/month (large capacity).

7. Our market: Our products sell well in Indonesia, Philippines, Russia, America, Middle East, etc. Some of them are our regulars and some of them are developing. We hope you will join us and benefit from our cooperation.

8. Warranty: Within 13 months from the date of the bill of lading.
