With PHOTO CELL SENSOR 100W outdoor low voltage transformer with timer led landscape light transformer

Click here to contact

Product details

model:	DYL-T12-100W	Photocell sensor time:	30s
Frequency (Hz):	60 Hz	Input voltage:	120 VAC
payment terms:	Western Union, T/T, MoneyGram	Voltage:	AC 12v, 13v, 14v, 15v
Certification:	ETL	Timer control:	yes
Rated primary voltage:	120	port:	Guangzhou
The output voltage:	12 VAC	Working mold:	Off/On/Auto/4H/6H/8H
brand:	deck	strength:	100W,100
Supply capacity:	10000 pieces per month	Rated secondary voltage:	12V
Photocell sensor control:	yes	place of origin; place of origin:	Guangdong, China
Packaging Details:	Packed in an inner box, then put into a carton.

UL low voltage transformer with PHOTO CELL SENSOR 100W outdoor low voltage led landscape light transformer with timer

Electronic Specifications
Input voltage	120	volt
Frequency (Hz)	60	hertz
Rated power (W)	120	W
The output voltage	12	Voltage ±5%
Output current	8.33	amplifier
No-load output voltage	12.8	Voltage ±5%
No-load excitation current	950	Max mA
Full load excitation current	1200	Max mA

leakage current	1	Well
testing time	1	minimum value
takes precedence over seconds	1250	volt
Core as the core	1250	volt
seconds to core	1250	volt
efficiency	70	%
insulation level	female(150)	℃

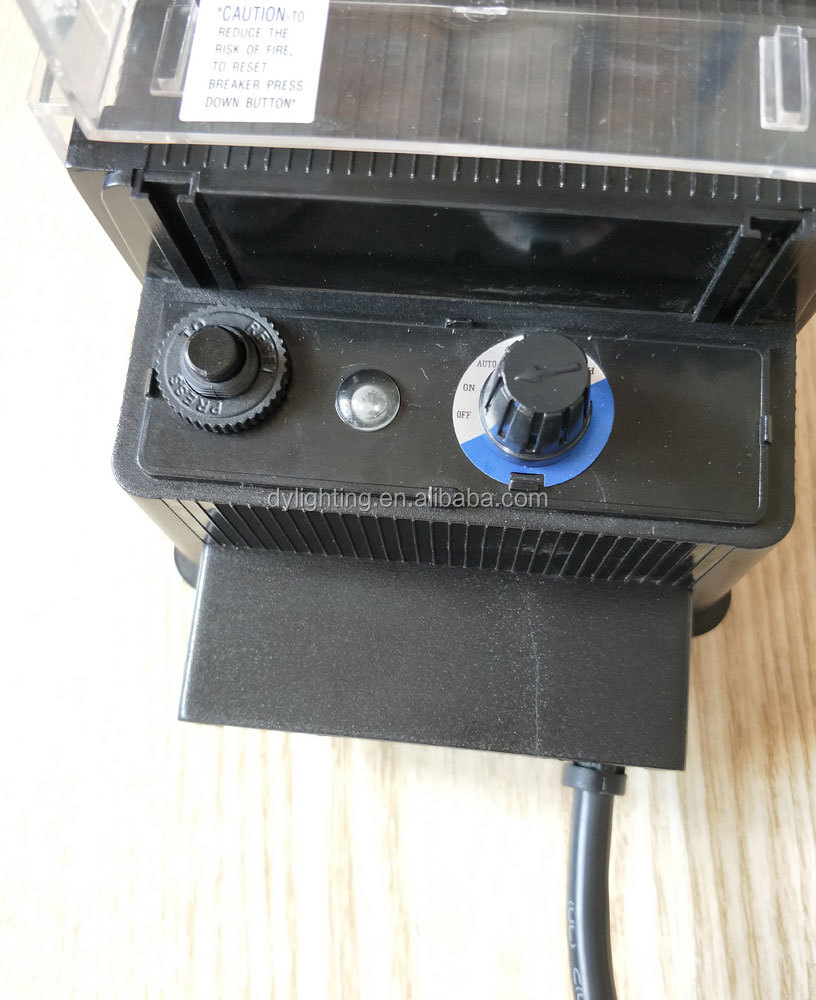

Photocell and timer control
leave:	Photocell control "OFF".
exist:	Photocell control "on",
car:	Photocell control "on".
4 hours. 6H. 8 hours:	Photocell control "on",
	Turns the output power "off" full time.

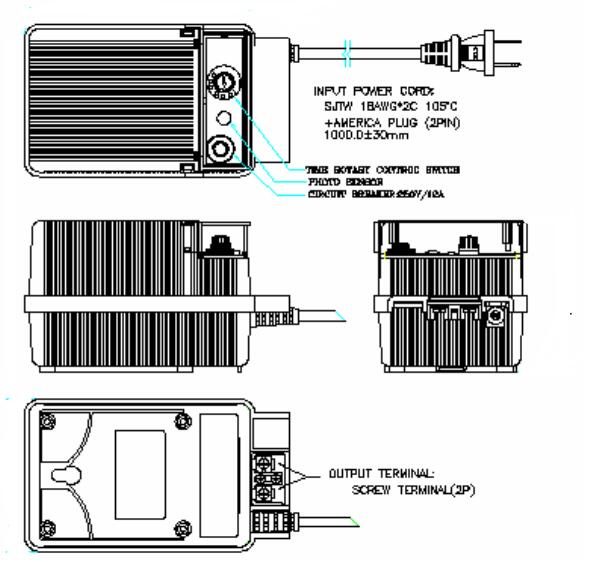

Mechanical Specifications
environment:
Operating temperature	-10 to 40	℃
Storage temperature	-20 to 70	℃
relative temperature	40℃±2℃
Relative humidity	90% relative humidity
