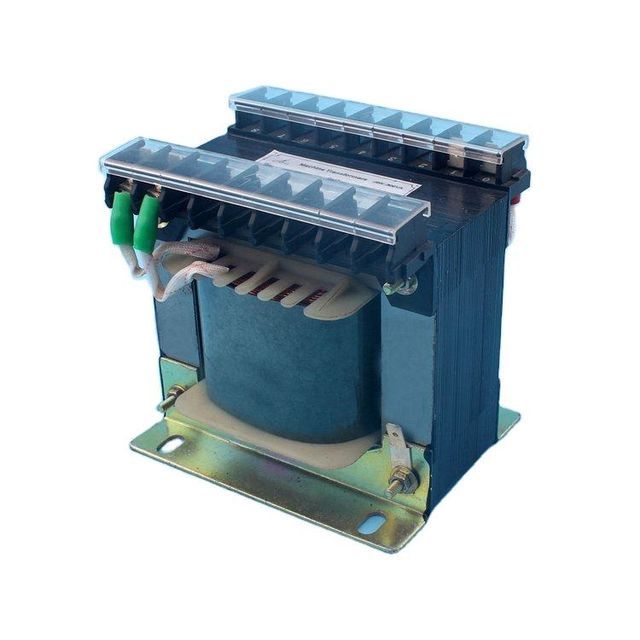

BK series control transformer Voltage transformer BK-50VA

Supplier: Yueqing Aibeiken Electric Co., Ltd.
Region: Zhejiang, China
Contact: Ms Nina Tao
Price: $1.00 /piece
Min. Order: 1 piece

Click here to contact

Product details

payment terms:	L/C, Western Union, T/T, MoneyGram, Paypal, Credit Card	frequency:	50Hz or 60Hz
usage:	strength	Number of coils:	Autotransformer
Coil structure:	ring	Transformer type:	isolation transformer
brand:	monastery	Origin:	Zhejiang, China
Product Category:	control transformer	Certification:	CE/ROHS/CESI/CTQC
Supply capacity:	35,000 pieces of control transformers per month	model:	control transformer
port:	Ningbo, Shanghai, Wenzhou	stage:	one or three
Packaging Details:	Control Transformer 1) 1 plastic bag/set, 1 wooden case/set 2) Special packing as required by customers.	standard:	IEC60076, GB1094-1996; JB/T10088-2004; GB/T6451-2008; EQV
Advantage:	Best price and best quality in China	OEM/Design Manufacturer:	usable
Secondary voltage:	Customized/AC 12V, 24V, 36V, 48V, 120V, 240V, etc.	Primary voltage:	Customized/AC 110V, 115V, 120V, 127V, 220V, 230V, 240V, etc.
Rated Capacity:	10VA to 25000VA

Control transformer ip67 instantaneous waterproof switch transformer copper for toys

Product Description

380V/220V 200V 180V 48V 24V 12V 6.3V Machine Tool Isolation Transformer Manufacturercontrol transformer

Specification:

BK series machine tool control transformers are suitable for 50~60Hz, voltage up to 500V circuits, and are usually used as power supplies for machine tool electrical appliances, local lighting and indicator lights.
1. Input voltage: rated voltage ±10%
2. Output voltage: rated voltage +5% (no load)
3. Efficiency: ≥95%
4. Waveform distortion: no additional waveform distortion
5. Function: input voltage, output voltage, current indication.
6. Protection: overcurrent protection
7. It can be operated unattended for a long time
8. Insulation resistance: ≥50MΩ
9. Electric strength: power frequency sinusoidal voltage 2000V 1min without breakdown or flashover phenomenon
10. Overload capacity: 1min at 2 times rated current

control transformer
working environment:
1. Ambient temperature: -15℃~+40℃
2. Altitude: <1000m
3. Relative humidity: <90%
4. There are no gases, vapors, chemical deposits, dust or dirt that seriously affect the insulation of the transformer in the environment, and explosive or corrosive media are not allowed.
5. If the special working conditions do not meet the above requirements, the user should negotiate with us.control transformer

Different kinds of transformers we offer:

our service

Trade terms:

1. Payment method:1) 30% prepayment, the balance 70% paid before shipment. 2) Letter of credit

2. Port of loading:Ningbo, Wenzhou or Shanghai port
3. Discount:Available according to order quantity
4. Delivery time:3-10 days according to the order quantity.

control transformer

Feedback: copper transformer toy

We really appreciate your positive feedback. We take our customers very seriously. If you have any questions, please feel free to contact us by email, we are always here to help.

control transformer
