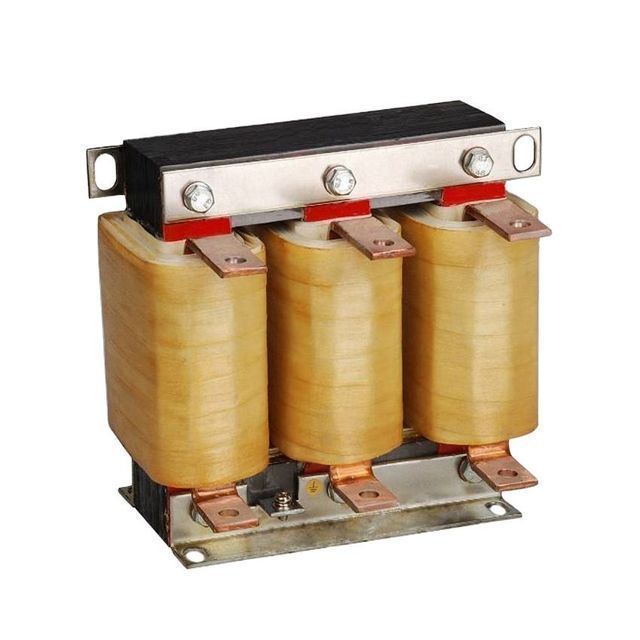

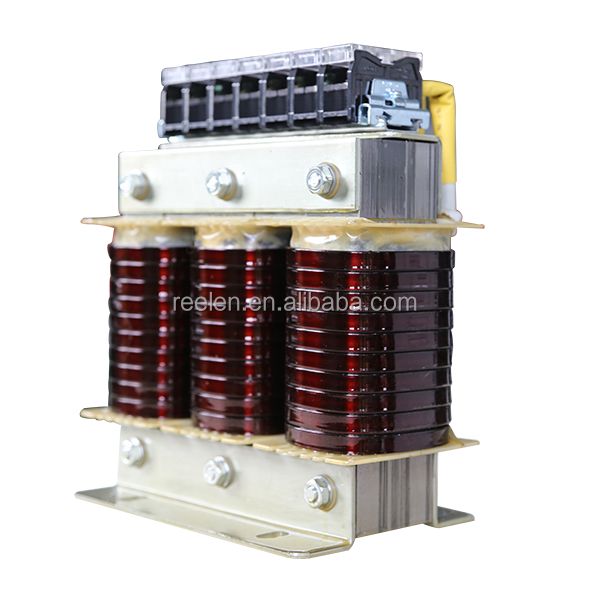

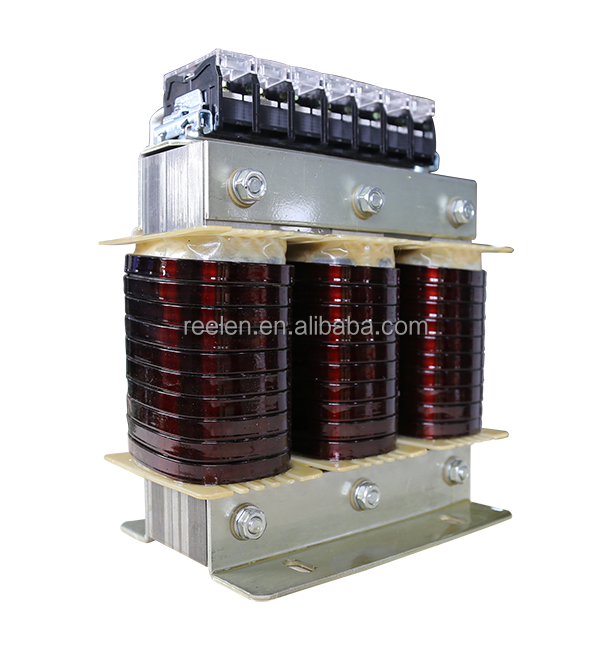

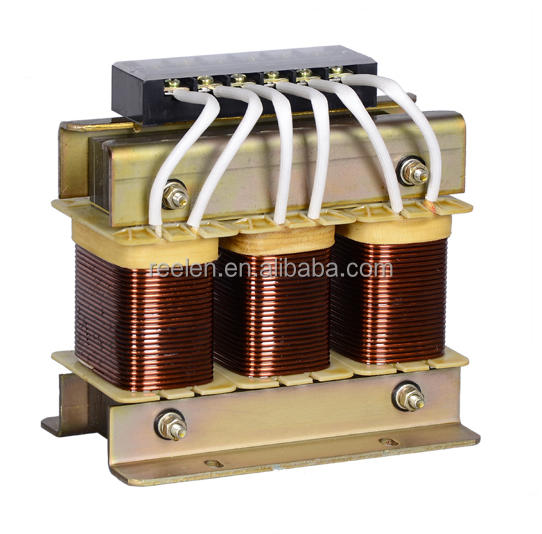

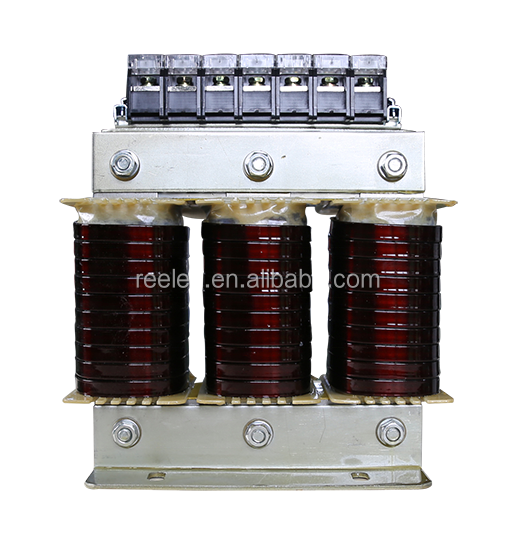

High-quality AC reactor 11kw 30A RACL 2%-30/11 three-phase AC line reactor

Supplier: WENZHOU REELEN ELECTRICAL CO., LTD.
Region: Zhejiang, China
Contact: Mr Henry Zhou
Price: $43.00 / 5 - 49 pieces
$40.00 / 50 - 499 pieces
$37.00 / 500 - 999 pieces
$35.00 / >=1000 pieces
Min. Order: 5 pieces

Click here to contact

Product details

Video shipment inspection:	Not available	Governor inverter power:	22kw
Rated current:	30A	Core component warranty:	1 year
Health status:	new	type:	tower reactor
Supply capacity:	50000 pieces per month	payment terms:	L/C, Western Union, T/T
usage:	Rectifier Transformer, Combined Transformer, Power Transformer	Winding type:	multi-winding transformer
Packaging Details:	Export standard plywood box	brand:	Ruilin
Insulation class:	F or H or C as customized	Rated voltage:	380V or 400V or 660V or customized
Rated voltage drop:	2%	After warranty service:	Video technical support, online support, spare parts, on-site maintenance and repair services
Warranty:	1 year	Automatic level:	automatic
Guideline:	GB10229, Jb9644, IEC289	Applicable industries:	Hotels, Clothing Stores, Building Materials Stores, Manufacturing Plants, Machinery Repair Shops, Food and Beverage Plants, Farms, Restaurants, Home Use, Retail, Food Stores, Printing Shops, Construction, Energy and Mining, Food and Beverage Stores, Other, Advertising company
After-sales service provided:	Free spare parts, on-site maintenance and repair services, video technical support, online support	Marketing Type:	normal product
inductance:	0.467mh	place of origin; place of origin:	Zhejiang, China
Mechanical test report:	Not available	Customs code:	85045000
Showroom location:	not any	port:	Ningbo
Main selling points:	low noise level	capacity:	11KW
Local service location:	not any	Core components:	PLC, engine, bearing, gearbox, motor, pressure vessel, gear, pump

Product Description

summarize

______________________________________________________________________

REELEN input and output reactors for frequency conversion and speed regulation: During the use of frequency converters and speed controllers, they are often impacted by surge currents and surge voltages, and their performance will be severely damaged, which will affect the service life of the frequency converters and speed controllers , so it is necessary to use the input reactor installed in the front to suppress the surge voltage and surge current protection, inverter and speed controller, prolong the service life and prevent harmonic interference. Therefore, harmonics and waveform distortion are often generated in the speed, which will affect the normal use of the equipment. Therefore, it is required to install a reactor output on the output side to filter out harmonic voltage and current, and improve the quality of the power grid. The input and output reactors produced by our company are made of high-quality imported silicon steel sheets and refined by advanced technology. They have the advantages of small size, low temperature rise, and no noise.

Our company's AC input and output reactors can be used with domestic and foreign brands such as SIEMENS, ABB, Hitachi, Toshiba, Matsushita, Sanken, Yaskawa, PU, Danfoss, Fuji, LG, OMRON, Continental, OMRON, moden Schneider, Lenze, Emerson, etc. .

application

______________________________________________________________________

It is recommended to use an input reactor in the following situations:
1. The inverters are connected in parallel and closely connected.
2. The line power supply has obvious interference (interference, overvoltage) from other equipment.
3. The phase-to-phase voltage of the line power supply is unbalanced, exceeding 1.8% of the rated voltage.
4. A large number of converters are installed on the same line.
5. If there is a power factor correction device in the equipment, reduce the cos C overload of the correction capacitor.
6. The power supply capacity is 60KVA and above, and the installation position of the frequency converter is within 10M of the large-capacity power supply.
7. The frequency converter is powered by a very low impedance line (10 times higher than the rated value of the frequency converter).

working environment

1. The altitude of the installation site shall not exceed 1000m.

2. The ambient temperature is -25ºC~+45ºC, and the relative humidity does not exceed 90%.

3. The environment is free from harmful gas, steam and chemical deposits.

4. The surrounding environment should have good ventilation conditions, such as in the cabinet, ventilation equipment should be equipped.

Main Specifications

1. Rated working voltage: 380V/440V 50/60Hz

2. Rated operating current: 5A-1600A @40ºC

3. Dielectric strength: iron core winding 3000VAC/50Hz/5mA/10s free arc breakdown (factory test)

4. Insulation resistance: 1000VDC≥100MV

5. Reactor noise: less than 65dB (1 meter test reactor liquid level point)

6. Protection level: IP00

7. Insulation class: Class F or above

8. Maximum current: 1.5*rated current, last for 60S

9. Temperature rise: ≤90K

10. Product implementation standards: IEC289:1987 reactor, GB10229-88 reactor (EQV IEC289:1987), JB9644-1999 semiconductor electric drive reactor

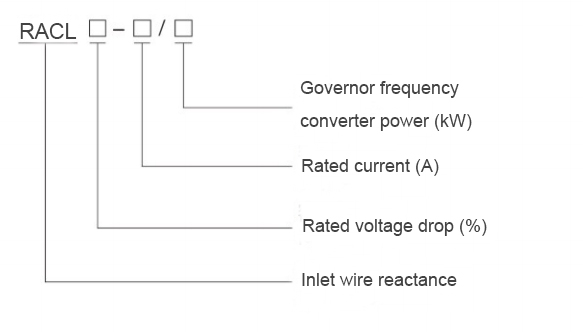

Model and meaning

Dimensions and installation dimensions

Shape and installation dimensions

Model	Rated current (A)	Governor inverter power (kW)	Dimensions L x W x H (mm)	Installation size (mm)	Rated voltage drop	Inductance (mH)	Insulation class
Daily edible food intake 2%-10/2.2	10	2.2	155×130×130	120×60,4-φ8	2%	1.401	h
Daily edible food intake 2%-15/5.5	15	5.5	155×130×130	120×60,4-φ8	2%	0.934	h
Daily edible food intake 2%-20/7.5	20	7.5	155×130×130	120×60,4-φ8	2%	0.701	h
2%-30/11 of the daily edible food intake	30	11	155×130×130	120×60,4-φ8	2%	0.467	h
Daily edible food intake 2%-40/15	40	15	155×140×130	120×70,4-φ8	2%	0.350	h
2%-50/18 of the daily intake of edible food	50	18	155×150×130	120×80,4-φ8	2%	0.280	h
2%-60/22 of the daily intake of edible food	60	twenty two	155×150×130	120×80,4-φ8	2%	0.234	h
2%-80/30 of daily edible food intake	80	30	190×150×160	150×85,4-φ8	2%	0.175	h
2% of daily edible food intake - 90/37	Post-90s	37	190×150×160	150×85,4-φ8	2%	0.156	h
Daily edible food intake 2%-120/45	120	45	190×160×160	150×95,4-φ8	2%	0.117	h
Daily edible food intake 2%-150/55	150	55	230×150×220	180×85,4-φ8	2%	0.093	h
Daily edible food intake 2%-200/75	200	75	230×150×220	180×85,4-φ8	2%	0.070	h
Daily edible food intake 2%-250/100	250	100	230×160×220	180×95,4-φ8	2%	0.056	h
Daily Edible Food Intake 2% - 290/132	290	132	265x180x250	200×90,4-φ8	2%	0.048	h
Daily edible food intake 2%-330/160	330	160	265×190×250	200×100,4-φ8	2%	0.042	h
Daily edible food intake 2% - 390/185	390	185	265×190×250	200×100,4-φ8	2%	0.036	h
Daily edible food intake 2% - 490/220	490	220	290×160×310	200×100,4-φ8	2%	0.029	h
Daily Edible Food Intake 2% - 530/240	530	240	290×160×310	200×100,4-φ8	2%	0.026	h
Daily edible food intake 2% - 600/280	600	280	290×170×310	200×110,4-φ8	2%	0.023	h
Daily edible food intake 2%-660/300	660	300	290×170×310	200×110,4-φ8	2%	0.021	h
Daily edible food intake 2% - 800/380	800	380	290×190×310	200×130,4-φ8	2%	0.018	h
Daily edible food intake 2%-1000/450	1000	450	360×270×420	200×130,4-φ8	2%	0.014	h

notes:The above specifications are common specifications and are for reference only. Reactors with other voltage levels, different capacities, and different voltage drop rates can be manufactured according to user requirements.

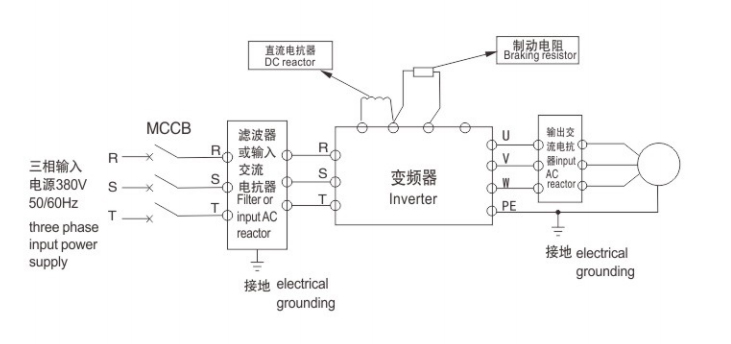

Connection diagram

attention

1. Payment terms: We accept TT, 30% deposit and 70% balance against copy of BL.

2. Delivery time: Usually it takes about 15-20 days.

3. Packing standard: use cartons for small volumes, and strong wooden boxes for large volumes.

4. Winding material:We have two types, one is 100% copper and the other is copper aluminum. It depends on your requirements. In fact, there is a difference between the two if they work properly. Except for longevity. Copper is better and more expensive.

5. Logo: If you have enough quantity, it is absolutely no problem to do OEM.

6. Monthly production capacity: nearly 80000pcs/month (small capacity) or nearly 7000pcs/month (large capacity).

7. Our market: Our products are popular in Indonesia, Philippines, Russia, America, Middle East and so on. Some of them are our regular customers, and some are under development. We hope you can join us and get mutual benefits from our cooperation.
