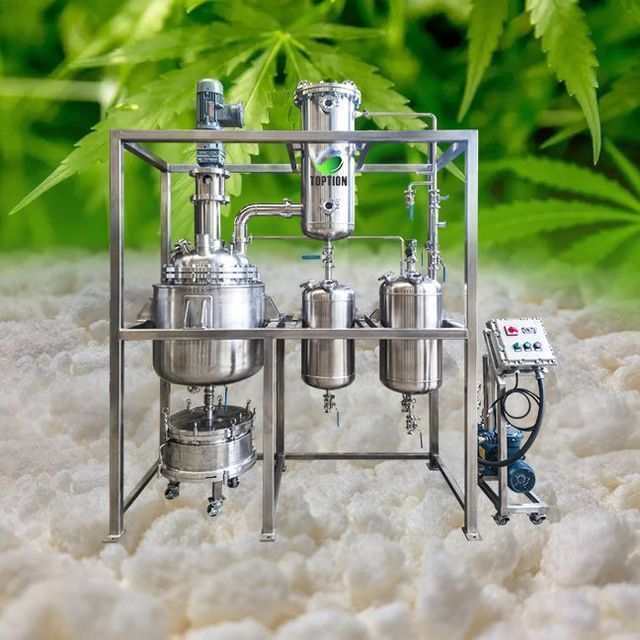

100L Continuous Stirred Tank Crystallization Reactor Crystallization Equipment

Supplier: Xi'an Toption Instrument Co., Ltd.
Region: Shaanxi, China
Contact: Ms Alice Shi
Price: $21800.00 /set
Min. Order: 1 set

Click here to contact

Product details

Packaging Details:	1. Securely fixed and packed in a wooden box. 2. Neutral packaging and customized packaging are available.	Mechanical test report:	if
Condenser:	Vertical Snake Condenser	Single package size:	250X122X248 cm
Voltage:	110V/220V/380V, 50/60Hz	Control cabinet:	Explosion-proof
Dimensions (LWH):	2500x1220x2480mm	Crystallization Reactor:	Jacket type SS304
Applicable industries:	Building Materials Stores, Manufacturing Plants, Farms, Retail Stores, Grocery Stores, Food and Beverage Stores	Warranty:	1 year
Heating and cooling system:	optional	Video external inspection:	if
application:	pharmaceutical production	place of origin; place of origin:	Shaanxi, China
Core components:	Engines, motors, pumps	Operating Voltage:	220V 50/60Hz 1 phase
Gross weight per piece:	1150.000 kg	Main selling point:	high productivity
Material:	Stainless Steel SS304	Core Components Warranty:	1 year
Sales unit:	single product	product name:	Crystallization reactor
Packaging Preview:		Marketing Type:	New Products 2022
Heating type:	Connection to additional heater via jacket DN25 (optional)	capacity:	100 liters
brand:	TOPTION	Health status:	new
strength:	1500W	Showroom location:	U.S.
Weight (kg):	1150

Product Description

scope
Item number: TCFR-100L
Function: Reactor for crystallization, filtration, concentration, mother liquor collection
Crystallization reactor: 100L jacket type SS304
Heating method: connect additional heater (optional) through jacket DN25, with 70mm insulation layer outside the jacket
Stirring system: Magnetic seal
Motor power: 1500W explosion-proof control cabinet
Oil port: feed port KF25 with ball valve + gas protection port KF25 with ball valve
Equipped with pressure gauge and temperature sensor
Concentration condenser: 2m2 SS304 inlet and outlet DN20

Filter: 40L (Φ500×200) removable filter at the bottom of the reactor, with vacuum insulation layer
Filter plate: stainless steel sintered mesh filter 50um
Solvent collection tank: 50L SS304 monolayer with sight glass
Mother liquor tank: 80L SS304 single layer with observation glass

Function: Reactor for crystallization, filtration, concentration, mother liquor collection

Model	TCFR-50L	TCFR-100L	TCFR-200L
Stirred Reactor	Net volume 50L	Net volume 100L	Net volume 200L
		Stainless Steel 304	Stainless Steel S304	Stainless Steel S304
		Magnetic drive, static seal
		Stirring power 750W, frequency control	Stirring power 1.5KW, frequency control	Stirring power 1.5KW, frequency control
		The jacket is heated by circulation, and the jacket is covered with a 70mm thermal insulation layer
		Install pressure gauges and thermometers
		One feed port, port KF16, with one ball valve	One feed port, port KF25, with one ball valve	One feed port, port KF25, with one ball valve
		1 gas protection port, port KF16, with 1 ball valve	1 gas protection port, port KF25, with 1 ball valve	1 gas protection port, port KF25, with 1 ball valve
		Jacket import and export DN25
condenser	Heat exchange area 1㎡	Heat exchange area 2㎡	Heat exchange area 3㎡
		Material S304	Material S304	Material S304
		Refrigerant import and export DN20
solvent tank	Volume 30L	Volume 50L	Volume 100L
		Material S304	Material S304	Material S304
		with sight glass	with sight glass	with sight glass
mother liquor tank	Volume 30L	Volume 80L	Volume 150L
		Material S304	Material S304	Material S304
		with sight glass	with sight glass	with sight glass
filter	Φ400×200(25L)	Φ500×200(40L)	Φ600×220(60L)
		50μm filter plate + filter cloth	50μm filter plate + filter cloth	50μm filter plate + filter cloth
		vacuum insulation	vacuum insulation	vacuum insulation
Electrical box	fireproof	fireproof	fireproof

Product Details

1. The reaction and filtration are separated, which greatly reduces the loss rate. Common crystallizers on the market cannot filter to 99% purity due to the problem of CBD loss. We can do this successfully. 2. The filter part can be pushed out, with quick opening up and down, quick opening, quick reclaiming, convenient operation, safety and quickness. 3. In line with general process design, reasonable structure, beautiful layout, simple operation and low height, it is suitable for almost all laboratories or workshops. 4. There are two options of condenser and condensing solvent tank and no condenser and condensing solvent tank. Flexible collocation reflects high cost performance. 5. UL explosion-proof motor and ABB inverter can be customized. 6. Optional magnetic coupling seal, equipped with a large condenser, the solvent will not leak a trace. 7. Select TOPTION crystallization filtration reactor, 70% cbd oil in 99% high-purity cbd crystal, the value is increased by more than 29%!

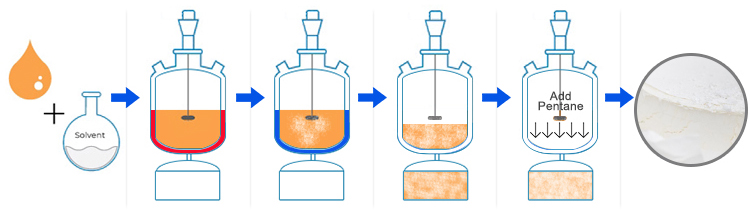

Product process

1. Add solvent to CBD distillate 2. Pressurize, mix, heat and move to completely dissolve cbd distillate in pentane 3. Cool, CBD crystals start to precipitate and grow 4. Recrystallization, filtration, mother liquor recovery 5. Rinse crystals 6.98~99% high purity CBD isolated crystals

Customer case

application

Certificates and Exhibitions

Since 2004, the TOPTION brand cbd extraction | distillation equipment has been used and praised in Canada, the United States, Poland, Russia, Spain, Switzerland and other countries. We plan our overseas exhibitions in advance every year. Up to now, TOPTION has participated in many exhibitions in Canada, Los Angeles, San Jose, Las Vegas, etc., as well as laboratory exhibitions in Russia and South Korea. In December 2020, we will participate in the Las Vegas cbd exhibition again, and in 2021 will also participate in the Swiss cbd exhibition. Keeping up with the market demand, combined with the TOPTION professional engineer team with more than 20 years of experience in CBD rectification/purification equipment operation, design and development, the TOPTION CBD rectification turnkey solution design keeps pace with the times.
