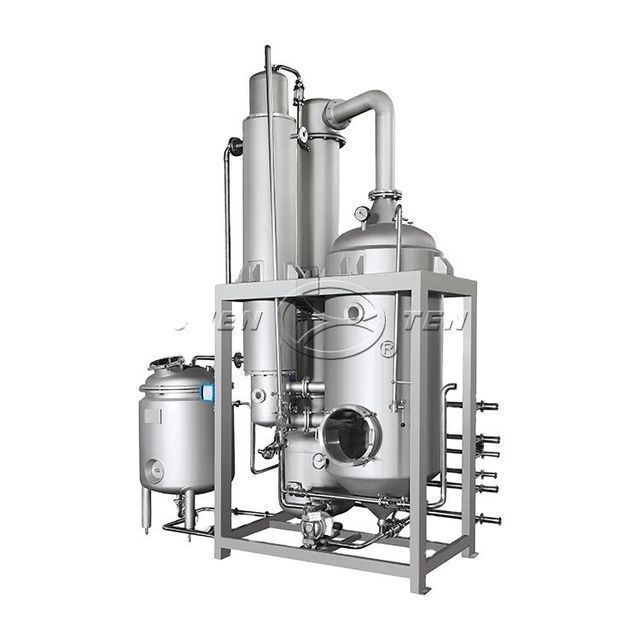

Stainless steel double-effect outer circulation alcohol vacuum evaporator concentrator alcohol recovery evaporator

Supplier: Zhejiang Jhen Ten Machinery Co., Ltd.
Region: Zhejiang, China
Contact: Mr Henson Zeng
Price: $1000.00 /piece
Min. Order: 1 piece

Click here to contact

Product details

Core component warranty:	1 year	Dimensions (LWH):	by capacity
Voltage:	by capacity	Core components:	Engines, motors, pressure vessels, pumps
port:	Shanghai, Ningbo	Showroom location:	not any
Warranty:	1 year	Marketing Type:	2019 Hot Products
Mechanical test report:	if	Weight (kg):	600
place of origin; place of origin:	Zhejiang, China	Video shipment inspection:	if
Concentrator:	Concentrator	brand:	Yan Teng
Main selling points:	easy to operate	State of health:	new
Packaging Details:	Plywood boxes	strength:	by capacity
payment terms:	L/C, T/T	Supply capacity:	10 sets per month
Applicable industries:	Manufacturing Plants, Food and Beverage Plants, Others

Product Description

The equipment is used for material contracting and organic processing of traditional Chinese medicine, western medicine, starch and dairy products.
Solvent recovery. It can be used for low-temperature vacuum shrinkage of a small amount of various heat-sensitive materials.
kind.

feature:
The first is alcohol recovery: large recovery capacity, vacuum shrinking process; productivity is 5-10 times that of the old model;
30% of energy costs; small investment big gains.
2. Shrinkage material: combination of external heating cycle and vacuum evaporation; fast vaporization speed; contracting
Ratio 1:3; Completely sealed, no foaming, no pollution of the contracted medicine, strong medicinal smell.
Moreover, it is easy to operate and occupies a small area. The heater and vaporizer adopt stainless steel insulation structure. shell is
Stainless steel

The main technical parameters

Model Specification			NSXL-500	NSXL-1000	NSXL-1500	NSXL-2000
Steam consumption(T/h)			500	1000	1500	2000
Vapor pressure (Mpa)			<0.25
Vacuum degree(mmHg)			-0.8
Concentration ratio			1.2-1.3
Dimensions (m)	length	2	2.2	2.5	4.6
		width	1	1.2	1.3	2.35
		High	3	3.3	3.5	5.1
