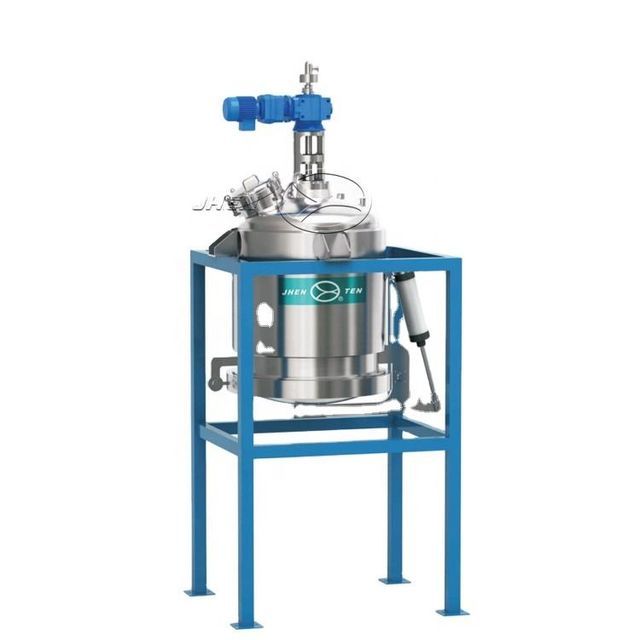

1000L stainless steel equipment for extracting coffee plants
- 100.00 set
Registered Supplier
Direct Contact
Inquiry via Message
Product Details
| brand: | Zhenteng | Core component warranty: | 1 year |
| Warranty: | 1 year | Video shipment inspection: | if |
| Marketing Type: | 2019 Hot Products | type: | extractor |
| Health status: | new | Supply capacity: | 100 sets per month |
| model: | JTRKC-1000 | Surface treatment: | Electropolishing, mirror polishing, sanding, Aicd washing, 2B |
| Showroom location: | not any | Material: | SS304, SS316 |
| Weight (kg): | 500 | Scope of application: | coffee |
| Applicable industries: | manufacturing plant | Packaging Details: | Each bubble pack. The outer packing is carton or plywood box. or according to customer requirements |
| Core components: | engine | payment terms: | L/C, Western Union, T/T |
| Main selling points: | easy to operate | port: | Shanghai or Ningbo |
| Manufacturing process: | stainless steel material | application: | coffee |
| Certification: | CE ,ISO9001,NB/T 47003.1-2009,GB150-2011" | Mechanical test report: | if |
| Origin: | Zhejiang, China | Nominal pressure: | Atmospheric pressure~0.8MPa |
Product Description
feature
• Volume: various specifications from 1000L to 5000L, and can also be designed and manufactured according to customer requirements.
• Air-controlled self-locking slag discharge valve ensures no leakage and
The slag discharge door will not open automatically when the power is cut off suddenly, and the operation is safe and reliable.
• Clamps are used for the connection, and the inner tank is made of 304 or 316L, and the inner surface is mirror-polished Ra≤0.28um-0.6um. outside
The surface can be polished, brushed and sandblasted according to customer requirements.
Tank optional configuration
• The main body of the coffee extraction tank can choose sterile air filter thermometer (digital display or dial), pressure gauge,
Sight glass, sanitary manhole, liquid inlet, CIP universal rotary cleaning ball, safety valve, can also be configured as
customer's request.
application
• For brewing coffee
• Volume: various specifications from 1000L to 5000L, and can also be designed and manufactured according to customer requirements.
• Air-controlled self-locking slag discharge valve ensures no leakage and
The slag discharge door will not open automatically when the power is cut off suddenly, and the operation is safe and reliable.
• Clamps are used for the connection, and the inner tank is made of 304 or 316L, and the inner surface is mirror-polished Ra≤0.28um-0.6um. outside
The surface can be polished, brushed and sandblasted according to customer requirements.
Tank optional configuration
• The main body of the coffee extraction tank can choose sterile air filter thermometer (digital display or dial), pressure gauge,
Sight glass, sanitary manhole, liquid inlet, CIP universal rotary cleaning ball, safety valve, can also be configured as
customer's request.
application
• For brewing coffee
Design Parameters | ||
design pressure | Customer requirements (ATM-0.8MPa) | |
set tempreture | Tank and jacket (0°C~160°C) | |
Material | ||
liner | 304, 316L | |
jacket | 304 | |
insulation | Rock wool (warmth) | |
leg | 304 | |
connect | ||
Line in and out | Triple clamp, flange | |
surface treatment | ||
Finish type | Mechanical/electrolytic polishing, sandblasting, pickling | |
Polishing precision | Inner surface Ra≤0.4um | |
Outer surface Ra≤0.6um | ||
Conventional models and main technical parameters
Model | JTRKC-1000 | JTRKC-1500 | JTRKC-2000 | JTRKC-3000 | JTRKC-5000 | |||||
Effective volume (L) | 1000 | 1500 | 2000 | 3000 | 5000 | |||||
tank | diameter (mm) | Φ1100 | Φ1250 | Φ1300 | Φ1600 | Φ1800 | ||||
height (mm) | 1000 | 1200 | 1500 | 1500 | 1800 | |||||
mix | Power(kw) | 1.5 | 1.5 | 2.2 | 3 | 4 | ||||
Speed(r/min) | 60 (special open turbine impeller) (design can be adjusted according to customer's use) | |||||||||
The above data are standard data and can be customized according to customer requirements
