Lenticular Filter Housing for wine&beer filtration

Supplier: Zhejiang Jhen Ten Machinery Co., Ltd.
Region: Zhejiang, China
Contact: Mr Henson Zeng
Price: $1250.00 /set
Min. Order: 1 set

Click here to contact

Product details

Warranty:	1year;	Certification:	CE&SGS&TUV;
Filter module:	12" or 16"Module;	Payment Terms:	L/C,T/T;
Weight:	100KG;	Processing Types:	Tea & Teabags;
Product name:	Lenticular filter housing;	Model Number:	Sanitary type;
Surface Finish:	Mirror Polish;	Voltage:	380V/220V;
Applicable Industries:	Food & Beverage Factory;	Port:	ShangHai;
Power(W):	0.75-2.2kw;	Supply Ability:	100 Set/Sets per Month;
Dimension(LWH):	5006001200mm;	Packaging Detail:	Plywood Case;
Place of Origin:	Zhejiang China;	Certifications:	CE,SGS,ISO 9001;
Condition:	New;	After-sales Service Provided:	Online support;
Brand Name:	Jhenten;	Processing:	Filter;

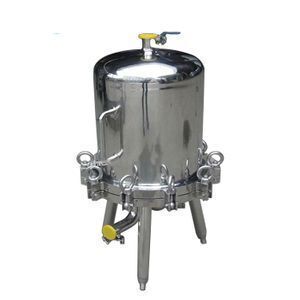

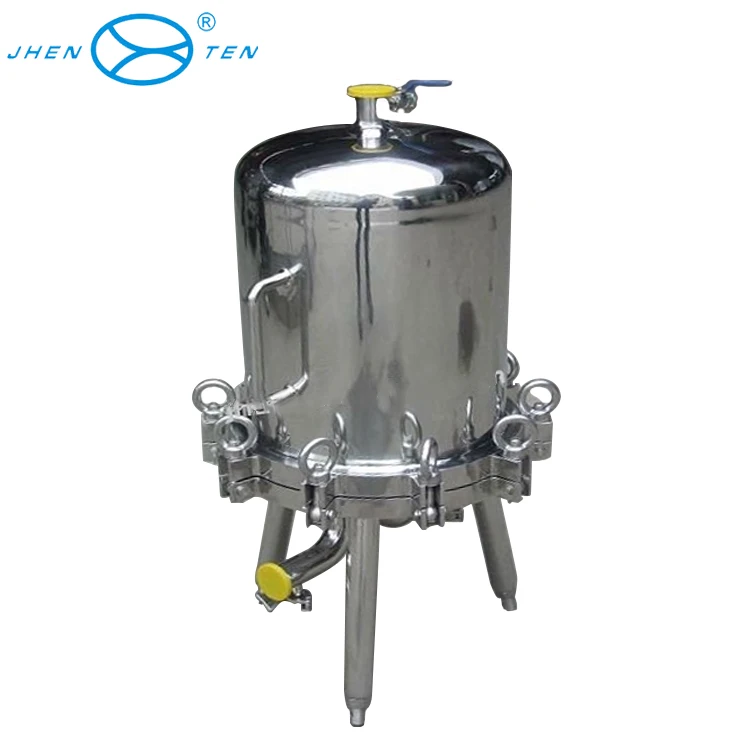

Lenticular Filter housing

Product Description

lenticular filter housing Brief introduction

Lenticular filters have a long history in Food and Beverage applications, They arose out of the need to package sheet-based depth filter technology in more user-friendly, modular closed systems, especially for small batch production or medium flow rate applications.Jhenten's lenticular filter housing can be suitable for international brand 's filter disk with lower cost.The surface finish totally arrive sanitary grade requirement.

Jhenten's lenticular can be suitable for international big brand's filter module ,which can reduce much cost . Such as CUNO ,Pall ,Millipore's filter module .

Lenticular Filter housing's advantages:

Versions available in high-grade AISI 304 and 316 L stainless steel

• 150PSI rated and up to 300ºF

• This apparatus was manufactured and tested under the standard of ASME BPE or 3A standard,

This apparatus meet GMP standard

•All wled-seam are argon are welded

• Hygienic design by avoiding dead space, Sanitary Filter Housing, No Dead Corner

•All surfaces that come in contact with the product are mirror polish or electro polished, Ra< 0.4 µm

• 1.5" Pressure Gauge Ports,1”Drain,1/4" air Vent"

Lenticular Filter Housing Operating Parameters

Max Operate pressure: 10bar

Max Operate temperature: 150ºC

Industrial sure tolerance on weld : 0.85

Corrosion by acid 0 mm

Lenticular Filter Housing Applications

Wine, Food &Beverage, Process Water, Pharmaceutical Liquids, Biotechnology & Laboratory, Medical &Medical Device,
Chemical And Painting

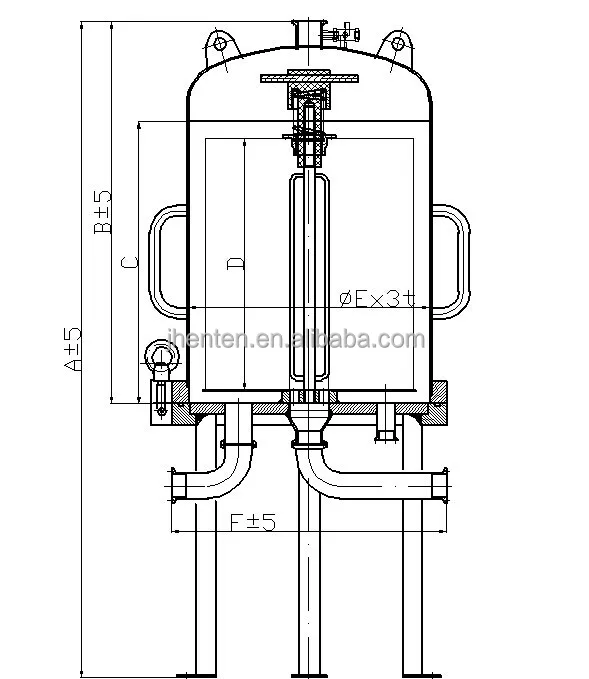

Lenticular Filter Housing Main Parmeters

Item	A MM	B MM	C MM	D MM	E MM	F mm
ZTDX-08DB1	890	470	350	280	250	300
ZTDX-08DB2	1160	740	620	280	250	300
ZTDX-08DB3	1460	1010	890	280	250	300
ZTDX-08DB4	1700	1280	1160	280	250	300
ZTDX-12DB1	930	510	350	280	350	400
ZTDX-12DB2	1200	780	620	280	350	400
ZTDX-12DB3	1470	1050	890	280	350	400
ZTDX-12DB4	1740	1320	1160	280	350	400
ZTDX-16DB1	950	530	350	280	450	500
ZTDX-16DB2	1220	800	620	280	450	500
ZTDX-16DB3	1490	1070	890	280	450	500
ZTDX-16DB4	1760	1340	1160	280	450	500

Company Information

Wenzhou Jhenten Machinery Co exceeds in this filed and has been credited wth honors of ISO9001-2008 quality management system certificate, CE certificate and ASME certificate.

In additon to the introduction of new manufacturing methods an the purchase of advancedwelding equipment, we are also dedicated to researching the improvement of quality, functionand usage life of our products. We have been meenting global demand of high quality & technical support to our clients. Our products cover from all kinds sanitary filter, cartidge filter, bag filter, mixing tank, strorage tank etc, which have been applied into fields of pharmacy, food & beverage, biological engineering, lab soluton laboratories, mineral water, liquor and cosmetics.

No matter the functions, data presentation material use, welding techniques, Qc, or the lookof our products have gone through careful design and are strictly comply with ISO9001 and CE standard system. Besides we have obtained the sanitary license and honour of high quality & honesty from authority.
