High Flow Distillation Alcohol Filter Stainless Steel Cartridge Filter Housing for Wine Filtration Equipment
-
Supplier: Hangzhou Tianshan Precision Filter Material Co., Ltd. -
Region: Zhejiang, China -
Contact: Ms Fiona Li -
Price: $100.00 /piece -
Min. Order: 1 piece
| Operating pressure: | 6.0-10.0bar | place of origin; place of origin: | Zhejiang, China |
| strength: | 0.75KW | Type 2: | family brewery |
| round: | 1, 3, 5, 8,...100 | Types of: | microbrewery |
| Package preview: | Core component warranty: | 1 year | |
| Local service location: | not any | port: | Shanghai or Ningbo |
| Packaging Details: | Stainless steel water filter housing in wood/MDF panel carton | Certification: | SGS certification |
| Cartridge filter: | 226, 222, 220, etc. | Showroom location: | not any |
| Application 3: | food and drink | payment terms: | L/C, T/T, Western Union, Alibaba Online |
| filter material: | SS304, SS316L | model: | BJH |
| Processing type: | beer filter, beer | Marketing Type: | 2019 Hot Products |
| length: | 10/20/30/40 inches | Dimensions (L*W*H): | special design |
| Voltage: | 220V | State of health: | new |
| Core components: | Stainless steel filter housing | Warranty: | 1 year |
| Video shipment inspection: | Not available | weight: | special design |
| Processing: | filter | Supply capacity: | 300 pieces per week |
| Applicable industries: | Food and beverage plants, farms, restaurants, energy and mining, food and beverage stores, home breweries | Application 2: | craft brewery |
| After warranty service: | online support | Mechanical test report: | if |
| brand: | TS filter |

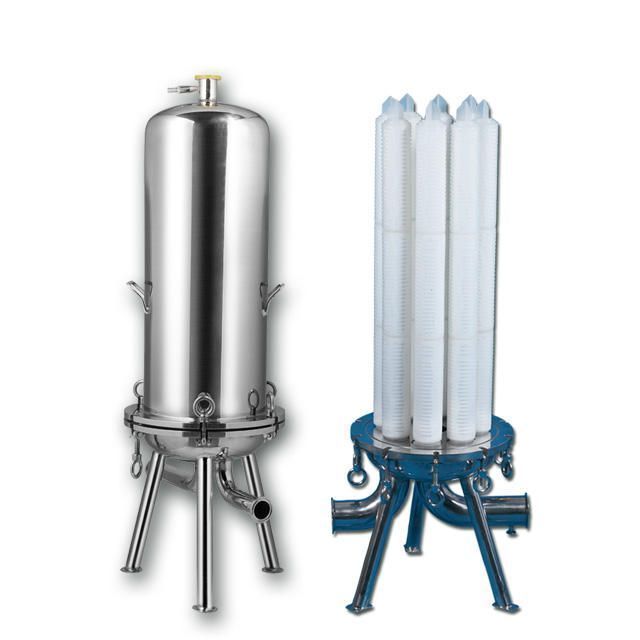

High Flow Distillation Alcohol Filter Stainless Steel Cartridge Filter Housing for Wine Filtration Equipment
These filter housings are made of 304 or 316L stainless steelHighest quality available in 1, 3, 5, 8....45 round configurations and cartridges in 10", 20", 30" and 40" lengths.
Stainless steel cartridge filter housings are suitable for a wide variety of liquid filtration applications (high purity beverage, chemical and pharmaceutical, water treatment, alcoholic beverage industry, etc.).
E-mail: lyy#tsjmlc.com
|
Complete stainless steel construction
|
Reduce bacteria/particle adhesion, no dead space space |
|
excellent corrosion resistance |
|
|
easy to install / easy to clean
|
Hygienic connection design for easy installation, easy to clean |
|
Requires minimal footprint and fast Easy to disassemble and clean |
|
|
Housing accommodates
|
For small to large batches and flows rate |
|
High pressure and high temperature design usable |
|
|
Clean-in-place (CIP) / steam-in-place (SIP) design |
|
|
typical application
|
Ideal food and beverage filtration equipment, pharmaceuticals, biotechnology, |
|
Chemical and other industries |
|
|
technical specifications
|
Design pressure: 7.2bar (104psi) with in 30 minutes. |
|
Maximum working pressure: 6.0bar (87psi) |
|
|
6.0bar(87psi): electropolished, Ra≤0.2um |
|
|
Design flow: 0.2-100t/h |
|
|
|
 |
| ink cartridge | body closure | Dimensions (mm) | |||||
| No. | length | d (exit entrance) |
Ding | Second | H1 | h | |
| 1 | 5" | ferrule clip | 1 foot | 102 | 180 | 120 | 570 |
| 10" | 690 | ||||||
| 20" | 940 | ||||||
| 30" | 1190 | ||||||
| 3 | 10" | stud bolt | 1 1/4 inches | 184 | 240 | 180 | 720 |
| 20" | 980 | ||||||
| 30" | 1210 | ||||||
| 5 | 10" | stud bolt | 1.5 inches | 219 | 280 | 200 | 130 |
| 20" | 990 | ||||||
| 30" | 1220 | ||||||
| 40" | 1460 | ||||||
| 7 | 20" | stud bolt | 1 3/4 inches | 273 | 420 | 210 | 1060 |
| 30" | 1290 | ||||||
| 40" | 1530 | ||||||
| 9 | 20" | stud bolt | 2 inches | 325 | 460 | 210 | 1080 |
| 30" | 1310 | ||||||
| 40" | 1550 | ||||||
| 12 | 20" | stud bolt | 2 1/4 inches | 350 | 480 | 240 | 1150 |
| 30" | 1380 | ||||||
| 40" | 1620 | ||||||
| 18 | 20" | stud bolt | 3 inches | 400 | 500 | 260 | 1160 |
| 30" | 1390 | ||||||
| 40" | 1630 | ||||||
| twenty one | 20" | stud bolt | 3.5 inches | 450 | 600 | 280 | 1190 |
| 30" | 1420 | ||||||
| 40" | 1660 | ||||||
order information
| product | Material | Cartridge number | adapter | length |
How to order? - example |
|||||
| BJH | 304-SUS304 | 01 - single | AA-DOE | 10" - 10 | Material: SUS304 | |||||
| 316-SUS316L | 03 - Three | CN-226/fin | 20" - 20 | Cartridge number: single | ||||||
| 05 - five | BN-222/fin | 30" - 30 | Cartridge Adapter: DOE | |||||||
| 07 - Seven | AF-220/flat seal | 40" - 40 | Cartridge Length: 10" | |||||||
| 09 - nine | BF-222/flat seal | 5" - 05 | ||||||||
| 10 - ten | CF-226/flat seal | Other - XX |
The select code is: BJH30401AA10 |
|||||||
| 12 - Twelve | ||||||||||
| 18 - eighteen years old | ||||||||||
| 21 - Twenty-first | ||||||||||
1,24 hours response
We will respond to any request from customers within 24 hours, saving your time and manpower.
2. Supporting system
The system consists of claim settlement system, technical support system, inquiry system and order tracking system. The system will provide a full range of after-sales service.
3. Free training
We provide free training to all customers and distributors. Training will give you a solid understanding of our products and make your job easier.
4. Free storage area
We are providing free storage area to our customers for mixed load purposes.
A: We are a factory since 2001, located in Hangzhou City, China.
Q: How long is your delivery time?
A: Generally it is 7 working days after receiving your deposit, it also depends on your quantity.
Q: Do you provide samples? Is it free or extra?
A: Yes, we can provide samples for free, hope you can afford the freight.
Q: What is your minimum order quantity?
A: We have no strict requirements on the minimum quantity.
E-mail: lyy#tsjmlc.com
-
