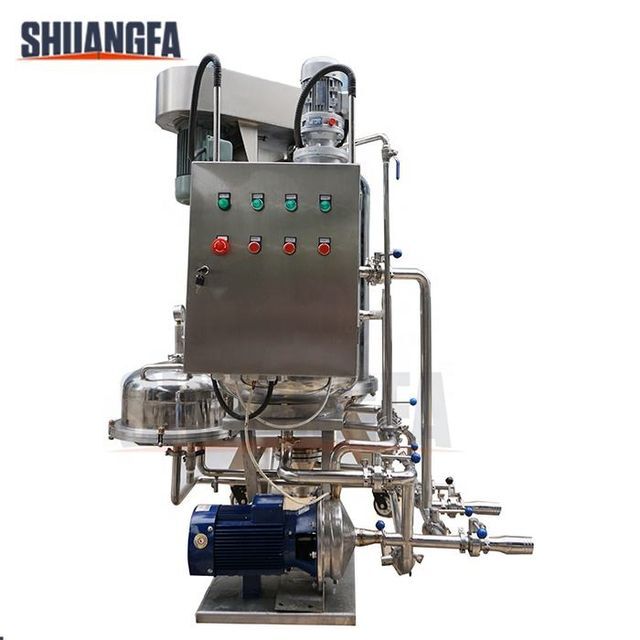

Diatomaceous earth wine filter

Supplier: Henan Shuangfa Chemical Industry Machinery Co., Ltd.
Region: Henan, China
Contact: Mr Alex Zhang
Price: $1200.00 /set
Min. Order: 1 set

Click here to contact

Product details

application:	Wine, beer, juice, wine, etc.	Model:	F60
Wash the board:	automatic	Fruit wine flow:	50-70HL/H
Applicable industries:	Food and Beverage Factory, Winery	Working pressure:	0.5Mpa
model:	F60	payment terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram,Wine Filter
After-sales service provided:	On-site installation, commissioning and training	Voltage:	220V, 380V, 400V, 440V, etc.
Health status:	new	port:	Qingdao, Shanghai, Tianjin, Shenzhen
Filter area:	5 square meters	place of origin; place of origin:	China
brand:	double	Supply capacity:	40 wine filters per month
strength:	2.2Kw	Dimensions (LWH):	215013002100mm
type:	for coarse filtration.	Warranty:	1 year
Processing:	filter	weight:	1350KGS
Processing Type:	Alcohol, wine, beer, juice	Mixed material:	automatic
Packaging Details:	Wooden case or according to customer requirements diatomaceous earth wine filter	Filter media:	diatomite
Add diatomaceous earth when filing:	automatic

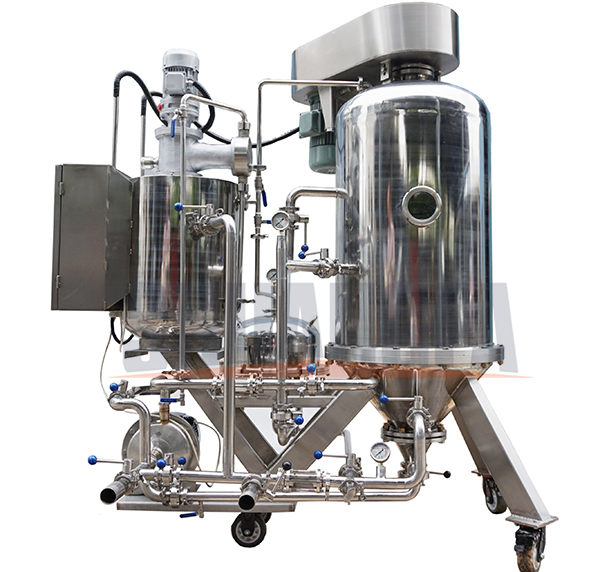

Diatomaceous earth wine filter

introduce

Diatomite wine filter is produced by our company through digestion and absorption of foreign new filtering technologies such as Germany, Italy, Switzerland, etc. It is convenient and simple to use.

All machines are designed to be very hygienic and easy to clean.

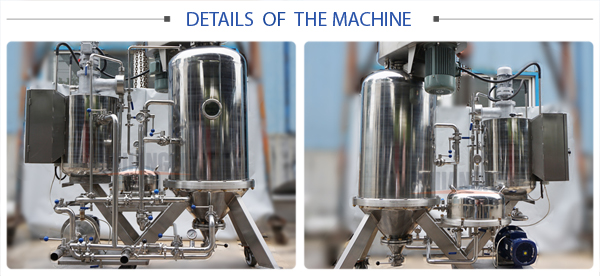

detail

working principle

When filtering through diatomaceous earth, a precoat is first formed on the filter plate.

When the liquid is filtered through the diatomite pre-coating, the impurities are blocked, and the clean liquid passes through the tubular or sheet-shaped micro-gap and the gap between the particles, and then passes through the filter layer to play a filtering role. If the filter element needs to be decolorized, a certain proportion of activated carbon needs to be added.

application

Diatomite wine filter is suitable for clarification and filtration of liquid products such as wine, beer, brandy, fruit wine, beverage, syrup, soy sauce, liquor, starch and vinegar, as well as pharmaceutical industry and chemical industry.

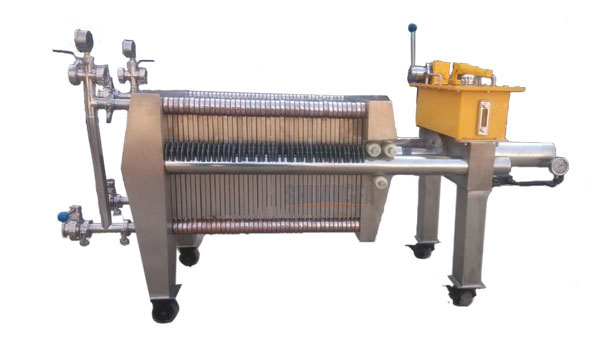

For wine filtration, diatomaceous earth wine filters are used for coarse filtration, and there have always been plate filters for fine filtration.

feature

1	Filtration pressure up to 6 BAR.
2	316 stainless steel mesh, double-sided weave, resistant to machinery. The whole machine adopts high-quality stainless steel and food-grade sealing materials.
3	The inner and outer surfaces of the tank are automatically mechanically polished.
4	New conical bottom, large cleaning fluid drain, no residue.
5	Clearing the filter maximizes filtration efficiency.
6	Heavy-duty plate pack rotation unit to remove spent filter cake.
7	Final cleaning of the filter element is done by water jets.
8	Washing the turbidimeter does not require opening the filter
9	Large capacity metering tank with agitator
10	Dosing tank and feed pump can work independently
11	Metering pump with adjustable metering capacity
12	Pressure safety valve and automatic pressure safety switch.
13	Butterfly valve, illuminated sight glass at liquid inlet and outlet, output indicator and connecting piping with tri-clamp fittings.
14	With sanitary stainless steel pump.
15	Using high-strength double-sided woven stainless steel wire mesh, the surface is smooth and easy to clean, the overall rigidity is reliable, and the service life is long.

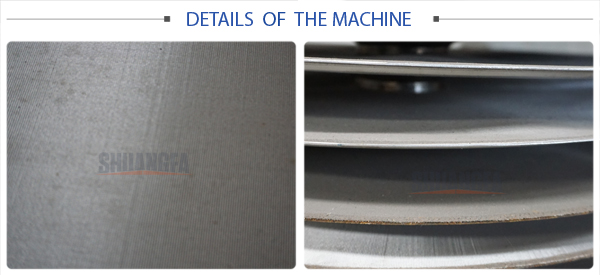

Filter plate:

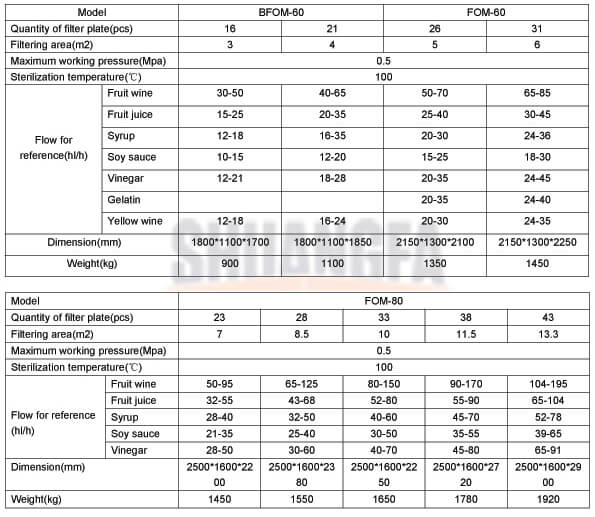

technical parameter

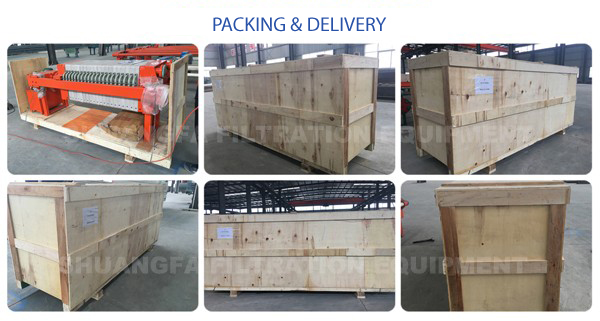

Packaging and Delivery

our service

1. Pre-sales service:

We are happy to assist you in obtaining the information you need to decide which products are best for your needs.

We can design and manufacture products according to your special requirements. If required, we can train technicians for you.

2. On-sale service:

We strictly adhere to the principle of "customer first". Your needs and concerns will be fully satisfied. We can help clients draft solutions for their specific situation.

3. After-sales service:

All our products are guaranteed for a full year. During this period, if there is any quality problem, we will repair it for free. If there is a problem, we will take immediate measures to solve it and provide you with technical exchanges on site.

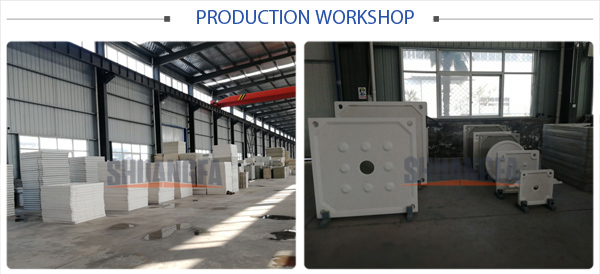

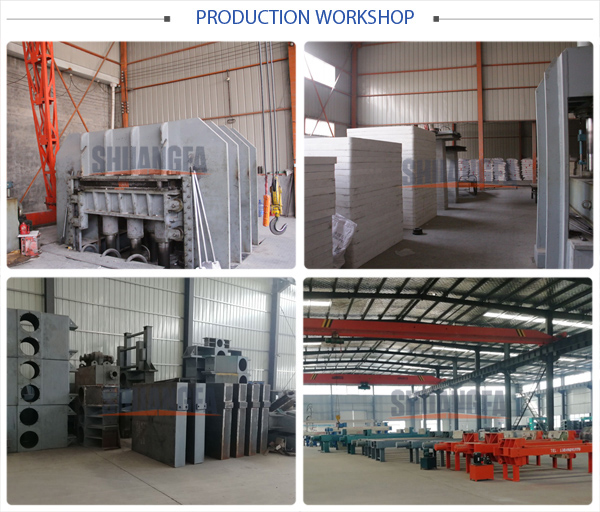

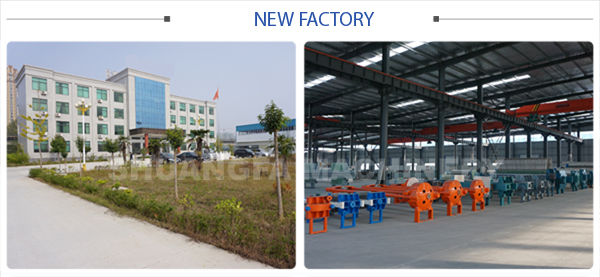

company information
