ptfe membrane sheet for Science study

Click here to contact

Product details

Place of Origin:	Zhejiang China;	Marketing Type:	Hot Product 2019;
certificate:	SGS;	Local Service Location:	none;
Core Components:	PTFE filter membrane;	color:	white;
Condition:	New;	Supply Ability:	3000.0 Roll/Rolls per Day;
Showroom Location:	none;	Packaging Detail:	box and then put into cartoon;
Shape:	roll;	mode:	roll membrane;
Application1:	Gas filter;	Brand Name:	Tianshan filter;
Application2:	industrial filtration equipment;	Package Preview:	;
Type:	Hydrophilic and Hydrophobic;	Application3:	lab testing;
Warranty:	unavailable;	width:	270mm;
Applicable Industries:	Manufacturing Plant,Food & Beverage Factory,farms,HOME USE,Energy & Mining,laboratory;	Video outgoing-inspection:	not available;
Warranty of core components:	not available;	Payment Terms:	L/C,T/T,Western Union,Paypal;
Application4:	disc membrane;	Port:	Shanghai or Ningbo;
After Warranty Service:	Online support;	Machinery Test Report:	Provided;

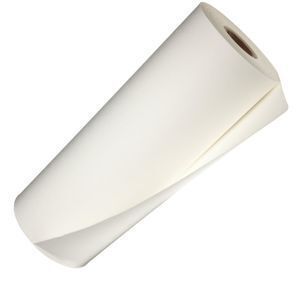

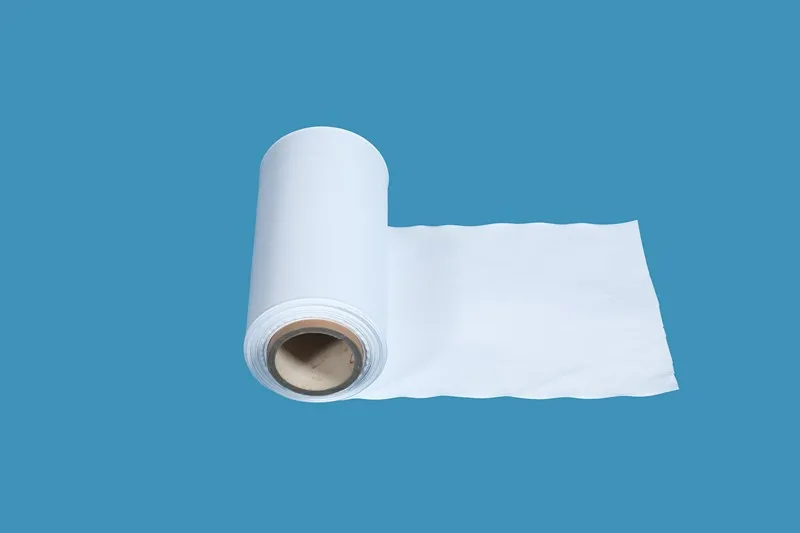

PTFE membrane sheet for Science study

Product Description

Membrane		ptfe membrane sheet for Science study
Support		PP
Color		White
Filter Surface		Plain
Thickness, μm		150~250

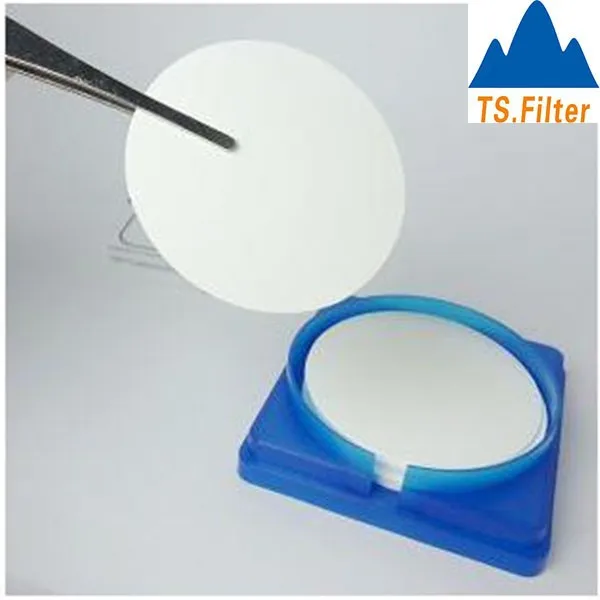

Diameter		Disc: Φ13, Φ25, Φ47, Φ50, Φ60, Φ90, Φ100, Φ106, Φ142, Φ150, Φ200, Φ250, Φ293, Φ300 Roll: 270 mm, 300 mm
Pore Size, μm		0.01(for air), 0.05, 0.1, 0.22, 0.45, 1.0, 3.0, 5.0, 10
Maximum Operating Pressure		Forward: 4.2 bar @ 23 °C; 1.5 bar @ 85 °C
Flow Rate	Liquid		Air
0.22 μm	≥ 6 mL/min/cm2 at 1 bar		≥ 3.5 L/min/cm2 at 1 bar
0.45 μm	≥ 30 mL/min/cm2 at 1 bar		≥ 7 L/min/cm2 at 1 bar
Integrity Test-60% IPA/water bubble point at 23 °C
0.22 μm		≥ 1000 mbar
0.45 μm		≥ 600 mbar
Bacterial Retention
Passed the bacterial challenge testing using Brevundimonas diminuta(ATCC19146)(0.22 μm) / Serratia marcescens (ATCC14041)(0.45 μm) at a minimum challenge concentration of 1 x 107 CFU/cm2.
Non-Fiber Releasing
Meets the criteria for a “non-fiber releasing” filter as defined in 21 CFR 210.3 (b) (6).
Sterilization
By autoclave at 123°C or EO
Bacterial Endotoxins
< 0.5 EU/ml as determined by the LAL test
