Dairy products stainless steel crystallization tank for sale

Product details
Material:SS304, SS316;Applicable Industries:Manufacturing Plant;
Condition:New;Warranty:1 Year;
Voltage:110/220V;Port:FOB SHANGHAI OR NINGBO;
Packaging Detail:wooden case or according to customer's requirment;Scope of application:Chemical ,Medicine, Food,Dairy Products;
Local Service Location:None;Core Components:Motor,Pressure vessel,Pump;
Warranty of core components:1 Year;Showroom Location:None;
Supply Ability:300 Set/Sets per Month;Weight:CUSTOM;
Machinery Test Report:Provided;Place of Origin:Zhejiang China;
Power:1.1KW-11KW;After Warranty Service:Online support;
Brand Name:JHENTEN;surface treatment:Electrical polish,Mirror polish,Sand polish ,Aicd washing,2B;
Manufacturing process:Stainless Steel Materials;Video outgoing-inspection:Provided;
Nominal pressure:-0.1MPa~1.0MPa;Dimension(L*W*H):according to requirement;
After-sales Service Provided:Online support;Certification:CE, ISO9001, GB150-2001;
Key Selling Points:Easy to Operate;Payment Terms:L/C,T/T;
Marketing Type:Hot Product 2019;

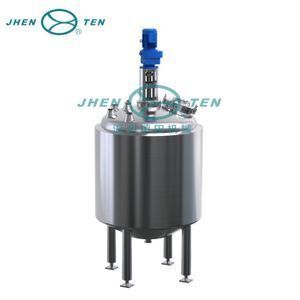

Dairy products stainless steel crystallization tank for sale

Banner



Product Description



Feature

• Volume:600L-20000L and multiple specifications, also we can design and manufacture according to customers' requirement.



• Crystallization can choose curved blade paddle, can increase heat exchange area, increase in thermal efficiency, and enhance the crystallization capacity. The material discharging is convenient.



• Crystallizing tank jacket can be bubbled into steam or cold media to process the material under optimum temperature, with high efficiency and convenient operation.



• Crystallizing tank is installed with 0.2 um hydrophobic ventilation filter, also tank can withstand the high temperature steam sterilization disinfection, equipped with health pressure gauge.



• The sealing of agitating shaft adopts sanitary mechanical seal. The mixing motor can use Cycloidal reducer, gearmotor reducer. These items can be selected according to customers'requirement. (Frequency control isvidely used).



Tank Optional Configuration
• Crystallizing Tank can configure 0.2 um hydrophobic sterile air filter, thermometer (Digital display or Dial type), 2 sight glasses,steam sterilization hole, sanitary manhole, liquid in-outlet, CIP rotating cleaning ball, liquidometer and Liquid level control system (Bearing module, non-contact ultrasonic, static pressuretransmitting device) and so on, also can configure as customers' requiremen



Application

• Applied for such as pharmaceutical, dairy products, foodchemical, beverage and other industrial materials, mixingtemperature and freezing, product crystallization, and so on.





Design Parameter
Design pressure Tank body (-0.MPa~10MPa)
Jacket (ATM-0.6MPa)
Design temperature Tank body and Jacket (0℃~160℃)
Material
Liner 304, 316L
Jacket 304
Insulation Rockwool or polyurethane
Legs 304
Connection
In-outlet Tri-clamp, Flange
Surface Finish
Finish type Mechanical / electrolytic polishing, sand blasting, pickling
Polishing precision Inner surface Ra≤0.4um
Outside surface Ra≤0.6um



Normal Model And Main Technical Parameters

Model JTRJJ-600 JTRJJ-1000 JTRJJ-2000 JTRJJ-3000 JTRJJ-4000 JTRJJ-5000
Effective volume(L) 600 1000 2000 3000 4000 5000
Tank Diameter(mm) Φ900 Φ1100 Φ1300 Φ1600 Φ1700 Φ1800
Height(mm) 900 1000 1500 1500 1800 1800
Mixng Power (KW) 1.1 2.2 2.2 3 3 4
RPM(r/min) 60(curved blade paddle) (Can adjust the design according to the customer's usage)



Model JTRJJ-6000 JTRJJ-8000 JTRJJ-10000 JTRJJ-12000 JTRJJ-15000 JTRJJ-20000
Effective volume(L) 6000 8000 10000 12000 15000 20000
Tank Diameter(mm) Φ1900 Φ2000 Φ2200 Φ2400 Φ2600 Φ2800
Height(mm) 2000 2200 2400 2500 2700 3000
Mixng Power (KW) 4 5.5 7.5 7.5 11 11
RPM(r/min) 60(curved blade paddle) (Can adjust the design according to the customer's usage)



Company Information











Certifications



FAQ



Q: CAN I HAVE SAMPLES TO TEST?

A: Yes, we are pleased to supply samples to test and check quality, miled sample order is available.       Please note, free samples is not acceptable.



Q: DO YOU HAVE ANY MOQ LIMITED?

A: Our MOQ is 1PC to supply new customers.



Q: WHAT'S THE LEAD TIME?

A: Sample: 20-25days. Mass production: 25-30days depend on the order quantity.



Q: HOW DO YOU SHIP THE GOODS AND HOW LONG DOES IT TAKE?

A: We ususlly ship by sea. DHL, UPS, fedex TNT are also acceptable.
