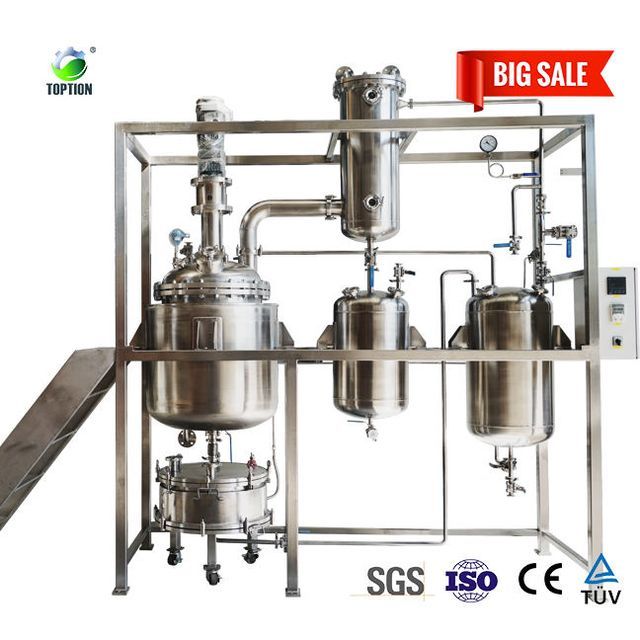

Crystallization reactor isolation 200L 200L jacketed stirred stainless steel crystallization reactor

Supplier: Xi'an Toption Instrument Co., Ltd.
Region: Shaanxi, China
Contact: Ms Alice Shi
Price: $31500.00 /set
Min. Order: 1 set

Click here to contact

Product details

Control cabinet:	Explosion-proof	Solvent collection tank:	100 liters
Weight (kg):	500	strength:	180
Material:	Stainless steel SS304	Marketing type:	2020 new products
Mechanical test report:	if	Filtration volume:	60 liters

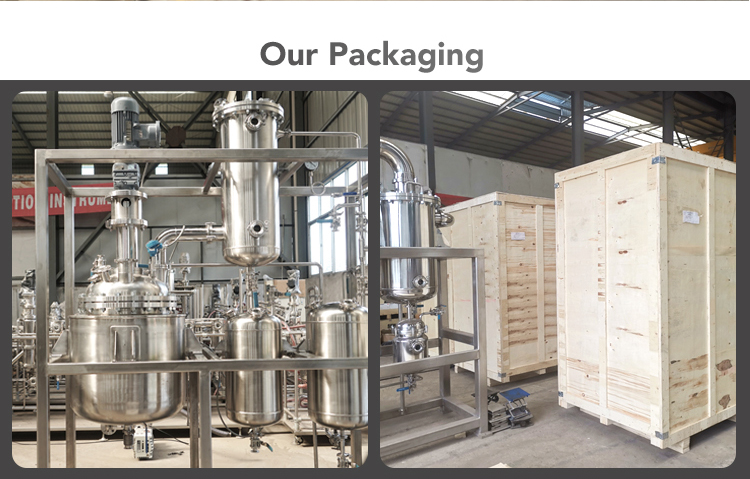

brand:	Options	Packaging details:	Standard wooden box packaging according to your needs
Mixing system:	Magnetic seal	Operating Voltage:	220V 50/60Hz 1 phase
Warranty:	1 year	Video outbound inspection:	if
capacity:	200 liters	Place of origin:	Shaanxi, China
Voltage:	220V	Applicable industries:	Building Materials Stores, Manufacturing Plants, Food & Beverage Plants, Farms, Retail, Food Stores, Energy & Mining, Food & Beverage Stores, Others
application:	Production	Condenser cooling area:	3 meters 2
Core component warranty:	1 year	Main selling points:	High productivity
payment terms:	wire transfer	Package preview:
Dimensions (lengthwidthheight):	300150285cm	Condenser:	Vertical snake condenser
Showroom location:	USA	Health status:	new
port:	Shanghai	Supply capacity:	3000 pieces per year
Core components:	engine

Product Description

Stainless steel crystallization and filtration reactor is used for crystallization and filtration.

The volumes we provide are 50L, 100L, and 200L.

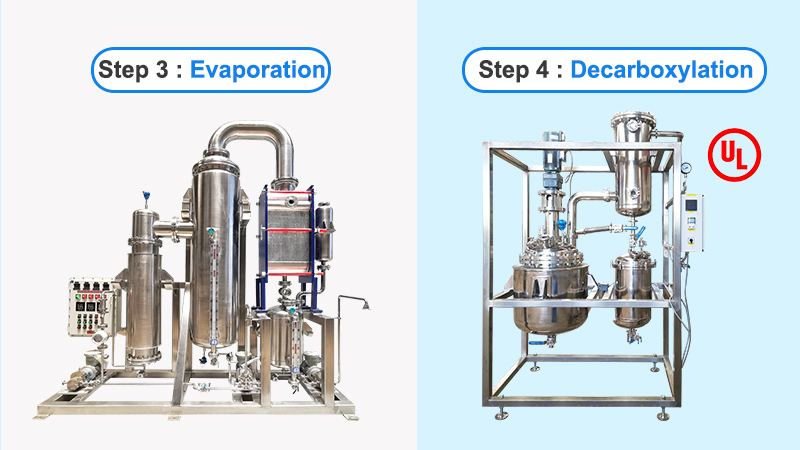

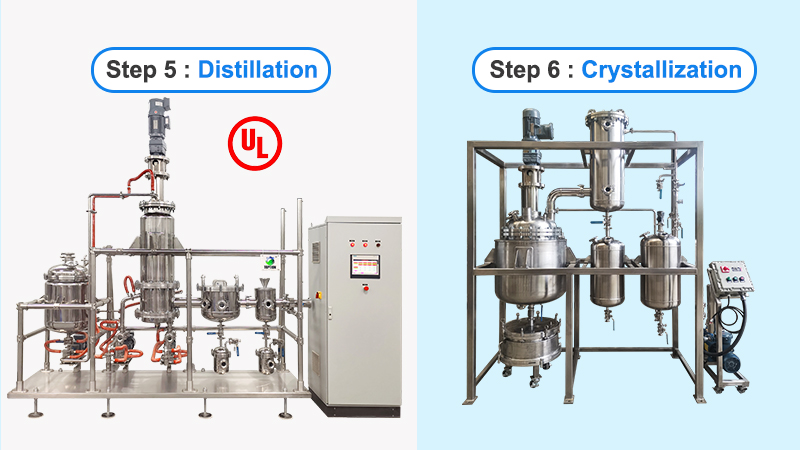

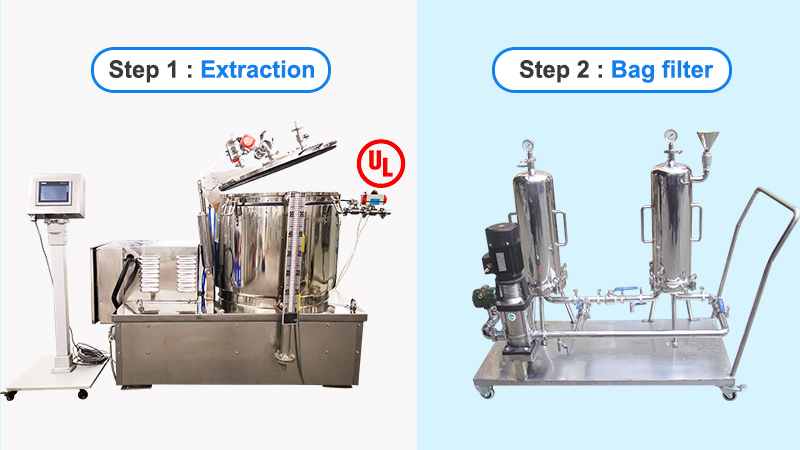

We also offer turnkey system processes: centrifugal extractors, multi-stage filters, rising film evaporators, decarbonization reactors, molecular distillation, crystallization reactors, drying ovens.

scope

serial number	TCFR-200L
Function: crystallization, filtration, concentration, mother liquor collection reaction kettle
Crystallization reactor	200L jacket type SS304
Heating type	Connection to additional heater (optional) via jacket DN25, Jacket plus 70mm insulation layer
Stirring system	Magnetic seal

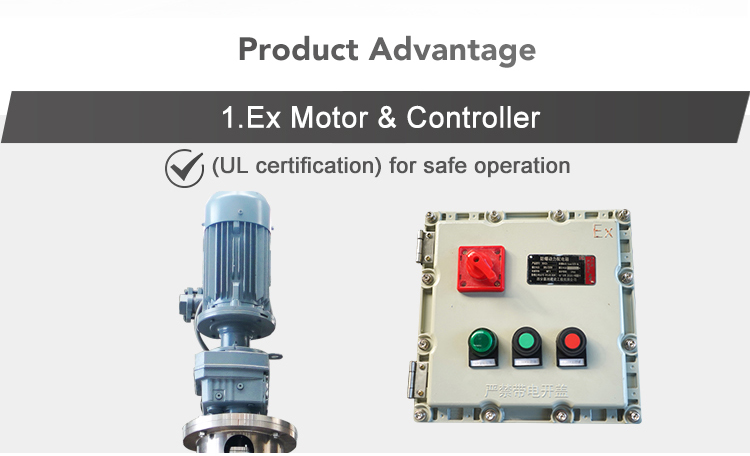

Motor Power	1500W explosion-proof control cabinet

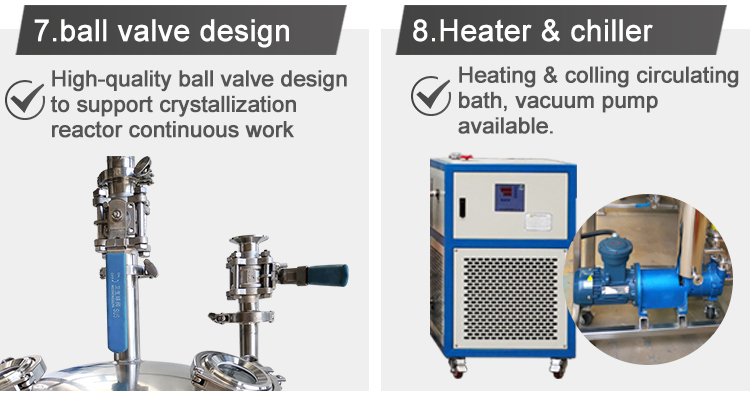

port	Feed port KF25 with ball valve + gas protection port KF25 with ball valve
Equipped with pressure gauge and temperature sensor		Equipped with pressure gauge and temperature sensor

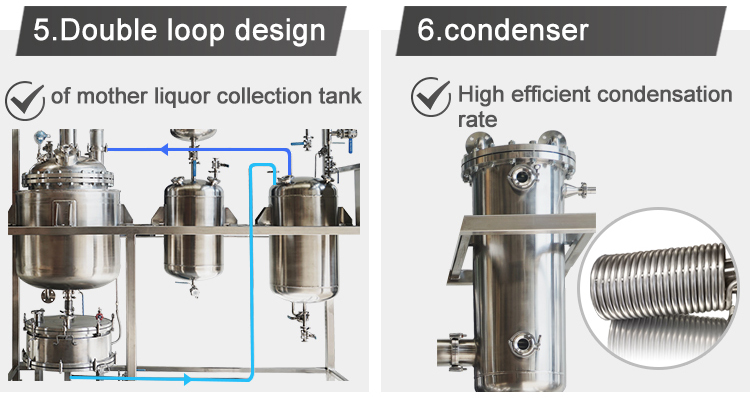

Concentrating condenser	3m2 SS304 water inlet and outlet DN20

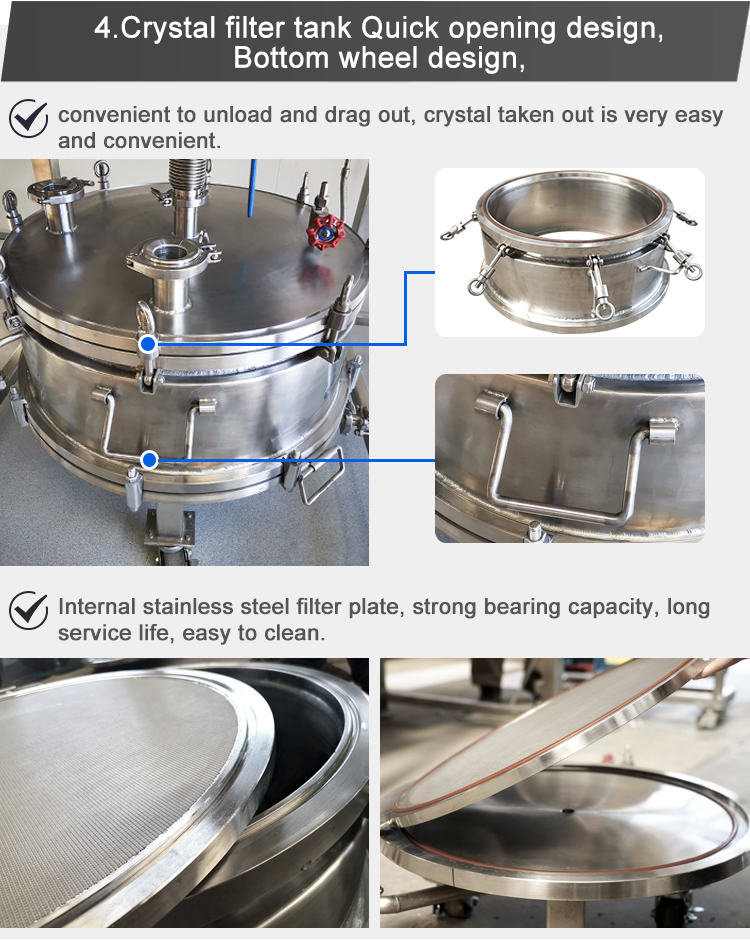

filter	60L (Φ500×220) removable filter at the bottom of the reactor with vacuum insulation layer
filter plate	50 micron filter plate + filter cloth
Solvent collection tank	100L SS304 single layer with observation glass
Mother liquor tank	150L SS304 single layer with observation glass
