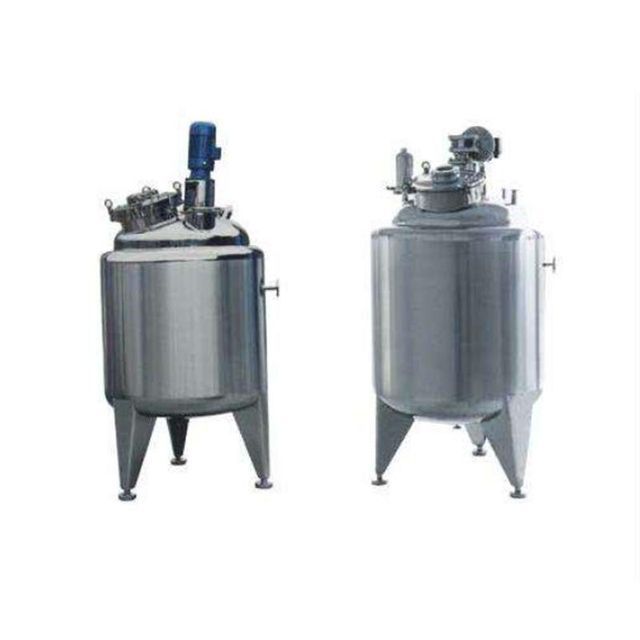

Factory direct sales custom stainless steel crystallization tank sugar crystallization equipment

Supplier: Wenzhou Suote Pharmaceutical And Chemical Engineering Co., Ltd.
Region: Zhejiang, China
Contact: Ms Jenny Xiang
Price: $3250.00 / 1 - 9 sets
$3000.00 / 10 - 19 sets
$2800.00 / >=20 sets
Min. Order: 1 set

Click here to contact

Product details

Voltage:	220V	Core components:	PLC, engine, bearing, motor, pressure vessel, gear, water pump
Mechanical test report:	if	Stirring speed (r/m):	30-1000 rpm
standard:	good manufacturing practice	Warranty:	1 year
Material:	Stainless steel 304L/316L	Marketing Type:	normal product
Main selling points:	competitive price	strength:	0.55-7.5KW
Other names:	Mixing tank	Weight (kg):	1000
Packaging Details:	Export standard packaging stainless steel pharmaceutical reaction kettle factory direct sales customized stainless steel crystallization tank crystallization equipment sugar crystallization equipment	Key words:	Crystallization equipment
Core component warranty:	1 year	Work pressure:	≤0.2
Heating type:	electric or steam heating	Showroom location:	not any
brand:	Sauter	Video shipment inspection:	if
Health status:	new	type:	Sugar crystallization equipment
place of origin; place of origin:	Zhejiang, China	Dimensions (LWH):	400400500mm
Applicable industries:	Hotels, Clothing Stores, Building Materials Stores, Manufacturing Plants, Machinery Repair Shops, Food and Beverage Plants, Farms, Restaurants, Home Use, Retail, Food Stores, Printing Shops, Construction, Energy and Mining, Food and Beverage Stores, Other, Advertising company	product name:	Chemical Jacketed Reactor
Stirrer Type:	overhead mechanical stirrer	Package preview:
payment terms:	L/C, Western Union, T/T, MoneyGram	Supply capacity:	100 sets of stainless steel pharmaceutical reactor factory direct sales customization per month
port:	Ningbo or Shanghai port

Product Description

Factory direct sales custom stainless steel crystallization tank manufacturer parameters crystallization equipment reactor

Sugar crystallization equipment

Sugar crystallization equipment scope of application:
Stainless steel crystallization tanks are widely used in the mixing of materials, cooling and freezing, and crystallization of finished products in dairy, food, chemical and other industries.

Working principle of sugar crystallization equipment:
The crystallization tank is a kind of crystallization equipment, which requires chilled water or chilled water to cool down quickly after cooling.
Materials mix and react. The key link is the size of the interlayer, the structure of the agitator and the material
Discharge form, high-precision polishing in the tank, cleaning in the tank. No dead angle requirements, meet
process conditions. The company has rich design and manufacturing experience for different process requirements, equipment
The products produced are in full compliance with GMP verification requirements. It can produce 0.3-5m3 crystallization tank.

With more than 20 years of technical accumulation, Suote Pharmaceutical is your reliable partner!

Model Specifications

100L

200L

500L

1000L

2000L

5000L

10000L

20000L

diameter (mm)

400

500

700

900

1200

1500

1800

2300

Tank pressure (Mpa)

0.2

Jacket pressure (Mpa)

0.3

Number of stirring blades

rpm
Speed(r/m)

30-1000 rpm

Motor power (kw)

0.55

0.75

1.1

1.5

5.5

7.5

cooling method

jacket

tube

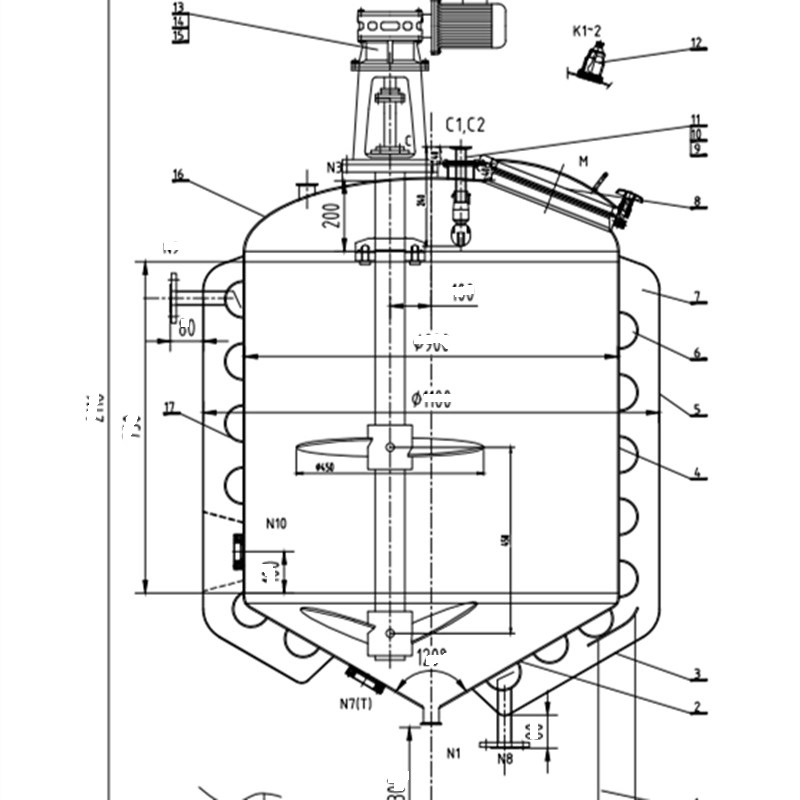

detailed drawing

Size Information

This design size chart

Volume (L)	core diameter (mm)	jacket cover Diameter (mm)	Motor Power (kilowatt)	Reducer model	speed speed
30	400	500	0.6-1.1	M2	60-36
50	500	600	0.6-1.1	M3	60-36
100	550	650	1.1-1.5	M4	60-36
150	600	700	2.2	M6	60-36
200	650	750	2.2	M6	60-36
300	800	900	2.2	M6	60-36
500	900	1000	2.2	M6	60-36
800	1100	1200	4	M8	60-36
1000	1200	1300	4	M8	60-36
1500	1300	1400	4	M8	60-36
2000	1400	1500	4	M8	60-36
2500	1400	1500	7.5	BLB7.5-4-13	Post-90s
4000	1500	1600	7.5	BLB7.5-4-13	63
8000	2000	2100	15	BLB7.5-4-13	100
32000	3000	2100	37	BLB450-11-45	50-100
