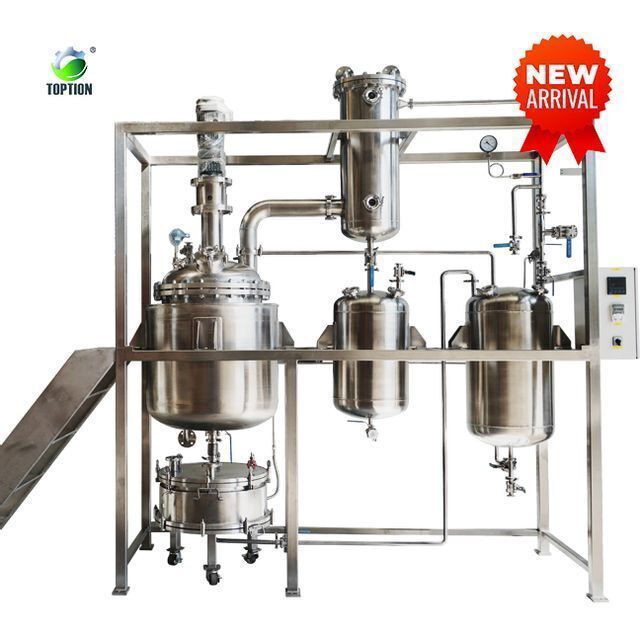

Crystallization reactor separation 200 liter vessel industrial chemical stainless steel filter reactor cbd isolate machine
- 31500.00 set
Registered Supplier
Direct Contact
Inquiry via Message
Product Details
| Agitation system: | magnetic seal; | Brand Name: | TOPTION; |
| Video outgoing-inspection: | Provided; | Key Selling Points: | High Productivity; |
| Marketing Type: | New Product 2020; | Package Preview: | ; |
| Core Components: | Motor; | Warranty: | 1 Year; |
| Weight: | 500; | Dimension(L*W*H): | 300*150*285cm; |
| Place of Origin: | Shaanxi China; | Packaging Detail: | standard wooden packing Base on your needs; |
| Filter volume: | 60L; | Local Service Location: | United States; |
| After-sales Service Provided: | Video technical support; | Showroom Location: | United States; |
| Single package size: | 350X170X220 cm; | Machinery Test Report: | Provided; |
| Capacity: | 200 liter; | Voltage: | 220V; |
| controller cabinet: | EX-Proof type; | Condenser: | Verticcal Serpentiform Condenser; |
| Certification: | CE; | Applicable Industries: | Building Material Shops,Manufacturing Plant,Farms,Retail,Food Shop,Food & Beverage Shops; |
| Warranty of core components: | 1 Year; | Condenser cooling area: | 3M2; |
| Working voltage: | 220V 50/60Hz 1 phase; | Application: | Pharmaceutical Production; |
| Solvent collection tank: | 100L; | Single gross weight: | 500.0 KG; |
| Material: | Stainless steel SS304; | Condition: | New; |
| Selling Units: | Single item; | Power: | 180; |
| After Warranty Service: | Video technical support; |
Crystallization reaction vessel industrial chemical Stainless Steel fractional crystallisation reation cbd isolate machine
Product Description
Stainless steel crystallization filter reactor used for crystallization, filtration of CBD oil. The volume we provide has 50L 100L and 200L.

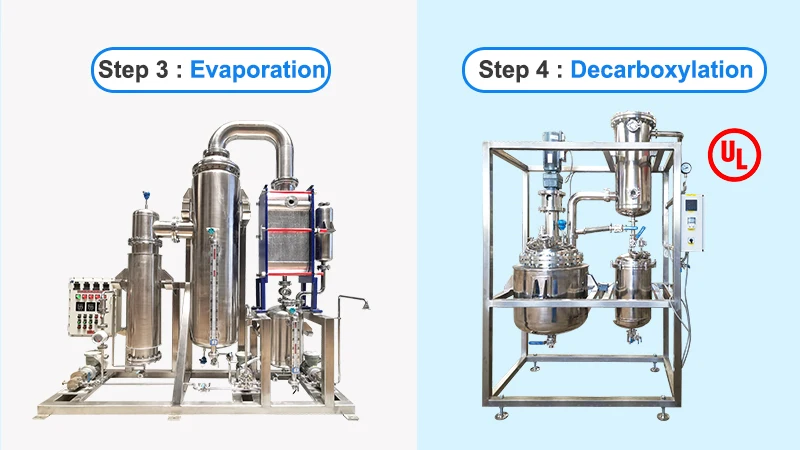

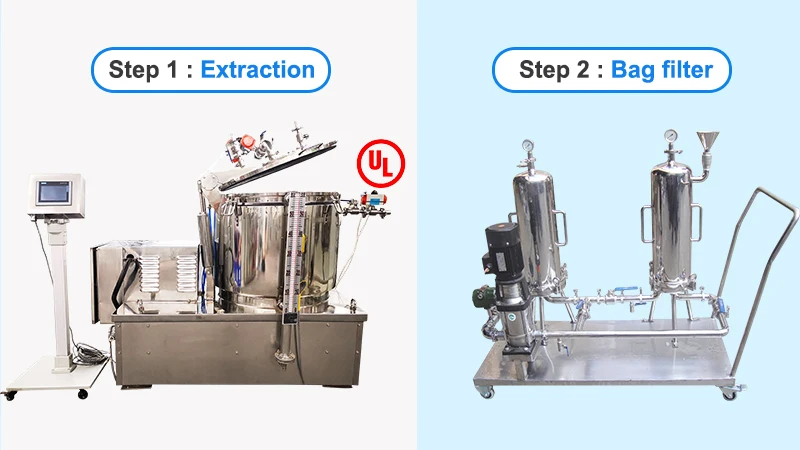

We also provide turnkey system of CBD process: centrifuge extractor, mutil-stage filter, rising film evaporator, decarb reactor, molecular distillation, crystillazation reactor, drying oven.
We also provide turnkey system of CBD process: centrifuge extractor, mutil-stage filter, rising film evaporator, decarb reactor, molecular distillation, crystillazation reactor, drying oven.
Parameter
Item No | TCFR-200L | |
Function: Reactor for crystalization, filtration, concentration and mother liquid collecting | ||
Crystallization reactor | 200L Jacketed type SS304 | |
Heating type | by Jacket DN25 connect to extra heater (Optional), with 70mm heat insulation layer outside the jacket | |
Agitation system | magnetic seal | |
Motor power | 1500W EX-Proof controller cabinet | |
Ports | Feed port KF25 with ball valve+gas protection port KF25 with ball valve | |
Equipped with pressure gauge and temp sensor | Equipped with pressure gauge and temp sensor | |
Condenser for concentration | 3m2 SS304 inlet & outlet DN20 | |
Filter | 60L(Φ500×220) removable filter at the bottom of reactor with vacuum insulation layer | |
Filter Plate | 50 micron filter plate + filter cloth | |
Solvent Collecting tank | 100L SS304 single layer with observation mirror | |
Mother liquid tank | 150L SS304 single layer with observation mirror | |
Product Display
working process
our factory

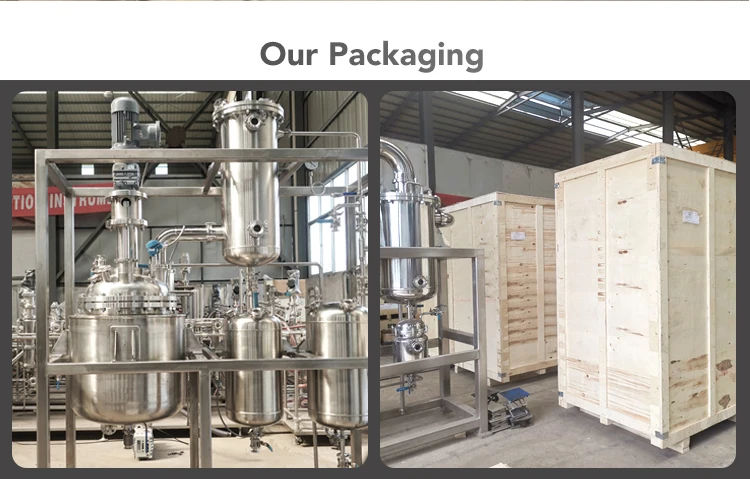

Product packaging
