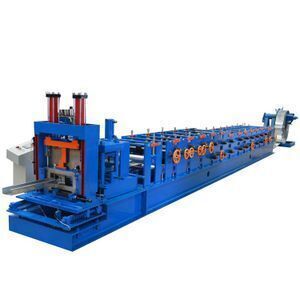

Multi Purlin System machine galvanized C Z Sigma purlin roll forming machine

Product details
After Warranty Service:Video technical support,Online support,Spare parts,Field maintenance and repair service;Showroom Location:None;
Local Service Location:None;Production Capacity:10-20m/min;
Warranty:14 months,2 years;Brand Name:HX c z sigma purlin roll forming machine;
Package Preview:;Material:Aluminum plating zinc/galvanized steel/colored steel coil;
Main frame:400H steel;After-sales Service Provided:Engineers available to service machinery overseas,Online support,Free spare parts,Field installation, commissioning and training,Field maintenance and repair service,Video technical support;
Port:Tianjin,qngdao,shanghai,zhejiang,yiwu;Power:15kw;
Control system:PLC computer control with inverter;Roller material:bearing steel;
Pump power:5.5kw;Certification:ISO9001;
Condition:New;Weight:7500KG;
Main Motor Power:15kw;Supply Ability:150 Set/Sets per Month c z sigma purlin roll forming machine;
Voltage:380V/50HZ 3Phase(as Customer's Request);Work Pressure:195 Mpa---350 Mpa;
Place of Origin:China;Payment Terms:L/C,D/A,D/P,T/T,Western Union;
Key Selling Points:Easy to Operate;Type:Steel Frame & Purlin Machine;
Dimension(L*W*H):7000*800*1400mm;Packaging Detail:c z sigma purlin roll forming machine standard export packing;
Applicable Industries:Building Material Shops,Machinery Repair Shops,Manufacturing Plant,Construction works ,Energy & Mining;Material thickness:1-3mm;
Capacity:10-20m/min;

Multi Purlin System machine galvanized C Z Sigma purlin roll forming machine

Product Description

c z sigma purlin roll forming  machine parameter

1Processing material:Aluminum plating zinc/galvanized steel/colored steel coil
2Material thickness: 1.5-3.5mm
3Capacity:10-20m/min
4The weight:2-8 ton
5Main motor power: 15kw
6Pump power: 5.5kw
7Shaft diameter: 80mm
8Forming steps: 9+13+2 steps
9Roller material:  bearing steel
11Main frame:400H steel
12Control system: PLC computer control with inverter
13Power supply: 380V, 3 Phase, 60Hz(as requirement)
14size(Length*Width*Height): 1.5*0.5*0.7m-12*5.3*2.5m
15Warranty14 months





c z sigma purlin roll forming  machine  parts specification:



+

Decoiler (manual/automatic)

Weight Capacity

3T

Inner Diameter

460-520mm

Outside Diameter

1400mm

Coil width

Max 600mm

Feeding and

straightening device

Pinch rollers

one pair, up and down

Straightening rollers

up three, down four

Diameter of rollers

75mm

Roll Former

Frame type

single station

Forming Roller stand

about 14 Groups

Shaft material

First grade 45# steel,

Shaft diameter

75mm

Roller material

GCr15

Drive Type

Chain of transmission

Motor

15KW reducer

 with frequency control

Roll stand type

split type,

two sides forming separately

Size changing time

15 min

Automatic size changed by slide screw and angle gear which guarantee the complete synchronization and the material thickness is adjusted by eccentric distance of passive rollers.

Punching

Type

Hydraulic

Mould material

Cr12

Holes distance

Can be adjusted

Cutting A:

Hydraulic cutter

Type

After-cutting, hydraulic

Material of mould

Cr12

Cutting tolerance

10M+/- 2.0 mm

Cutting B:

Fly saw

option

PLC system

PLC

PANASONIC/Taida/Sanjing

Length Controller

Encoder

Operation

Touch Screen/Button

Transducer

Mitsubishi

Hydraulic station

Power

7.5 KW

Hydraulic pressure

11 Mpa

Runout Table

Non-power type




c z sigma purlin roll forming  machine Work flow:
1.manual uncoiler-- 2.roll forming machine-- 3.PLC control box-- 4.hydraulic system-- 5.post cut-- 6.output table

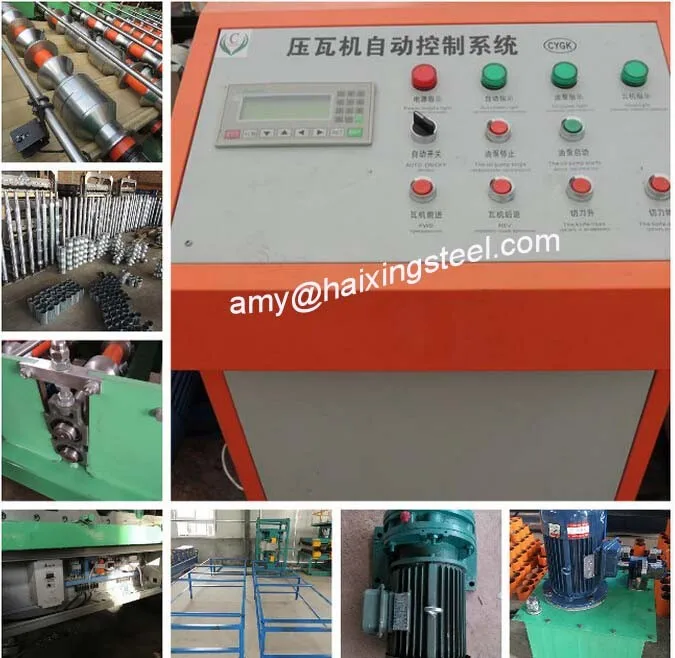

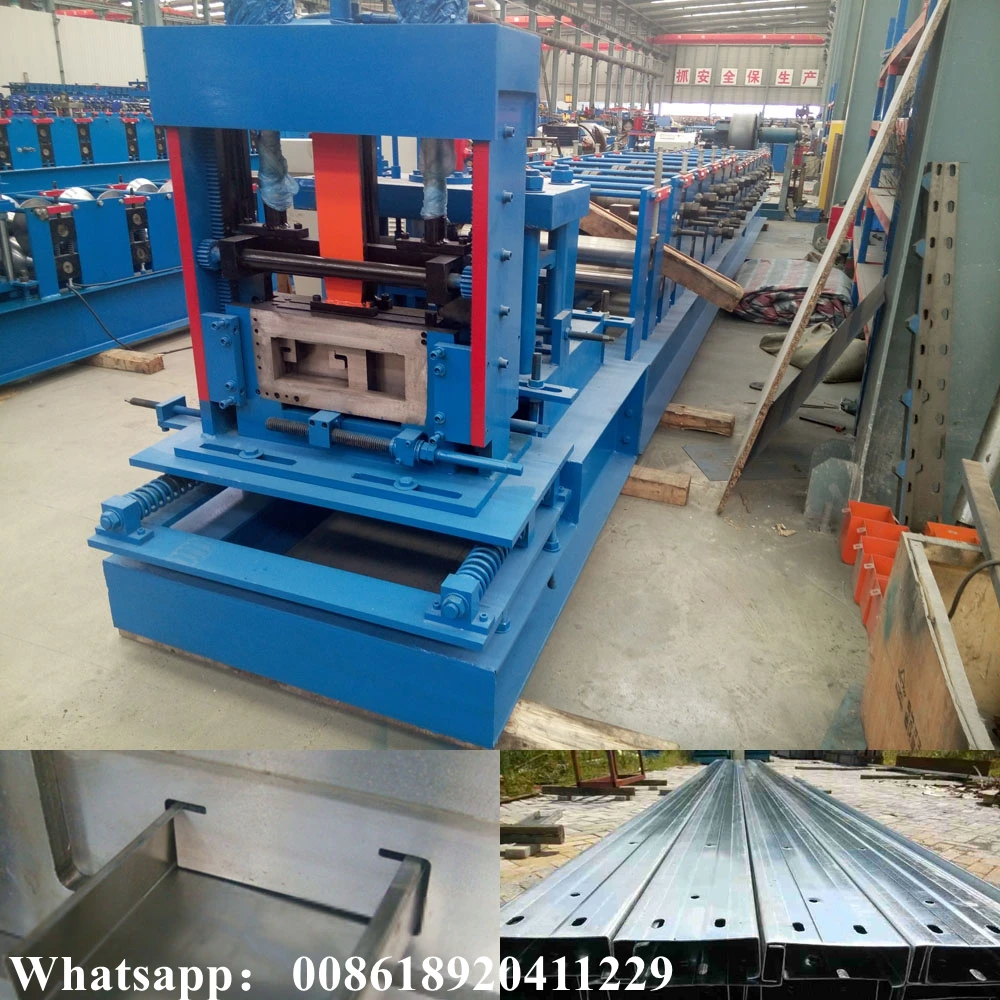

c z sigma purlin roll forming  machine Work flow:Parts pictures:

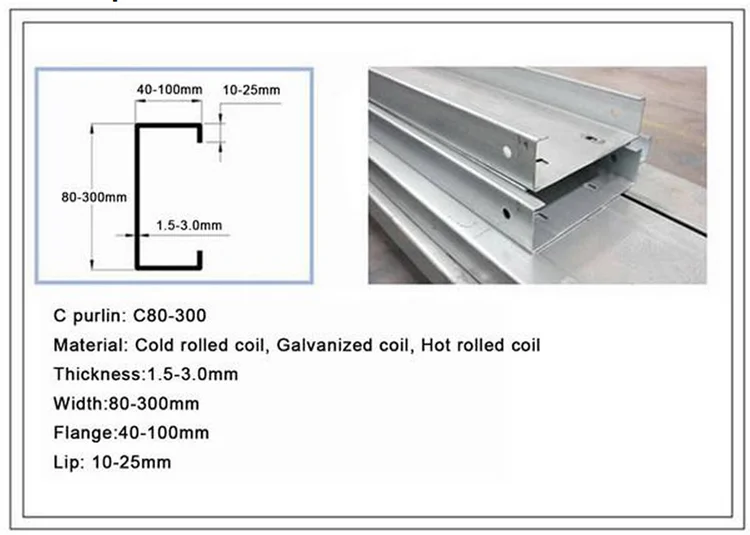

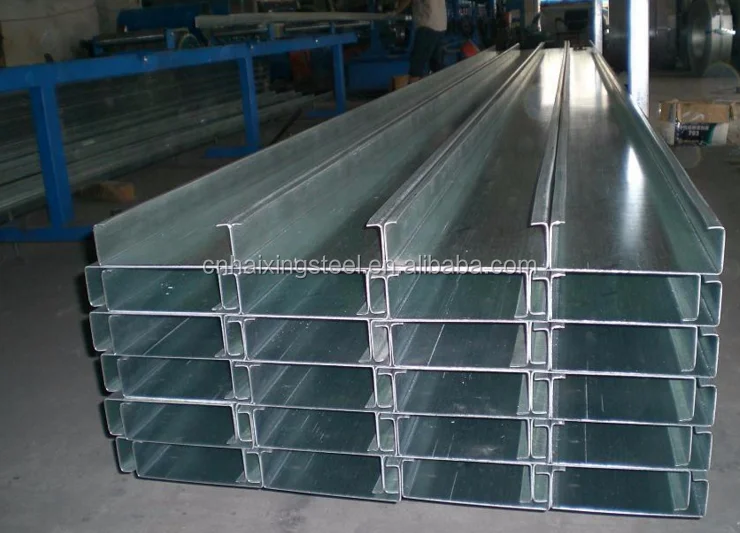

Z purlin type:



Other machines

Related machinery

1.Different types roof profile drawing forming machine ;

2.Curve roof roll forming machine ;                3.Ridge cap roll forming machine ;

4.Floor deck roll forming machine ;                5.Rain gutter roll forming machine ;

6.Down pipe roll forming machine ;                7.Highway guardrail roll forming machine ;

8.Roller shutter door forming machine ;          9.Door frame roll forming machine ;

10.CZU purlin roll forming machine ;             11.Light keel roll forming machine ;

12.Slitting machine (lines);                             13.Shearing/bending machine ;

14.Decoiler(Hydraulic decoiler ,electric decoiler and manual decoils) and so on .

Company Information

    Haixing Industrial Group Co., Ltd, the company was founded in 2004 .We are factory specializing in the manufacture and export for more than ten years.We have profuse designs with series quality grade, and expressly, our price is very competitive because we are manufactory, we are the source.Our first focus is quality improvement and customer's satisfaction,we have exported the products to Africa, South America, Russia, India, Pakistan,Southeast Asia etc. the custormers of domestic and foreign evaluate highly for our stable quality and cost effective.

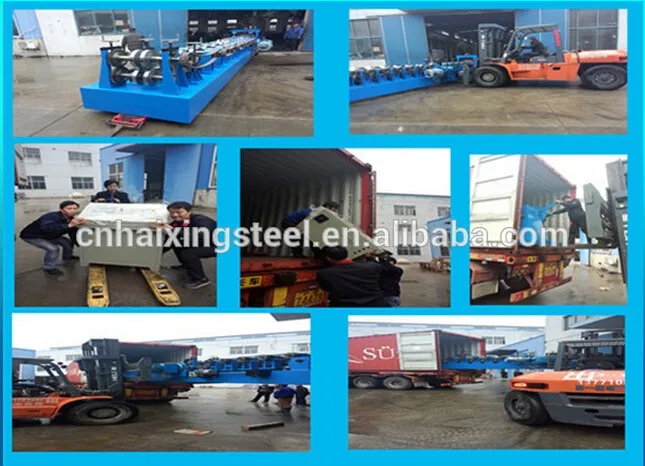

Packaging & Shipping

 1). Tighten to container with steel wire rope and welded machine with container by angel iron .

2). Main c z sigma purlin roll forming  machine  and un-coiler is naked(If you need we can also packed with water-proof     plastic).

3). PLC contral system and motor pump are packed in wooden box with water proof paper                 coverage.



Our Services

  1. we provide our customers with 12 months' warranty.
2. Any parts damaged due to quality problem shall be changed for free within the first year.
3. Technical guide is provided during whole life of the machine.
4. Oversea services will be provided but any cost thus incurred will be paid by the buyers.



Our customers:

FAQ

    A:- What service can you provide before order?
- About the pre-sale service. We provide you answers of all your questions on our machines, such as technical parameter, price, payment terms, ect. If you wanna visit our factory and check the machines, we also can send you invitation letter and give you our warmest welcome.
B:- Can you finish the machine during the delivery time?
- We will finish the machine in time according to determined lead time.
C:- Can you provide some spare parts?
- Yes, of course. The quick-wear parts are sent to you together with the machine.
D:- What is the after- sale service?
- About the after-sales service. We can send technician to your country to fix the machine.The buyer should bear all the cost including: visa , Roundtrip ticket and suitable accommodation, also buyer should pay the salary 80USD/day.
The warranty is one year. and we will provide the technical support for the whole life. It is free to maintain the machine the first year after buying, including changing the main components. The first year hence, you will pay for our technician $50 per day to maintain the machine. And the components are not free, if you need to get it from us.
E:- Any other service?
- We can manufacture, design, installation and debug various roll forming machines including standard and customized machines.
It is free to assemble machine and train your works, but the buyer should pay for the round-trip airplane ticket, and arrange accommodation during that time.
F:- Can you accept OEM?
- We can accept OEM.
G:- What is the payment term?
- Our payment term is TT, 30%TT as the deposit, before shipping pay the last 70%TT
H:- Any certification:
- Yes, we have CE TUV BV certification.
