Vineyard Post Grape Stake Roll Forming Machine

Product details
Condition:New;Voltage:380V 50HZ 3Phase;
After-sales Service Provided:Engineers available to service machinery overseas;Type:Tile Forming Machine;
Production Capacity:8-12m/min;Cutting blade material:Cr12Mov with quench HRC58-62°;
Place of Origin:Hebei China (Mainland);Weight:4.8Tons;
Material:Galvanized steel sheet G550;Shaft material:60mm ,material is 45# forge steel;
Payment Terms:L/C,D/A,D/P,T/T,Western Union,MoneyGram;Tile Type:Steel;
Dirve system:Chain drive;Roller material:Gcr15 steel, coated with chrome, Quenching;
Supply Ability:100 Set/Sets per Month;Thickness:1.2-2mm;
Cutting Tolerance:6m+-1.0mm;Forming stations:16Rollers;
Packaging Detail:Standard sea package with Film and steel for Vineyard Post Grape Stake Roll Forming Machine .;Brand Name:HAIXING;
Port:Tianjin loading port for Vineyard Post Grape Stake Roll Forming Machine;After-sales Service Provided:Online support,Free spare parts,Field installation, commissioning and training,Field maintenance and repair service,Video technical support;
Use:Vineyard Grape Stake;Warranty:14 months;

Vineyard Post Grape Stake Roll Forming Machine

Product Description

Vineyard Post Grape Stake Roll Forming Machine main parameters

Item No.DescriptionOffered specification
1Name Vineyard Post Grape Stake Roll Forming Machine
2Rolling speedup to 12m/min(not include cutting time)
3Rolling thickness1.2-2.0mm
4Raw materialGalvanized steel sheet
6Effective width54mm
7Roller stations16Rollers
8Roller materialGcr15 steel, coated with chrome, Quenching
9Shaft diameterΦ60mm ,material is 45# forge steel
11Material of chain45# forged steel with frequency quenching,12A
12Material of cuttingCr12Mov with quench HRC58-62°
13Cutting Tolerance6m+-1.5mm
14WeightAbout 4.8Tons

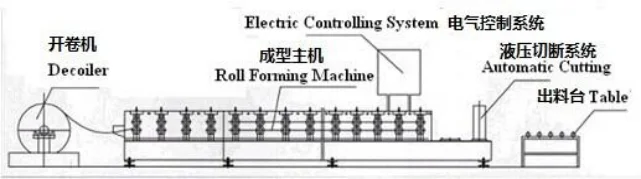

Vineyard Post Grape Stake Roll Forming Machine main components


No.Equipment nameQuantity
13T passive de-coiler1set
2Main roll forming machine1set
3Hydraulic punching1set
4Hydraulic station1set
5Control system ( including control box)1set
6Out tables2 units
7Spare parts1 package

Products Showing

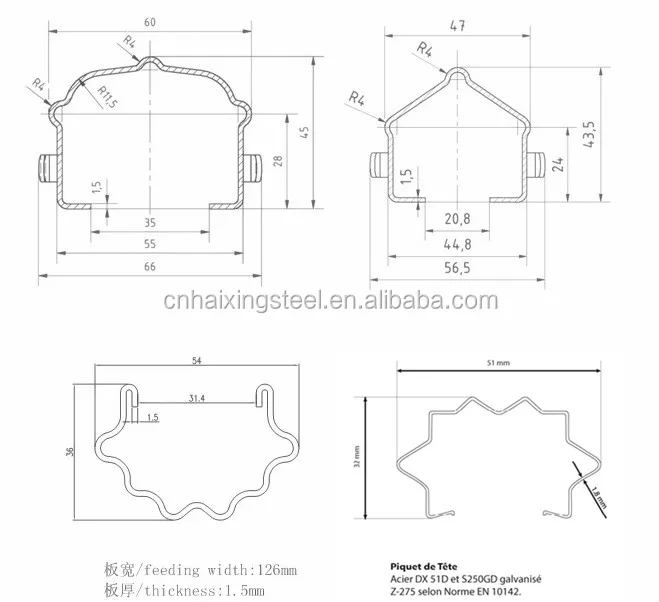

Vineyard Post Grape Stake Roll Forming Machine profile drawing

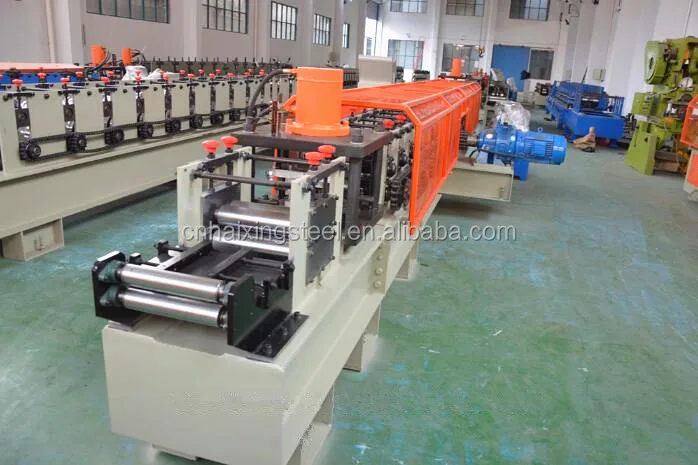

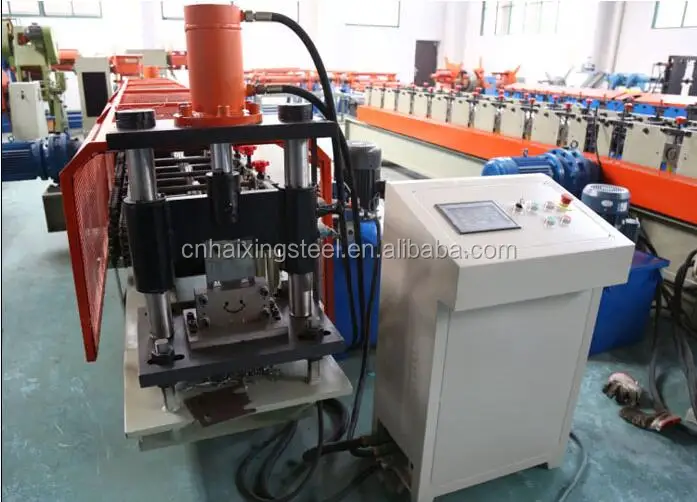

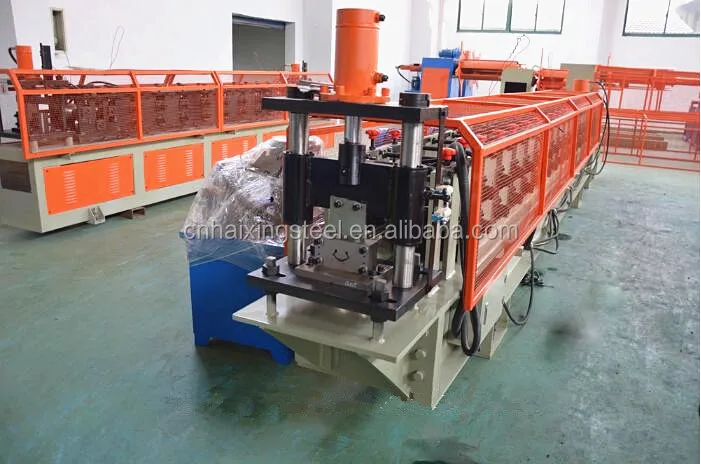

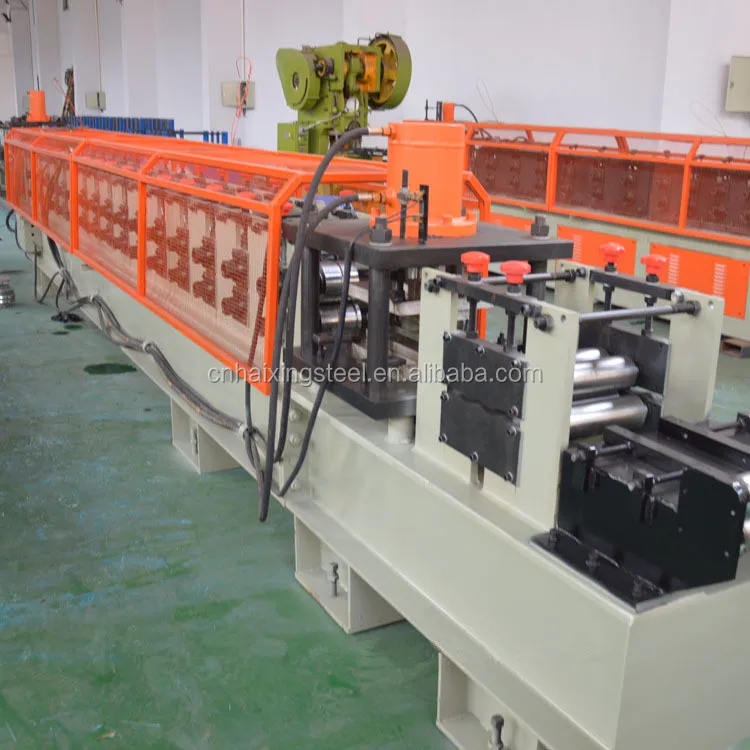

Vineyard Post Grape Stake Roll Forming Machine Photos Showing

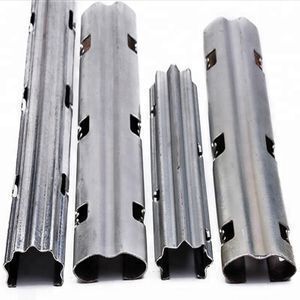

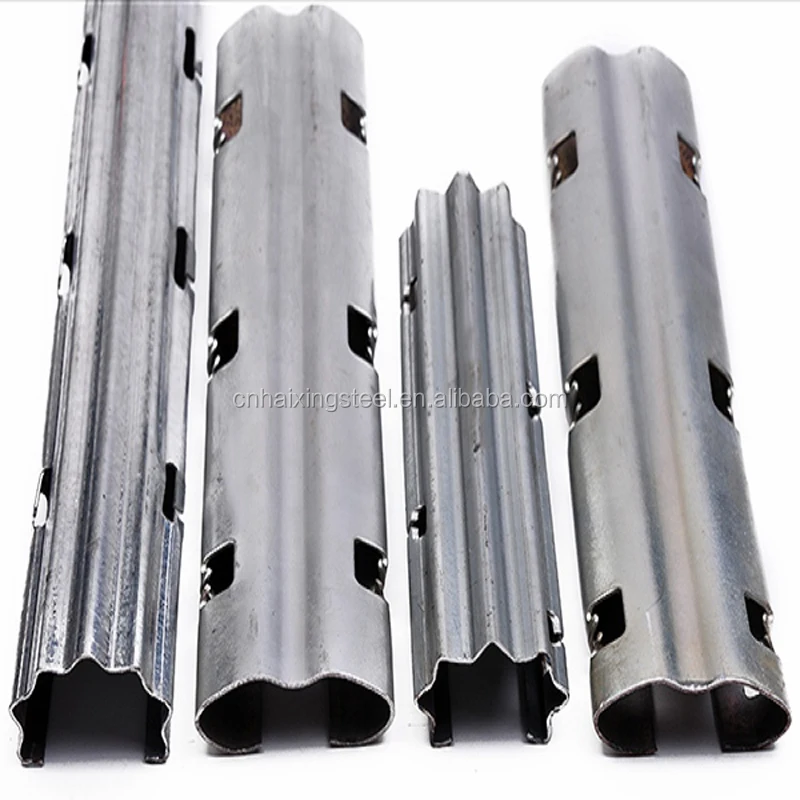

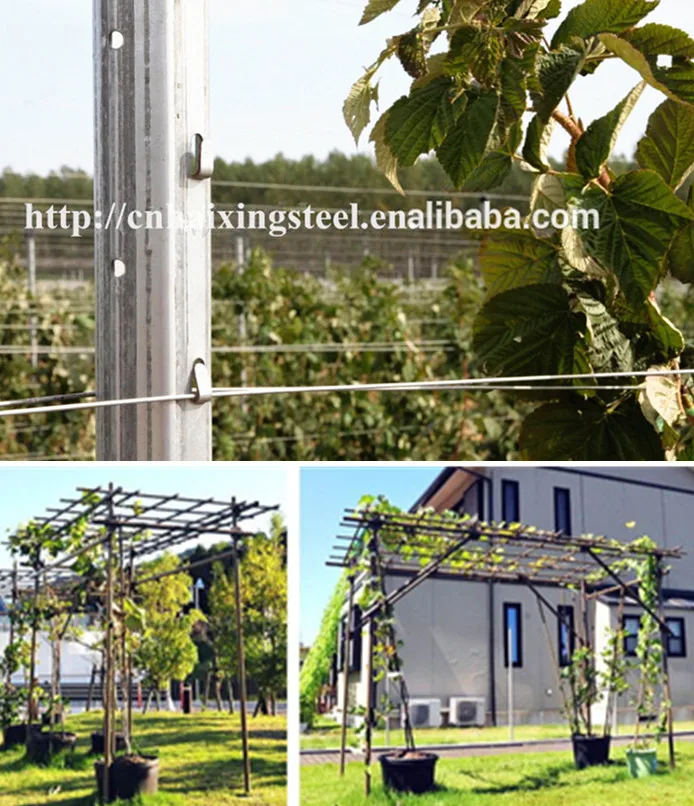

Grape Stak for Vineyard Application


Vineyard Post Grape Stake Roll Forming Machine package and shipment

 1.Vineyard Post Grape Stake Roll Forming Machine and un-coiler is nude packing (If you need, we can also packed it with water-proof plastic)

 2. PLC control system and motor pump are packed with water proof paper, spare parts in carton box.
 3.One set of machine needs a 40' container to shipping.

Related machinery

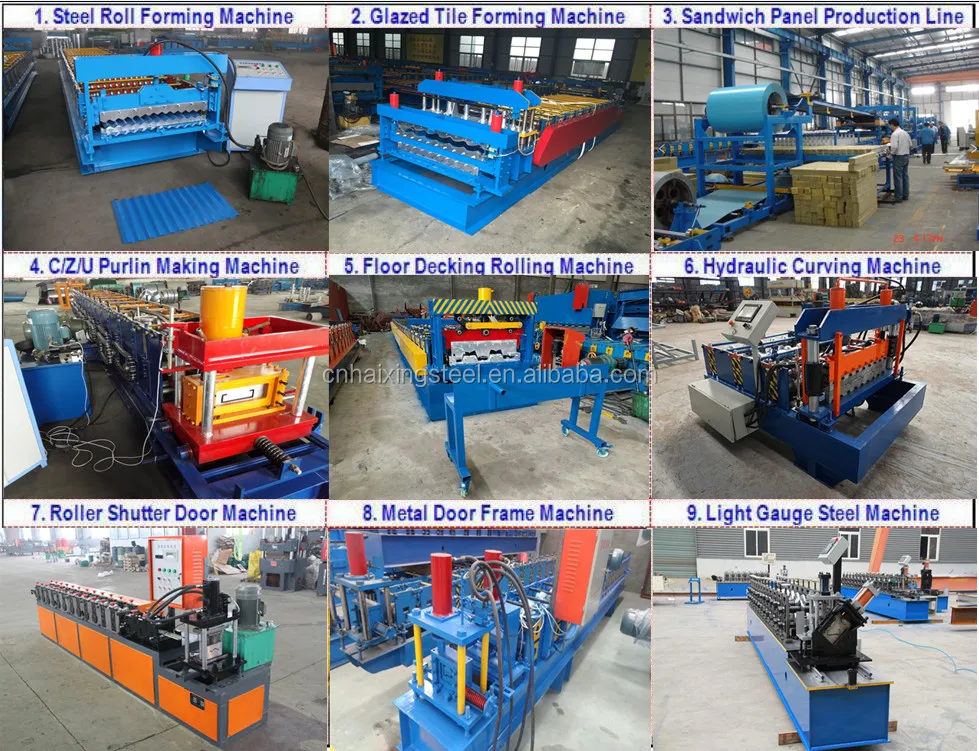

Our Company Main Roll Forming Machines
Different type roof roll forming machine ,
Curve roof machine ;
Shearing/bending machine ;
Light keel roll forming machine ;
Floor deck roll forming machine ;
Door shutter roll forming machine ;

Door frame roll forming machine ;
C/Z/U purlin machine and so on .

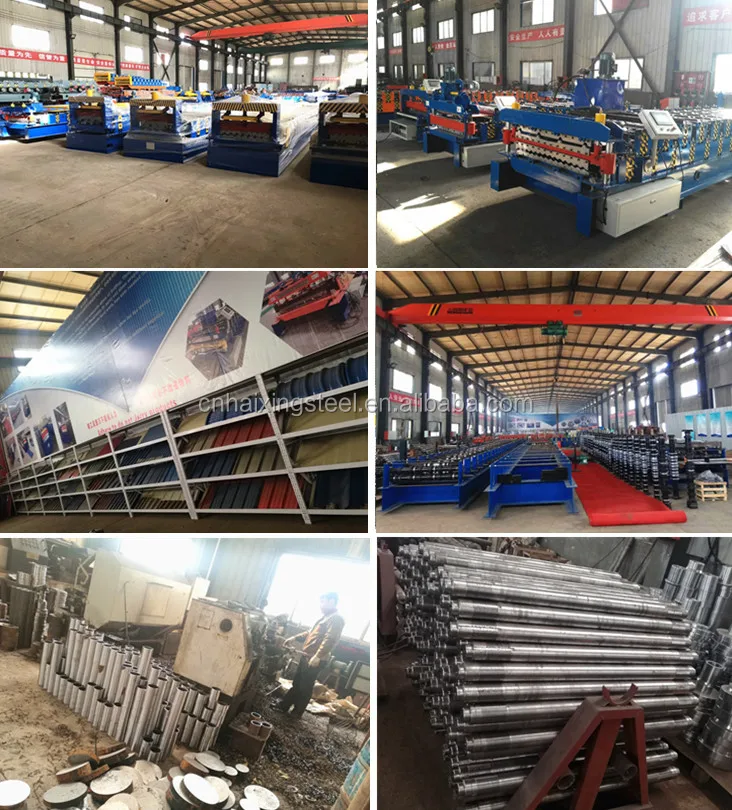

Company Information
