maquina para fabricar calaminas de aluzinc tr5

  • Supplier: Tianjin Haixing Imp & Exp Co., Ltd.
  • Region: Tianjin, China
  • Contact: Ms lisa zhao
  • Price: $15800.00 / 1 - 1 sets
    $14000.00 / 2 - 2 sets
    $13000.00 / 3 - 9 sets
    $5000.00 / >=10 sets
  • Min. Order: 1 set
Product details
Production capacity:10-15m/minthickness:0.3--0.8mm
Main selling point:Brand motor and PLCCore components:Motor, pump, engine, PLC
Shaft Material:45# steel outer diameter: 70mmShowroom location:not any
payment terms:L/C,Western Union,T/T,MoneyGramBlade material:Cr12 high frequency quenching
Rolling thickness:0.3-0.8mmbrand:Haixing
Warranty:2 yearsCore Components Warranty:2 years
Supply capacity:100 sets per yearplace of origin; place of origin:Hebei china
Dimensions (L*W*H):7800*1650*1800mmName:maquina para fabricar calamines metal roof making machine
type:Tile forming machineApplicable industries:Building material stores, manufacturing plants, farms, construction, energy and mining
Health status:newCut Type:Automatic hydraulic cutting
Mechanical test report:ifRoller Material:45# steel chrome plating
Video external inspection:ifFeed width:1220mm
Tile Type:clip lock roofPackaging Details:Export standard packaging: 1. The main body of the molding machine is loaded into the container naked and covered with plastic film. 2. Steel wire secures the machine in the container to prevent damage when shaking at sea. 3. Spare parts will be packed in the carton. 4. The received goods sheet is put into the carton. 5. Manual uncoiler bare package.
use:roofRaw materials:PPGI PPGL GI GL
Voltage:380V/440V/220V/415Vprogrammable logic controller:DELTA (Taiwan) or Mitsubishi (Japan)
Main Frame:400mm H-beamPackaging Preview:
weight:5600 kgMarketing Type:normal product
usage:put upport:Tianjin, Qingdao, Shanghai, Yiwu ports
Product Description

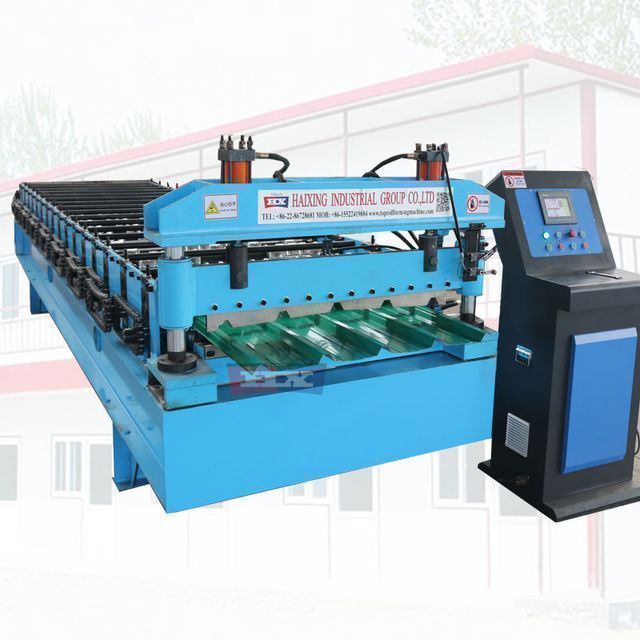

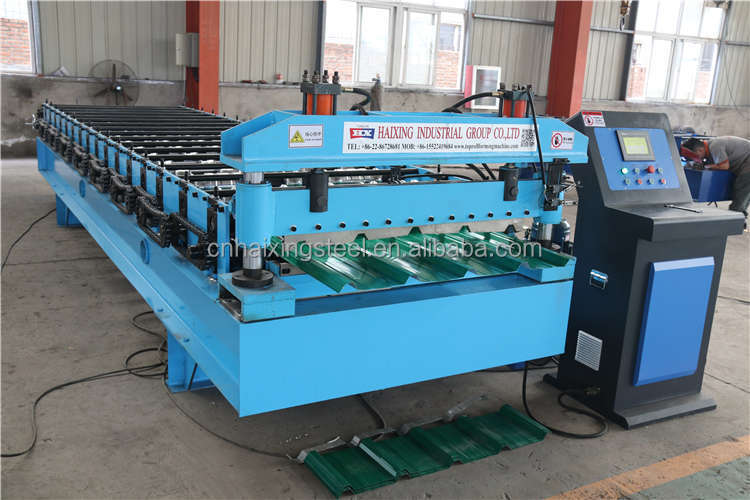

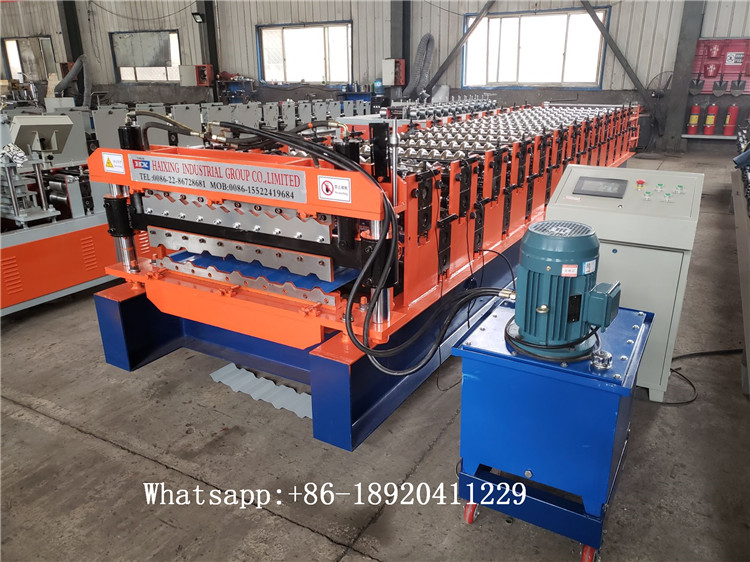

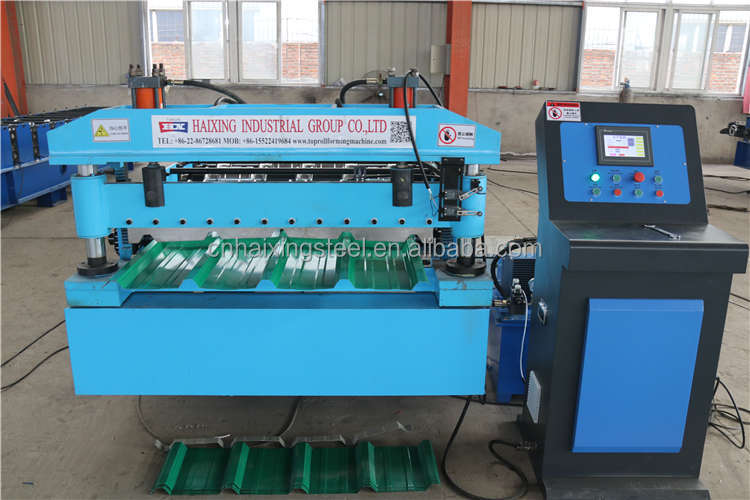

The advantagesmaquina para fabricar calaminas de aluzinc tr5

1. The system is easy to operate and easy to use. PLC: Delta (can be customized according to customer requirements)
2. The surface of the final product is very smooth and beautiful, without any scratches on the surface.

product name
maquina para fabricar calaminas de aluzinc tr5
main motor power
4kW/5.5KW/7.5KW or according to actual needs
Hydraulic motor power
3kW/4KW.5.5KW or according to actual needs
10-12MPa according to oil pump and pump motor
380V/ 3 phase/ 50 Hz (or as your request)
Control System
Fully automatic PLC control system
Main Frame
350H beam/400H beam according to machine requirements
wall thickness
16mm/18mm/20mm/22mm according to machine requirements
chain size
1"/1.2" according to machine requirements
Galvanized steel coil/color steel coil/aluminum steel coil
Feed thickness
0.3 - 0.8 mm
Chrome size

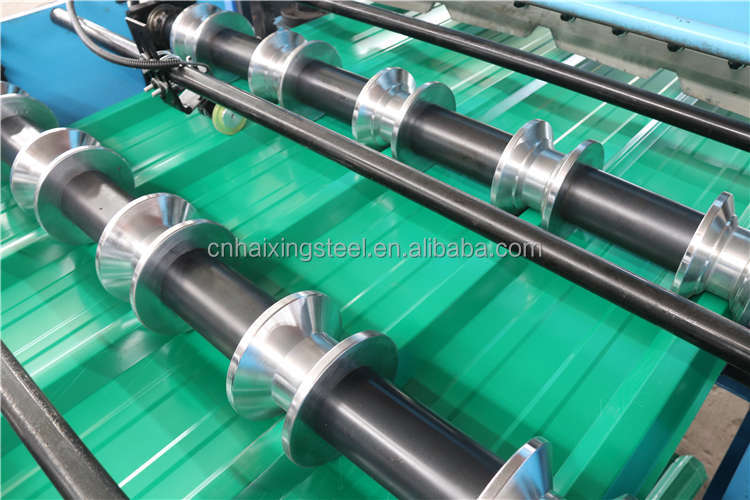

roll station
13 rolling steps (according to different designs)
Roller material
45 # steel
Tool material
Cr12 MOV
gross weight
4.2 tons
total measurement
Product use

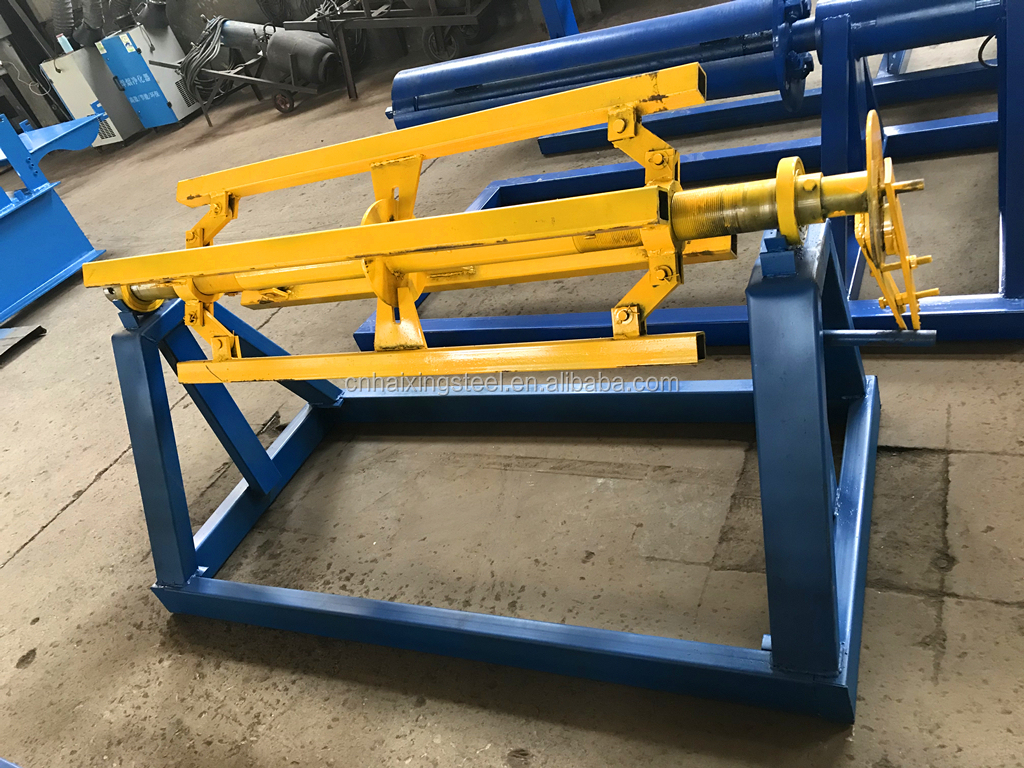

    • Name: Manual uncoiler

Purpose: used to support steel coils and unrolled in a rotatable manner. The coils are uncoiled by hand. loading
Capacity: 5T, inner diameter: 500-508mm

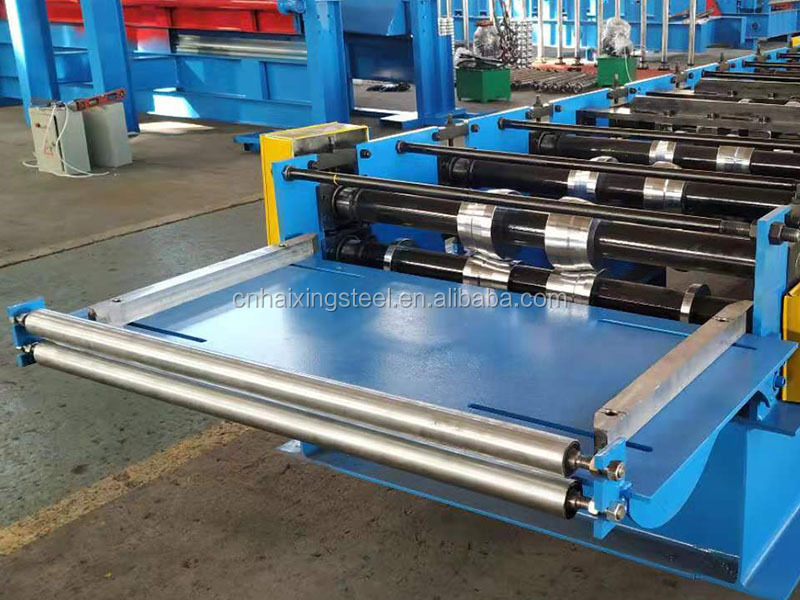

name: feeding table
The raw materials (steel plates) are manufactured and processed through the beach to ensure that the products are neat and tidy.
Parallel, everything is unified. For the function of the positioning angle iron, please refer to the equipment manual.
Remarks: Pre-hand with leveling roller

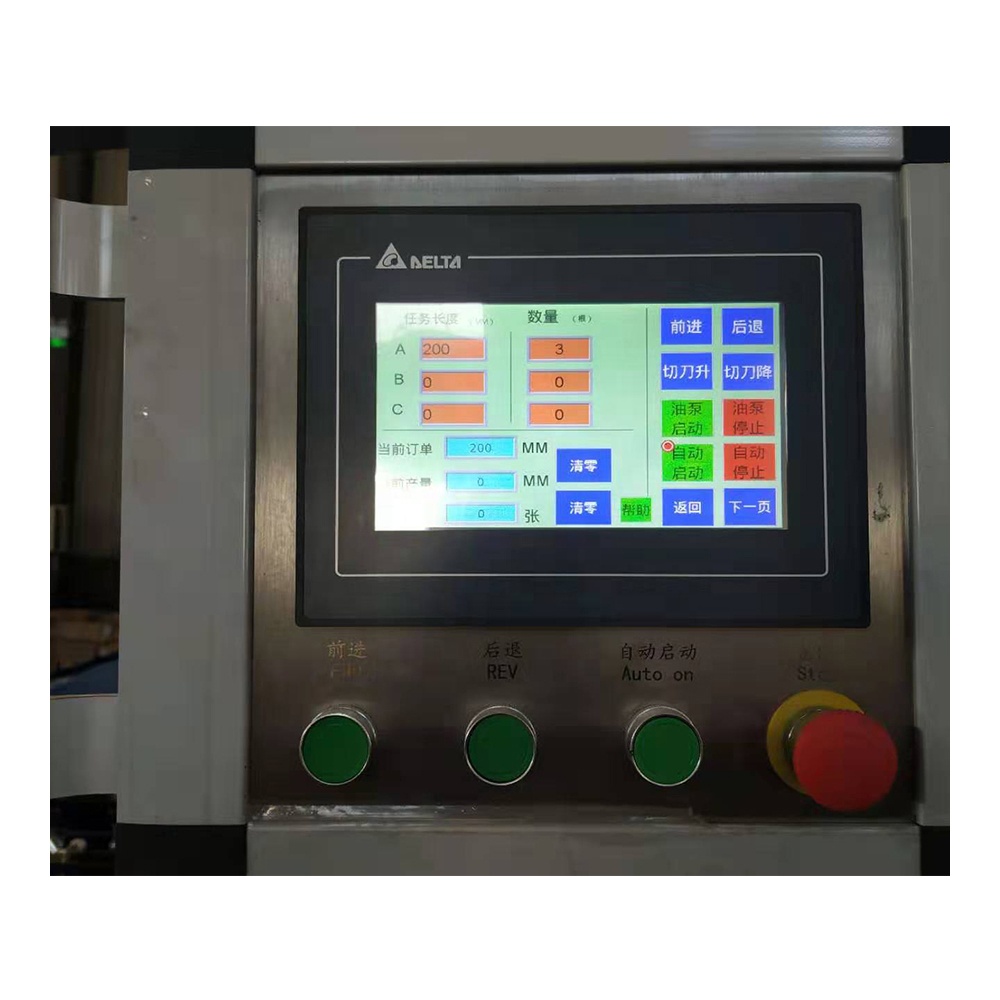

Name: computer control cabinet
PLC: Delta PLC (or according to customer requirements) Touch screen: Delta Frequency system: Delta Chinese, English, Russian or

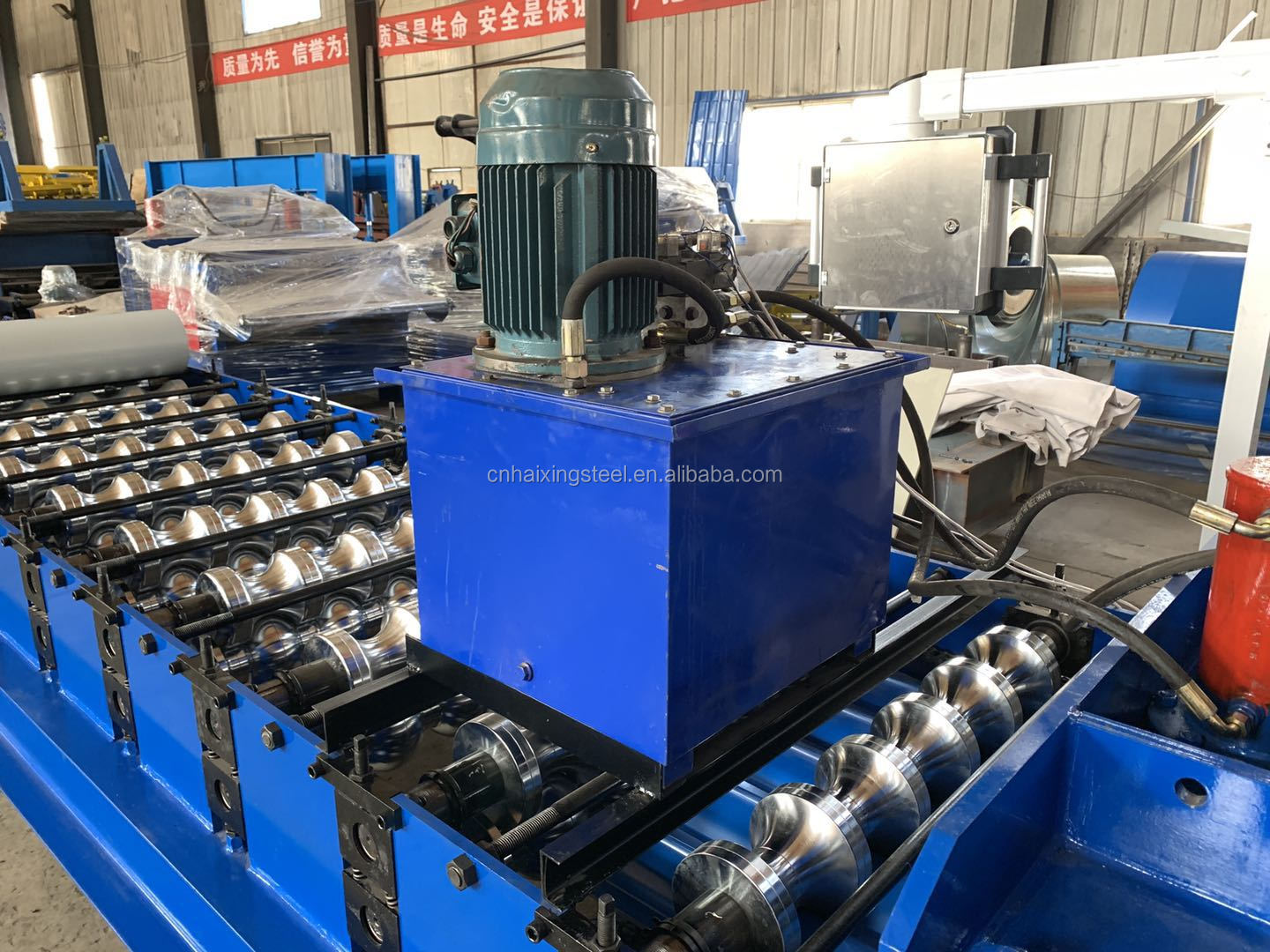

Name: Water Conservancy Station Power Supply

Hydraulic station power: 4Kw, the brand is Shanghai Lichao
Name: cutting blade
It uses motor drive and automatic positioning to determine the size and cut the target product. Blade material:
Cr12, quenched

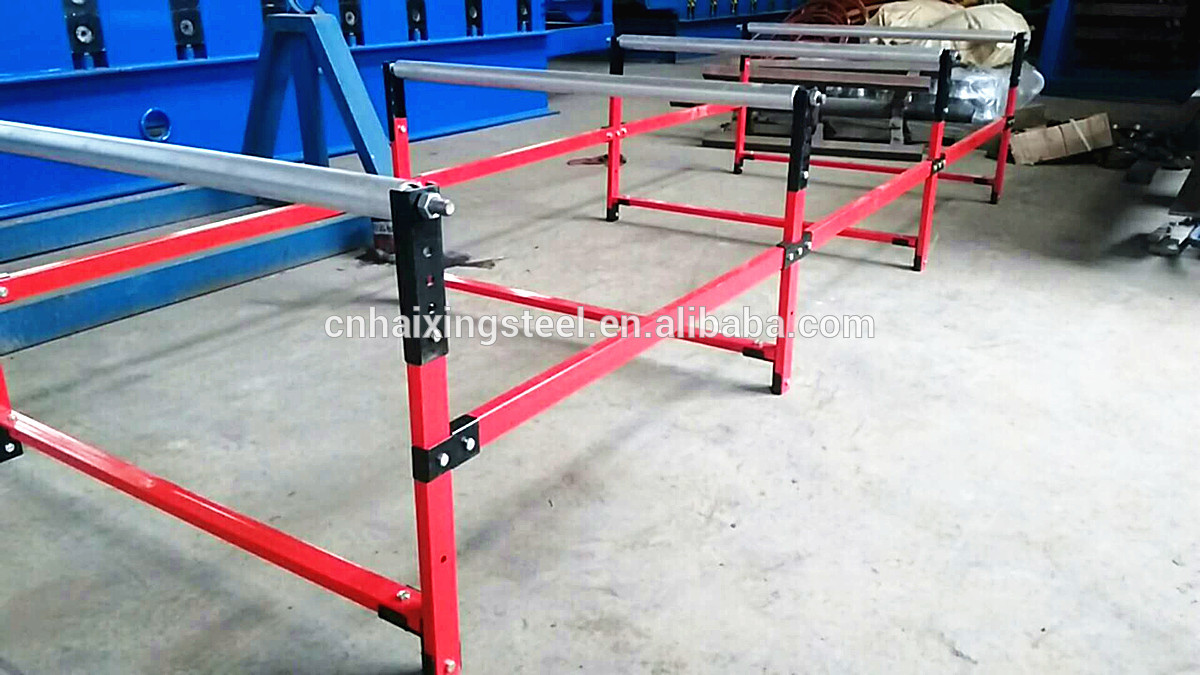

Name: Receipt Form
It conveys the product using welded steel and back-up rollers for collecting the finished product. 2 pieces
3 meters
