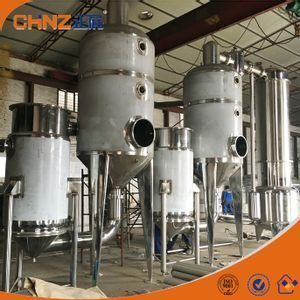

Frequently used Industrial milk vacuum evaporator design and sale
- 5000.00 set
| advantage: | high efficency durable; | Material: | Stainless Steel 304/316L; |
| Port: | Ningbo Or Shanghai; | Key words: | milk evaporator; |
| Type: | spherical; | Capacity: | 100-2000L; |
| appearance: | pretty; | Power: | 7.5-15KW; |
| After-sales Service Provided: | Engineers available to service machinery overseas; | Processing Types: | Alcohol; |
| Supply Ability: | 100 Set/Sets per Month Frequently used Industrial milk vacuum evaporator design and sal; | Dimension(L*W*H): | according; |
| Weight: | 630-5000 Kg; | Place of Origin: | Zhejiang China; |
| Voltage: | Customer's Requirements; | Processing: | Concentrator; |
| Delivery Detail: | whin 35 work days; | Standard: | FDA GMP; |
| Usage: | food; | Brand Name: | CHINZ; |
| Condition: | New; | Packaging Detail: | plywood case, plastic firm (Frequently used Industrial milk vacuum evaporator design and sale ); |
| Warranty: | 13 month; | Certification: | CE/ ISO9001; |
| name: | Frequently used Industrial milk vacuum evaporator design and sale; | Model Number: | QN-300, QN-500, QN-700, QN-1000; |
| Payment Terms: | L/C,D/A,D/P,T/T,Western Union,MoneyGram,trade assurance; | Power Source: | Steam; |
Frequently used Industrial milk vacuum evaporator design and sale
Advantage
1) The equipment has the functions of heating and heat preservation. It is manufactured, pressure-tested and checked in accordance with the
2) The standard specification from 100L to 7000L and order-design or order-manufacture are all available.
3) The joint is of quick-acting type in compliance with ISO standard. The inner part is made of SUS316L or SUS304. At the tanks body are respectively fluid level gauge (the mode is non-contact supersonic, static-pressure transmission or glass tube), breathing apparatus, sterilization steam opening,the rmometer (digital-indicated type or dial type), CIP universal tank-cleaning device, view mirror at lamp hole, some fluid inlets & outlets and herringbone hole.
Technology parameter
Model and specification | QN-300 | QN-500 | QN-700 | QN-1000 | |
Transpiration rate(kg/h) | 70 | 120 | 145 | 195 | |
Volume(L) | 300L | 500L | 700L | 1000L | |
Steam pressure(Mpa) | 0.09 | ||||
Vacuum degree(mmHg) | 500~620mmHg | ||||
Heating area(m2) | 1.3 | 1.5 | 2 | 2.8 | |
Condensing area(m2) | 2.4 | 3 | 3.5 | 4 | |
Equipment weight(kg) | 380 | 450 | 630 | 950 | |
Outsize dimension(mm) | L | 1900 | 2030 | 2100 | 2335 |
W | 1100 | 1200 | 1300 | 1520 | |
H | 2300 | 2500 | 2600 | 2765 | |
Pre-sale service:
1. Free of making offers, craft and technical guidance.
2. We can provide company’s qualification certification and the drawings.
3. We can also make customized products according to customer’s needs.
After-sale service:
1. We provide long-term after-sale service.
2. Owing to the quotation of our equipment is FOB price which excluded charges of door-to-door service. Thus, if necessary, we can appoint our technician to debug the machine with air ticket, visa, accommodation and labor cost provided by your party. Or you can send your technician to our company to learn techniques.
3. Meanwhile, you can call or e-mail to consult any relevant questions since we have a special line of after-sale service. Or you can communicate online and solve the problems.
The normal package is wooden box. If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
Bulk cargo: standard wooden case which can avoid any clash during the sea or air transportation in case of causing damage to the equipment’s surface.
Container cargo: the equipment will be bound firmly and won’t easily swing to the side, or up, or down.
Our company’s advantages over other companies:
Wenzhou CHINZ Machinery Co..Ltd is a high-technology enterprise integrating biochemicaI pharmaceuticaI equipment,milk food and beverage industry.chemical industry and otherhygiene level fluid equipment design.manufacturinq.service.Through unceasingly enterprising for more than 10 years.the company has established a dynamic science and technology innovative team.and several technologies of the products have got the nationaI patent.The company is the national high and new technology enterprise.
Choose us and get more benefits:
1. Deliver innovative products in the market at a faster pace;
2. Enhance the reliability of product’s quality;
3. Decrease the total cost of the product effectively;
4. Improve research personnel’s ability of creative design;
5. Gain more leading technologies about product development and increase the competitive advantage of products.
