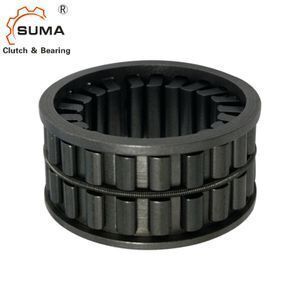

FE 432 Z FE432Z FE432 Overrunning Clutch FE Sprag Freewheel Clutch details
Port:Shanghai;Ningbo;Service:OEM Service;
Brand Name:suma;Bore size:24mm;
Place of Origin:Jiangsu China;Width:12 mm;
Precision Rating:P0;Single gross weight:0.025 KG;
Product name:FE 432 Z FE432Z FE432 Overrunning Clutch FE Sprag Freewheel Clutch;Material:GCr15;
Delivery time:7-10 days;Single package size:3.5X3.5X1.5 cm;
Applicable Industries:Manufacturing Plant,Machinery Repair Shops,Food & Beverage Factory,Construction works ,Energy & Mining;Type:sprag;
Selling Units:Single item;Package:singer package or as your requirements;
Package Preview:;Packaging Detail:singer package or as your requirements;
weight:0.016kg;Seals Type:Non-sealed;
Model Number:FE 432 Z;Outer diameter:32mm;
Product Description

FE 432 Z FE432Z FE432 Overrunning Clutch FE Sprag Freewheel Clutch

Data Sheet

+
ItemFE432Z
MaterialGCr15
Bore size24 mm
Outer dia.32 mm
Width12mm
Torque117 Nm
Weight0.016 kg
Max. speed5900 rpm
PortShangai;Ningbo
Delivery time7-10 days
PackageSinger package or as your requirements



Characteristics

Installed Width:12 mm



Operating temperature

max. 140°C

Higher temperatures on request



Lubrication

Oil or grease lubrication

Delivered with corrosion protection.

Operative grease filling on request.



Installation

Installation tolerances

Shaft h5; hub H6

Inner ring/shaft

steel, HRC 60+4 (HV 700+100); Ehd ≥ 1.3 mm; Rz ≤ 2.5 μm

Outer ring/housing

steel, HRC 60+4 (HV 700+100); Ehd ≥ 1.3 mm; Rz ≤ 2.5 μm



Constraints

The freewheel clutch insert element requires axial constraints on both sides.



Mating parts

Hardening and grinding of the mating parts is not necessary. Thoroughly clean (grease free) the mating parts in the vicinity of the freewheel clutch as well as the freewheel clutch's rings before making the press fit.



Bearing

Freewheel clutch insert elements are not self-centering.

External bearing support to define the gap between mating parts

(inner and outer rings) is necessary.



Components

Components

Freewheel

Spring

Cage

Sprags

Insert element FE 400 Z

Tension spring (Z)

Stamped steel / plastic (PA) Hardened bearing steel Start gap height h0 = 4 mm

- Thrust rings

-

- Ball bearing

-

- Roller bearing

-

- Lubrication

-

- Seal

Different Sizes For Your Requirements

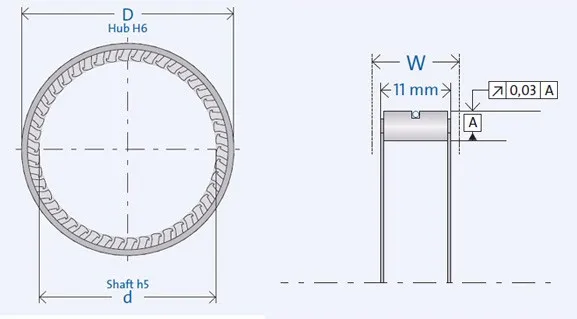

Drawing legend:

d = inner diameter D = outer diameter W = width T = torque n = rotation speed

+

Designation

d

[mm]

D

[mm]

W

[mm]

Tnom

[Nm]

nmax

[rpm]

Weight

[kg]

Item no.

FE 412 Z

4

12

12

4

27,000

0.003

300393

FE 416 Z

8

16

12

16

19,200

0.006

300400

FE 420 Z

12

20

12

35

12,500

0.007

306041

FE 422 Z

14

22

12

53

10,100

0.008

300405

FE 423 Z

15

23

12

62

9,200

0.009

300411

FE 425 Z

17

25

12

72

8,100

0.011

300415

FE 427 Z

19

27

12

83

7,400

0.013

300422

FE 428 Z

20

28

12

93

7,500

0.013

300430

FE 430 Z

22

30

12

107

6,300

0.014

300435

FE 432 Z

24

32

12

117

5,900

0.016

300439

FE 433 Z

25

33

12

128

6,000

0.016

300445

FE 435 Z

27

35

12

143

5,100

0.017

300448

FE 437 Z

29

37

12

154

4,800

0.018

300455

FE 438 Z

30

38

12

166

4,900

0.019

300460

FE 442 Z

34

42

12

198

4,400

0.018

300463

FE 443 Z

35

43

12

207

4,300

0.022

300469

FE 448 Z

40

48

12

248

4,200

0.024

300478

FE 453 Z

45

53

12

293

3,400

0.022

300482

FE 455 Z

47

55

12

313

3,300

0.026

300487

FE 458 Z

50

58

12

344

3,100

0.029

300489

FE 459 Z

51

59

12

353

3,000

0.030

300494

FE 463 Z

55

63

12

393

2,900

0.032

300497

FE 468 Z

60

68

12

444

2,700

0.034

300501

FE 470 Z

62

70

12

465

2,600

0.035

300505

FE 473 Z

65

73

12

495

2,500

0.037

300508

FE 478 Z

70

78

12

548

2,600

0.039

300511

FE488Z

80

88

12

657

2,100

0.045

300514

FE 508 Z

100

108

12

889

1,700

0.055

300519

FE 528 Z

120

128

12

1,127

1,300

0.066

300522

FE 648 Z

240

248

12

2,673

800

0.131

300524

The specified nominal torque is based on sufficient stiffness of mating parts.

Rotation speed n = insert element's inherent speed.

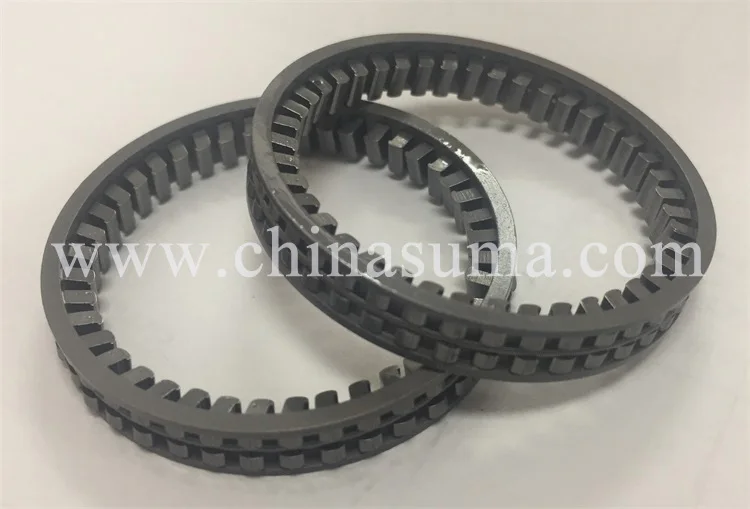

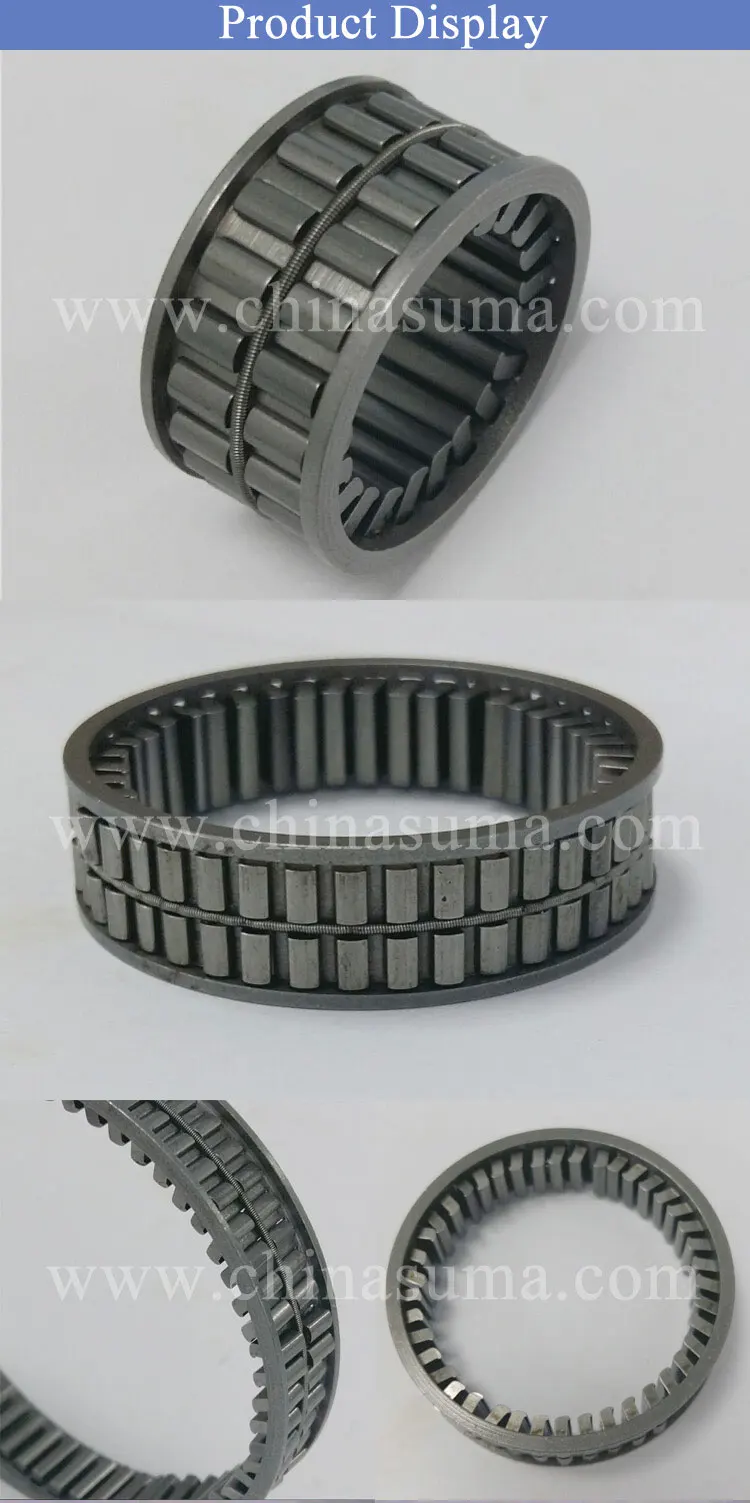

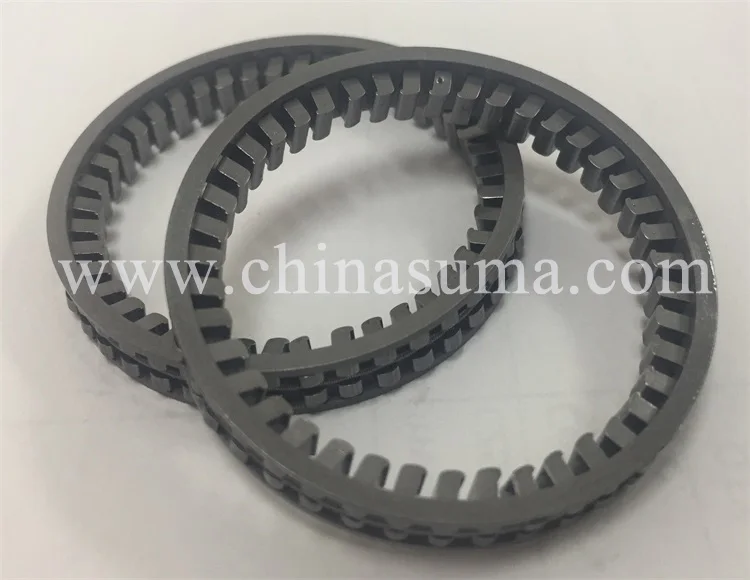

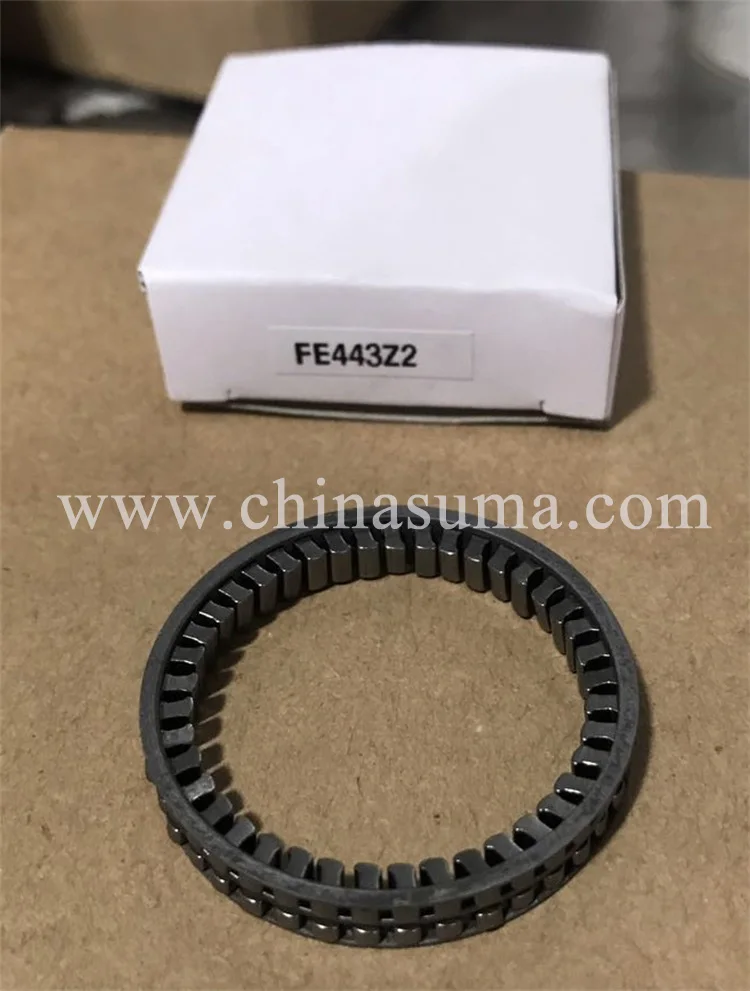

Detailed Image

Packaging



Company Information



FAQ



Port:Shanghai;Ningbo;Service:OEM Service;Brand Name:suma;Bore size:24mm;Place of Origin:Jiangsu China;Width:12 mm;Precision Rating:P0;Single gross wei
above is detail introduction of FE 432 Z FE432Z FE432 Overrunning Clutch FE Sprag Freewheel Clutch, include price, model, picture and supplier of FE 432 Z FE432Z FE432 Overrunning Clutch FE Sprag Freewheel Clutch.
