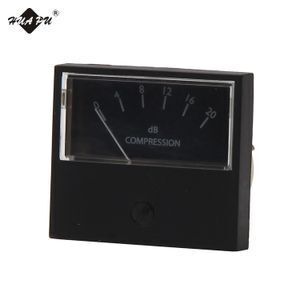

pointer type VU meter moving coil structure dB compression milli ammeter
- 5.50 piece
Registered Supplier
Direct Contact
Inquiry via Message
Product Details
| Direct current: | 0~1mA; | Accuracy Class: | 2.5%; |
| Movement structure: | moving coil; | Single gross weight: | 0.037 KG; |
| Accuracy: | 2.5; | Packaging Detail: | Standard export packing, 200 pcs or 300pcs each carton; |
| Supply Voltage: | *; | Model Number: | HP-dB; |
| Place of Origin: | Zhejiang China; | Display Type: | Analog Only; |
| Color of scale plate: | black; | Package Preview: | ; |
| Single package size: | 5X6X5 cm; | Selling Units: | Single item; |
| Certificate: | CE, PSE, RoHS, SGS; | Size: | 40*46mm; |
| Working temperature: | -10~55°C; | Brand Name: | Huapu; |
| Pointer Color: | white; | Measuring Range: | 0~1mA; |
| Dimensions: | 40*46mm; | Shell color: | black; |
| Frequency: | AC50Hz; | Operating Temperature: | -10~55°C; |

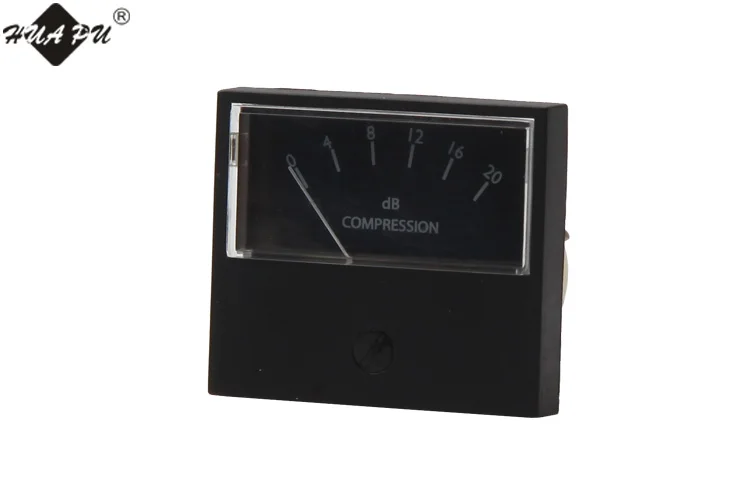

Product Description
Summarization
|
Product name |
VU meter |
| Input | DC 1 mA ±10% |
| Internal Resistance | 600Ω±10% |
| Accuracy | 2.5 |
| The scale display | 0~20 (dB COMPRESSION) |
| Ineternal illumination | 2 PCS White LED 8V 20mA |
| Back Shell color | White |
| Certification | CE PSE RoHS SGS |
| Inner structure | Moving Coil |
| Working temperature | -10~55°C |
Basic Specification
| Resistance (Ω) ±10% | 1000 | 650 | 450 | 165 | 110 | 11 |
| Sensitivity (uA) ±10% | 250 | 500 | 1000 | 2500 | 5000 | |
| DC Voltmeter | 40~1000mV 1~1000V | Direct connection | ||||
| DC Ammeter | 1~1000mA | Direct connection | ||||
| AC voltmeter | 1~500V | Direct connection | ||||

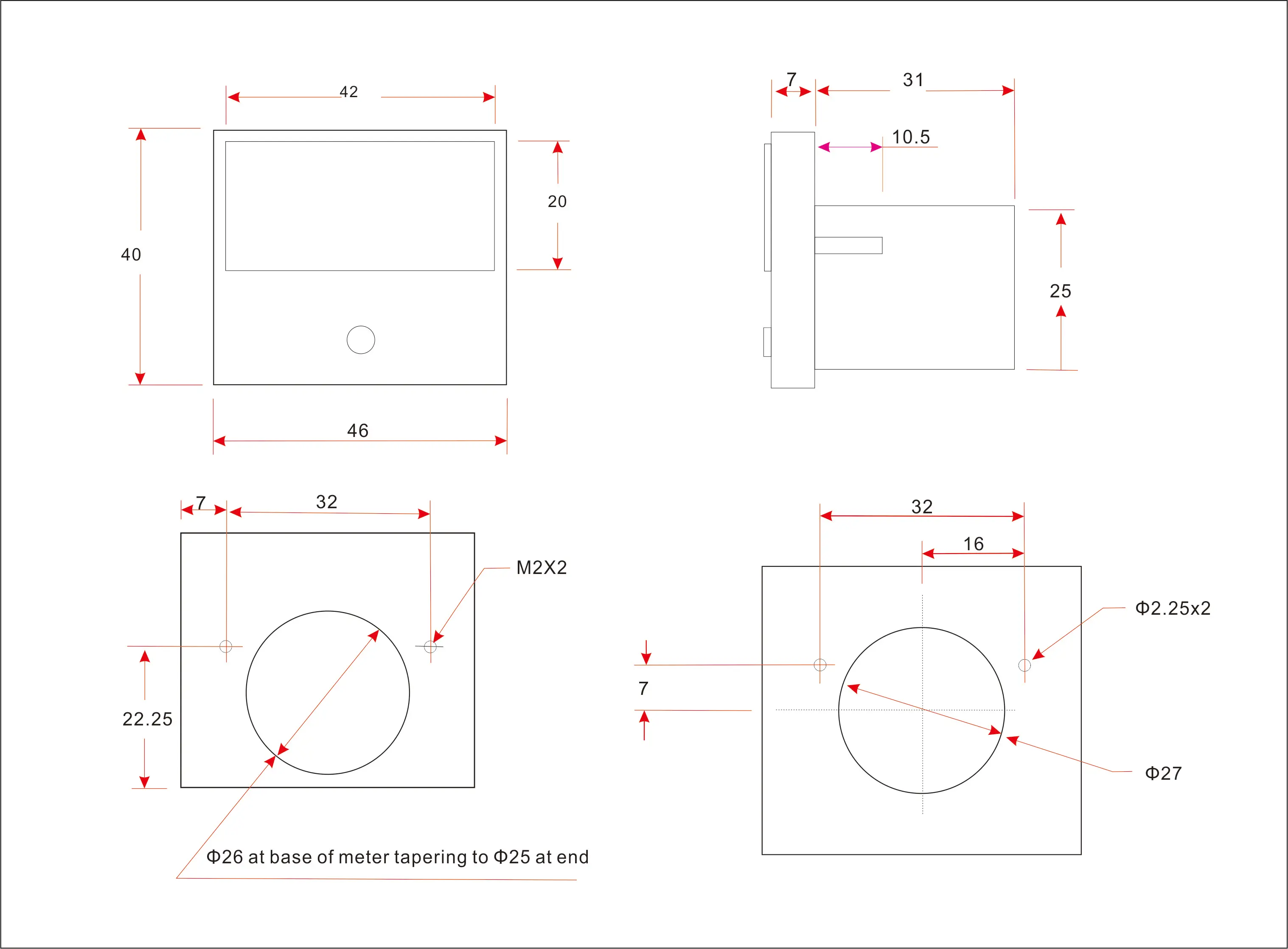

Contour size unit: mm
