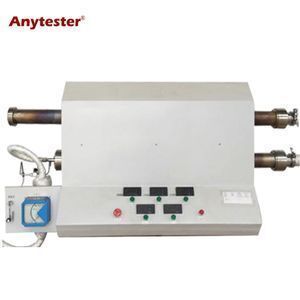

Batch-Type Low Temperature Carbide Furnace Two-furnace Structure

Supplier: Anytester (Hefei) Co., Ltd.
Region: Anhui, China
Contact: Mr Eric Qin
Price: $25000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Certification:	ISO;	Quartz tube stopper:	2pcs;
Package Preview:	;	Temperature controlling mode:	Intelligent controller;
Warranty:	1 YEAR,1 year;	Size of working furnace:	89*1500mm;
Applicable Industries:	Garment Shops;	Main machine:	1set;
Selling Units:	Single item;	Single gross weight:	500.0 KG;
Packaging Detail:	Export Standard Wooden Case;	Temperature controlling accuracy:	0.5%;
After-sales Service Provided:	Online support,Engineers available to service machinery overseas;	Brand Name:	Anytester;
Size of pre-heating furnace:	89*1200mm;	Steam source:	Steam generator with flowmeter to control pressure;
Condition:	New;	Single package size:	90X120X150 cm;
Connector:	40 stainless steel corrugated pipe;	Place of Origin:	Anhui China;

Product Description

AT232B Batch-type Low Temperature Carbide Furnace consists of pre-heating tube, working furnace tube, steam generator and flow controlling system. The pre-heating tube has two heating sections and the working furnace tube has three heating sections. Pre-heat steam produced by steam generator, air or oxygen to 600℃ in the pre-heating tube and then enters into the working heating furnace tube through pressure-adjusting valve and flowmeter. The pre-heat tube is connected with the working furnace tube by a rapid-connection connector and they are horizontally laid in rank. The heating furnace for the working furnace tube is open-able and dischargeable, convenient to observe. There is stainless steel filtering screen in the pre-heating tube for uniformly heating gas.

Detailed Images

1.Two-furnace structure;

2.Sheet metal bracket with electrostatic spraying plastics;

3.Heat-resistant stainless steel pre-heating tube and quartz stopper;

4.Mollite fiber open-able heating furnace and tube heating furnace;

5.Steam generator with the flow-meter to control pressure;

Specification

Model	AT232B
Temperature range of outlet air from pre-heating tube	500~600℃,adjustable
Max. temperature of constant temperature zone	1200℃
Temperature controlling accuracy	0.5%
Temperature controlling mode	Intelligent controller
Heat mode	2-section tube heating tube for pre-heating tube 3-section open-able resistance furnace
Size of working furnace	¢89*1500mm
Size of pre-heating furnace	¢89*1200mm
Connector	¢40 stainless steel corrugated pipe
Steam source	Steam generator with flowmeter to control pressure

Packing & Delivery

Packaging
Size(cm)	90(L) * 120(W) * 150 (D)
Weight	500Kg
Packaging Details	1. The equipment is covered with film is protect it from water vapour during the trip. 2. The box is filled with foam to protect the equipment from impact. 3. Exported wooden box made from plywood, don't need fumigated.

Payment

Payment Item	T/T	EXW 30% T/T in advance, paid the balance before shipment FOB CFR(C&F) 30% T/T in advance,paid the balance against copy of B/L CIF	30% T/T in advance, paid the balance before shipment
		FOB
		CFR(C&F)	30% T/T in advance,paid the balance against copy of B/L
		CIF
	L/C	L/C amount above 50,000 usd, we can accept L/C at sight
	West Union	Amount lower than 50,000usd
Delivery Time	7~10 days after receiving payment for one container
