Laboratory Ring Spinning Machine

Supplier: Anytester (Hefei) Co., Ltd.
Region: Anhui, China
Contact: Mr Eric Qin
Price: $10000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Production Capacity:	200;	Spindle speed:	Max. 12000rpm;
Applicable Industries:	Manufacturing Plant,Machinery Repair Shops;	Application:	Laboratory Ring Spinning;
Port:	Any China Seaport;	Number of spindles:	6;
Twist range:	50~250twists/meter;	Brand Name:	Anytester;
Power supply:	AC220V 50Hz, 550W;	Spinning Method:	Ring Spinning;
Warranty:	1 Year;	Power(W):	550W;
After-sales Service Provided:	Video technical support,Online support;	Type:	Spinning Production Line;
Packaging Detail:	Export Standard Wooden Case;	Automatic:	Yes;
Twist direction:	Z or S, settable;	Certification:	ISO;
Condition:	New;	Fiber type:	Cotton or cotton-type chemical fibers Customized for wool;
Supply Ability:	200 Unit/Units per Year;	Output capacity:	0.25~0.5kg/h;
Spacer:	18pcs;	Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram;
Warranty:	one year;	Draft range:	Approx. 2~50;
Place of Origin:	Anhui China;

Product Description

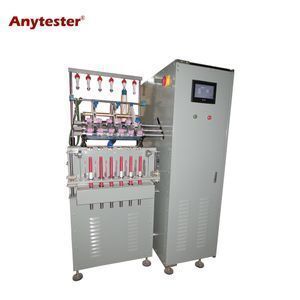

AT206 Laboratory Ring Spinning Machine is part of the mini spinning system (including opener, carding machine, drawing frame, roving machine and ring spinning machine) which is widely used in universities and researching center or departments for spinning test. AT206 Laboratory Ring Spinning Machine is used to spin yarn from roving by ring spinning method.

Detailed Images

★ Mini machine, save researching cost and easy to operate and maintain;

★ Touch screen & PLC control;

★ Friendly human-machine interface, inputting of technical parameters and display of machine running status by touch screen;

★ Frequency converter of high efficiency to control roll speed;

★ Pressurizing system :spring pressure cradle;

★ Three-up-three-down drafting structure;

Specificcation

Model	AT206
Number of spindles	6
Fiber type	Cotton or cotton-type chemical fibers Customized for wool
Twist range	50~250twists/meter
Draft range	Approx. 2~50
Output capacity	0.25~0.5kg/h
Roll diameter	¢25mm
Ring diameter	Φ38 ~ 45mm
Spindle speed	Max. 12000rpm
Twist direction	Z or S, settable
Power supply	AC220V 50Hz, 550W

Packing & Delivery

Packaging
Packaging Details	1. The equipment is covered with film is protect it from water vapour during the trip. 2. The box is filled with foam to protect the equipment from impact. 3. Exported wooden box made from plywood, don't need fumigated.

Payment

Payment Term	T/T	EXO	30% T/T in advance, paid the balance before shipment
		FOB
		CFR(C&F)	30% T/T in advance, paid the balance against copy of B/L
		CIF
	L/C	L/C amount above 50,000 usd, we can accept L/C at sight
	West Union	Amount lower than 5000usd

Delivery Time	7~10days after receiving payment for one container
