Lab Cone Winding Machine Specified Equipment In The Textile Industry

Supplier: Anytester (Hefei) Co., Ltd.
Region: Anhui, China
Contact: Mr Eric Qin
Price: $5000.00 /unit
Min. Order: 1 unit

Click here to contact

Product details

Grooved drum:	O/D82mm Pitch: 2.5*147;	Application:	Lab;
Brand Name:	Anytester;	After-sales Service Provided:	Video technical support,Online support;
Rated power:	60W/spindle at max. speed;	Supply Ability:	200 Unit/Units per Year;
Max. winding speed:	1100meter/minute;	Radial anti-aliasing system:	Microcomputer control;
Yarn-guiding traverse:	Standard 147mm;	Power supply:	AC220V 50Hz, single-phase;
Condition:	New;	Package Preview:	;
Place of Origin:	China;	Production Capacity:	200/year;
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram;	Power(W):	60W/spindle at max. speed;
Port:	Any China Seaport;	Automatic Grade:	Automatic;
Voltage:	AC220V 50Hz, single-phase;	Certification:	ISO;
Applicable Industries:	Manufacturing Plant,Energy & Mining;	Drive mode:	DC brushless motor with adjustable speed;
Number of spindles:	4, 6, 12, 24, 36, ..., 108, 120;	Take-up package:	cylindrical;
Max. length setting:	999999 meter, electronic setting;	Packaging Detail:	Export Standard Wooden Case;
Warranty:	1 YEAR;

Product Description

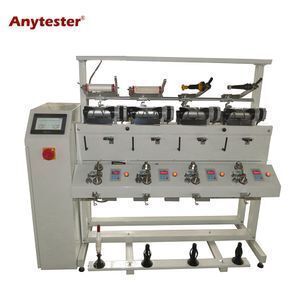

AT209 Lab Cone Winding Machine is a specified equipment in the textile industry as the bridge from the spinning of yarn to the manufacturing of fabric. It is the final process in the spinning of yarn to use tube yarn/cop to make bobbins/cones of large capacity for the manufacturing of fabric. The purpose of winding is to produce bobbin/cones of large capacity and to eliminate faults on yarn. For other purpose of loose winding before dyeing or compact winding after dyeing, please inform us before ordering.

Features

Touch Screen

★ Two control modes: uniform control on touch screen (optional) for spindles on each side and independent control on control panel for each spindle;

★Automatic length setting up to 999999 meter;
Variable-frequency Motor

★DC brushless motor to independently drive each grooved drum with adjustable winding speed;

Optical Yarn-breaking Detector

★Microcomputer controlled anti-aliasing;

★ Optional knotter and optional electronic yarn cleaner;

★Optional bobbin clamps for different bobbins;

★ Optical yarn breaking detector for each spindle;

Specifications

Model	AT209
Number of spindles	4, 6, 12, 24, 36, ..., 108, 120
Grooved drum	O/D82mm Pitch: 2.5×147
Take-up package	3º30´, 4º20´,5º57´,9º15´or cylindrical
Max. package diameter	¢280mm
Max. length setting	999999 meter, electronic setting
Drive mode	DC brushless motor with adjustable speed
Max. winding speed	1100meter/minute
Yarn-guiding traverse	Standard 147mm
Radial anti-aliasing system	Microcomputer control
Rated power	60W/spindle at max. speed
Power supply	AC220V 50Hz, single-phase

Packing & Delivery

Packaging Details

The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.

Payment

Payment Item	T/T	EXW 30% T/T in advance, paid the balance before shipment FOB CFR(C&F) 30% T/T in advance,paid the balance against copy of B/L CIF	30% T/T in advance, paid the balance before shipment
		FOB
		CFR(C&F)	30% T/T in advance,paid the balance against copy of B/L
		CIF
	L/C	L/C amount above 50,000 usd, we can accept L/C at sight
	West Union	Amount lower than 50,000usd
Delivery Time	7~10 days after receiving payment for one container
