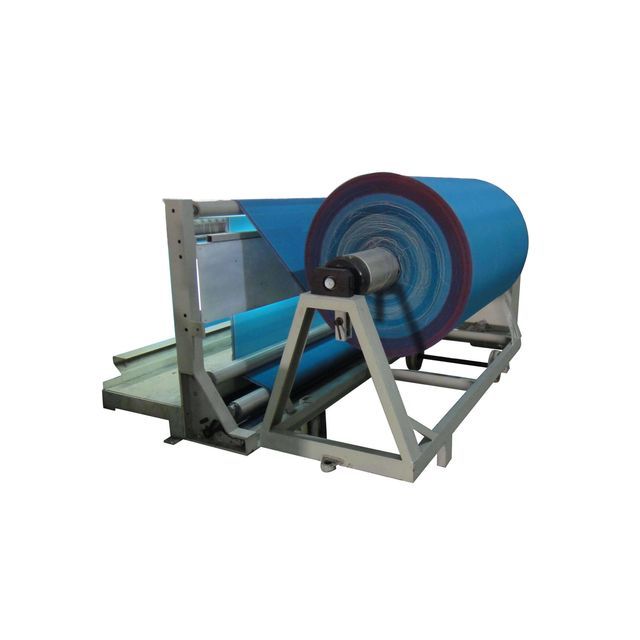

Factory wholesale release roll A frame textile winder loom winder

Supplier: Wuxi Xianchuang Textile Machinery Factory
Region: Jiangsu, China
Contact: Mr Zhenfang Zhang
Price: $3000.00 / 1 - 9 pieces
$2800.00 / >=10 pieces
Min. Order: 1 piece

Click here to contact

Product details

thing:	Fabric Winder	Edge alignment error:	less than 5mm
weight:	800 kg	Applicable industries:	weaving mill
brand:	Pioneer	After Warranty Service:	Video technical support, no service, online support, spare parts, on-site maintenance and repair services
Video outbound inspection:	if	After-sales service provided:	Free spare parts, video technical support, online support, on-site maintenance and repair services
product name:	Horizontal cloth roll winder for weaving	Local service locations:	not any
Core component warranty:	1 year	strength:	0.25 kW, 50 Hz
application:	loom	Origin:	Jiangsu, China
Dimensions (LWH):	custom made	port:	Ningbo/Shanghai
Core components:	Bearings, gearboxes, motors, pressure vessels, gears	Health status:	new
Mechanical test report:	if	payment terms:	L/C, T/T
Maximum winding diameter:	1500 mm	Supply capacity:	100 pieces per month
speed:	Synchronized with the loom	Showroom location:	not any
Voltage:	According to the actual situation, 380v	Fabric Width:	1.2-4.5 meters
Marketing Type:	normal product	usage:	loom
Automatic level:	automatic	Packaging Details:	Full box of steel pallets and stretch film (full box)
Warranty:	1 year	aspect:	According to customer's fabric width

Product Description

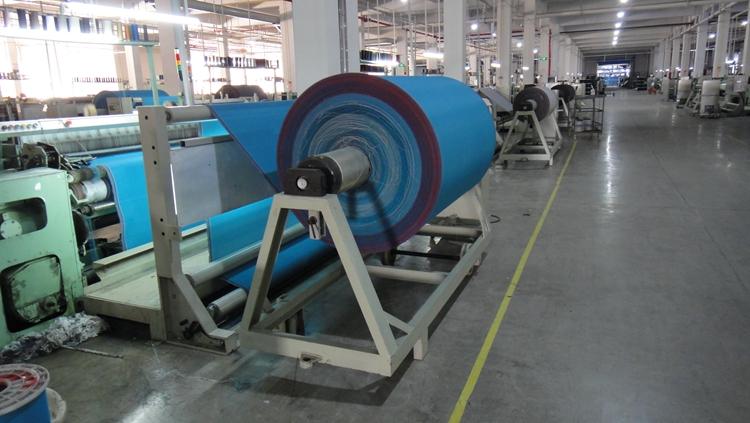

Horizontal cloth winding machine can be widely used to connect jet, rapier, ejection, water flow
The looms produced by manufacturers such as air-jet looms can be used to roll ordinary cotton and chemical fiber fabrics, and can also be used to roll industrial fabrics such as glass fibers and geotextiles.
1. Reduce fabric waste and improve efficiency
2. Fast and easy to operate, one operator can take care of multiple machines
3. High degree of automation, can automatically track the start, stop and speed change of the loom, set the tension, and make the winding smooth.
4. Variable working width

Main technical features

technical specifications
* Speed: synchronized with the loom
* Fabric width: 1.2-4.5 meters
* Maximum winding diameter: 1500mm (standard: 1200mm)
* Edge error: ≤5mm
* Dimensions (L*W*H): according to customer's fabric width
* Electrical specification: 3Phase-380V; 50HZ (can be adjusted to suit different countries.)
* Inverter control electrical mode
* Automatic winding, stop, manual reverse and other operating functions

machine structure
* A-frame platform adopts anti-fatigue material

* Power driven trolley composed of gears, chains and motors
* Tension control platform
* Anti-skid pedals
* OPTION - Examination table with LED
* Option - HMI operation mode
* OPTION - Precise length measurement with an accuracy of ± 0.01%
* OPTION - Pneumatic pressure roller unit designed for tighter cloth winding

Vertical Cloth Roll Winding Machine for Weaving
birthplace	Jiangsu, China
brand	Pioneer
Warranty	1 year warranty for core components
Applicable industry	weaving mill, textile mill
usage	loom
strength	0.25 kW, 50 Hz
Voltage	according to actual condition
winding diameter	1500mm (Standard: 1200mm)
speed	Synchronized with the loom
thing	Fabric Winder
