Melt Spinning Machine For Carbon Fiber

Supplier: Anytester (Hefei) Co., Ltd.
Region: Anhui, China
Contact: Mr Eric Qin
Price: $18500.00 /set
Min. Order: 1 set

Click here to contact

Product details

Automatic:	Yes;	Showroom Location:	Canada,United States;
Package Preview:	;	Type:	Spinning Production Line;
Temperature Range:	RT~450;	Marketing Type:	New Product 2020;
After Warranty Service:	Video technical support,Online support,Spare parts;	Single package size:	177X79X90 cm;
Spinning Method:	Ring Spinning;	Condition:	New;
Selling Units:	Single item;	Application:	melt spinning using;
Machinery Test Report:	Provided;	Certification:	CE;
Local Service Location:	Canada,United States;	Core Components:	Pressure vessel;
Production Capacity:	5 sets/month;	Packaging Detail:	Export Standard Wooden Case;
Speed Range:	300~2800 m/min;	Dimension(LWH):	1770790900MM;
Display:	LCD;	Video outgoing-inspection:	Provided;
After-sales Service Provided:	Video technical support,Online support;	Single gross weight:	254.0 KG;
Weight:	254kg,254;	Warranty:	12 Months,1 Year;
Brand Name:	Anytester;	Power Supply:	220v,50Hz; or customized;
Sample Wetight:	10~100g;	Feed Cylinder Volume:	150ml;
Place of Origin:	Anhui China;	Applicable Industries:	Lab Researching;
Controll:	Large Touch Screen;	Warranty of core components:	1 Year;
Winder Dia:	200mm;

Product Description

Product Application.

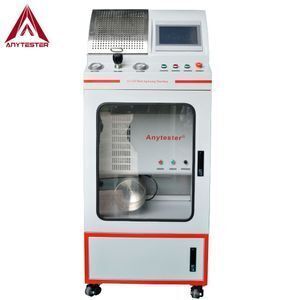

AT225 Laboratory Melt Spinning Machine is a main key equipment in synthetic fibre production. This machine uses high temperature ceramic to heat and melt the polymer sample, and extrude the sample to be liquid trickle from a spinneret under the effect of inert gas pressure, then nascent fibers form under the effect of air cooling.

Model		AT225
Pressure range		Design pressure: 3.6MPa Input pressure: ≤13MPa, Output pressure: ≤1.6MPa, accuracy: ±0.01MPa
Temperature range		450℃ max.
Temperature accuracy		±0.5℃
Heating mode		Two sections of heating furnace, Mullite fiber insulation
Temperature control mode		Two pieces of temperature controller, high precision of ±0.5℃
Feed cylinder		150ml, stainless steel, with soaking distribution device
Spinneret plate		Dia. 0.2, 0.3, 0.4, 0.5 optional L: D: 2:1~3:1 optional kinds of hole optional (please specify before order)
Rotary head		Friction driven rotary head
Speed range		0~1400 RPM
Winder Dia.		200 mm or adjusted
Max. Winder dia.		320mm
Rotary head		Friction driven rotary head
Power supply		AC110V, 50Hz
Weights		260 kg
Dimension		7307201685

Details & Features

Touch Screen Control

> Large LCD display

> Touch screen control make the operation simple

> English and Chinese language selectable

Modularization Design

> Three section heat area，control individually.

> Interior of machine equip with lighting device.

> electric fan cooling system

Removable Winder

> will able to replace the winder by new one with different Diameter.

> Rotate Speed adjustable to make fiber with different fineness.

316L Feed Cylinder

> High quality 316L stainless steel make the machine long life
> 150 ml standard tank volume

> Able to accommodate 10~100 g raw material

Sample after test

> Be suitable for researching carbon fiber，PET, kinds of polymer， etc.

>10 g sample can spinning 100 minutes

>For 0.15mm spinnret hole, finished fiber with 5~15 um dia.

Our Company

History

Since 1982 with more than 20 years’ experience

Warranty

Two Year Warranty for whole product

Training

Video and user manual for training

Onsite service

Installation and training service is available

Testing service

Free sample testing before order is available

Lead time

15 working days lead time for most product

Certifications

Packing & Delivery

Packaging
Size(cm)	73 (L) * 72 (W) * 168.5 (D)
Weight	260 Kg
Packaging Details	1. The equipment is covered with film is protect it from water vapour during the trip. 2. The box is filled with foam to protect the equipment from impact. 3. Exported wooden box made from plywood, don't need fumigated.

Payment

Payment Term	T/T	EXW	30% T/T in advance, paid the balance before shipment
		FOB
		CFR(C&F)	30% T/T in advance, paid the balance before shipment
		CIF
	L/C	L/C amount above 50,000 usd, we can accept L/C at sight
	West Union	Amount lower than 5000usd
	West Union
Delivery Time	30~40 days after receiving payment for one container
