Semi-automatic sample weaving machine for yarn testing

Supplier: Anytester (Hefei) Co., Ltd.
Region: Anhui, China
Contact: Mr Eric Qin
Price: $4300.00 /set
Min. Order: 1 set

Click here to contact

Product details

Warranty:	12 Months;	Selling Units:	Single item;
Power(W):	220V;	Take-up:	Manual;
Single package size:	150X125X180 cm;	After-sales Service Provided:	Video technical support,Online support;
Brand Name:	Anytester;	Application:	sample loom;
Dimension(LWH):	1401800180 mm;	Package Type:	Export Standard Wooden Case;
Color selection:	Manual;	Weight:	200;
Shedding Method:	Dobby;	Certification:	ISO 9001;
Beat-up:	Manual;	No. of heald frame:	16 (20 optional);
Shedding:	Pneumatic & PLC control;	Type:	Shuttle Loom;
After-sales Service Provided:	Engineers available to service machinery overseas;	Production Capacity:	High speed;
Condition:	New;	Let-off:	Manual;
Warranty:	12 Months;	Applicable Industries:	Garment Shops;
Reed width:	16inch or 20inch;	Single gross weight:	200 KG;
Place of Origin:	Anhui China;

Product Description

Product Application.

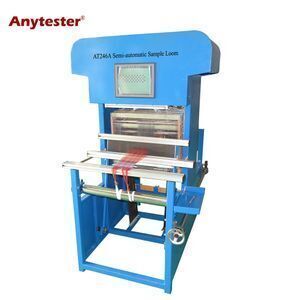

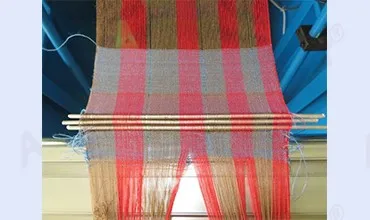

AT246A Semi-automatic Sample Loom is used for sample weaving of all kinds of fabrics, such as cotton, hair, jute, silk, chemical fiber, blending, etc. It consists of shedding mechanism, weft insertion mechanism, beating-up mechanism, take-up mechanism, let-off mechanism, weft selection mechanism, electrical control mechanism, etc. It is widely used in weaving mills, scientific research units, textile institutes and foreign trade companies, etc.

Specifications
Shedding Method		Dobby
Reed width		16inch or 20inch
No. of heald frame		16 (20 optional)
Let-off		Manual
Shedding		Pneumatic & PLC control
Color selection		Manual
Beat-up		Manual
Take-up		Manual
Air pressure		0.45~0.8Mpa
Air consumption		Max. 200L/min
Power		A220V 50Hz, single-phase
Dimensions		1300×980×1510mm (L×W×H)
Weight		Approx. 200kg

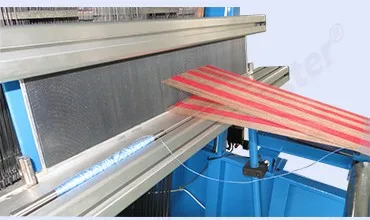

Details & Features

> Large LCD display

> Touch screen operation

> PLC control

> with 2G memory capacity to store designed patterns

> Designable and editable patterns and USB interface to share designed patters;

> Integrally welded by seamless rectangular steel pipe, reasonable construction and good rigidity;

> Outer surface treated by baking varnish, good brightness and nice appearance;

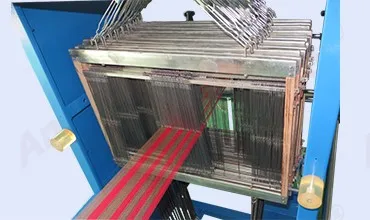

> Pneumatic Dobby shedding mechanism to avoid the disadvantage of easy to wear for traditional peg mechanical structure;

> With illuminating lamps;

> Stable operation, low noise and high reliability;

Packing & Delivery

Packaging
Size	140(L) * 100(W) * 180 (D)
Weight	200 Kg
Packaging Details	1. The equipment is covered with film is protect it from water vapour during the trip. 2. The box is filled with foam to protect the equipment from impact. 3. Exported wooden box made from plywood, don't need fumigated.

History

Since 1982 with more than 20 years' experience

Warranty

Two Year Warranty for whole product

Training

Video and user manual for training

Onsite service

Installation and training service is available

Testing service

Free sample testing before order is available

Lead time

15 working days lead time for most product
