charcoal forming machine charcoal forming machine charcoal forming machine

Supplier: Gongyi Xiaoyi Mingyang Machinery Plant
Region: Henan, China
Contact: Ms Kiki Ding
Price: $3962.00 / 1 - 1 sets
$2286.00 / >=2 sets
Min. Order: 1 set

Click here to contact

Product details

port:	Qingdao, Shanghai or other ports in China	Origin:	Henan, China
Packaging Details:	Pack into standard container	product name:	charcoal machine
usage:	charcoal machine	payment terms:	L/C, Western Union, D/P, D/A, T/T, MoneyGram, Trade Assurance
Name:	Sawdust charcoal carbonization furnace	Marketing Type:	Hot Products of 2019
Health status:	new	Supply capacity:	20 charcoal machines per month
strength:	1.5 kW	After-sales service provided:	engineer
Package preview:		Weight (kg):	3500
Advantage:	Continuous working environment is friendly	Video outbound inspection:	if
Main selling points:	easy to operate	Warranty:	1 year
Showroom location:	not any	fuel:	firewood gas natural gas
Core components:	Inner furnace, outer furnace, elevator, purification system	Applicable industries:	Mechanical repair shop, manufacturing plant, farm, home use, retail, construction, energy and mining, charcoal machines, charring ovens, charring ovens
Carbonization time:	6-8 hours	feature:	Continuous machine
Core component warranty:	1 year	Dimensions (LWH):	446m
brand:	Ming Yang	Mechanical test report:	if
Voltage:	380V 50Hz three phase	raw material:	Coconut shell, bamboo wood, etc.
capacity:	1.5-2 tons/day	Effective volume:	2.56 square *3

charcoal forming machine charcoal forming machine charcoal forming machine

Product Description

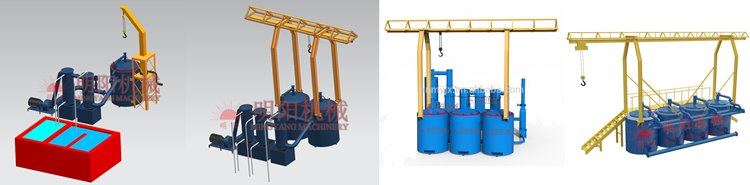

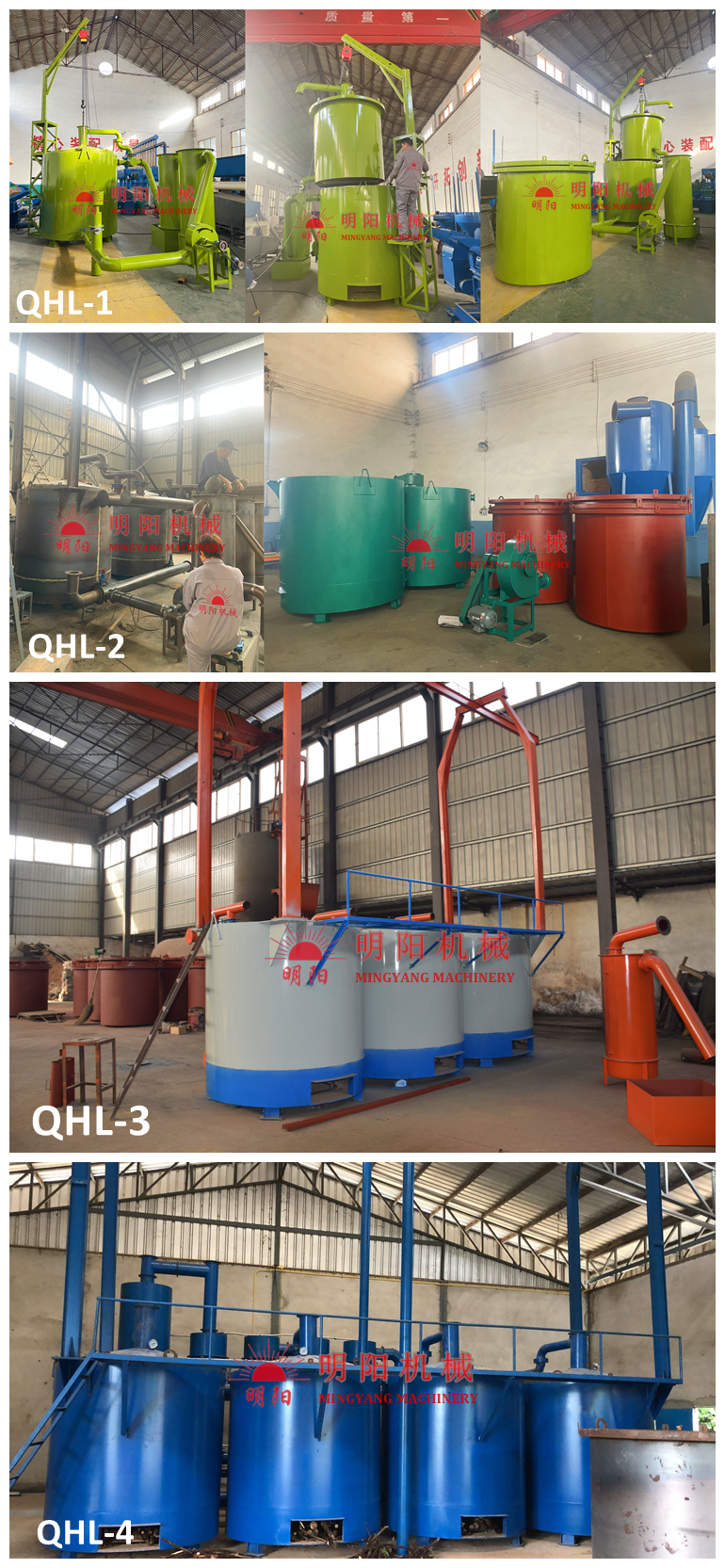

Model	QHL-1	QHL-2	QHL-3	QHL-4
strength	1.5kw(fan power)+ 0.75kw (electric hoist power)	3kw(fan power)+ 3.7kw (electric hoist power)	3kw(fan power)+ 3.7kw (electric hoist power)	4kw(fan power)+ 3.7kw (electric hoist power)
capacity	1.5-2 tons/24 hours	3-4 tons/24 hours	4.5-6 tons/24 hours	6-8 tons/24 hours
capacity		notes:The capacity is the biomass charcoal capacity; if your raw materials are different, the capacity will be different. so If you want to know the exact capacity, please tell Bella the raw material you intend to use;
Carbonization time	Biomass charcoal carbonization time 6-8 hours notes:If your raw material is other raw material, please tell me the raw material moisture content, then we can tell you the charring time. )

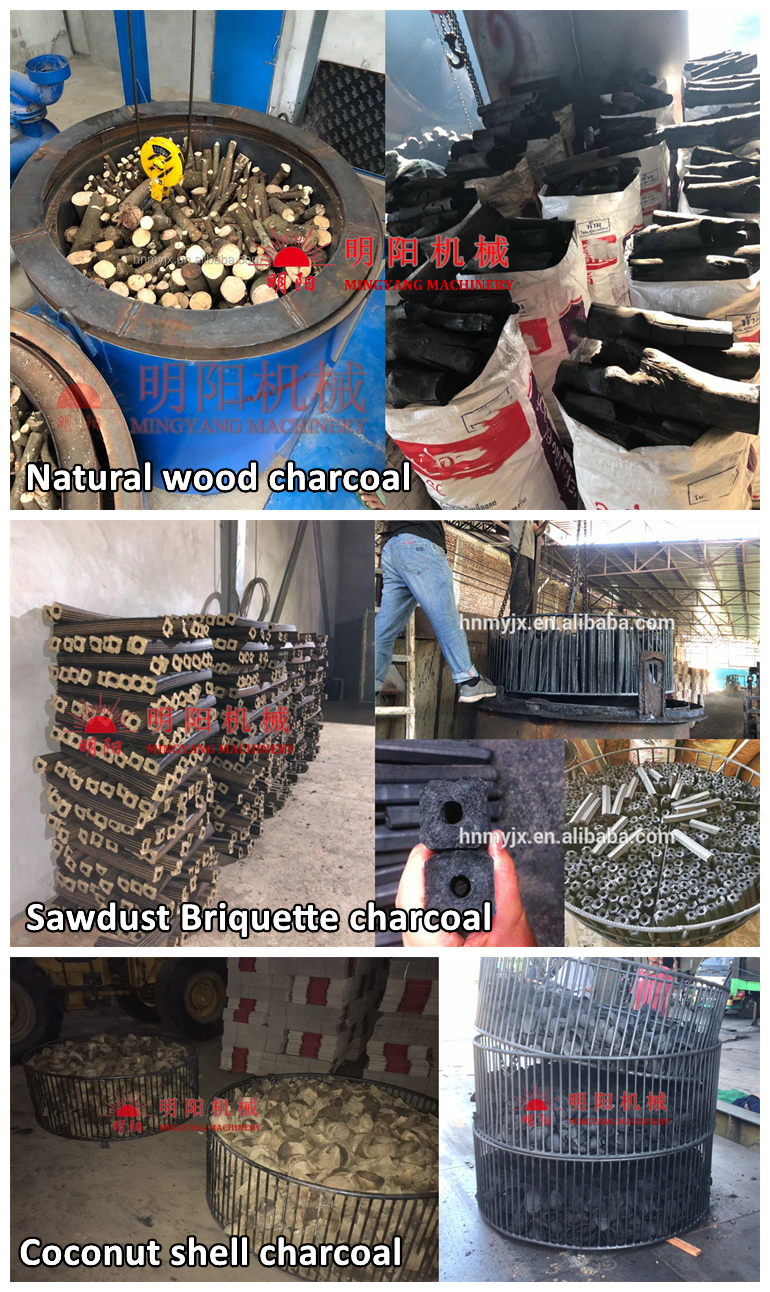

Applicable raw materials	All kinds of wood, logs, branches, coconut shells, nut shells, corn cobs, corn stalks, bamboo, various straws and other biomass materials

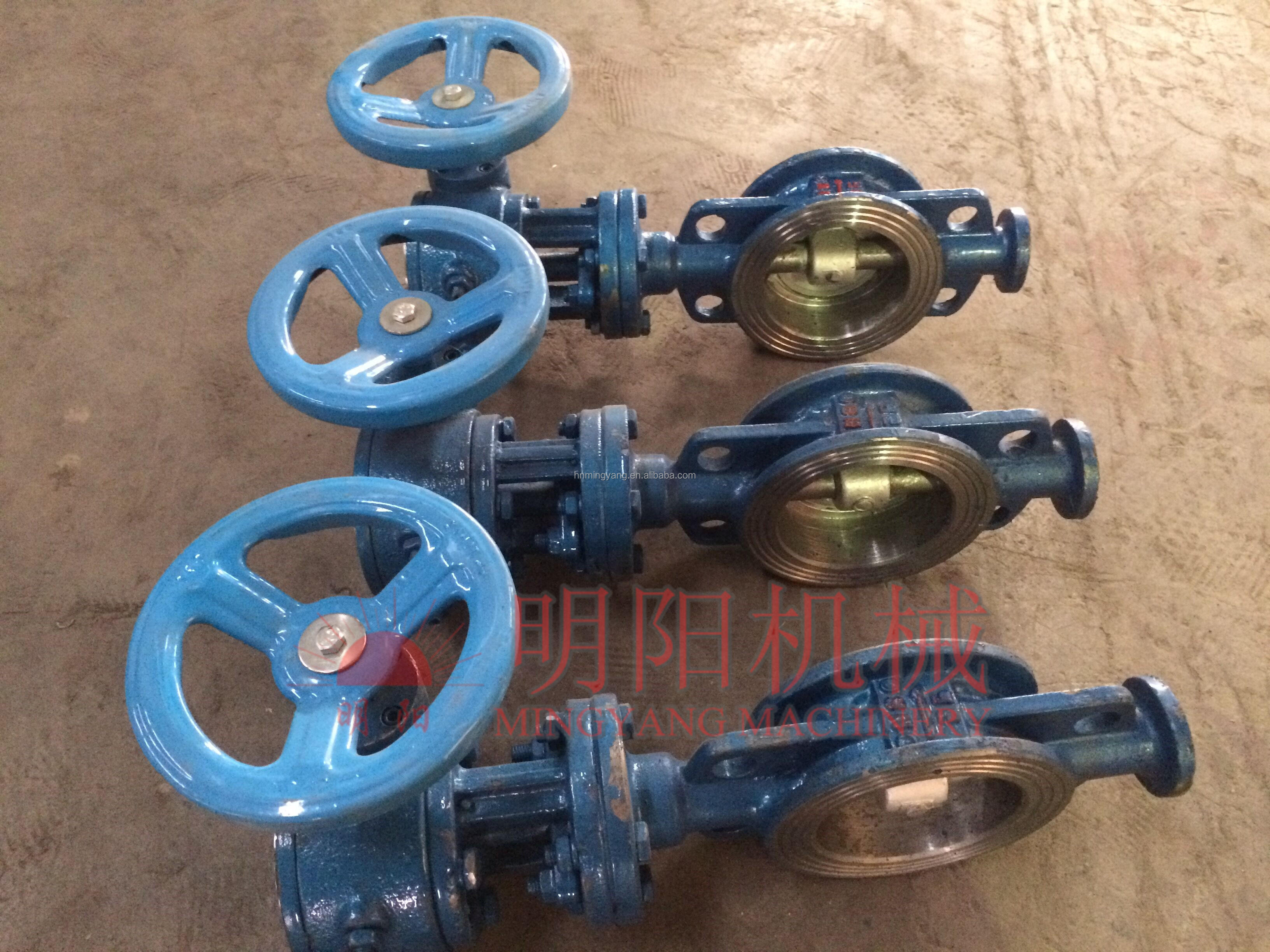

include parts	Outer furnace1 Inner furnace3 Hat3 Gourd stand1 Electric hoist1 Purification system1 fan*1 Valves and Pipes	Outer furnace2 Inner furnace6 Hat6 Gourd stand1 Electric hoist1 Purification system1 fan*1 Valves and Pipes	Outer furnace3 Inner furnace9 Hat9 Gourd stand1 Electric hoist1 Purification system1 fan*1 Valves and Pipes	Outer furnace4 Inner furnace12 Hat12 Gourd stand1 Electric hoist1 Purification system1 fan*1 Valves and Pipes
weight	3500 kg	7000 kg	10500 kg	14000 kg
land space	446m	856.5m	966.5m	1266.5m
containerized	LCL or 1*20GP	1*20GP	1*40HC	140HC+120GP

detailed image

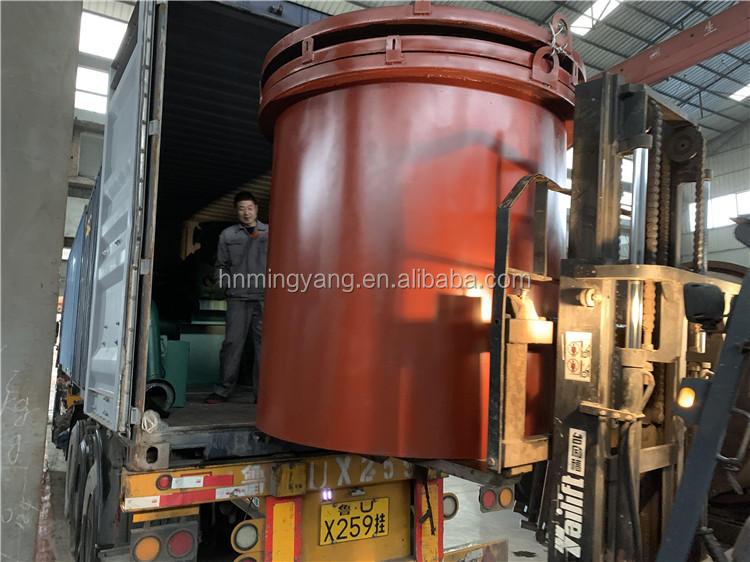

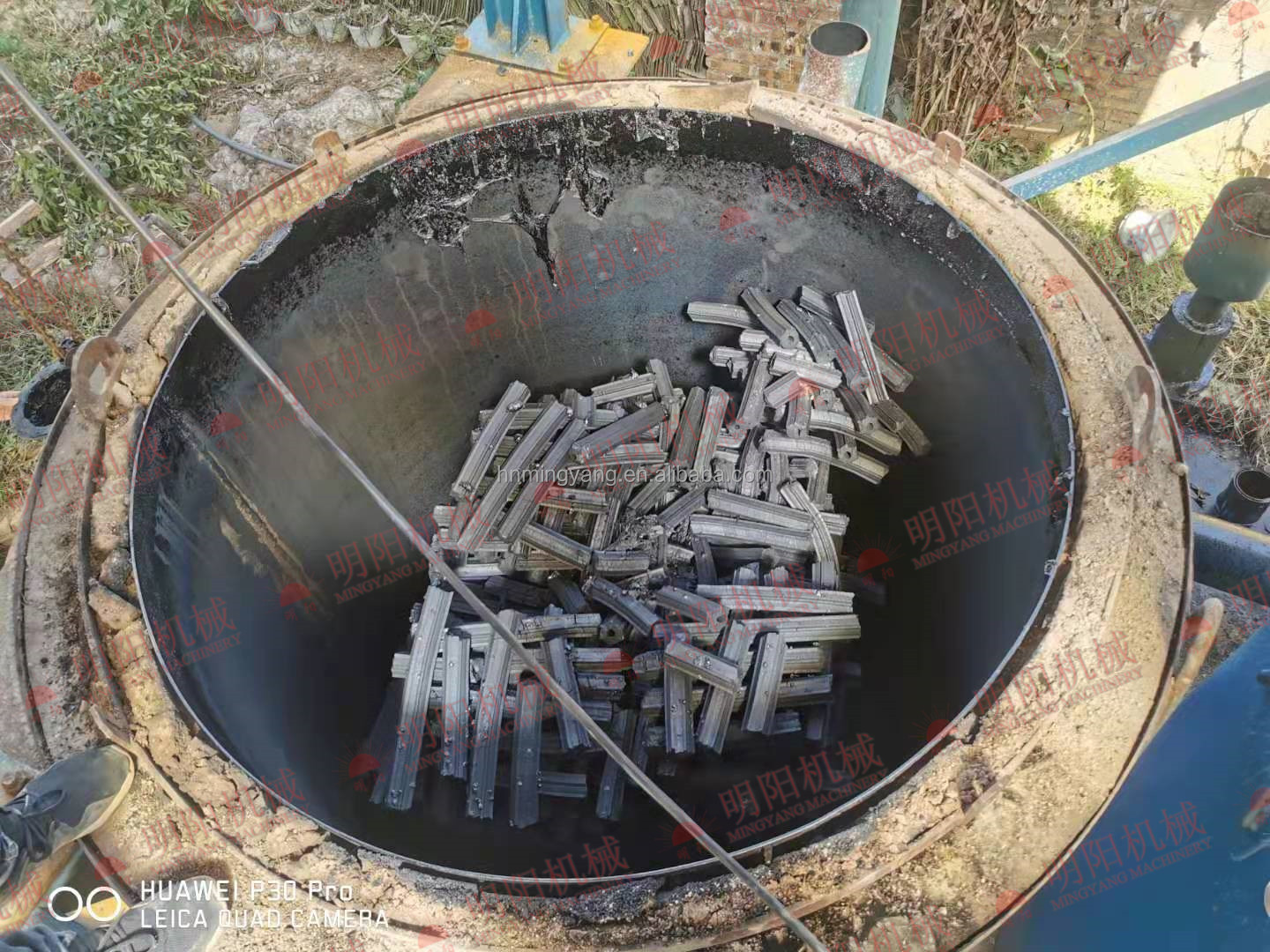

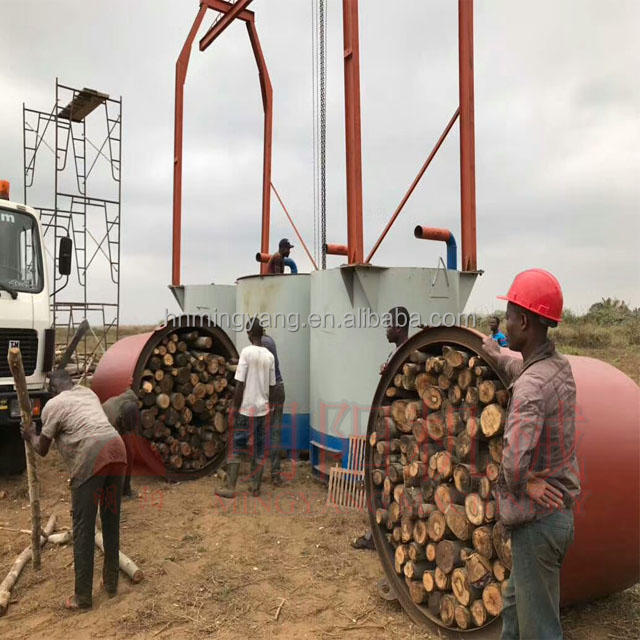

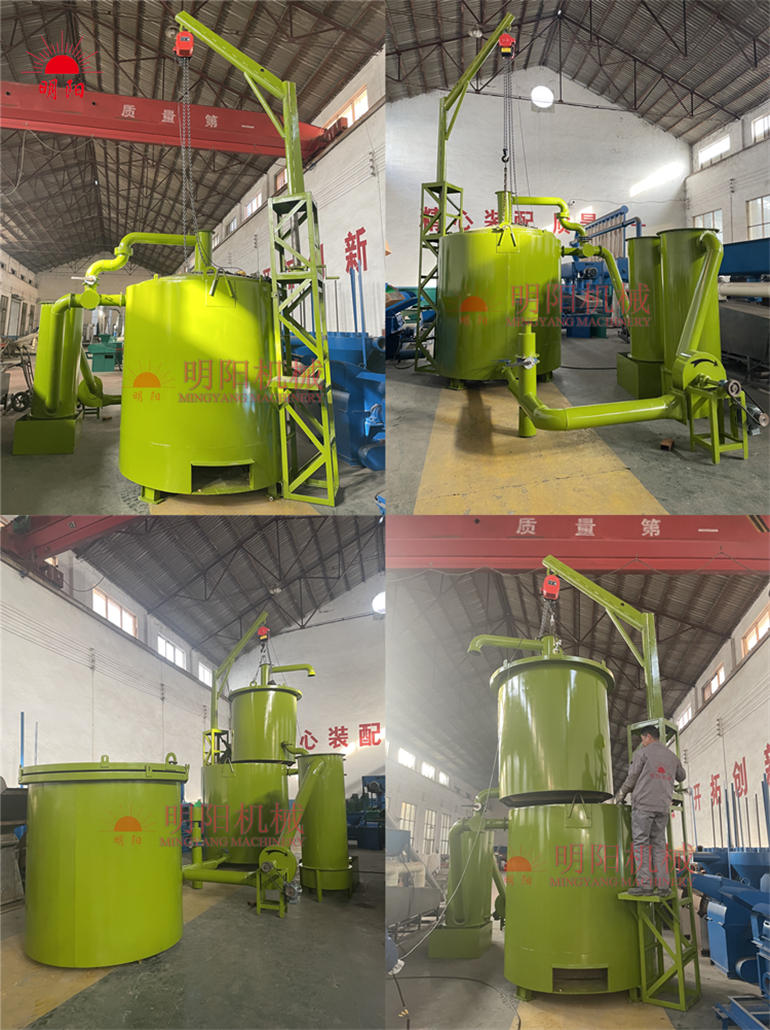

Inner furnace

Each outer furnace has three inner furnace pieces, so when a charring pass is done, we can take it out to the ground and move on to the next round.

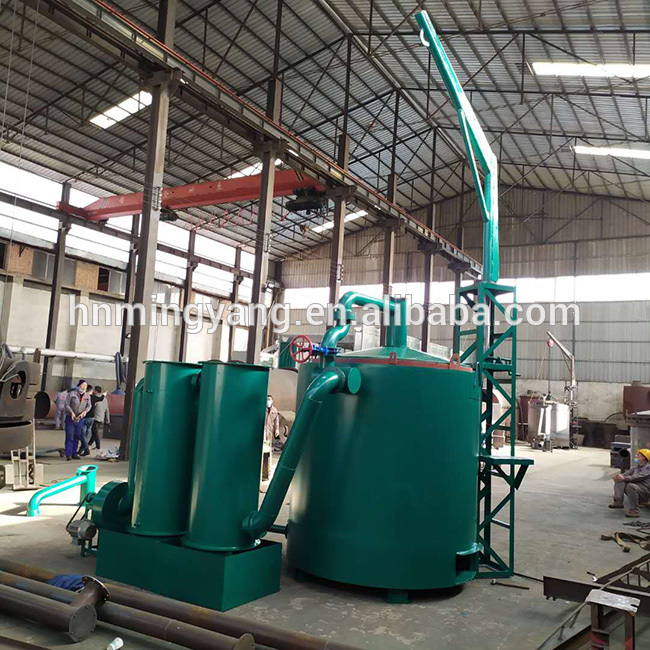

Outer furnace

The outer furnace is the chamber that heats the inner furnace and is filled with charcoal-making materials.

cover

Each inner furnace has a cover, and the function of the cover is to seal the inner furnace.

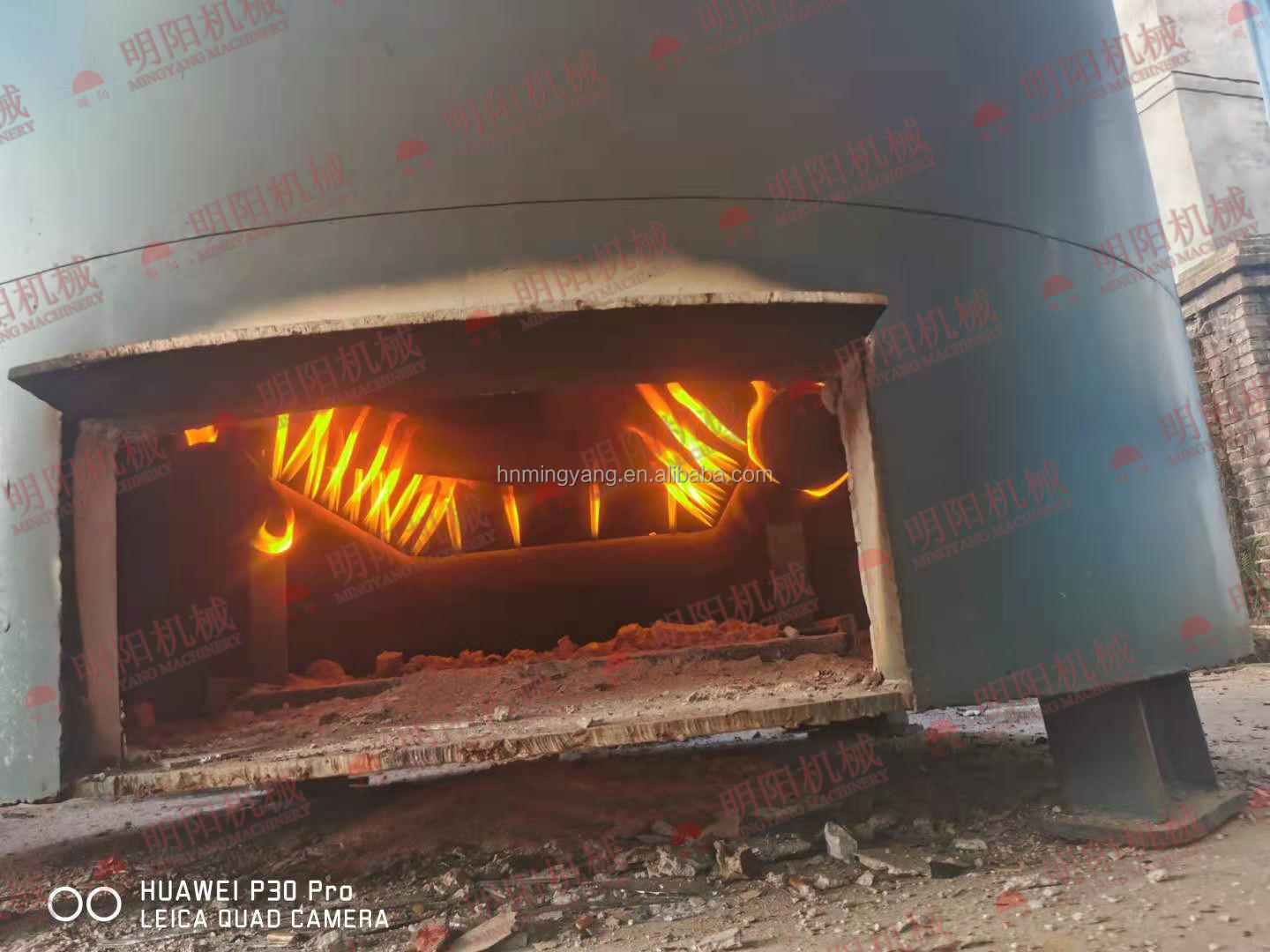

Burner and Combustible Gas Combustion

At the beginning, we put firewood, coal or light guide plate gas here to heat the furnace; then during the carbonization process, combustible gas will be produced, which can return to the burner as fuel to burn again.
