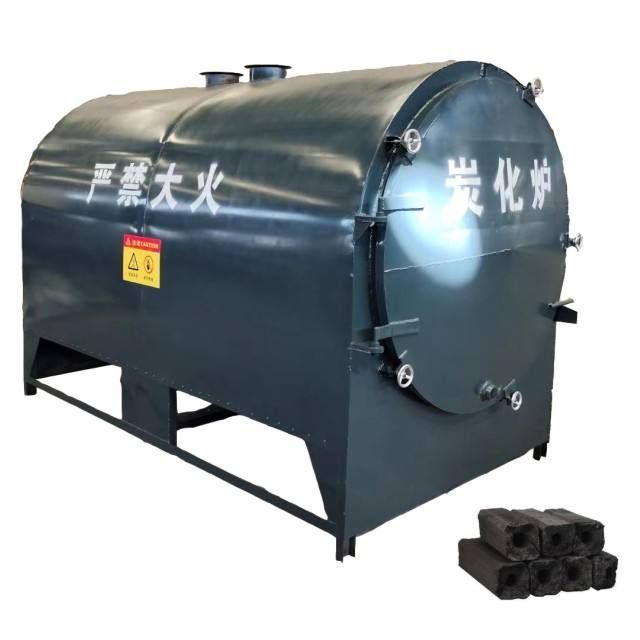

Factory direct supply charcoal kiln wood chip carbonization machine carbonization furnace

Supplier: Henan Zhongyi Import And Export Co., Ltd.
Region: Henan, China
Contact: Ms amy yu
Price: $1600.00 / 1 - 4 sets
$1500.00 / >=5 sets
Min. Order: 1 set

Click here to contact

Product details

product name:	Hardwood charcoal carbonization furnace	Warranty:	1 year
Package preview:		Weight (kg):	450
Applicable industries:	Manufacturing plants, food and beverage plants, farms, home use, others	raw material:	coconut shell
After-sales service provided:	Overseas Service Machinery	Name:	Sawdust Continuous Carbonization Furnace
Dimensions (LWH):	190012001700mm	Advantage:	Continuous working environment friendly
payment terms:	L/C, Western Union, D/P, D/A, T/T, MoneyGram	Core components:	PLC, engine, bearing, gearbox, motor, pressure vessel, gear, pump
Finished goods:	carbon block	Main selling points:	easy to operate
Supply capacity:	30 sets per month	Packaging Details:	wooden box
usage:	charcoal machine	Voltage:	380V
Marketing Type:	New Products 2022	strength:	50 Hz
Core component warranty:	1 year	Video shipment inspection:	if
application:	making charcoal fire	Effective volume:	1-10 cubic meters
port:	Tianjin/Shanghai/Qingdao/Ningbo/Guangzhou/Dalian/Shenzhen	Mechanical test report:	if
Applicable raw materials:	waste wood	Showroom location:	Italy, France, India, Kenya, South Korea, Chile, Sri Lanka, South Africa, Tajikistan
Key words:	Charcoal carbonization furnace	Origin:	Henan, China
Health status:	new	brand:	favorite

Product overview

Smokeless charcoal machine biochar kiln carbonization furnace wood biomass briquettes airflow carbonization furnace carbonization furnace

It adopts advanced heat flow carbonization technology, the carbonization rate is significantly improved, and the carbonization rate reaches 99%. Moreover, the operation is very convenient, the safety is good, the production efficiency is high, a large amount of energy can be saved, and the environmental protection performance is good. It can also divert flue gas from dry-fired boilers, etc. It truly realizes charcoal, gas and oil series equipment, and is currently the most advanced carbonization furnace in the world.

Features:

1. Horizontal carbonization furnace is a new type of airflow carbonization furnace, also known as charcoal kiln, charcoal making machine and charcoal furnace. It is used to make charcoal from wood and various biomass. 2.The new horizontal bamboo charcoal carbonization oven can directly carbonize fruit trees, bamboo, branches, wood blocks,
Coconut shells, palm shells, furniture factory waste, etc.. 3. Convenient operation, safety and environmental protection, high production efficiency. It is the main ideal equipment for charcoal production line.

1. The carbonization furnace adopts a horizontal manufacturing process. The carbonization furnace has a three-layer structure, and the middle is made of light insulation materials, which can maintain the temperature in the furnace at all times. 2. The furnace door is sealed with packing, no air enters, and the carbon output rate is much higher than that of conventional carbonization furnaces. 3. The reason why it is called a green carbonization furnace is that a large amount of light yellow combustible gas will be produced during the carbonization process of the stick. These gases pass through the carbonization furnace with its own pipeline, so that the combustible gas can be diverted to the combustion zone of the carbonization furnace for secondary fire heating. More environmentally friendly and more fuel-efficient. 4. The residual gas of the carbonization furnace can be used to dry sawdust or burn boilers. 5. The cooling time from the carbonization furnace to the final carbon is shorter. We use the natural cooling interlayer gap of the unit water-cooled carbonization furnace, which is more efficient and convenient. 6. The environmental protection air carbonization furnace is equipped with rails and kiln cars, which is more convenient to use and reduces the labor intensity of workers. Customers purchase this kind of carbonization furnace, which is really simple, labor-saving, convenient to load and discharge carbon, greatly shorten the cooling time, and greatly increase the output of the carbonization furnace. Carbonization furnace can be customized according to customer requirements.

Biomass briquette charcoal production lion

Wood Shredder + Airflow Dryer + Briquette Machine + Carbonization Furnace

product specification

type	Specifications (Liner) (m)	Volume (cubic meter)	Capacity (kg)	Weight (kg)
TL-350	0.8*1.5	0.75	80-100	350
TL-450	1*1.5	1.2	100-150	450
TL-650	1.2*1.5	1.6	150-200	650
TL-800	1.5*1.5	2.65	300-350	800
